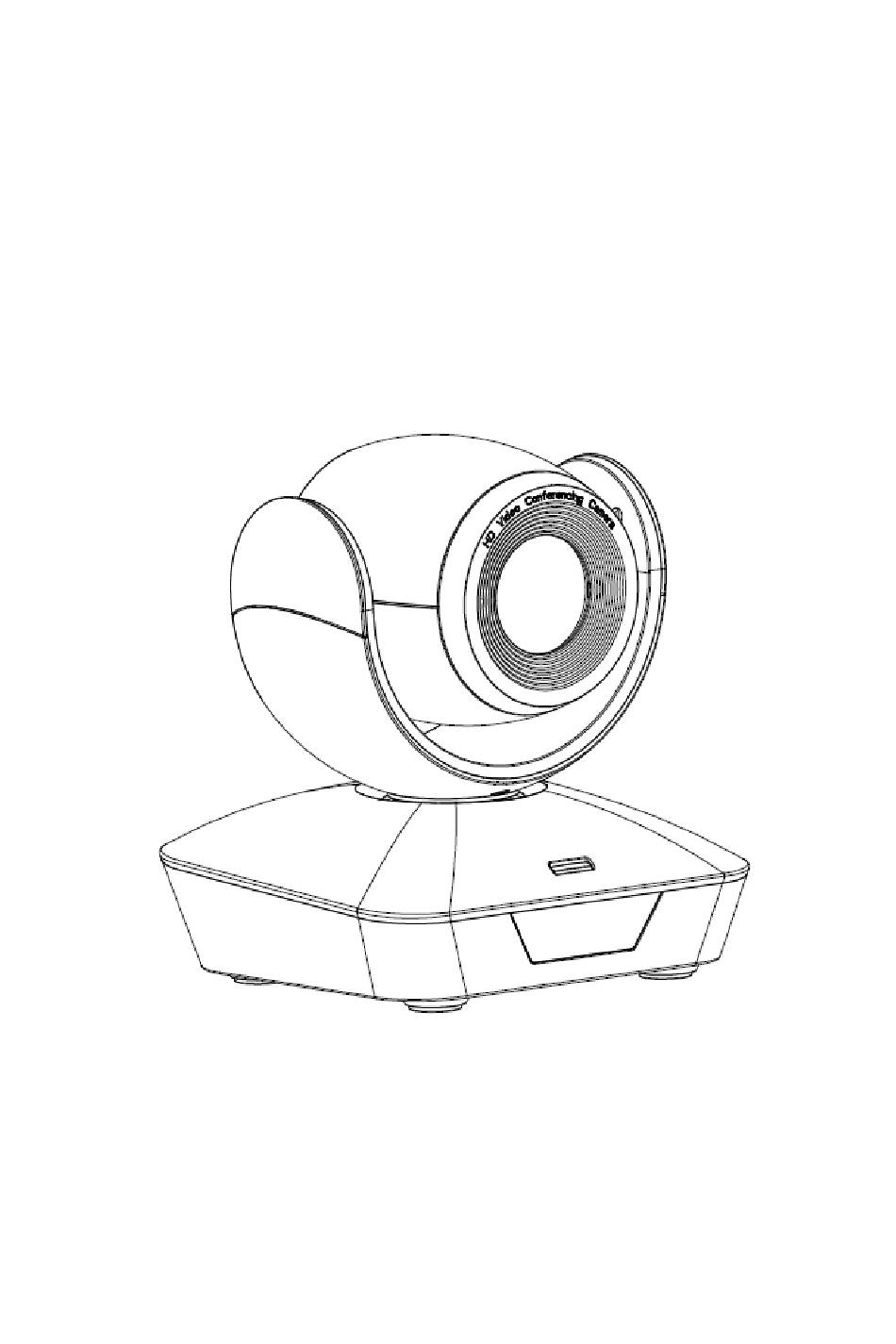

- Page 1 Dual SDI ePTZ Camera User Manual Version V1.0 （English）...
-
Page 3: Table Of Contents
CONTENTS SAFE GUIDES.…………………...…………………………………..…..…........…3 ACCESSORIES……………………………………………………………………..…........4 QUICK START..............................4 PRODUCT HIGHLIGHTS............................5 PRODUCT SPEC..............................5 CAMERA INTERFACE............................6 CAMERA DIMENSION............................6 IR REMOTE CONTROLLER..........................7 VISCA IN(RS232) PORT.............................8 VISCA PROTPCOL.............................9 PELCO-D PROTOCOL............................14 PELCO-P PROTOCOL............................15 OSD MENU..............................16... -
Page 4: Safe Guides
SAFETY GUIDES 1.Before operation, please fully read and follow all instructions in the manual. For your safety, always keep this manual with the camera. 2.The camera power input range is 100-240VAC(50-60Hz),ensure the power supply input within this rate before powering on. 3.The camera power voltage is 12VDC, rated currency is 0.5A. -
Page 5: Accessories
ACCESSORIES Check all bellow items when open the package: Camera · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1 Power Adapter ·... -
Page 6: Product Highlights
PRODUCT HIGHLIGHTS Adopts advanced Ambarella DSP，1/1.8 inch 12MP image sensor, and high quality 4K fixed optical lens, provides fluent and crystal image quality Fast switching between different video formats: less than 1 second No mechanical rotation, no mechanical wear ... -
Page 7: Camera Interface
CAMERA INTERFACE 1.Camera Lens 5.Dial Switch 9.Panoramic SDI Output 2.Camera Base 6.Tripod Screw Hole 10.Close-up Shot SDI Output 3.IR Receiver Panel 7.Installation Hole 11.12VDC Power Input 4.Indicator Light 8.RS232(VISCA IN) Port 12.Power Indicator Light(Red) DIMENSION (MM) -
Page 8: Ir Remote Controller
IR REMOTE CONTROLLER LED Function Instruction Press any button and shows in red color: Current selection is to control the camera; Press any button and shows in green color: Current selection is to control the codec; Press any button and shows in blue color: Current selection is to control the TV; Power button Red button: in normal work mode, short press one time, camera will enter standby mode;... -
Page 9: Visca In(Rs232) Port
LEARNING FUNCTION： Press the green button, the LED indicator light will show in green color for 1 second, means switch to video terminal/codec control mode; 2.Single Button Coding: long press(3seconds) Home +number"1" button simultaneously, the green indicator LED will light, enter button learning mode, press the buttons which need to be learned, LED will start flickering(1HZ), now can start button learning: get the codec remote point to the camera remote’s infrared tube( about 10cm distance), then press the button which need to be learned, the LED re-flickering when learning finishes ;... -
Page 10: Visca Protpcol
VISCA PROTOCOL PART 1 CAMERA RETURN COMMAND Ack/Completion Message Command Packet Note z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed. z = camera adderss+8 Error Messages Command Packet Note Returned when the command format is different or when a command with Syntax Error... - Page 11 Command Function Command Packet Note 8x 01 04 03 02 FF Down 8x 01 04 03 03 FF Direct 8x 01 04 43 00 00 0p 0q FF pq: R Gain (0~0xFF) Reset 8x 01 04 04 00 FF 8x 01 04 04 02 FF Manual Control of B Gain CAM_Bgain Down...
- Page 12 Command Function Command Packet Note CAM_ColorGain Direct 8x 01 04 49 00 00 00 0p FF (0~0x0E) CAM_2D Direct 8x 01 04 53 0p FF (0~0x05) Noise Reduction CAM_3D Direct 8x 01 04 54 0p FF (0~0x03) Noise Reduction 50HZ 81 01 04 23 01 FF FLICK 60HZ...
- Page 13 PART 3 INQUIRY COMMAND Command Command Return Message Note Package y0 50 02 FF CAM_PowerInq 8x 09 04 00 FF y0 50 03 FF Off(Standby) y0 50 00 FF Auto y0 50 01 FF Indoor mode y0 50 02 FF Outdoor mode CAM_WBModeInq 8x 09 04 35 FF...
- Page 14 1/125 1/120 1/100 1/100 1/90 1/75 1/60 1/50 1/30 1/25 1/15 1/12 16dB 18dB 20dB 22dB Gain Gain 24dB 10dB 26dB 12dB 28dB 14dB 30dB...
-
Page 15: Pelco-D Protocol
PELCO-D PROTOCOL Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02 Pan Speed Tilt Speed... -
Page 16: Pelco-P Protocol
PELCO-P PROTOCOL Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address 0x00 0x04 Pan Speed Tilt Speed 0xAF Right 0xA0 Address... -
Page 17: Osd Menu
OSD MENU under working mode, press the menu button on the IR remote, to enter the OSD menu ; 2.Use the navigate button to select the main menu. Once been selected, the main menu will change to blue color background, and the right side will show all parameters under this sub menu : 3.Press the right navigate button to enter sub menu, use up and down navigate button to select parameter;... - Page 18 Set white balance mode WB MODE B GAIN Blue Gain Level: 0~255,only available under manual white balance mode R GAIN Red Gain Level: 0~255,only available under manual white balance mode IMAGE FREEZE ON, OFF DEFOG Set image permeability RETURN Return to previous menu 2D NR 2D Noise Reduction: OFF/ON；...
- Page 19 IMAGE VER Image firmware version IMAGE DATE Image firmware date CONTROL VER Control firmware version INFO CONTROL DATE Control firmware date FORMAT Current video format output BAUDRATE Current baud rate RETURN Return to previous menu...
