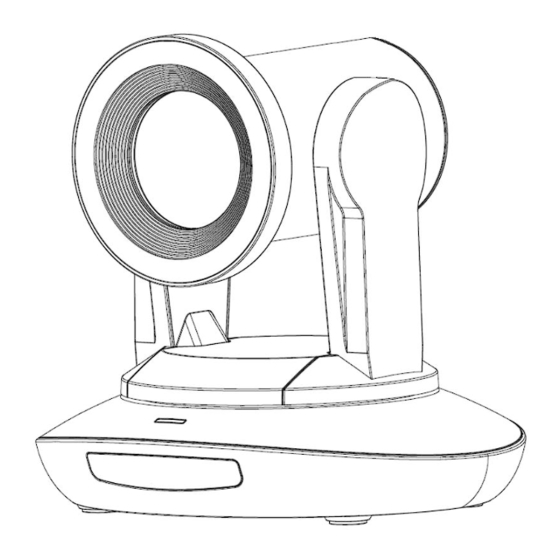

Telycam TLC-700-H User Manual

35x 4k uhd ptz video camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

35x 4K UHD PTZ Video Camera User Manual
Version V1.0
（English）

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TLC-700-H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Telycam TLC-700-H

Summary of Contents for Telycam TLC-700-H

  • Page 1 35x 4K UHD PTZ Video Camera User Manual Version V1.0 （English）...

  • Page 2: Table Of Contents

    CONTENT CONTENT ......................................1 SAFETY GUIDES ....................................2 PACKING LIST....................................... 3 QUICK START ....................................... 3 PRODUCT HIGHLIGHTS..................................4 CAMERA SPEC..................................... 4 CAMERA INTERFACE.................................... 6 CAMERA DIMENSION..................................6 IR REMOTE CONTROLLER..................................7 VISCA（RS232）PORT..................................9 VISCA PROTOCOL ............................... 错误！未定义书签。 PELCO-D PROTOCOL ..................................

  • Page 3: Safety Guides

    SAFETY GUIDES 1.Before operation, please fully read and follow all instructions in the manual. For your safety, always keep this manual with the camera. 2.The camera power input range is 100-240VAC(50-60Hz),ensure the power supply input within this rate before powering on. 3.The camera power voltage is 12VDC, rated currency is 2A.

  • Page 4: Packing List

    PACKING LIST Check all bellow items when open the package: Camera · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1 Power Adapter ·...

  • Page 5: Product Highlights

    PRODUCT HIGHLIGHTS  Adopts most advanced ISP, 1/1.7 inch 12MP sensor, providing 3840x2160 p30 Ultra HD video resolution  4K wide angle optical lens: 35x optical zoom, with 60 degree field of view;  4K video over IP, H.264, H.265 encoding; ...
  • Page 6 Zoom F5.8～203mm(35X), F1.5 – 4.8. View Angle:60°(Far)-2.02°(Near) Rotation Angle Pan: -170° ~ +170°; Tilt: -30° ~ +90° Rotation Speed Pan: 0°~120° /s ; Tilt: 0°~80° /s Preset: Remote controller: 10; RS232: 128; Accuracy: 0.1° RS232、RS485(optional)、RJ45 (VISCA over IP)、USB3.0(UVC1.5) 、USB2.0(UVC1.1) Control Port Network Speed 1000M Video encode...

  • Page 7: Camera Interface

    CAMERA INTERFACE 1.Camera Lens 6. Tripod Screw Hole 10. HDMI port 2.Camera Base 7. Installation Hole 11.3G-SDI port 3.IR Receiver Panel 8. RS232 control port (input) 12, USB port 4.Power Indicator Light 9. RS232 control port(output) 13, RJ45 port 5.Dial Switch 14.

  • Page 8: Ir Remote Controller

    IR REMOTE CONTROLLER POWER Under normal working mode, short press POWER key, to enter standby mode; Press it again, the camera will do self-configuration, then go back to HOME position. It will go to preset position if power on model has been set before. FREEZE （Not Supported in USB）...
  • Page 9 FOCUS KEY ( ON THE LEFT) Manual focus, only valid under manual focus model. ZOOM KEY( ON THE RIGHT SIDE) Set the zoom rate NAVIGATE KEY: UP/DOWN/LEFT/RIGHT Under working mode, use navigate key to set the pan tilt, and select menu when enter OSD.

  • Page 10: Visca（Rs232）Port

    VISCA IN （RS232 PORT） Function VISCA IN RS485 A(+) IR OUT IR OUT B(-) VISCA IN &Mini DIN Connection VISCA IN & DB9 Connection Camera VISCA IN Camera VISCA IN Windows DB-9 Mini DIN A(+) A(+) IR OUT IR OUT B(-) B(-) VISCA Network Construction:...

  • Page 11: Visca Protocol

    VISCA PROTOCOL Part1 Camera Return Command Ack/Completion Message Command Packet Note z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed. z = camera adderss+8 Error Messages Command Packet Note Returned when the command format is different or when a command with illegal command Syntax Error z0 60 02 FF...
  • Page 12 Command type function Command packet Note Auto Focus 81 01 04 38 02 FF Manual Focus 81 01 04 38 03 FF One Push AF 8x 01 04 18 01 FF pqrs: Zoom Position (0(wide)~ 8x 01 04 47 0p 0q 0r 0s CAM_ZoomFocus Direct 0x4000(tele))
  • Page 13 Command type function Command packet Note 8x 01 04 0B 02 FF Down 8x 01 04 0B 03 FF Direct 8x 01 04 4B 00 00 0p 0q FF pq: Iris Position (0~ 0x11) Reset 8x 01 04 0C 00 FF 8x 01 04 0C 02 FF Gain Setting (0~0x0F)
  • Page 14 0x02 1080I50 0x03 1080P30 0x 04 1080P25 0x05 720P60 0x 06 720P50 0x07 VideoSystem 720P30 0x08 8x 01 06 35 00 pp FF Set(Telycam) 720P25 0x09 1080P5994 0x0E 1080I5994 0x0F 1080P2997 0x10 720P5994 0x13 720P2997 0x14 1080P24 0x11 1080P2398 0x12...
  • Page 15 Command type function Command packet Note 4K@30 0x1D 4K@25 0x1E CAM_IDWrite 8x 01 04 22 0p 0q 0r 0s FF pqrs: Camera ID (=0000 to FFFF) DHCP off 8x 01 04 AE 00 FF DHCP off DHCP control DHCP on 8x 01 04 AE 01 FF DHCP on pqrs : Column(x size)
  • Page 16 Command type function Command packet Note Default is 32 Flare mode blue value Flare green 8x 01 04 BA dat FF Default is 32 Menu On 8x 01 06 06 02 FF Turn on the menu Menu Off 8x 01 06 06 03 FF Turn off the menu SYS_Menu Menu Back...
  • Page 17 50 pp FF CAM_IDInq y0 50 ab cd CAM_VersionInq 8x 09 00 02 FF mn pq rs tu vw FF VideoSystemInq(Telycam) 8x 09 06 23 FF y0 50 pp FF pp: Video format VideoSystemInq(Sony) 8x 09 04 24 72 FF...
  • Page 18 y0 50 0w 0w 0w 0w Pan-tiltPosInq 8x 09 06 12 FF wwww: PanPosition zzzz: Tilt Position 0z 0z 0z 0z FF pqrs : Column(x size) MainstreamResolutionInq 8x 09 04 C2 00 FF y0 50 0p 0q 0r 0s 0m 0n 0x 0y FF mnxy: Line (y size) only support:1920*1080,3840*2160 MainstreamRateInq...

  • Page 19: Pelco-D Protocol

    PELCO-D Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02...

  • Page 20: Pelco-P Protocol

    PELCO-P Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0Xa0 Address 0x00 0x08 Pan Speed Tilt Speed 0Xaf Down 0Xa0 Address 0x00 0x10 Pan Speed Tilt Speed 0Xaf Left 0Xa0 Address 0x00 0x04 Pan Speed Tilt Speed 0Xaf Right 0Xa0...

  • Page 21: Osd Menu

    OSD MENU 1. Under working mode, press the MENU key on the IR remote controller, to enter the OSD menu as bellow: 2, After enter the main menu, use the navigate UP/DOWN key to select the main menu. Once been selected, the main menu will change to blue background, and the right side will show all sub menu options.
  • Page 22 GAIN Gain setting:0dB~28dB , only valid under manual mode Default：AUTO BRIGHT Bright setting:0~15, only valid under bright priority mode. Default：8 ON/OFF Default：OFF WDR Level WDR Level Default：1 ON/OFF Default：OFF Optional： AUTO、 INDOOR、 OUTDOOR、 MANUAL、 OUTAUTO、 SODIUM WB MODE Default：ATW LAMP AUTO 、SODIUM LAMP R GAIN Red gain level: 0~255, only valid under manual white balance mode.
  • Page 23 3840*2160P30 720P50 3840*2160P25 720P29.97 1080P59.94 720P25 Once selected, press OK key to confirm, if it is the selected 1080P50 1080P60 video format, there is no change. 4K mode does not support FORMAT 1080I59.94 1080P30 menu switching, when switch to 4K model, menu will be 1080I50 720P60 existed automatically.

  • Page 24: Uvc Control

    UVC CONTROL 1. Only run the client software after the USB3.0 camera has completed self-configuration (the IR indicator in blue color and will not flash); otherwise may cause black video issue. 2. Make sure the USB3.0 camera is recognized by the PC Device Manager. 3．Make sure the interval of video format switching more than 3 seconds, otherwise black video maybe caused.

  • Page 25: Web Setting

    WEB SETTING Download Active-X to install When visit IP camera via Internet Explore browser the first time, the system will install camera Active-X automatically. How to install Input IP camera address in IE, the default address is 192.168.1.188, to enter into login page, the system will indicate to install Active-X as following, and then press “Allow installing”...
  • Page 26 Login Once install Active-X, reopen IE browser, and enter into IP address, to login interface, input admin and password to login as following: Default admin: admin Default password: admin Real-time Preview: Preview interface as above image, on the right side, there are options to control camera pan, tilt, zoom, focus, presets, focus speed, zoom speed can be set.
  • Page 27 Parameter Setting Click “Setting” to enter into parameter setting interafeace as following: “Video Encode”: can set image encode mode, main stream and sub stream resolution/bit rate/frame rate, bit rate control way, and I frame interval etc as above image “Image Parameter”can set focus, exposure, white balance, image, image quality, noise-reduction, as following picture...
  • Page 28 Focus including focus mode, default focal distance, digital zoom etc Exposure includes exposure mode, shutter speed, gain, iris, brightness, and anti-flicker. White Balance includes white balance mode, red gain, blue gain. Image includes mirror, flip, backlight compensation, Gamma, WDR(wide dynamic range). WDR parameter can be set when it is ON.
  • Page 29 Image Setting includes brightness, sharpness, contrast, saturation Noise reduction includes 2D/3D reduction. There is on/off option for 2D, and off/auto/1~4 six options. “Ethernet” includes DHCP mode, IP address, subnet mask, default gateway, http port, web port, main stream port, sub stream port. Default parameter as following: DHCP HTTP port...
  • Page 30 “Firmware upgrade”: it is for camera program upgrade, currently only for ISP part update. How to update: As following picture, click “clicking to upload file” icon, open dialog box, select to open the file, and click “upgrade” to start. DO NOT power off or do other operation when upgrading, reboot the camera after 5 min when upgrade finished. Then login web end to select “reset all”...
  • Page 31 Reset to default is to reset the camera in default setting Reset simply: reset camera image parameter Reset all: reset camera Ethernet and image parameter, language and protocol will not be reset. Reboot: Reboot ISP part of camera Account is used for setting camera account and password Input the account firstly, then input same password twice, click set to finish Please remember account and password, otherwise you may be not able to login.
  • Page 32 Using VCL to view RTSP Video Default RTSP main streaming address: rtsp://192.168.1.188/stream/main Default RTSP sub streaming address: rtsp://192.168.1.188/stream/sub 1, Open VLC media player 2, Media->network stream, to enter into “open media” interface. 3, Input RTSP address in URL as following:...

  • Page 33: Visca Over Ip

    4, Click play to view the real time image. Note: If there is much image lag, select “more option” to enter into following setting, change buffer time smaller (VLC default buffer time is 1000ms). VISCA over IP VISCA over IP means VISCA protocol transmit via IP, to reduce RS232/RS485 cable layout (the controller must support IP communication function) Communication port spec:...
  • Page 34 For different commands, camera will return different message. VISCA Inquiry It means inquiry from controller to peripheral equipment when peripheral equipment receives this kind of commands, it will return required message. VISCA Reply It means ACK, complete message, reply or error reply, it is sent from peripheral equipment to controller. Command format: the following is message head and valid message format.
  • Page 35 Payload According to Payload type, the following data will be saved.  VISCA command Save VISCA command packet  VISCA inquiry Save VISCA message packet  VISCA reply Save VISCA return packet  VISCA device setting command Save VISCA equipment setting command packet. ...
  • Page 36 Sequence chart as following Sequence chart when returned message lost Sequence chart when command lost Note: Do not set IP address, subnet mask, gateway parameter in VISCA over IP command, otherwise, it will cause network breaks off. Due to change these parameter, network will be in off status.
