Nederman Pneumatic Track System Instruction Manual page 6
Track length 38 ft 9 in (11,8 m)
Hide thumbs
Also See for Pneumatic Track System:
- Instruction manual (69 pages) ,
- Instruction manual (37 pages)
Table of Contents
Advertisement

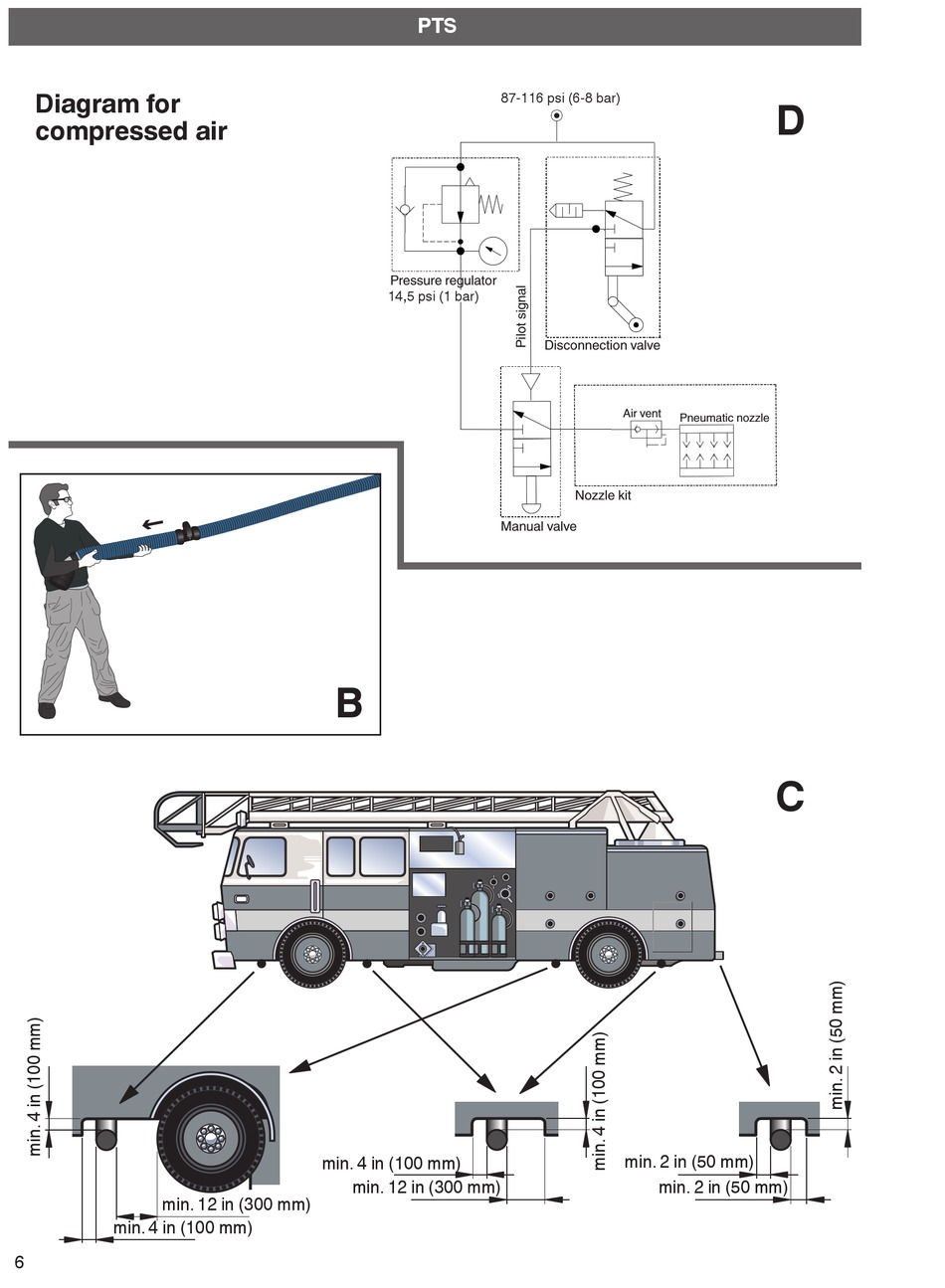

Diagram for
compressed air
min. 12 in (300 mm)
min. 4 in (100 mm)
6
PTS
Pressure regulator
14,5 psi (1 bar)
1 bar (14,5 psi)
B
min. 4 in (100 mm)
min. 12 in (300 mm)
87-116 psi (6-8 bar)
6-8 bar (87-116 psi)
Disconnection valve
Air vent
Nozzle kit
Manual valve
min. 2 in (50 mm)
min. 2 in (50 mm)
D
Pneumatic nozzle
C
