User Manual

Industrial Gigabit Switch
4-Port 802.3at PoE
with 2-port SFP slot
v1.0
P/N: 41NE-IPG402A0-A00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RP-IPG402A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Repotec RP-IPG402A

  • Page 1: User Manual

    User Manual Industrial Gigabit Switch 4-Port 802.3at PoE with 2-port SFP slot v1.0 P/N: 41NE-IPG402A0-A00...
  • Page 2: Fcc Marking

    FCC MARKING This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3: Key Features

    Introduction This rugged design Industrial 6 port POE switch, complied with IEEE802.3af and IEEE802.3at, and pass many rigorous environmental test. The uplink 2 SFP port can extend to a wild area connection. With its multi-purpose design, that can also be used for Din-Rail or wall-mounted. This is an idea unit for IP surveillance, traffic monitoring and security application in critical environment that can be tolerate -40°C to 75°C to perform a reliable situation.
  • Page 4: Led Indicators

    LED Indicators For definitions of LED indicators, please refer to the following table: Status Indication Green when V1+, V1- is connected Power is off Green when V2+, V2- is connected Power is off Power DIN is connected Green Power DIN is disconnected Amber Alarm Relay is connected Alarm Relay is disconnected...
  • Page 5: Dip Switch Function

    Dip switch function This unit is equipped with dip switches, located on the front panel. Adjusting the dip switches will change the default function of this unit. This unit has set to manufacturer default as Port 5 SFP, and the speed are set to 1000M for both port 5 and port 6 SFP ports.

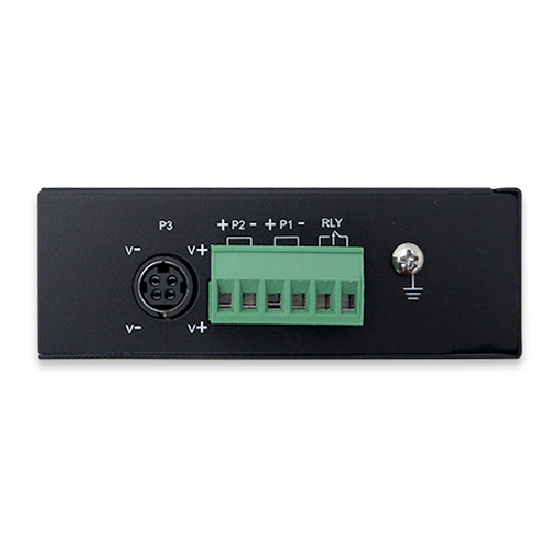

  • Page 6: Power Connection

    Power connection This product provides 6 pin terminal blocks. The POE port can be operated from 48-56VDC power source. The VDC power range can be 48VDC only or lower, or wide range from 48-56VDC. Please always to make sure your input voltage is the supported voltage range for each model.
  • Page 7: Specification

    Specification Standards IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Ethernet IEEE802.3x Flow Control and Back Pressure, IEEE802.3af for POE IEEE802.3at for POE+ 5 RJ-45 Port: 10/100/1000BaseT(X) auto negotiation, 4 Giga POE+ Interface 802.3at/af PSE port, Auto MDI/MDI-X function, Full/Half duplex 2 SFP slots: 100/1000M Base-X...
  • Page 8 Torque:5lb-In/0.5Nm/0.56Nm Wire Strip length: 7-8mm Operating Temperature -40°C ~75°C Storage Temperature -40°C~85°C Operating Humidity 5% to 95% (Non-condensing) Housing Rugged Metal ,IP30 Protection Dimension 142 x 43 x 105mm (LxWxD) Installation mounting DIN Rail mounting and Wall Mounting EMC/EMS CE, FCC FCC Part 15 Subpart B Class A CE EN 55022 Class A Safety...
