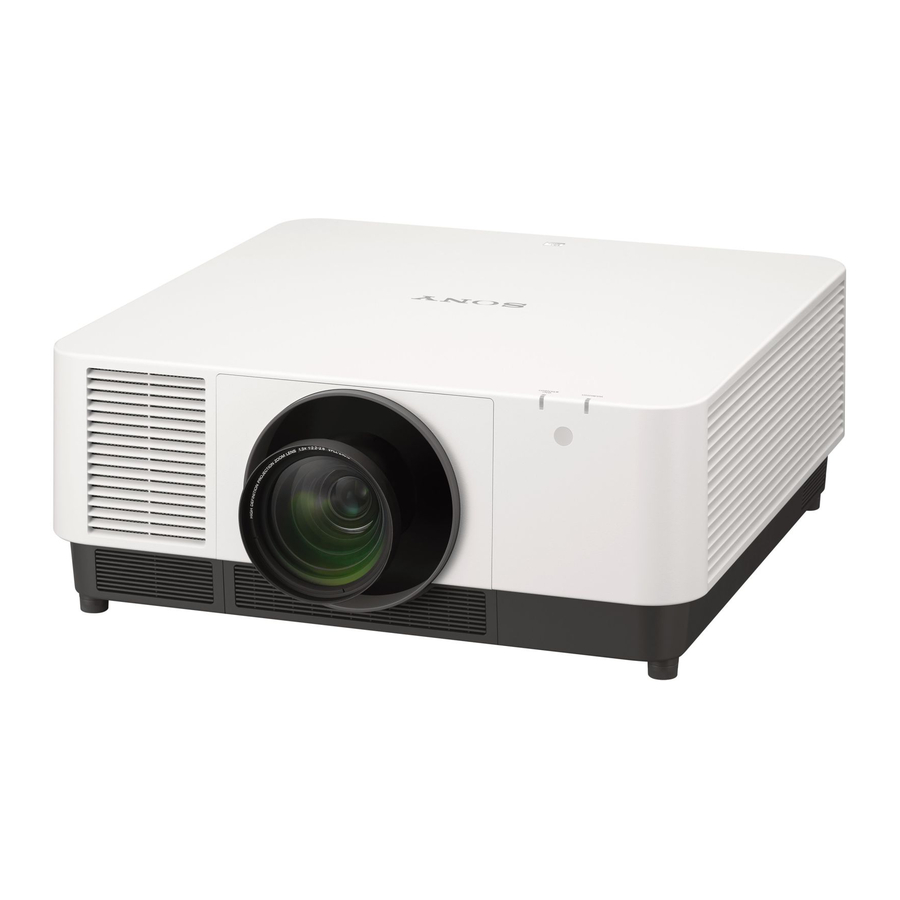

Data Projector
Operating Instructions
Before operating the unit, please read this manual and supplied Quick Reference
Manual thoroughly and retain them for future reference.
VPL-FHZ120L/FHZ90L
Not all models are available in all countries and area.
Please check with your local Sony Authorized Dealer.
© 2018 Sony Corporation
4-741-332-12 (1)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VPL-FHZ120L and is the answer not in the manual?

Questions and answers

Related Manuals for Sony VPL-FHZ120L

Summary of Contents for Sony VPL-FHZ120L

  • Page 1 Before operating the unit, please read this manual and supplied Quick Reference Manual thoroughly and retain them for future reference. VPL-FHZ120L/FHZ90L Not all models are available in all countries and area. Please check with your local Sony Authorized Dealer. © 2018 Sony Corporation...

  • Page 2: Table Of Contents

    Displaying the Control Window of the Installing the Optional Adaptor  Projector with a Web Browser ....36 (For VPL-FHZ120L only) ........15 Confirming the Settings for the Projector ...37 Operating the Projector from a Computer  Projecting/Adjusting an Image ..............37...
  • Page 3 Others Cleaning the Air Filter ........50 Updating the Software ........51 Updating the Software via the USB Memory  ..............51 Updating the Software via the Network ..51 Specifications ........... 52 Pin assignment ........... 55 Acceptable Input Signals ......56 Projection Distance and Lens Shift Range ..57 Dimensions ............

  • Page 4: Location Of Controls

    Connects to a commercially available antitheft  Terminals (page 5) chain or wire.  Optional adaptor slot (Available for   Antitheft lock VPL-FHZ120L only) (page 15) Connects to an optional antitheft cable An optional adaptor (not supplied) can be manufactured by Kensington. attached.

  • Page 5: Terminals

     INPUT E viewer function (page 42). HDBaseT terminal Note  INPUT F (Available for VPL-FHZ120L only) USB hub is not available on the USB port. For details on available optional adaptors, see  RS-232C terminal “Optional accessories” (page 53).

  • Page 6: Remote Commander And Control Panel

    Remote Commander and Control Panel  TWIN (Twin Picture) key Remote Commander You can project the images from two input signals on the screen as a main picture and subpicture at the same time (page 22).  PICTURE MODE key Changes the picture quality mode.
  • Page 7  VOLUME key/ MUTING key Not in use for the projector.  ID MODE switch (page 29) Sets an ID mode of the Remote Commander. If you assign a different ID number to each projector when multiple projectors are used, you can control only the projector with the same ID mode as that of the Remote Commander.

  • Page 8: Connections And Preparations

    Connections and Preparations Connecting the Projector Notes  Turn off all devices before making any connections.  Use the proper cables for each connection.  Insert the cable plugs firmly; Loose connections may reduce performance of picture signals or cause a malfunction.

  • Page 9: Connecting To A Video Device

    Use HDMI-compatible device which has the HDMI Logo.  Use a high speed HDMI cable(s) on which the cable type logo is specified. (Sony products are recommended.)  The HDMI terminal of this projector is not compatible with DSD (Direct Stream Digital) signal or CEC (Consumer Electronics Control) signal.

  • Page 10: Connecting To An External Monitor

    INPUT D This terminal is used when connecting the projector to a video device with a HDMI output terminal. HDMI output terminal INPUT D HDMI cable  (not supplied) Video device Notes  Use an HDMI cable with the HDMI logo. ...

  • Page 11: Connecting To A Network Equipment

    Notes for connecting this unit to the HDBaseT transmitter  Ask a professional or Sony dealer to perform wiring. If wiring has been insufficiently performed, it affects the transmission characteristics of the cable, and causes broken or unstable images. ...
  • Page 12 Connecting to a computer/video device INPUT E LAN cable: STP cable with CAT5e or higher (straight type) (not supplied) HDBaseT transmitter HDMI output terminal HDMI cable (not supplied) Computer HDMI output terminal Video device Connecting to a network equipment (using an HDBaseT terminal) The HDBaseT terminal is used when connecting the projector to a network equipment to control the projector.

  • Page 13: Attaching The Projection Lens

    Lever Attaching the Projection Lens Notes  Avoid removing/attaching the lens with the projector installed suspended from a ceiling.  For usable projection lenses, see “Optional accessories” (page 53).  Do not attach any lens other than the specified accessory lens sold separately.

  • Page 14: Attaching The Terminal Cover

    Removing the Terminal Cover Attaching the Terminal Cover Pull out the terminal cover while pressing the tab. You can attach the supplied terminal cover when the LAN terminal, INPUT D (HDMI), or INPUT E (HDBaseT) is limited to use for connection. Attaching the supplied terminal cover prevents dust from entering the terminals and maintains a neat appearance.

  • Page 15: Installing The Optional Adaptor (For Vpl-Fhz120L Only)

    Tighten the two screws on the optional Installing the Optional adaptor. Adaptor (For VPL-FHZ120L only) When installing an optional adaptor (not supplied) into the optional adaptor slot on the terminals of the projector, you can use the optional adaptor as INPUT F.

  • Page 16: Projecting/Adjusting An Image

    Remote Commander. *1: When INPUT F is input with the compatible optional adaptor attached, the signal icon always appears. (Available for VPL-FHZ120L only) Change the computer screen output destination to an external display. How to change the output destination varies depending on the type of computer.

  • Page 17: Adjusting The Projected Image

    Adjusting the position of the image (Lens Adjusting the Projected shift) Image Press the LENS SHIFT/SHIFT key on the projector or the Remote Commander then press the /// key. Focusing the image (Focus) When attaching the Electric focus lens To return the lens to the center position of the Press the FOCUS key on the projector or the projected image Remote Commander then press the ///...

  • Page 18: Correcting For Trapezoidal Distortion Of The Projected Image (Keystone Adjustment)

    If the projected image is trapezoidally-distorted in Correcting for Trapezoidal Distortion of the the lateral plane Projected Image (Keystone Adjustment) Press the KEYSTONE key on the Remote If the screen is tilted, or you are projecting from an Commander once or select “Screen Fitting” in oblique angle, perform keystone adjustment.

  • Page 19: Correcting Image Twist (Warp Correction Feature)

    When correcting deflection on the left/right side Correcting Image Twist (Warp Correction of the image Feature) Move  using /// to select the side you Press the KEYSTONE key on the Remote want to correct. Commander once or select “Screen Fitting” in the Installation menu (page 32).

  • Page 20: Blending Projections From Multiple Projectors On A Screen

    In this case, space the projectors farther apart and/or install deflection partitioning between them. Adjust using this cursor For more details, consult with qualified Sony personnel. Place the projectors. Input a pattern, etc., to adjust the projected positions from multiple projectors.

  • Page 21: Using Convenient Functions

    Set the blending width. Using Convenient Functions Set the blending width according to the overlapping range for the source signal. Assign the width here. Selecting the Stored Picture Settings (Picture Position Function) (Specified Lens Only) Using the POSITION key on the Remote Commander, you can select one of the combinations of lens settings (focus, picture size (Zoom), picture position (Lens shift)) from six...

  • Page 22: Enlarging A Part Of The Image (Digital Zoom Function)

    Combinations of input signals Enlarging a Part of the Image (Digital Zoom Main picture Subpicture Function) INPUT A (RGB/YP INPUT B (RGB) Using the D ZOOM (Digital Zoom) key on the INPUT B (RGB) Remote Commander, you can enlarge a part of the INPUT C (DVI-D) image while projecting.

  • Page 23: Adjustments And Settings Using A Menu

    Adjustments and Settings Using a Menu Using a pop-up menu Using a Menu Press the /// key to select an item. Press the ENTER key to register the setting and return to the previous screen. Note Selecting items The following menu displays used for the explanation may be different depending on the model you are using.

  • Page 24: The Picture Menu

    Brightness Priority: Makes the picture bright to suit a bright environment. Multi Screen: Optimizes the picture quality to suit projecting using multiple projectors. sRGB: Displays the picture quality with sRGB color gamut. (For VPL-FHZ120L only) Reset The picture settings are initialized to their factory preset values.
  • Page 25 Setting items Description Expert Setting Reality Creation Adjusts the detail and noise processing of images. (Super-resolution function) On: Adjusts the settings of “Reality Creation.” Resolution: When you increase the setting value, the texture and detail of the image become sharper. Noise Filtering: When you increase the setting value, the noise (picture roughness) becomes less prominent.

  • Page 26: The Screen Menu

    The Screen Menu For adjusting the size, position, and aspect ratio of the projected image for each input signal. Setting items Description Picture Position You can store up to six picture positions as combinations of lens settings (focus, picture size (Zoom), picture position (Lens shift)) (page 29). After setting the focus, picture size, and picture position, select from “Save,”...
  • Page 27 Notes  Note that if the projector is used for profit or for public viewing, modifying the original picture by switching to the aspect mode may constitute an infringement of the rights of authors or producers, which are legally protected. ...

  • Page 28: The Function Menu

    The Function Menu The Function menu is used for setting various functions of the projector. Setting items Description Smart APA On/Off: When set to “On,” executes APA automatically when a signal is input. Executes APA when a computer signal is input via the RGB input terminal (INPUT A, INPUT Background Enabled when INPUT A, INPUT B, INPUT C, or INPUT D is selected.

  • Page 29: The Operation Menu

    When “All Off” is selected, a warning message for high temperature is not displayed, so users are advised to use the projector at their own risk.  Note that Sony is not liable for failure of the unit or any accident caused by selecting “All Off.” IR Receiver Front &...

  • Page 30: The Connection/Power Menu

    The Connection/Power Menu The Connection/Power menu is used for setting for the connections and power. Setting items Description Network Setting *1 *3 IPv4 Setting IP Address Setup Auto(DHCP): The IP address is assigned automatically from the DHCP server such as a router.
  • Page 31 Setting items Description Direct Power On On/Off: When you select “On” and plug the projector, the projection starts without going into standby mode. You can also unplug the AC power cord without going into standby mode when you turn off the projector. You may unplug the AC power cord without going into standby mode.

  • Page 32: The Installation Menu

    The Installation Menu The Installation menu is used for installing the projector. Setting items Description Screen Fitting Adjusts the distortion of the projected image that occurs due to installation conditions or when a portion of the image spreads beyond the screen. Since the Keystone/Warping/Linearity adjustment is an electronic correction, the image may deteriorate.
  • Page 33 Setting items Description *2 *3 *4 Zone Black Level Adjusts so that the overlapped part is not noticeably bright when a dark image is displayed. Select the correction zone “Adjust Zone 1” through “Adjust Zone 9,” and set the adjustment values.
  • Page 34 Setting items Description Uniformity This feature allows you to adjust color uniformity. Select the appropriate brightness level from level 0 to level 11. Also, select the desired range to adjust the color. Level: Select the brightness level (0-11) to adjust the brightness of the screen. Area: Top Left: Select the top-left point to specify the adjustment range.

  • Page 35: The Information Menu

    The Information Menu The Information menu enables you to confirm various information on the projector, such as the total usage hours of a light. Items Description Model Name Displays the model name. Serial No. Displays the serial number. fH (horizontal frequency)/ Displays the horizontal frequency/vertical frequency/signal type of the current input fV (vertical frequency) signal.

  • Page 36: Network Features

    Network Features Displaying the Control Window of the Using Network Features Projector with a Web Browser Connection to the network allows you to perform Connect the LAN cable (page 11). the following:  Checking the current status of the projector. Set the network settings for the projector ...

  • Page 37: Confirming The Settings For The Projector

    The default password “Projector” cannot be set as a new password. Note If you forget your password, consult with qualified Sony Using the e-mail Report Function personnel. The password will be reset with your permission. Set the e-mail report function on the Setup page.
  • Page 38 Click on [Owner information] to enter the Enter the outgoing e-mail address in the owner information recorded in the e-mail Address box then check the Report Timing box report. of the e-mail report to be sent. Owner information button Click on [Advanced Menu], then [E-mail] to display the E-mail page.

  • Page 39: Configure The Network Settings

    Send the test mail. To send your test mail to the preset e-mail address, check the Send test mail box then click on [Apply]. Confirm the content of the e-mail report. When you click on [View], the content of the e-mail report are displayed.

  • Page 40: Setting The Control Protocol Of The Projector

    LAN port are provided to the projector. characters can be input. The factory default The DHCP server provides different IP addresses/ setting is “SONY.” To avoid unwanted DNS for the HDBaseT terminal or LAN port. access to the projector from other computers, changing the community name of the factory default is recommended.
  • Page 41 Advertisement will also be changed. Only four alphanumeric characters can be input. The factory default setting is “SONY.” To avoid unwanted access to the projector from other computers, changing the community name of the factory default is recommended.

  • Page 42: About The Html Viewer Function

    Click on [Service] to display the Service page. About the HTML Viewer Function The system service function is set. You can set the HTML viewer (INPUT G) as the background when no signal is input to the projector or the projector is not operated. Select “Input-G”...
  • Page 43 Address: When loading the content via a Displaying the HTML content of the USB memory network, enter the address of the proxy on the HTML viewer server used in the network.  Refer to the following and enter the Set “Input-G Cont. Sel.” to “USB” in the address.

  • Page 44: Using The Software Update Function

    You can update the software of the projector via the network. The update files can be downloaded from the following Sony website. For details, see “Updating the Software” (page 51). Note You can update the software via a network when Power status is in STANDBY.

  • Page 45: Error Handling

    Error Handling Indicators You can check the projector status or abnormality by checking the lighting/flashing status of the ON/ STANDBY indicator and WARNING indicator on the front. If the indicators flash in red, address the problem in accordance with “Warning indication and remedies” (page 46). ON/STANDBY WARNING indicator...
  • Page 46 If the indicators flash in a manner other than described above, unplug the AC power cord and make sure the ON/STANDBY indicator turns off, then plug the AC power cord into the wall outlet and turn on the projector. If the problem still persists, consult with qualified Sony personnel.

  • Page 47: Messages List

    Constant Brightness cannot be maintained. Although “Constant Brightness” is selected, the brightness cannot be maintained due to the lifetime of the light source (page 24). Consult with qualified Sony personnel. Filter cleaning will start. Turn off the projector and clean the air filter in standby mode (page 33).

  • Page 48: Troubleshooting

    Troubleshooting Check the following before asking for repair service. If the problem still persists, consult with qualified Sony personnel. Power Symptom Remedy The power is not turned on. Check if the AC power cord is firmly connected. When the “Control Key Lock” is set to “On,” you cannot turn on the projector using the /...
  • Page 49 Symptom Remedy The image is dark/too bright. The settings for “Brightness,” “Contrast,” and “Light Output Mode” affect brightness of the image. Check if the value is appropriate (page 24). “With Static Signal” is set to “On” (page 30). When video signal is not input, the light is dimmed to reduce power consumption (page 30).

  • Page 50: Cleaning The Air Filter

    If the dust cannot be removed from the air filter even after cleaning, replace the air filter with a new one. For details on a new air filter, consult with qualified Sony personnel. Caution If you continue to use the projector even after the Filter holder message is displayed, dust may accumulate, clogging it.

  • Page 51: Updating The Software

    Sony website. For details, refer to the following website. https://pro.sony.com Tabs https://www.sony.jp/vpl/ (Access from Japan) Insert the tabs on the filter cover and slide the filter cover upward. Updating the Software via the Network To update the software of the unit via the network, connect the computer to the LAN that the projector is connected to.

  • Page 52: Specifications

    Storage humidity 20% to 80% (no condensation) Power required VPL-FHZ120L: AC 100 V to 240 V, 10.8 A to 4.4 A, 50/60 Hz VPL-FHZ90L: AC 100 V to 240 V, 8.4 A to 3.4 A, 50/60 Hz Power AC 100 V to 120 V...
  • Page 53 *2: For details, refer to “Acceptable Input Signals” on page 56. Optional accessories  Not all optional accessories are available in all countries and area. Please check with your local Sony Authorized Dealer.  Information on accessories in this manual is current as of August 2018.
