Page 1 Programmable DC Electronic Load PEL-2000A Series USER MANUAL ISO-9001 CERTIFIED MANUFACTURER...
Page 2 GW instek company. The information in this manual was correct at the time of printing. However, GW instek continues to improve products and reserves the right to change specification, equipment, and maintenance procedures at any time without notice.
Page 3: Table Of Contents
Table of Contents Table of Contents SAFETY INSTRUCTIONS ........... 6 GETTING STARTED ............11 Main Features ............13 Series Overview ............. 15 Package Contents and Accessories ......17 Measurement Overview ......... 19 Front Panel Overview ..........20 Display Overview – Mainframe ......25 Rear Panel Overview ..........
Page 4 PEL-2000A Series User Manual Parallel Load Modules ......... 106 Programming ............108 Sequences ............110 Frame Link ............111 Channel Control ........... 113 General Configuration Options ......115 OPERATION ..............117 Local Mode Operation ......... 120 Mainframe Basic Operation ......... 126 Creating a Program Sequence ......
Page 5 Table of Contents INDEX ................319...
Page 6: Safety Instructions
Warning: Identifies conditions or practices that WARNING could result in injury or loss of life. Caution: Identifies conditions or practices that CAUTION could result in damage to the PEL-2000A series or to other properties. DANGER High Voltage Attention Refer to the Manual Protective Conductor Terminal...
Page 7  openings. Do not perform measurement at circuits directly  connected to Mains (Note below). Do not disassemble the PEL-2000A series unless  you are qualified as service personnel. The equipment is not for measurements  performed for CAT II, III and IV.
Page 8 PEL-2000A Series User Manual Fuse type: T3.15A/250V Fuse  Make sure the correct type of fuse is installed  WARNING before power up. To avoid fire, only replace the fuse with the  specified type and rating. Disconnect the power cord before fuse ...
Page 9 SAFETY INSTRUCTIONS (Pollution Degree) EN 61010-1:2010 specifies the pollution degrees and their requirements as follows. The PEL-2000A series falls under degree 2. Pollution refers to “addition of foreign matter, solid, liquid, or gaseous (ionized gases), that may produce a reduction of dielectric strength or surface resistivity”.
Page 10 PEL-2000A Series User Manual Power cord for the United Kingdom When using the PEL-2000A series in the United Kingdom, make sure the power cord meets the following safety instructions. NOTE: This lead/appliance must only be wired by competent persons WARNING: THIS APPLIANCE MUST BE EARTHED...
Page 11: Getting Started
GETTING STARTED ETTING STARTED This chapter describes the features and functions of the PEL-2000A series, including the front and rear panel appearance, panel installation and connection types. Use the Tutorial section for quick access to step by step instructions on the main functions.
Page 12 PEL-2000A Series User Manual Load Connections ..........45 Precautions and Procedures ........... 45 Remote (Sense) Connection ........... 50 Single Load Connections ..........51 Parallel Load Connections ..........53 Frame Link Connection ......... 55 Channel Control Connection ......... 57 Go/NoGo Connection ........... 60...
Page 13: Main Features
The flexible module configuration allows the mainframes to either sink multiple loads independently or large loads when used in parallel. The PEL-2000A series support four operation modes: constant current (CC), constant voltage (CV and CV+CC), constant resistance (CR) and constant power (CP). Constant current and constant resistance mode can operate in either static or dynamic mode.
Page 14 PEL-2000A Series User Manual 4 panel setups.  USB flash drive support.  Interface  RS-232C  GPIB (optional) ...
Page 15: Series Overview

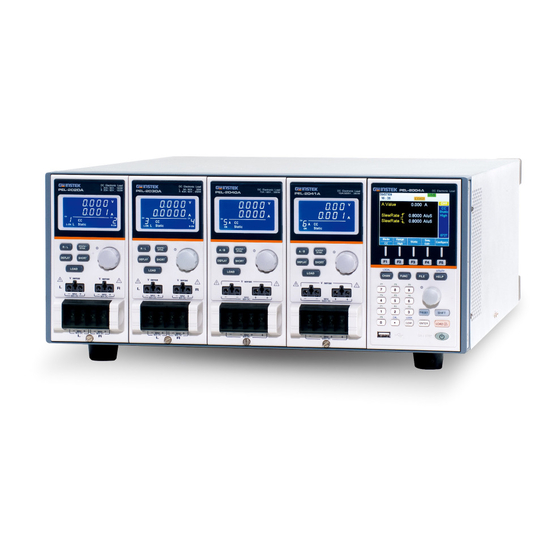

GETTING STARTED Series Overview The PEL-2000A series comprises of two different Mainframes: the PEL-2002A and the PEL-2004A. The Mainframes differ by the number of load modules that can be accommodated. The PEL- 2002A has two load module slots whilst the PEL-2004A has 4. There are 4 different load module models, the PEL-2020A, PEL-2030A, PEL-2040A and PEL-2041A.
Page 16 PEL-2000A Series User Manual Load Module Channels Power (W) Current (A) Voltage (V) CH L/R Range (low/high Low/High range) PEL-2020A 100/100 2/20 0-80 (100Wx2) PEL-2030A 30/(25/250) 5/4/40 0-80 (30/(25/250W)) PEL-2040A (35/350) 7/70 0-80 PEL-2041A (35/350) 1/10 0-500...
Page 17: Package Contents And Accessories
Accessories Power Cable Mains power cable (region dependent) (18AWGx3C,125V/10A,1.8m) CD ROM Contains PEL-2000A series Electronic DC Load User Manual, Programming Manual and USB Driver GTL-120 Load cables 2X red, 2X black (per load module) GTL-121 Remote sense cables , 1X red, 1X black (per load...
Page 18 PEL-2000A Series User Manual GTL-248 GPIB cable GTL-249 Frame link cable...
Page 19: Measurement Overview
GETTING STARTED Measurement Overview The PEL-2000A series has a number of different operating modes that are completely configurable. All the modes have customizable Go/NoGo limits, range limits, timers, slew rates, alarms and protection limits. For parallel loads, there is a dedicated Parallel configuration mode.
Page 20: Front Panel Overview
PEL-2000A Series User Manual Front Panel Overview PEL-2002A DC Electronic Load LCD display Function keys LOCAL UTILITY System Keys CHAN FUNC FILE HELP Selector Knob Number Pad PRESET SHIFT Operation CAL. LOCK keys ON / CLEAR ENTER LOAD USB input Power 320 by 240, TFT LCD display.
Page 21 GETTING STARTED Brings up the LOCAL Channel Menu. CHAN Used to activate LOCAL CHAN SHIFT local control mode during remote control via the interface Used to access the Program, Sequence or OCP automation FUNC menu. Used to access the File menu. FILE Brings up the Help menu and UTILITY...
Page 22 PEL-2000A Series User Manual Decimal point. CAL. Activate calibration CAL. SHIFT mode. Please note, calibration mode is not supported. Please see your distributor for calibration needs. Note Clears current values. Alternative LOCK function locks the keys and the CLEAR Selector knob.
Page 23 GETTING STARTED Inactive PRESET Active. Used in PRESET combination with the number pad and/or shift key. Press to recall a PRESET channel preset Hold to save a channel preset Press to recall all SHIFT PRESET channel presets. Hold to save all channel presets.
Page 24 PEL-2000A Series User Manual Fine control mode SHIFT Confirms selections. ENTER Turns the current load/channel on ON / LOAD or off Load is currently ON / LOAD off. (unlit) Load is currently on. ON / LOAD (orange light) Turns the unit on or into standby Power mode.
Page 25: Display Overview - Mainframe
GETTING STARTED Display Overview – Mainframe Mainframe Status Alarm Panel A Value 80.00 V *CH1 B Value 80.00 V Curr Limit 40.00 A Current Main SPEC Operation Screen Slow Channel Status main Panel Mode Range Response Menu Configure Configure High Slow Icons The Mainframe Status Panel displays the status of...
Page 26 PEL-2000A Series User Manual Load Type The Load Type Icon LOAD indicates if a Sequence LOAD (SEQ) or Program (PROG) is turned on. If PROG not then LOAD is PROG displayed as default. When any Load type is running, their icon will turn orange.
Page 27 GETTING STARTED Mode Displays the current mode. CC Static Low Range CC Static High Range CCDL CC Dynamic Low Range CCDH CC Dynamic High Range CR Static Low Range CR Static High Range CRDL CR Dynamic Low Range CRDH CR Dynamic High Range CV Static Low Range CV Static High Range CP Low Range...
Page 28 PEL-2000A Series User Manual main = Chan menu conf = ChanConfigure menu s_edit = ChanSeq.Edit menu file s_loop = File menu = ChanSeq.EditLoop menu Main display screen. Main Screen F1~F5 Each Menu Icon is controlled by Menu Icons the F1~F5 function keys directly...
Page 29: Rear Panel Overview
GETTING STARTED Rear Panel Overview PEL-2004A Go/NoGo Output GPIB GO / NG OUTPUT RS232C RS232C SER. NO. LB FRAME CONT GPIB USB-B Disconnect power cord before replacing fuse. Débranchez le cordon 100 - 120 VAC d'alimentation avant de terminal 200 - 240 VAC remplacer le fusible.
Page 30 PEL-2000A Series User Manual The RS232 and GPIB port is used for RS232 port/ remote control connections. GPIB port RS232C RS-232C: DB-9 pin male GPIB: 24-pin female See pages 281, 282 for remote control details. The USB-B (device) port, like the...
Page 31 GETTING STARTED The power supply socket accepts the Power Socket/ AC mains Voltage. The fuse holder is Fuse located below the power socket. Power: 47~63Hz Fuse: T3.15A/250V For fuse replacement details see page 292. Each channel has a dedicated Channel Channel CH CONT 1 control port to enable external...
Page 32: Front Panel Overview - Load Module
PEL-2000A Series User Manual Front Panel Overview – Load Module DC Electronic Load L 20A / 80V , 100W PEL-2020A 20A / 80V , 100W LED display Static/ Dynamic R/L A/B Key STATIC/ R / L DYNA. Display Key DISPLAY...
Page 33 GETTING STARTED Voltage Power Load time Activates the load for the active Load Key LOAD channel. (Right or Left)(A or B) The voltage sense terminals are Left Voltage V sense used when precise measurement is Sense needed. V Sense terminals are used to compensate for voltage drops 80V DC across the main terminals caused...
Page 34 PEL-2000A Series User Manual The STATIC/DYNA. Key manually Static/Dynamic STATIC/ switches the load from Static Selector Key DYNA. (manual) to Dynamic loads. Dynamic loads are only supported in CC and CR mode. For more information see page 62 & The Slave Knob is used to edit and...
Page 35: Led Display Overview - Load Module
GETTING STARTED LED Display Overview – Load Module & Channel Display Left and right channel indicator. 5 digit display. Indicates the channel number & (1-8). Channel Number Indicator Indicates if the load is active on the load module. (Dual channel load modules) Indicates if the load is on for single channel load modules.
Page 36 PEL-2000A Series User Manual The Mode Indicator LEDs will indicate what the current mode or settings are on the active Mode Indicator channel(s). Value A or B for a single channel load module. Applies to CR, CV, CP and CC static mode only.
Page 37 GETTING STARTED Lights up when Go/NoGo is activated and the load fails (NG) the Go/NoGo limits. The Unit Indicators display the current & unit. Channel Unit Indicators Voltage Resistance Current Power Second...
Page 38: Installation
PEL-2000A Series User Manual Installation The installation chapter describes how to load the different load modules, install the optional GPIB card, the rack mount kit and how to determine each channel number. If you need to move all installed device to another location, please disassembly the modules first, and then reassembly the modules after moving to the desired location.
Page 39 GETTING STARTED Use the supplied screw to fix the module to the load slot, located under the load terminals. Install any additional modules as described above. If there are any slots empty, install the supplied panel cover (part number: PEL-003). The panel cover will improve safety and increase air flow.
Page 40: Gpib Installation
PEL-2000A Series User Manual GPIB Installation To avoid static electricity, please use appropriate anti- WARNING static work practices. The PEL-2004A/PEL-2002A has GPIB as an option GPIB Card ( ddpart no. PEL-001). installation Steps Ensure the mainframe is disconnected from mains power.
Page 41: Rack Mount Installation
GETTING STARTED Rack Mount Installation The PEL-2004A can be used in a standard 19” rack Background mount enclosure with the optional rack mount kit (part no. 11EL-20040201). Each unit requires a rack height of 4U with a 1U space for ventilation top and bottom.
Page 42: Channel Number
PEL-2000A Series User Manual Channel Number The channel number for a module load is Description determined by which slot it occupies on the mainframe chassis. There can be 1 or 2 channels per slot, depending on the load module type.
Page 43: Power Up & Self Test
GETTING STARTED Power Up & Self Test 1. Connect the power cord Panel operation to the power socket. 2. Turn the external power switch on. 3. Hold the power button on the front panel to turn on the power. The power button turns green from red (standby).
Page 44 PEL-2000A Series User Manual Initial System Success Success Success Success Success Success When the system check happens, the load modules will display each channel as it is checked, then display the current mode. If any of the System checks fail, please power down the load and reinstall the appropriate load module(s).
Page 45: Load Connections
 Multiple DUTs, multiple loads  Multiple DUTs, multiple mainframe loads  Single DUT, parallel mainframes The PEL-2000A series also supports a number of different control methods and interfaces. The connections used are described here:  Frame link  Channel control ...
Page 46 13.1 17.2 22.6 30.4 40.6 55.3 When using the PEL-2000A series, voltage drop Load Line and voltage generated due to load line inductance Inductance Considerations and current change must be taken into account. Extreme changes in voltage may exceed the minimum or maximum voltage limits.
Page 47 GETTING STARTED Current ∆I time ∆T Voltage Min. V time The diagram above shows how changes in current can affect voltage. Load line inductance can be reduced by ensuring Limiting Load line load wires are as short as possible and by twisting inductance positive and negative load wires together.
Page 48 PEL-2000A Series User Manual The PEL-2000A series supports single and dual Load module channel load modules. considerations Single channel load modules have one bank of negative terminals and one bank of positive terminals. Each terminal pair has a 40A capacity.
Page 49 GETTING STARTED Close the terminal cover securely. Ensure the wires are secured properly and that the wires are not exposed when the cover is in place. Ensure that the wires are tied or twisted together to WARNING prevent noise and inductance. Ensure the polarity is correct before proceeding with CAUTION any connections.
Page 50: Remote (Sense) Connection
PEL-2000A Series User Manual Remote (Sense) Connection The electronic load modules have two voltage Background sense contacts: Vsense +, Vsense -. Voltage sense can be used to help compensate for long cable length. The longer the cable, the higher the potential resistance and inductance, therefore a short cable is best.
Page 51: Single Load Connections
GETTING STARTED V sense 80V DC Single Load Connections A dual channel load module can be used to sink Dual Channel two loads concurrently. Load Module Connection Dual channel Twisted Load Module Pair Twisted Pair On a single channel load module, the left Single Channel Load Module terminals are both negative (-), whilst the right...
Page 52 The diagram below shows a typical connection. Load Module Auxiliary Using an auxiliary power supply may induce reverse WARNING current. The PEL-2000A series has reverse voltage protection. For details see the protection section on page 84.
Page 53: Parallel Load Connections
82 for a description on parallel dynamic loading). Note that the same modules must be used when operating the parallel. The PEL-2000A series also features a dedicated parallel configuration setting known as Group Unit. When Group Unit is turned on, load modules of the same type and rating to be used in parallel for CC and CR mode.
Page 54 Master Slave Slave Slave Slave The PEL-2000A series is also able to sink a number Multi-output of loads concurrently from multiple DUTs or sink power supply load a number of loads from the same DUT (i.e. multiple output power supply).
Page 55: Frame Link Connection
GETTING STARTED Frame Link Connection Frame link control involves connecting multiple Background mainframes using the frame link connections. Up to 4 slave mainframes can be connected to the master mainframe. The first mainframe (master) can be used to control the other slave frames. There is a delay time of 2µs between the master and first slave mainframe, and 4µs, 6µs, and 8µs to the second, third, and fourth slave mainframes,...
Page 56 PEL-2000A Series User Manual The first mainframe that is connected is the master frame; any additional frames are slave units. The ribbon cable connects to the master from connector 2, and the slave from connector 1. Each successive slave unit is connected in a cascading manner the same way.
Page 57: Channel Control Connection
GETTING STARTED Channel Control Connection The Channel Control connecters are located on the Background rear panel of each mainframe. There are two channel control connectors for each load slot, one for each channel, if applicable. The channel control connector is used to externally: Turn on/off loads.
Page 58 PEL-2000A Series User Manual EXT VREF Twisted External Pair Voltage Ensure the external voltage reference is stable and WARNING has low noise. The External Voltage should be no more than 10V. No more than 12 volts may be used as an external voltage.
Page 59 GETTING STARTED +15V Reference voltage V MON I MON Voltage Monitor Current Monitor The channel control connector is a screw less Connector clamp connector. The internal clamp mechanism Connection must be opened before a wire can be inserted. To open the internal clamp, push the button above the wire socket, to close, release the button.
Page 60: Go/Nogo Connection
PEL-2000A Series User Manual Go/NoGo Connection The Go/NoGo port is a 15 socket port. Each Background channel has a dedicated line for a Go/NoGo output. The ports are open-collector with active high (30V) indicating a pass and active low (1.1V) as fail (an alarm).
Page 61: Operating Description
OPERATING DESCRIPTION PERATING DESCRIPTION Operating Mode Description ......... 62 Constant Current Mode ..........62 Constant Resistance Mode ..........65 Constant Voltage Mode ..........67 Constant Power Mode ............ 70 Group Unit Mode ..........72 Run Program ............74 Sequence ............... 77 OCP Test Automation ..........
Page 62: Operating Mode Description
PEL-2000A Series User Manual Operating Mode Description There are four basic operating modes: constant current (CC), Constant Resistance (CR), Constant Voltage (CV/CV+CC) and Constant Power (CP). All channels operate using any of the modes. Each mode has a number of configurable options including slew rate, levels, protection modes, Go/NoGo and extensive save options.
Page 63 OPERATING DESCRIPTION Static Functions Static mode tests the stability of the voltage output from a power source. Single channel load modules can have two 2 current levels A (A Value) & B (B Value). A & B have the same range. Pressing the A/B key on the module load will cycle through the A and B states.
Page 64 PEL-2000A Series User Manual The slew rate is the rate at which the current will Slew rate increase to a set level. There are two slew rates: rising slew rate & falling slew rate. In CC mode the slew rate is defined as A/uS.
Page 65: Constant Resistance Mode
OPERATING DESCRIPTION CC Mode: Dynamic:Go/NoGo Current Level 1 Level 2 NoGo Voltage GO is specified as between the Low and High Go/NoGo limits. NoGo is specified as outside the Go/NoGo limits. Constant Resistance Mode In Constant Resistance Mode the load units will Background linearly sink current and voltage to match a set resistance.
Page 66 PEL-2000A Series User Manual Resistance Range There are two ranges: High and Low. The Low range is used for low voltage ranges, whilst the High range uses high voltage ranges. The current range always remains in High range, regardless of the selected resistance range.
Page 67: Constant Voltage Mode
OPERATING DESCRIPTION The rising and falling slew rate (A/uS) determines Slew Rate the speed at which the load levels change from A to B Value (Static mode) or from Level1 to 2 (Dynamic mode) and vice versa. Go/NoGo is also supported. Center, High and Go/NoGo Low limits can be set as either percentages or voltage values.
Page 68 PEL-2000A Series User Manual CV Mode Load Current Load Input Voltage Two voltage levels can be set: A & B (single Voltage levels channel load module). CV Mode Voltage A value B value Time When using CV mode, a current limit can be set CV + CC for CV + CC mode.
Page 69 The PEL-2000A series will try to rectify any voltage drops. However if voltage drops are too large, they may cause the load to go into oscillation.
Page 70: Constant Power Mode
PEL-2000A Series User Manual Constant Power Mode In Constant Power Mode the load units will Background ensure a constant power load for the power supply. Single channel load modules support 2 values (A Value, B Value) and have an adjustable cut-off current limit.
Page 71 OPERATING DESCRIPTION When using CP mode, a current limit can be set CP + CC for CP + CC mode. When the constant power current is less than current limit, the channel will operate in CP mode. When the constant power current exceeds the current limit, the channel will operate in CC mode.
Page 72: Group Unit Mode
PEL-2000A Series User Manual Group Unit Mode The Group Unit menu allows load modules of the Background same type and rating to be configured as a single unit when used in parallel. This saves the hassle of configuring each channel individually.
Page 73 OPERATING DESCRIPTION Para mode Sync Mode LOAD LOAD Level1 Level1 CH1P CH1S Level2 CCDH Level2 CCDH SlewRate 0.80 A/uS SlewRate 0.80 A/uS SlewRate 0.80 A/uS SlewRate 0.80 A/uS Timer1 0.025 Timer1 0.025 Timer2 0.025 Timer2 0.025 main main Mode Range Mode Range Dynamic...
Page 74: Run Program
PEL-2000A Series User Manual Run Program The Program function on the PEL-2000A series Background supports a total of 12 different programs at any one time with 10 sequences to each program. Up to 12 programs can be chained together. The Program function is able to create a number of Go/NoGo tests.
Page 75 OPERATING DESCRIPTION Sets the running configuration for the current sequence. The sequence can be skipped, run or run manually only. Range: Auto | Skip | Manual On-Time Sets the Sequence Run On-Time Range: 0.1 ~ 60.0s Off-Time Sets the Sequence Off-Time Range: Off | 0.1 ~ 60.0s Short-time Sets whether the Short-Time for...
Page 76 PEL-2000A Series User Manual Any of the 12 programs can be chained together to Program Chain create a Program Chain. Unlike Program Sequences, Program Chains need not be run sequentially in numerical order. Any program can be chained to any program. It is possible to chain programs into an infinite loop to continue a program indefinitely.
Page 77: Sequence
OPERATING DESCRIPTION Sequence The Sequence function is used to create high Background resolution load simulations. Each Sequence can be configured to create a unique load profile to accurately simulate loads in real time. Sequences are only applicable for CC (Static) and CR (Static) modes.
Page 78 PEL-2000A Series User Manual Up to 120 points can be used with each Sequence. Points Each point can have a different duration, slew rate and value. A new point can be inserted or deleted at any stage of a Sequence. Any new points that are inserted will have a value averaged from its neighbors as default.
Page 79 OPERATING DESCRIPTION If more than one Sequence is programmed on the On End Of Seq. mainframe, the On End Of Seq. function will hold function the load current (of the selected sequence) to a designated value until all the other sequences have finished running.
Page 80 PEL-2000A Series User Manual As can be seen above, a trigger sequence signal is output for every rising edge point. The Trigger In setting allows a sequence to start Trig In after a trigger (Trig Out) has been received via the frame link connector.
Page 81 OPERATING DESCRIPTION CH1 import CH2 Value Time...
Page 82: Ocp Test Automation
The PEL-2000A series also has a user-defined OCP setting in the event that the power supply OCP fails.
Page 83: Parallel Dynamic Loading
OPERATING DESCRIPTION Parallel Dynamic Loading The PEL-2000A series of DC electronic loads Background support parallel dynamic loading. This simply means that when the load modules of a mainframe are connected in parallel and set to dynamic mode, they can perform dynamic tests synchronously following the same clock.
Page 84: Configurations Description
The Configuration Description section describes what the different configurations are used for and how they can be relevant to different operations. Protection Modes The PEL-2000A series include a number of Background protection modes: Over Current Protection, Over Voltage Protection, Over Power Protection, Under voltage protection and Constant Power Protection.
Page 85 OPERATING DESCRIPTION When a load unit is operating in CR, CV or CP Over Current mode, the unit may need over current protection to Protection prevent excessive current being set. Over current protection stops the load from sinking more current than its recommended limit which can cause damage to the unit.
Page 86: Operating Configurations
PEL-2000A Series User Manual Reverse voltage protection prevents reverse Reverse voltage voltage damage to the PEL-2000A series up to the Protection specified rating. When Reverse voltage protection has been tripped an alarm tone will sound until the reverse voltage is removed.
Page 87 OPERATING DESCRIPTION Von Latch: ON Von Latch: OFF Output Output time time PEL-2000A PEL-2000A series load series load load load time time As can be seen in the diagram below, when Von-Latch is set to off, the load module will start to sink current when the Von-voltage limit has been tripped.
Page 88 (up to 10 seconds) after the load key has been pressed. However the Load D-Time setting will only work for loads that are initiated manually or when the PEL-2000A series mainframe is configured to Auto load (page 210) at run time. The Response setting sets the bandwidth of the Response load to 1kHz (normal) or 100kHz (fast).
Page 89 OPERATING DESCRIPTION The step resolution range is dependent on the load Step Resolution module and the range: Range Max resolution: Module dependent, see page 197 Min resolution: Module dependent, see page 197 When short mode is on, the load unit can simulate Short Key a short circuit.
Page 90: Channel Control
PEL-2000A Series User Manual Channel Control External channel control is used with the Channel Background Control connectors. Each channel control connector can activate each load, monitor voltage and current and has an external voltage reference input. The voltage and current monitors output 0~100% of the rated current/voltage as a voltage of 0~10V.
Page 91 OPERATING DESCRIPTION To determine the Percent Rating (voltage or current load input), use the following formula; External Voltage   Load Input Rating VorA   Where “Rating V or A” is the rating voltage/current of the load module. Current Monitor The load current input can be externally monitored using the IMON pin of a channel control connector.
Page 92 PEL-2000A Series User Manual Voltage Monitor The input voltage, like the load input current can be externally monitored with the channel control connectors. The VMON pin of the channel control connector outputs a voltage of 0~10V to represent the load input voltage as a percentage (0~100%) of the rating voltage.
Page 93 OPERATING DESCRIPTION For connections and configurations, see pages 57 and 284 respectively.
Page 94: Interface And System
GPIB configuration Page 235 GPIB pin configuration Page 282 USB configuration Page 233 File System The PEL-2000A series is able to save and recall a Background number of different data types for each channel: Presets Memory Setup SEQ (Sequence) All data types can be saved and recalled to internal memory or saved to a USB flash drive.
Page 95 OPERATING DESCRIPTION each data type. Thus files are saved/recalled for each channel and each data type. Preset data can be saved into 10 memory slots for Preset Data each channel. Preset data contains the mode, range, CV response speed and Go/NoGo settings. Internal Format P0~P9 External Format...
Page 96 PEL-2000A Series User Manual SEQ data contains Sequence data. SEQ data can SEQ Data only be saved to and from USB. SEQ refers to Sequence data, not Program sequences. Internal Format N/A (Internal buffer) External Format 20X0X_XX.A SEQ Contents SEQ data contains the following data;...
Page 97 OPERATING DESCRIPTION CHAN Mode Static/Dynamic    Range  CV response speed Go/NoGo  SPEC Test  Entry Mode High    Center When saving data to internal memory, either the Save: Internal current channel or all the channel data can be memory saved.
Page 98 PEL-2000A Series User Manual Save/Recall USB In order to save data from a single channel to USB, data must first be saved to the internal memory. After data is saved to internal memory, all the files can be saved to USB.
Page 99: File Format
OPERATING DESCRIPTION File Format Current Channel Filename format Memory data 1: PEL-2000A series Load module 2030R_00.M Preset data type: SEQ data 1 2 3 4 2020 = PEL-2020A 2030 = PEL-2030A 2040 = PEL-2040A 2041 = PEL-2041A 2: Channel location or Voltage range of single channel model.
Page 100 PEL-2000A Series User Manual All Channel File Format Memory data 1: PEL-2000A series Load module 2230R_C1.M Preset data type: SEQ data 2 3 4 2020 = PEL-2020A Setup Data 2030 = PEL-2030A 20040_00.S 2040 = PEL-2040A, 1 2 3 4...
Page 101: Tutorials
TUTORIALS UTORIALS Local loads ............102 Single Channel Load ..........104 Parallel Load Modules ......... 106 Programming ............108 Sequences ............110 Frame Link ............111 Channel Control........... 113 General Configuration Options ......115...
Page 102: Local Loads
PEL-2000A Series User Manual Local loads Local mode operation is useful to quickly test loads using the load module control panel rather than the mainframe control panel. Local load modules can be configured to operate independently to the mainframe. This can be useful when settings need to remain unchanged on the mainframe.
Page 103 TUTORIALS The local load modules can be set Page 193 Independent to independent load. load Slave knobs can be configured to Page 215 Independent control be independent to the mainframe. Display Measured or Set Values Page 219 10. Configure with the selector knob. Slave Knob Settings...
Page 104: Single Channel Load
PEL-2000A Series User Manual Single Channel Load Single channel loads are used to manually test a DUT quickly or to configure channel settings for Program Sequences using the mainframe panel. Step Description Details Choose the appropriate load Page 38 Setup module and make sure it is installed.
Page 105 TUTORIALS Set the A(B) Value, slew rate (CC, CC Page 132 Static Values CR) and current limit (CV, CP) CR Page 139 (CC, CR, CV, CV Page 142 CP Page 146 Set the Go/NoGo configurations, Page 200 Go/NoGo if applicable. Configure the protection modes.
Page 106: Parallel Load Modules
PEL-2000A Series User Manual Parallel Load Modules The Group Unit setting allows for a quick and easy parallel setup for load modules of the same type and rating. However, the Group Unit settings only apply for CC and CR modes.
Page 107 TUTORIALS Set the Go/NoGo configurations, Page 200 Go/NoGo if applicable. Configure the protection modes. Page 181 10. Protection Modes Activate the load by pressing the 11. Run ON / LOAD load key. Optional 12. Configuration There are number of Page 115 configurations that apply to all channels.
Page 108: Programming
PEL-2000A Series User Manual Programming When creating a Program Sequence or Chain, all channels are used at the same time unless programmed otherwise. Program Sequences use the channel settings stored from Memory Data. Program sequences are primarily used to perform a battery of pass/fail tests on DUTs.
Page 109 TUTORIALS 11. Save Program Save the chain in the Chain menu. Save everything to the internal Page 248 12. Save Setup Setup memory. Run the Program Page 157 13. Run Sequence/Chain.
Page 110: Sequences
PEL-2000A Series User Manual Sequences Sequences are used to accurately simulate loads. As each Sequence is independent, Sequences are ideally suited to test multiple output power sources. Step Description Details Choose the appropriate load Page 38 Setup module(s). Connect the terminals to the DUT. Page 45...
Page 111: Frame Link
TUTORIALS Frame Link Frame link connections are used connect up to four slave main frames to a master main frame. When using frame link connections it is possible to perform a number of operations in parallel under the control of the master unit. Step Description Details...
Page 112 PEL-2000A Series User Manual Run the loads. To run the loads, ON / LOAD press the LOAD key on the master mainframe. To stop, press again. When the LOAD key is pressed all loads will be active. Options Load preset memory on the...
Page 113: Channel Control
Connect the terminals to the DUT. Page 45 Connection Connect the channel control Page 57 & 284 connectors on the rear panel. Turn on the PEL-2000A series mainframe and DUT (load). Select the Mode* and Range* via CC Pages 128, Configure the front panel.
Page 114 PEL-2000A Series User Manual Run the load. Turn the load on by Page 57 & 89 either outputting an active low signal to the appropriate channel control connector or control connector, or press the LOAD key on the load module or mainframe**.
Page 115: General Configuration Options
TUTORIALS General Configuration Options There are number of different options for each channel. The different options are described below. Options Description Details Configure the CC Voltage range Page 185 CC Vrange from high or low. Configure the Von Voltage settings. Page 187 Von Voltage Configure the short key settings.
Page 116 PEL-2000A Series User Manual Turn the sound on/off for the Page 211 14. Sound mainframe IU.
Page 117: Operation
OPERATION PERATION The PEL-2000A series operation is described in the chapters below. The sections are broken down into small operations. For thorough examples on the operation of the load, please see the tutorial section on page 102. Local Mode Operation ........120 Selecting a Channel............
Page 118 PEL-2000A Series User Manual Select CP Range .............148 Creating a Program Sequence ......150 Program Chains .............155 Running a Program ............157 Edit Sequence ............. 163 Create Sequence Loop ...........165 Channel Duration Time Settings ........167 Run Sequence ..............170 OCP Test Automation .......... 173 Channel Configuration ........
Page 119 OPERATION Setting the Date and Time ..........231 Interface Configuration (settings) ....... 232 Configuring RS232 Connection ........232 Configuring USB Connection ........233 Configuring the GPIB Address ........235 RS232 and USB CDC Function Check ....238 GPIB Function Check .......... 242 Saving/Recalling Channels ........
Page 120: Local Mode Operation
PEL-2000A Series User Manual Local Mode Operation Each channel can be edited by its local load module. Depending on the configuration, local changes can be reflected on the mainframe. For this section all operations refer to knobs and buttons on the local load module panels, unless stated otherwise.
Page 121: Selecting Static/Dynamic
OPERATION Selecting Static/Dynamic Each load channel can be individually switched Background from Static to Dynamic using the local load module. Select a channel on the load Page 120 module. Press the STATIC/DYNA. key to Panel operation STATIC/ switch from dynamic to static DYNA.
Page 122: Turning On The Load
PEL-2000A Series User Manual Turning on the Load Loads can be individually selected to be turned on Background using local operation. Select a channel on the load Page 120 module. Press the LOAD key to turn on Panel operation LOAD the load.
Page 123: Shorting
OPERATION Shorting The Short Key is used to simulate a short circuit. Background Configure the Short settings. Page 189 Select a channel on the load Page 120 module. Press the SHORT key to enter Panel operation the shorting modes. SHORT Short a.
Page 124: Editing Cc/Cr/Cv/Cp A/B Value
PEL-2000A Series User Manual Voltage Current Power Load on time. The Display mode cannot be changed in Group Unit Note mode. Editing CC/CR/CV/CP A/B Value The Slave Knob is used to edit the A Value or B Background Value (single channel load module) when in static mode.
Page 125 OPERATION When the Slave Knob is set to “Measure”, the slave Note knob must be pressed first to display the values on the load module display. Editing the A/B Value is not possible with this method in Group Unit mode.
Page 126: Mainframe Basic Operation
PEL-2000A Series User Manual Mainframe Basic Operation For the Mainframe Basic Operation section, all operations refer to the knobs and keys on the main configuration panel, unless otherwise stated. Help Menu When any function key has been pressed or when...
Page 127: Channel Selection
OPERATION 4. Press F5 to exit. Channel Selection There are up to 2 channels per load module, Background depending on the model. The main display can be used to control each channel individually. When Group Unit Mode is enabled, channel selection is disabled.
Page 128: Select Cc Mode
PEL-2000A Series User Manual Select CC Mode The PEL-2000A series loads operate in four Background different modes: Constant Current (CC), Constant Resistance (CR), Constant Voltage (CV), and Constant Power (CP). When a channel is active, the F1 key can be used to switch between each operating mode.
Page 129: Select Cc Dynamic Mode
OPERATION Panel Operation 1. Press the F2 (Range) key repeatedly until High or Low range is selected. Range Range High The range will be reflected in both the CH1P bottom menu system and the Current CCDH Operation Channel Status panel. CC Dynamic Low CCDL CC Dynamic High...
Page 130: Editing Cc Dynamic Parameters
PEL-2000A Series User Manual Changing from static to dynamic mode will only affect Note the current (active) channel. Editing CC Dynamic Parameters Dynamic Constant Current Mode has two Background operating current levels, slew rates and timers. Slew rates determine the speed at which the load will change from one level to the next.
Page 131 OPERATION 06/15/18 16 : 50 Level1 0.80 CH1P CCDH Level2 0.50 SlewRate 0.80 A/uS SlewRate 0.80 A/uS Timer1 0.025 Timer2 0.025 main Range Mode Dynamic Configure Configure High Press the Selector knob to edit the selected level, then turn to increase or decrease the value*.
Page 132: Select Cc Static Mode
PEL-2000A Series User Manual Select CC Static Mode Constant current mode can be set to dynamic or Background static mode. Static mode is for manually varying the load for single channel load modules or to set a static load on dual channel modules.
Page 133 OPERATION A Value 0 ~ Setting Max A Parameters B Value 0 ~ Setting Max A SlewRate Load module dependent SlewRate Switch Value A/B (Group Unit Mode only) When Group Unit Mode is enabled, the A Value & B Note Value range is the combined rating of all the units used in Group Unit Mode, see page 72.
Page 134: Set To Cr Mode
*Press Shift to toggle between coarse and fine adjustment when editing the A Value and B Value parameters. See page 197 for details. Set to CR Mode The PEL-2000A series load operates in four Background different modes, Constant Current (CC), Constant Voltage (CV), Constant Resistance (CR) and Constant Power (CP).
Page 135: Select Cr Range
OPERATION Range Mode Dynamic Configure Configure Changing the operating mode will only affect the Note current (active) channel. Other channels will not be affected by any changes. Select CR Range Constant Resistance mode can run in high and Background low range. Range is dependent on the load module.
Page 136: Select Cr Dynamic Mode
PEL-2000A Series User Manual Changing the range will only affect the current Note (active) channel. Other channels will not be affected by any changes. All resistance values and slew rates are dependent on Range, i.e., A Value in low range can be different from A Value in high range.
Page 137 OPERATION The timers determine how long the load module/channel will stay at level 1 or level 2. See the CR operating description for details about slew rates and timers, page 65 Ensure the menu is in CR Dynamic Mode. See page 136.
Page 138 PEL-2000A Series User Manual 06/15/18 16 : 50 Level1 100.000 Ω CRDL Level2 100.000 Ω SlewRate 0.40 A/uS SlewRate 0.40 A/uS Timer1 0.025 Timer2 0.025 main Mode Range Dynamic Configure Configure Press the Selector knob to edit the selected level, then turn to increase or decrease the value*.
Page 139: Select Cr Static Mode
OPERATION Select CR Static Mode Constant Resistance mode can be set to dynamic Background or static mode. Static mode is for manually varying the load for single channel load modules or to set a static load on dual channel modules. Ensure the menu is in CR Mode.
Page 140 PEL-2000A Series User Manual A Value Setting Min ~ Rating Ω Parameters B Value Setting Min ~ Rating Ω SlewRate Load module dependent SlewRate Switch Value A/B (Group Unit Mode only) When Group Unit Mode is enabled, the A Value & B...
Page 141: Select Cv Mode
*Press Shift to toggle between coarse and fine adjustment when editing the A Value and B Value parameters. See page 197 for details. Select CV Mode The PEL-2000A series electronic load operates in Background four different modes, Constant Current (CC), Constant Resistance (CR), Constant Voltage (CV), and Constant Power (CP).
Page 142: Editing Cv Parameters
PEL-2000A Series User Manual Range Response Mode Configure Configure High Slow Changing the operating mode will only affect the current (active) channel. Other channels will not be affected by any changes. Editing CV Parameters Constant Voltage mode can be set to a maximum Background limit (Curr Limit).
Page 143 OPERATION 06/15/18 16 : 50 A Value 10.00 B Value 15.00 Curr Limit 10.00 Slow main Range Response Mode Configure Configure High Slow Press the Selector knob to edit the selected value, then turn to increase or decrease the value*. Use the number pad to enter a number.
Page 144: Select Cv Range
PEL-2000A Series User Manual Select CV Range Constant Voltage mode can run in high and low Background range. Range is dependent on the load module. Ensure the menu is in CV Mode. See page 144. Range Mode Configure Configure Panel Operation 1.
Page 145: Select Cp Mode
Note current (active) channel. Other channels will not be affected by any changes. Select CP Mode The PEL-2000A series electronic load operates in Background four different modes, Constant Current (CC), Constant Resistance (CR), Constant Voltage (CV), and Constant Power (CP).
Page 146: Editing Cp Parameters
PEL-2000A Series User Manual Mode Mode Mode Mode Panel Operation 1. Press the CHAN button and use LOCAL the selector knob to select a CHAN channel. Press F1 until CP mode is displayed in the display panel. Mode Range Configure...
Page 147 OPERATION Panel Operation 1. Use the Selector knob to highlight A Value. 06/15/18 16 : 50 A Value 10.00 B Value 20.00 Curr Limit 7.140 main Range Mode Configure Configure Press the Selector knob to edit the selected value, then turn to increase or decrease the value *.
Page 148: Select Cp Range
PEL-2000A Series User Manual The last Value (A Value or B Value) that is set Note becomes the active setting. To swap between A Value and B Value, use the A/B keys on the local load module. A/B Value can be set for both High and Low Range.
Page 149 OPERATION Changing the range will only affect the current Note (active) channel. Other channels will not be affected by any changes. Not all load modules support dual ranges. If only one range is supported, it is usually high range.
Page 150: Creating A Program Sequence
PEL-2000A Series User Manual Creating a Program Sequence The PEL-2000A series has a total of 12 different Background programs and 10 sequences to each program. That totals to 120 different configurations. Each Sequence in each program uses the settings saved from Memory Data (Memory MXXX).
Page 151 OPERATION Memory M001~M120 Parameters Skip-Auto-Manual On-Time 0.1 ~ 60.0 seconds Off-Time Off – 0.1 ~ 60.0 seconds P/F Time Off – 0.1 ~ (On-Time+Off-Time)-0.1 Short-Time Off – 0.1 ~ On-Time Short Ch Off – 1~ 8 (CH1~CH8) Before a program can be created, the settings for Note each sequence for every channel that is to be used in the program must first be pre-configured and saved...
Page 152 PEL-2000A Series User Manual Press the selector knob to edit PROG:, then turn to select the program number. Use the number pad to enter a CAL. LOCK program number. CLEAR Program: 01 ~12 Press Enter or push the selector ENTER knob to confirm.
Page 153 OPERATION Choose whether to run the sequence in the program automatically, skip the sequence or manually start the sequence. On-Time: 0.1 ~ 60.0 seconds Determines how long the sequence will run for (seconds). Off-Time: Off – 0.1 ~ 60.0 seconds Sets how long the sequence will stay off for (in seconds) between each sequence.
Page 154 PEL-2000A Series User Manual Repeat the above steps for all ten sequences for the same (current) program. Press F3 (Save) to save all the Save Sequence sequence data for all of the program. Note the program data is not yet saved into Setup Note Memory.
Page 155: Program Chains
On the PEL-2000A, there are up to 12 different Background programs containing 10 sequences. If 10 sequences in a Program Sequence prove to be inadequate for testing, the PEL-2000A series can chain different programs together, effectively making a larger Program Sequence. Unlike Program Sequences, Program Chains do not need to be run in numerical order.
Page 156 PEL-2000A Series User Manual 06/15/18 16 : 50 LOAD Start Sequence Chain Set Edit Recall Previous Save Configure Start Default Menu Press F1 (Edit Start) and use the selector knob to edit Start and confirm which Program Sequence (PXX) will start the program chain.
Page 157: Running A Program
OPERATION Repeat the above procedure to P02~P12 to complete the program chain. The Program Chain ends at the first Program (PXX) that is followed by Off. It is possible to create continuously looping program chains. Press F3 (Save) to save the Save Program program chain.
Page 158 PEL-2000A Series User Manual Press the FUNC key, Program FUNC (F1) and Active Channel (F2). Channel 1 (CH01) will be highlighted. Note CH1 has CH CONT set to External 06/15/18 16 : 50 LOAD Active Channel for Program Mode Active...
Page 159 OPERATION Press F5 (Previous Menu) to Previous Menu return to the Sequence menu. 10. Press F1 (Prog) to turn On or Off Turn Program the current Program. On/Off Pressing F1 will cycle from Program On to Off. Prog Prog 11. PROG will appear on the mainframe status panel when the program is turned on.
Page 160 PEL-2000A Series User Manual As each sequence or program is completed the screen will update to display the active sequence/program. Notice that if a channel has been set up with Go/NoGo limits, a pass (GO) or fail (NG) will be displayed on the main display as well as the local load module display.
Page 161 OPERATION 06/15/18 16 : 50 PROG PASS FAIL PASS PASS Detail Configure Exit When the program has finished, the physical channels that have run will be displayed, a PASS or FAIL will be displayed if Go/NoGo testing has been set. 16.
Page 162 PEL-2000A Series User Manual Use the Selector knob to scroll down to view the remainder of the list if necessary. 17. Press F5 to exit at any time. Upon exiting, the previous menu before running the program will load.
Page 163: Edit Sequence
OPERATION Edit Sequence The Sequence function can be configured to create Background a unique load profile to accurately simulate loads in real time for single or multiple loads. Sequence can only be used with CC static or CR static modes. For details see page 77. Each Sequence is composed of a number of points with customizable current/resistance, slew rate and duration times.
Page 164 PEL-2000A Series User Manual 06/15/18 16 : 50 LOAD Point 0.00 Value Duration Time 0.000025 SlewRate 2.80 A/uS 2.80 A/uS SlewRate s_edit Delete Previous Loop Configure Point Point Menu Use the Selector knob to highlight Value. Press the Selector knob to edit the Value, then turn to increase or decrease the value.
Page 165: Create Sequence Loop
OPERATION Add Point will insert a new point directly after the Note current point. The value of the current/resistance of the inserted point will be the average of the point before and after. All other settings will remain unchanged. To delete the current point, press Delete Point Delete Point (F2).
Page 166 PEL-2000A Series User Manual Ensure the menu is in the Seq. Edit menu and that a sequence has been created. See page 163 Delete Previous Loop Configure Point Point Menu Repeat 1~9999/Infinity (0) Parameters Start of Loop 001~ last point On End of Seq.
Page 167: Channel Duration Time Settings
OPERATION Press the Selector knob to edit Repeat, then turn to increase or decrease the value. Use the number pad to enter a number. CAL. LOCK CLEAR Select 0 to choose infinity. Repeat 0005 Times Press the Selector knob or Enter ENTER to confirm selection.
Page 168 PEL-2000A Series User Manual At least one channel must output a Trigger Sequence Signal via PIN4 of the first frame link connector (master) if a sequence is run. For more details see page 77. The Trigger In signal is used to start any sequence that has TRIG set to IN.
Page 169 OPERATION Use the Selector knob to highlight a channel. Press the Selector knob to edit the channel, and then turn to choose which channel’s Duration Time Setting to import. Range Ch 01~08 / OFF Press the Selector knob or Enter ENTER to confirm selection.
Page 170: Run Sequence
PEL-2000A Series User Manual Run Sequence Like Programs, Sequences must be turned “ON” Background before they can be run. When running a Sequence, the front panel function keys, number pad, operation keys and selector knob are disabled for the specific channel(s).
Page 171 OPERATION Press Seq. (F1) to turn on the Sequences. SEQ will be displayed on the Mainframe Status panel. Press the LOAD key to run all ON / LOAD the Sequences. If a channel has TRIG set to IN, that channel will now wait for a trigger before running.
Page 172 PEL-2000A Series User Manual All UI keys/knob will be disabled for all channels that Note run a Sequence, bar the function keys and R/L keys.
Page 173: Ocp Test Automation
OPERATION OCP Test Automation The OCP test function creates an automatic test to Background test the OCP of power supply products. Active Channel Applies the setting to the Parameters load channel. Range High(CC Mode High) or Low(CC Mode Low) Start Current(Start C) Starting current value for the test.
Page 174 PEL-2000A Series User Manual Last Current(Last_C) Sets the final current value after OCP has been tripped. This is the steady- state current draw after the OCP has been tripped. Step Time(Step_T) Sets the execution time of each step. (50mS to 1600S)
Page 175 OPERATION 06/15/18 16 : 50 Chan: OCP Function Range: High Step_T: 0.05 Start C: 0.000 Delay: 0.000 End C: 71.400 Trig_V: 0.0000 Step_C: 0.002 Keep_T: 0.000 Last_C: 0.000 Active Configure Channel Use the Selector knob to highlight the parameter you want to edit.
Page 176 PEL-2000A Series User Manual 06/15/18 16 : 50 Chan: OCP Function Range: High Step_T: 0.05 Start C: 0.000 Delay: 0.000 End C: 71.400 Trig_V: 0.0000 Step_C: 0.002 Keep_T: 0.000 Last_C: 0.000 Active Configure Channel To select the load channels for...
Page 177 OPERATION 06/15/18 16 : 50 Active Channels for OCP Mode Active Previous Save Configure Menu Use the selector knob to Enter ENTER key to turn the Active value to Press Save (F3) to save the OCP Save the OCP test automation channel. Test Automation Channel 10.
Page 178 PEL-2000A Series User Manual 12. Press Save (F3) to save the OCP Save the OCP test automation parameters. Test Automation Parameters 13. Press the Load key to start to Start the OCP ON / LOAD Test Automation OCP Test Automation.
Page 179 OPERATION An OCP Test Automation example using actual current and voltage waveforms.
Page 180: Channel Configuration
PEL-2000A Series User Manual Channel Configuration The Channel Configuration chapter describes the configuration options for individual channels. Any configuration settings that are changed only apply to the current channel, other channels will not be changed. Accessing the Configuration Menu The configuration menu is used to access...
Page 181: Setting (Ocp/Ovp/Opp/Uvp)
OPERATION Setting (OCP/OVP/OPP/UVP) Over Protection is used to set the voltage, current Background or power limit. In the event that the current, voltage or power exceeds the over protection settings, the load module display will show an error message and beep an alarm. When tripped, Under Voltage Protection (UVP) will turn off the load.
Page 182 PEL-2000A Series User Manual Ensure the menu is the configuration menu. See Panel operation page 180. Previous Protection Other Go-NoGo Group Configure Menu 06/15/18 16 : 50 LOAD OCP Level 71.400 CCDH OCP Setting OVP Level 81.6 OVP Setting OPP Level 357.00...
Page 183 OPERATION Use the Selector knob to highlight OCP Setting. Use the selector knob to turn ON, OFF or CLEAR the OCP Setting. Repeat steps 1-5 for : OCP Level OPP Setting OVP Level UVP Level OVP Setting UVP Setting OPP Level Clearing an Alarm When any of the protection settings are tripped, Alarm will be shown on the Mainframe Status Panel and an alarm tone will sound by default.
Page 184: Protection Clear
PEL-2000A Series User Manual Change the XXP Setting to Clear to clear the alarm. OCP Setting Clear *REV, OTP and CPP cannot be cleared using this Note method, the Protection Clear function must be used instead, see page 184. See pages 60 and 289 to output alarms via the Go/NoGo output terminal.
Page 185: Setting The Cc Voltage Range
OPERATION Ensure the menu is in the Panel operation configuration menu. See page 180. Previous Protection Other Go-NoGo Group Configure Menu Turn the load off by pressing the ON / LOAD load key if necessary. Use the selector knob to scroll down to Protection Clear.
Page 186 PEL-2000A Series User Manual Press the F2 (Other) key to enter the other menu. 06/15/18 16 : 50 LOAD CC Vrange High CCDH Von Voltage 0.00 Von Latch CH CONT Panel Independent Load D-Time 0.0 S conf Previous Protection Other...
Page 187: Adjusting The Von Voltage And Latch
OPERATION Adjusting the Von Voltage and Latch The Von Voltage is the voltage point at which the Background load module will start to sink current. When Von latch is set to ON, the load will continue to sink current after being tripped, even if the voltage drops below the Von Voltage level.
Page 188 PEL-2000A Series User Manual Press the Selector knob to edit the selected value, then turn to increase or decrease the value. Use the number pad to enter a number. CAL. LOCK CLEAR Von Voltage 0.00 Press the Selector knob or ENTER Enter to confirm selection.
Page 189: Configuring The Short Settings
OPERATION Configuring the Short settings The Short Key option is used to simulate a short Background circuit. The Short Function option is used to set whether short function is enabled or disabled. The Short key option can be configured to toggle (press SHORT on the load module to toggle ON or OFF) or to Hold (the SHORT key is held to short the load.
Page 190 PEL-2000A Series User Manual 06/15/18 16 : 50 LOAD CVL Step 0.0004 CPH Step 0.01 CPL Step 0.001 Short Function Slow Short Key Toggle Short Safety conf Previous Protection Other Go-NoGo Group Configure Menu Use the Selector knob to highlight Short Function.
Page 191 OPERATION Use the Selector knob to highlight Short Safety. Press the Selector knob to edit the selected setting, turn to change the setting. Short Safety 10. Press the Selector knob or Enter ENTER to confirm selection.
Page 192: Configuring Channel Control
PEL-2000A Series User Manual Configuring Channel Control When Channel Control (CH CONT) is set to Background External, it will disable editing the active channel load. Instrument buttons and knobs can still be used to access the menu for the active channel or to edit other channels that do not have channel control active.
Page 193: Configuring The Independent Setting
OPERATION Press the Selector knob to edit the selected setting, turn to change the setting from Panel to External. CH CONT External Press the Selector knob or Enter ENTER to confirm selection. Channel control is now activated. To turn Channel Control off, CH CCDH CONT must be set to Panel again.
Page 194 PEL-2000A Series User Manual Ensure the menu is in the configuration menu. See Panel operation page 180. Previous Protection Other Go-NoGo Group Configure Menu Press the F2 (Other) key to enter the Other menu. 06/15/18 16 : 50 LOAD CC Vrange...
Page 195: Configuring The Load Delay Time
OPERATION When a channel has been set to independent, an asterisk (*) will be *CH1 shown next to the channel number CCDH indicator in the Current Operation Channel Status panel. The configuration settings only apply to Note the current channel, other channels will not be affected.
Page 196 PEL-2000A Series User Manual 06/15/18 16 : 50 LOAD Load D-Time CCDH Response Mormal CCH Step 0.002 CCL Step 0.0010 A CRH Step 0.00080 CRL Step 0.00080 CVH Step 0.002 conf Previous Protection Other Go-NoGo Group Configure Menu Use the Selector knob to highlight Load D-Time.
Page 197: Configuring Step Resolution
OPERATION Configuring Step Resolution The CC, CR, CV and CP step resolution settings Background can be edited in the configuration menu. These step resolution settings directly correspond to the step resolution of the coarse adjustment when setting the CC, CR, CV and CP parameters. The minimum and maximum step resolution that can be set for each channel is dependent on the load module.
Page 198 PEL-2000A Series User Manual CCH Step HR/40000 HR/2 Amperes A PEL-2030A (R) CCL Step LR/40000 LR/2 Amperes A Siemens ℧ CRH Step HR/40000 HR/2 Siemens ℧ CRL Step LR/40000 LR/2 CVH Step HR/40000 HR/2 Voltage V CVL Step LR/40000 LR/2...
Page 199 OPERATION Use the Shift key to toggle between coarse and fine Note adjustment mode when editing the CC, CR, CV and CP values with the Selector knob on the main display. The fine adjustment resolution varies between the function and load module used. Coarse mode: Fine mode: SHIFT...
Page 200: Configuring Response Time
PEL-2000A Series User Manual Press the Selector knob to edit the selected setting, turn to change the setting. Use the number pad to enter a number. CAL. LOCK CLEAR CCP Step 0.002 Press the Selector knob or Enter ENTER to confirm selection.
Page 201: Go/Nogo
OPERATION 06/15/18 16 : 50 LOAD Response Normal CCH Step CCDH 0.002 CCL Step 0.0010 A CRH Step 0.00080 CRL Step 0.00080 CVH Step 0.002 conf Previous Protection Other Go-NoGo Group Configure Menu Use the Selector knob to scroll down to highlight Response. Response is off-screen when entering Other menu.
Page 202 PEL-2000A Series User Manual Go/NoGo can be used in both high and low ranges, as well as CC, CV, CR and CP Modes. The Go/NoGo status can be read using the rear Go/NoGo output. A delay time can also be imposed for up to 1 second.
Page 203 OPERATION Entry Mode Value Entry Mode Percent The menu changes according to the selection. Value Percent LOAD LOAD SPEC Test SPEC Test CCDH CCDH Delay Time Delay Time Entry Mode Value Entry Mode Value High 100.0 High 10.0000 100.0 0.00000 Center 10.0000 A conf...
Page 204: Group Unit
Up to 4 load modules can be used in this mode. Operating the PEL-2000A series load modules in Group Unit mode is almost identical to using the load modules separately. The only difference is...
Page 205 OPERATION Only CC or CR mode can be used in Group Unit. Note For the single channel load modules, PEL-2040A and PEL-2041A are fully support these two modes (Para, Sync) of group function. The PEL-2030A does not support group function. The dual channel of PEL-2020A does support group function partially.
Page 206 PEL-2000A Series User Manual 06/15/18 16 : 50 LOAD Total Unit Group Mode CCDH Para Display Mode conf Previous Protection Other Go-NoGo Group Configure Menu Use the Selector knob to change Total Unit from the OFF setting to the number of parallel units.
Page 207 OPERATION Display Mode When Para Unit is active, an indicator will be displayed on the screen. The CH1P indicator depends on the Group Mode. CCDH P will be displayed for Para Mode and S will be displayed for Sync Mode. CHXP Para Mode CHXS...
Page 208: Mainframe Configuration
PEL-2000A Series User Manual Mainframe Configuration The Mainframe Configuration chapter describes configuration settings that apply to all channels and general interface settings. Accessing System Information The System Information displays the mainframe Background and load module(s) serial numbers. MainFrame Ver: Mainframe firmware version.
Page 209 OPERATION 06/15/18 16 : 50 LOAD MainFrame Ver: 1.XX XXXX PEL-2002 SN: EJXXXXXX Slot1(1)Ver: 1.XX PEL-2041 SN: EJXXXXXX Slot2(2)Ver: 1.XX PEL-2041 SN: EJXXXXXX System Load Interface Time Set Configure Other Info If you have set Memo through command, you can see Note the Memo information by pressing System Info (F1) once again.
Page 210: Accessing The Load Menu
PEL-2000A Series User Manual Accessing the Load Menu The PEL-2000A series is able to automatically start Background loading from the last program or load setting. If Auto Load On is set to Load, the last load setup used before the machine was reset will automatically start to load upon startup.
Page 211: Adjusting The Speaker
Scroll to Auto Load On and choose Load or Program for the next time the PEL-2002A starts up. Adjusting the Speaker The PEL-2000A series has an internal speaker for Background both the mainframe and load modules. The speaker function turns On/Off the sound for the UI (key presses and scrolling).
Page 212: Adjusting The Display Settings
On to Off and vice versa. Speaker Press the Selector knob or Enter ENTER to confirm selection. Adjusting the Display Settings The PEL-2000A series has a TFT LCD display. The Background display brightness and contrast can be controlled via the utility menu. Brightness 50~90 50(low)
Page 213: Adjusting The Frame Control
OPERATION Use the Selector knob to highlight Contrast. Press the Selector knob to edit contrast, then turn to increase or decrease the value. Contrast Press the Selector knob or Enter ENTER to confirm selection. Repeat steps 3-5 for the Brightness. Adjusting the Frame Control Frame control is used to control a number of Background...
Page 214 PEL-2000A Series User Manual 06/15/18 16 : 50 LOAD Other Setting Speaker Contrast Brightness Frame CONT Alarm Tone(M) System Load Interface Configure Other Time Set Info Use the Selector knob to highlight Frame CONT. Press the Selector knob to edit, then turn to turn Frame CONT (frame control) ON or OFF.
Page 215: Adjusting The Knob Control Type
OPERATION Repeat the above steps for any connected slave mainframe units. Frame control is now ready for both master and slave mainframes. Adjusting the Knob Control Type The mainframe control knob can be set to Background “Update” or “Old” mode. When setting to Update mode, rotating the mainframe knob will change the setting value of load module at the same time.
Page 216 PEL-2000A Series User Manual Use the Selector knob to move the cursor down to Knob Type (below the initial screen). Press the Selector knob to highlight Knob Type, then turn to change to Old/Updated. Knob Type Updated Press the Selector Knob or Enter ENTER to confirm selection.
Page 217: Configuring Alarm Sound
OPERATION Configuring Alarm Sound The PEL-2000A series has two different types of Background alarms, one located on the mainframe (Alarm Tone M) and one for each load module (Alarm Tone S). Alarm Tone (M)/(S) can individually be set ON or OFF.
Page 218: Configuring Go/Nogo Alarm Sound
PEL-2000A Series User Manual Press the Selector knob to select the master alarm (Alarm Tone (M)), turn to edit and press to confirm selection. Alarm Tone(M) Repeat the steps to edit the slave alarm (Alarm Tone(S)). Configuring Go/NoGo Alarm Sound...
Page 219: Adjusting Slave Knob Settings
OPERATION Use the Selector knob to move the cursor down to Go_NoGo Tone (below the initial screen). Press the Selector knob to highlight Go_NoGo Tone, then turn to change to ON/OFF. Go_NoGo Tone Press the Selector Knob or Enter ENTER to confirm selection.
Page 220: View Language Settings
PEL-2000A Series User Manual Press F5 (Other Menu). 06/15/18 16 : 50 LOAD Other Setting Alarm Tone(S) Knob Type Updated Go-NoGo Tone Slave Knob SetValue Language English System Load Interface Configure Other Time Set Info Use the Selector knob to move the cursor down to Slave Knob (below the initial screen).
Page 221: Adjusting The High Resolution
OPERATION Press F5 (Other Menu). 06/15/18 16 : 50 LOAD Other Setting Alarm Tone(S) Knob Type Updated Go-NoGo Tone Slave Knob SetValue Language English System Load Interface Configure Other Time Set Info Use the Selector knob to move the cursor down to Language (below the initial screen).
Page 222 PEL-2000A Series User Manual Press the Shift Key then the Help UTILITY Panel operation HELP SHIFT key to access the Utility menu. Press F5 (Other Menu). 06/15/18 16 : 50 LOAD Other Setting High Resolution System Mode Von Latch Clear...
Page 223: Adjusting The System Mode
OPERATION Adjusting the System Mode 1: When any command is received, the Master Background panel will automatically enter the Remote fast mode. 0: The Master panel won’t automatically enter the Remote fast mode. For details about remote mode fast/normal, please Note refer to command :UTILity:REMote:MODE in the programming manual.
Page 224 PEL-2000A Series User Manual Press the Selector knob to edit System Mode, then turn to change from 0 to 1 and vice versa. System Mode Press the Selector knob or Enter ENTER to confirm selection.
Page 225: Adjusting The Von Latch Clear
OPERATION Adjusting the Von Latch Clear Auto: Load starts when the terminal voltage of Background module is higher than Von value. The system stops loading when the terminal voltage of module is close to 0V for more than 25ms and system is under the state of detecting Von again.
Page 226 PEL-2000A Series User Manual This feature is only available when Von Latch is set to Note Von Latch Clear Auto/Manual Parameters Press the Shift Key then the Help UTILITY Panel operation SHIFT HELP key to access the Utility menu. Press F5 (Other Menu).
Page 227: Adjusting The Measure Period
OPERATION Adjusting the Measure Period You can select a measure sample rate through this Background setting. 200ms or 20ms are available for voltage and current sampling rate. Measure Period 200ms/20ms Parameter Press the Shift Key then the Help UTILITY Panel operation HELP SHIFT key to access the Utility menu.
Page 228: Adjusting The Jog Shuttle Control
PEL-2000A Series User Manual Press the Selector Knob or Enter ENTER to confirm selection. Adjusting the Jog Shuttle Control ON: After this setting is enabled, the settings Background value will be adjusted by slave knob in Jog Shuttle mode when you adjust the setting value. The interval value is adjusted according to the knob speed.
Page 229: Adjusting The Rvp Load Off
OPERATION Press the Selector knob to edit Jog Shuttle Control, then turn to change from OFF to ON and vice versa. Jog Shuttle Control Press the Selector knob or Enter to confirm selection. Adjusting the RVP Load Off ON: When RVP is detected, Alarm will display on Background the screen and stop loading.
Page 230 PEL-2000A Series User Manual 06/15/18 16 : 50 LOAD Other Setting System Mode Von Latch Clear Auto Measure Period 200ms Jog Shuttle Control RVP Load Off System Load Interface Configure Other Time Set Info Use the Selector knob to highlight RVP Load Off.
Page 231: Setting The Date And Time
OPERATION Setting the Date and Time The date and time settings are used to time- Description stamp files when saving files. The date is shown on top of the display.  Month 1~12 Parameters 1~31 Year 1990~2038 Hour 0~23 Minute 0~59 Press the Shift Key then the UTILITY...
Page 232: Interface Configuration (Settings)
PEL-2000A Series User Manual Interface Configuration (settings) The Interface Configuration chapter describes configuration settings that apply when using the PEL-2000A mainframe with a remote connection. There are three interface options for remote control: RS232, GPIB and USB. Only one interface can be used at a time.
Page 233: Configuring Usb Connection
OPERATION If the Interface mode is not RS232, use the Selector knob to edit Interface. Choose RS232. Interface RS232 Press the Selector knob to ENTER confirm. The RS232 Menu appears. RS232 06/15/18 16 : 50 LOAD Interface RS232 Baud rate 38400 Stop Bit None...
Page 234 PEL-2000A Series User Manual PEL-2000A side Type B, device connector Speed 1.1/2.0(full speed) 1. Press the Shift Key then the Help UTILITY Panel operation SHIFT HELP key to access the Utility menu. 2. Press F3 (Interface Menu). RS232 06/15/18 16 : 50...
Page 235: Configuring The Gpib Address
OPERATION 06/15/18 16 : 50 LOAD Interface System Load Interface Configure Other Time Set Info 7. Connect the USB cable to the USB-B slave port on the rear. 8. When the PC asks for the USB driver, select PEL-2000A.inf (downloadable from the GW Instek website, www.gwinstek.com, PEL-2000A product corner).
Page 236 PEL-2000A Series User Manual 06/15/18 16 : 50 LOAD Interface System Load Interface Configure Other Time Set Info If the Interface mode is not GPIB, use the Selector knob to edit Interface. Choose GPIB. Interface GPIB Press the Selector knob or Enter ENTER to confirm selection.
Page 237 OPERATION Edit the GPIB address. Range 1 ~ 30 Connect the GPIB cable to the rear panel port: 24-pin female connector Maximum 15 devices altogether, 20m cable GPIB constraints  length, 2m between each device Unique address assigned to each device ...
Page 238: Rs232 And Usb Cdc Function Check
PEL- 2000A via USB or RS232 interface. 3. In this example (NI MAX Version 18.0.0f0), we assume that PEL-2000A series is connected COM 1(ASRL1), after selecting the ASRL1::INSTR “COM1”, click the Open VISA Test Panel.
Page 239 OPERATION 4. In the ASRL Settings page. You can see the information of Serial Settings.
Page 240 PEL-2000A Series User Manual 5. Click on I/O Settings. 6. Make sure the Enable Termination Character check box is checked, and the terminal character is \n (Value: xA). 7. Click Apply Changes. 8. Click the Input/Output icon. 9. Enter *IDN?\n in the Select or Enter Command dialog box if it is not already.
Page 241 OPERATION GW Instek,PEL-2000A,00000001, V108\n The COM port corresponding to the USB CDC will Note exist until the USB driver is well installed. If you want to do the USB CDC function check, the VISA resource name should be changed to the COM port which is occupied by the USB CDC protocol as a virtual com port in your system.
Page 242: Gpib Function Check
PEL-2000A Series User Manual GPIB Function Check To test the GPIB functionality, National Background Instruments Measurement and Automation Explorer can be used. This program is available on the NI website, www.ni.com., via a search for the VISA Run-time Engine page, or “downloads”...
Page 243 OPERATION GW Instek,PEL-2000A,00000001, V108\n 6. Click on Communicate with Instrument. 7. In the NI-488.2 Communicator window, ensure *IDN? is written in the Send String: text box. Click on the Query button to send the *IDN? query to the instrument. 8. The String Received text box will display the...
Page 244: Saving/Recalling Channels
PEL-2000A Series User Manual Saving/Recalling Channels The PEL-2000A series can save data for up to 120 Background different channel configurations. Each channel is represented by 120 memory slots using the onboard memory. Memory is used in program sequences or for individual channel setups.
Page 245 OPERATION Channel Data Current Data Type Memory Press the Selector knob to edit Memory (M001-M120) Use the number pad to enter a number. CAL. LOCK CLEAR 06/15/18 16 : 50 LOAD Channel Data Current Data Type Memory CCDH Memory M001 file Media Save...
Page 246: Saving/Recalling Preset Memory
PEL-2000A Series User Manual Saving/Recalling Preset memory The PEL-2000A series can store up to 10 presets for Background each channel. The presets can be saved or recalled either individually for each channel (Channel Data: Current) or at the same time (Channel Data: All), using the All option.
Page 247 OPERATION Save / Recall Channel Data Current Current Channel Data Type Preset Save / Recall All Channel Data Channels Data Type Preset Press the Selector knob to edit Preset (P0-P9) Use the number pad to enter a number. CAL. LOCK CLEAR 06/15/18 16 : 50...
Page 248: Saving/Recalling Setup Memory
The display will revert to the channel menu after Note recalling memory. Saving/Recalling Setup Memory The PEL-2000A series can store up to 4 different Background setups using the onboard memory. Each setup can be saved from the file menu. Using Setup Memory, each channel will be saved.
Page 249 OPERATION Channel Data Data Type Setup Press the Selector knob to edit Setup Memory (1~4) Use the number pad to enter a number. CAL. LOCK CLEAR 06/15/18 16 : 50 LOAD Channel Data Data Type Setup CCDH Setup Memory file Media Save Recall...
Page 250: Setting The Default Usb Path/File
PEL-2000A Series User Manual Setting the Default USB Path/File When saving files to a USB memory stick the files Background will be saved into the root directory if a file path has not been set. Insert a USB flash drive into the Panel operation front panel USB slot.
Page 251 OPERATION 06/15/18 16 : 50 LOAD Path: usb: usb:\ New folder 05-Nov-13 20:55 UNTITL~1 25-Jul-14 03:16 29-Dec-13 15:59 Timing 29-Dec-13 16:10 17 folder(s), 13 file(s) Previous Select Rename Delete Configure Folder Menu The top section (window) shows the current USB path.
Page 252 PEL-2000A Series User Manual 06/15/18 16 : 50 LOAD Path: usb: usb:\ New folder 05-Nov-08 20:55 UNTITL~1 25-Jul-14 03:16 29-Dec-13 15:59 Timing 29-Dec-13 16:10 17 folder(s), 13 file(s) Previous Select Rename Delete Configure Folder Menu The new path will be shown in the upper Path box in green.
Page 253 OPERATION When a key is ENTER highlighted, use the selector knob, F1 or Enter to confirm a key entry. 10. Use F2 (Back Space) to delete any previous entries/mistakes. 11. Press F3 (Save) to save the directory name. 12. Press F5 (Previous menu) to continue to the previous menus 13.
Page 254 PEL-2000A Series User Manual The On Screen Keyboard appears Rename: New folder 15. Use the Selector knob to scroll left and right through the keys. 16. When a key is ENTER highlighted, use the selector knob, F1 or Enter to confirm a key entry.
Page 255: Saving Setups To Usb Memory
OPERATION 22. To confirm deletion, press F4 again. 06/15/18 16 : 50 Path: usb\New folder usb:\ New folder 05-Nov-08 20:55 UNTITL~1 25-Jul-14 03:16 29-Dec-13 15:59 Timing 29-Dec-13 16:10 Press F4 again to confirm this process. Previous Select Rename Delete Configure Folder Menu Saving Setups to USB Memory...
Page 256 PEL-2000A Series User Manual Press F1 repeatedly until the Media USB menu appears. Media Media Media Memory Default 06/15/18 16 : 50 LOAD Channel Data Current Data Type Memory CCDH Save File 2030L_01.M Recall File 2030L_00.M Path: usb: file Media...
Page 257 OPERATION 06/15/18 16 : 50 LOAD Channel Data Data Type Setup CCDH Save File 20040_01.S Recall File 20040_00.S Path: usb: file Media File Save Recall Configure Utility The screen will update to only show Setup files (*.S) that are available to save/recall in the root directory.
Page 258: Saving/Recalling Memory Data To Usb
PEL-2000A Series User Manual Saving/Recalling Memory Data to USB There are two options to save or recall Memory Background data to a USB flash drive: Save Chan Current: Saves the active Channel’s Memory data (M001~M120) into the root directory (20XXX_XX.M). Press F5 (File Utility) to select the directory to save.
Page 259 OPERATION Press the File key. FILE Press F1 repeatedly until the Media USB menu appears. Media Media Media Memory Default 06/15/18 16 : 50 LOAD Channel Data Current Data Type Memory CCDH Save File 2030L_01.M Recall File 2030L_00.M Path: usb: file Media File...
Page 260 PEL-2000A Series User Manual 06/15/18 16 : 50 LOAD Channel Data Data Type Memory CCDH Save Folder ALL0003 Path: usb: file Media File Save Configure Utility The screen updates to show Save Folder. Note it is not possible to recall all channels at once, only save.
Page 261 OPERATION Channel Data Current Data Type Memory 06/15/18 16 : 50 LOAD Channel Data Current Data Type Memory CCDH Save File 2030L_00.M Recall File 2020L_01.M Path: usb: file Media File Save Recall Configure Utility 13. Use the selector knob to edit Save or Recall File. 14.
Page 262 PEL-2000A Series User Manual 17. Press F5 (File Utility). Recall File from USB path 18. Use the selector knob to select path for saving memory. usb:\ALLXXXX\File: 2XXXX_XX.M 01/01/00 00 : 00 LOAD Path: usb:\ALL0001 usb:\ 2040L_C1.M 01-Jan-00 00:00 2030L_C2.M 01-Jan-00...
Page 263: Saving/Recalling Presets To Usb
OPERATION If you try to recall data that originated from a different load module than the active channel, an error message will appear. The filename must reflect the active channel’s load module type. Machine Type Error Saving/Recalling Presets to USB There are two options to save or recall Channel Background Presets to a USB flash drive:...
Page 264 PEL-2000A Series User Manual Insert a USB flash drive into the Panel operation front panel USB slot. Ensure the USB path has been Page 250. set. Press the File key. FILE Press F1 repeatedly until the Media USB menu appears.
Page 265 OPERATION 06/15/18 16 : 50 LOAD Channel Data Data Type Preset CCDH Save Folder ALL0000 Path: usb: file Media File Save Configure Utility The screen updates to show Save Folder. Note it is not possible to recall all presets at once, only save. Use the Selector Knob to edit Save Folder.
Page 266 PEL-2000A Series User Manual Channel Data Current Data Type Preset 06/15/18 16 : 50 LOAD Channel Data Current Data Type Preset CCDH Save File 2020L_01.P Recall File 2020L_00.P Path: usb: file Media File Save Recall Configure Utility 13. Use the selector knob to edit Save File or Recall file.
Page 267 OPERATION 17. Press F5 (File Utility). Recall File from USB path 18. Use the selector knob to select path for saving preset. usb:\ALLXXXX\File: 20XXX_XX.P 01/01/00 00 : 00 LOAD Path: usb:\ALL0000 usb:\ 2040L_C1.P 01-Jan-00 00:00 2030L_C2.P 01-Jan-00 25-Jul-14 00:00 03:16 2030R_C3.P 01-Jan-00 00:00...
Page 268: Saving/Recalling Sequences To Usb
PEL-2000A Series User Manual If you try to recall data that originated from a different load module than the active channel, an error message will appear. The filename must reflect the active channel’s load module type. Machine Type Error Saving/Recalling Sequences to USB...
Page 269 OPERATION Insert a USB flash drive into the Panel operation front panel USB slot. Ensure the USB path has been Page 250. set. Press the File key. FILE Press F1 repeatedly until the Media USB menu appears. Media Media Media Memory Default 06/15/18...
Page 270 PEL-2000A Series User Manual 06/15/18 16 : 50 LOAD Channel Data Data Type Sequence CCDH Save Folder ALL0000 Path: usb: file Media File Save Configure Utility The screen updates to show Save Folder. Note it is not possible to recall all Sequence data at once, only save.
Page 271 OPERATION Channel Data Current Data Type Sequence 06/15/18 16 : 50 LOAD Channel Data Current Data Type Sequence CCDH Save File 2030L_01.A Recall File 2030L_00.A Path: usb: file Media File Save Recall Configure Utility 13. Use the selector knob to edit Save File or Recall File.
Page 272 PEL-2000A Series User Manual 17. Press F5 (File Utility). Recall File from USB path 18. Use the selector knob to select path for saving sequence. usb:\ALLXXXX\File: 20XXX_XX.A 01/01/00 00 : 00 LOAD Path: usb:\ALL0002 usb:\ 2040L_C1.A 01-Jan-00 00:00 2030L_C2.A 01-Jan-00...
Page 273: Quick Preset Recall/Save
The filename must reflect the active channel’s load module type. Machine Type Error Quick Preset Recall/Save The PEL-2000A series mainframes have up to 10 Background Channel Presets (P0~P9). Quick recalling or saving presets will only be applicable to the active channel.
Page 274: Recall Setup Memory (Frame Link)
PEL-2000A Series User Manual The Preset will be saved to the one of 10 presets depending on the number pressed. Press the Preset key and one of Recall Current PRESET the number keys. Channel Preset 0 = P0 1= P0 etc.
Page 275: Recall Preset Memory (Frame Link)
OPERATION Recall Preset Memory (Frame link) A master mainframe can command all units to Background recall preset memory from their internal memory. Only the first three preset memories (P0~P2) can be recalled. Channel presets can be recalled via the file menu or using the quick recall feature using the number pad.
Page 276: Recall Factory/User's Defaults
PEL-2000A Series User Manual Recall Factory/User’s Defaults The Factory/User’s defaults can be saved or Background recalled at any time. For details on the factory defaults please see the default settings in the appendix, page 302 Panel Operation 1. Press the File key.
Page 277 OPERATION 06/15/18 16 : 50 LOAD Load Default Setup Warning! Press F2 again will 500V Recall Factory Default! file Media Factory Configure Save Recall Default Default Press F2 again to ensure recall factory default setting 06/15/18 16 : 50 LOAD Load Default Setup Recall Factory Default, 500V...
Page 278 PEL-2000A Series User Manual 06/15/18 16 : 50 LOAD Load Default Setup Warning! Press F3 again will 500V Save User’s Default! file Media Factory Configure Save Recall Default Default Press Save (F3) again to ensure save the user's default. Wait a short time for the settings to be saved.
Page 279 OPERATION 06/15/18 16 : 50 LOAD Load Default Setup Warning! Press F4 again will 500V Recall User’s Default ! file Media Factory Configure Save Recall Default Default 10. Press Recall (F4) to ensure recall the user's default 11. Wait a short time for the settings to be saved. 06/15/18 16 : 50 LOAD...
Page 280: Interface
PEL-2000A Series User Manual NTERFACE The Interface chapter details the pin configuration of the RS232, GPIB, Frame Link, Channel Control and Go/NoGo interfaces. Interface Configuration ........281 Configure RS-232C interface ......... 281 Configure GPIB interface ..........282 Configure Channel Control interface ......284 Configure Frame Link Interface ........
Page 281: Interface Configuration
5: GND 1, 4, 6, 7, 8, 9: No connection Use the Null Modem connection as shown in the PC connection diagram below. PEL-2000A series Pin 2 RxD Pin 2 RxD Pin 3 TxD Pin 3 TxD Pin 5 GND...
Page 282: Configure Gpib Interface
PEL-2000A Series User Manual Configure GPIB interface The interface function codes for the Electronic Interface function Load are listed as the following table. codes Code Interface function SH1 Source Handshake capability AH1 Acceptor Handshake capability Talker (basic talker, serial poll, unaddressed...
Page 283 INTERFACE Data line 1 Pin13 Data line 5 Pin1 Data line 2 Pin14 Data line 6 Pin2 Data line 3 Pin15 Data line 7 Pin3 Data line 4 Pin16 Data line 8 Pin4 Pin17 REN Pin5 Pin18 Ground Pin6 NRFD Pin19 Ground Pin7 NDAC...
Page 284: Configure Channel Control Interface
PEL-2000A Series User Manual Configure Channel Control interface Screwless connector. Channel control Connector configuration 22-28 AWG (24 AWG Wire Gauge recommended). 10 mm strip gauge for Wire connection connection. 10.0 mm 0-10V. Input Pin Assignment Negative potential of the load input 1 GND terminal.
Page 285 INTERFACE Load On Input. 5 Load On Load on = Active low. Load off = Active high. (Pin 5 of the connector is internally pulled up to 3.3V with a 10kΩ resistor when the switch is open. Thus when the switch is open, pin 5 is logically high.
Page 286: Configure Frame Link Interface
PEL-2000A Series User Manual Configure Frame Link Interface Connect the Frame link cable Connection FRAME CONT (MIL 20 pin connector) to the rear panel port: 20-pin male connector. Pin assignment (Frame link connector 1) Pin name Description number Input, Recall Preset...
Page 287 INTERFACE Load On/Off Input, Load On/Off Pin10 No connection Pin11 No connection Pin12 No connection Pin13 No connection Pin14 Load Status Output, load on status. Pin15 Alarm Status Output, alarm activated. Pin16 Power source output, Pin17 +5V, 100mA. No connection. Pin18 Ground Pin19...
Page 288 PEL-2000A Series User Manual Sync._MEM_1 Output, Sync signal, Pin5 Recall Setup memory 1 (All channels) Sync._MEM_2 Output, Sync signal, Pin6 Recall Setup memory 2 (All channels) Sync._MEM_3 Output, Sync signal, Pin7 Recall Setup memory 3 (All channels) Sync._MEM_4 Output, Sync signal,...
Page 289: Configure Go/Nogo Interface
INTERFACE Input: active low (0-1V) Explanation  active high (4-5V) Note: Input type is internally pulled up to 5V  with a 10kΩ resistor. Output: high (floating)  low (0-1V) Note: Output type is internally Open collector  outputs, maximum 30VDC with 1.1V saturation voltage (100mA).
Page 290: Usb Interface Connection
PEL-2000A Series User Manual Ch1_GO/NG Ch5_GO/NG Pin1 Pin9 Pin2 Pin10 Ch2_GO/NG Ch6_GO/NG Pin3 Pin11 Pin4 Pin12 Ch3_GO/NG Ch7_GO/NG Pin5 Pin13 Pin6 Pin14 Ch4_GO/NG Ch8_GO/NG Pin7 Pin15 GO/NG_Enable Pin8 Connection Type Open collector output maximum 30VDC with 1.1V saturation voltage (100mA).
Page 291: Faq
A4. Before clearing an alarm or using the Protection Clear All function, the DUT must be turned off. After the DUT is off, the alarm(s) can be cleared. For more information, contact your local dealer or GW Instek at www.gwinstek.com...
Page 292: Appendix
PEL-2000A Series User Manual PPENDIX Fuse Replacement 1. Turn off the power at the wall socket and rear Step panel. Remove the power cord. 2. Remove the fuse socket using a minus driver. 3. Replace the fuse in the holder.
Page 293: Firmware Update
APPENDIX Firmware Update The PEL-2000A firmware can be easily updated Background using a USB memory stick. For the latest firmware please see your local GW Instek distributor or download the latest firmware from www.gwinstek.com. File: P2KAXXXX.UPG File Name Copy the firmware file (*.UPG) into the root directory...
Page 294 PEL-2000A Series User Manual 7. Wait for the firmware upgrade to finish, a message will be displayed upon completion. 8. Turn the power Off. 9. Turn the power On. Recall Factory Default 10. Press the File key. FILE 11. Press F1 repeatedly until the Media Default menu appears.
Page 295 APPENDIX 06/15/18 16 : 50 LOAD Load Default Setup Warning! Press F2 again will 500V Recall Factory Default! file Media Factory Configure Save Recall Default Default 14. Press F2 again to ensure recall factory default setting 06/15/18 16 : 50 LOAD Load Default Setup Recall Factory Default,...
Page 296: Calibration
PEL-2000A Series User Manual Calibration The PEL-2000A series load modules should be Background calibrated at least on a yearly basis. GW instek does not support End-User calibration. Please see your distributor for calibration details.
Page 297: Range Chart
APPENDIX Range Chart PEL-2020A Low PEL-2020A Low Range PEL-2020A Low Range Chart CL2210ML Low Range Range 10W 0.8V Current (A) PEL-2020A High PEL-2020A High Range CL2210ML High Range Range 100W 0.8V Current (A) PEL-2020A CV PEL-2020A CV Low Range CL2210ML CV Low Range Low Range 0.8V Current (A)
Page 298 PEL-2000A Series User Manual PEL-2030A (L) PEL-2030A (L) High Range CL2225ML(L) High Range High range 30W 0.8V Current (A) PEL-2030A (L) PEL-2030A (L) CV Low Range CL2225ML(L) CV Low Range CV Low Range 0.8V Current (A) PEL-2030A (R) PEL-2030A (R) Low Range...
Page 299 APPENDIX PEL-2030A (R) PEL-2030A(R) High Range CL2225ML(R) High Range High Range 250W 0.8V Current (A) PEL-2030A (R) PEL-2030A(R) CV Low Range CL2225ML(R) CV Low Range CV Low Range 0.8V Current (A) PEL-2040A Low PEL-2040A Low Range CL2135ML Low Range Range 35W 0.8V Current (A)
Page 300 PEL-2000A Series User Manual PEL-2040A High PEL-2040A High Range CL2135ML High Range Range 350W 0.8V Current (A) PEL-2040A CV PEL-2040A CV Low Range CL2135ML CV Low Range Low Range 0.8V Current (A) PEL-2041A Low PEL-2041A Low Range CL2135MH Low Range...
Page 301 APPENDIX PEL-2041A High PEL-2041A High Range CL2135MH High Range Range 350W Current (A) PEL-2041A CV PEL-2041A CV Low Range CL2135MH CV Low Range Low Range Current (A)
Page 302: Default Settings
PEL-2000A Series User Manual Default Settings Menu Item Range: High Mode: Static CC Mode A/B Value: Min A Rising Slew Rate: Max Falling Slew Rate: Max Range: High Mode: Static CR Mode A/B Value: Max Ω Rising Slew Rate: Max...
Page 303 APPENDIX Total Units: OFF Group Mode: Para CHAN-Group Display Mode: V,I CHAN- Seq. Edit NO.: 001 Value: Min Rising/Falling SlewRate: Duration Time: 0.000025s Repeat: Infinity Times Start of Loop: 001 Point CHAN- Seq. Edit - Loop On End Of Seq.: CC Vrange: High OFF A (CC mode) OFF Ω/OFF KΩ...
Page 304 PEL-2000A Series User Manual Keep_T: Min CH 01~08: Active: OFF FUNC- OCP- Active Channel Channel Data: Current Data Type: Memory FILE- Memory Memory: M001 Channel Data: Current Data Type: Memroy FILE- USB Save File: No File Recall File: No File...
Page 305: Specifications
APPENDIX Specifications The specifications apply when the PEL-2000A series is powered on for at least 30 minutes to warm-up to a temperature of 25°C ± 5°C, unless specified otherwise. PEL-2002A PEL-2004A MODULE SLOTS GENERAL Operating Environment Temperature 0°C to 40°C...
Page 306 PEL-2000A Series User Manual STATIC MODE CONSTANT CURRENT MODE Operating Range 0~2A 0~20A Setting Range 0~2.04A 0~20.4A Resolution 0.1mA Accuracy ±(0.1%set + 0.1%F.S. ±(0.1%set + 0.2%F.S). CONSTANT RESISTANCE MODE Operating Range 0.075Ω~300 Ω (100W/16V) 3.75Ω~15k Ω (100W/80V) Setting Range 0.075Ω~300Ω(100W/16V) 3.75Ω~15kΩ(100W/80V)
Page 307 APPENDIX Slew Rate 0.32mA/μs 3.2mA/μs Resolution Slew Rate Setting ±(10% + 15μs) Accuracy Current Setting 0~2.04A 0~20.4A Range Current 0.1mA Resolution Current Accuracy ±0.4% F.S. CONSTANT RESISTANCE MODE Slew Rate 3.2 ~ 800mA/μs Slew Rate 3.2mA/μs Resolution Slew Rate Setting ±(10% + 50μs) Accuracy Resistance...
Page 308 PEL-2000A Series User Manual Over Current Protection Range 0.25~20.4A Resolution 0.05A Accuracy ±(2%set + 0.25% F.S.) Over Voltage Protection Range 1~81.6V Resolution 0.2V Accuracy ±(2%set + 0.25% F.S.) ≒85°C Over Temperature Protection Rated Power Protection(CPP) Value 110W Accuracy ±5%set GENERAL SHORT CIRCUIT ≒2.2/2A...
Page 309 APPENDIX CONSTANT RESISTANCE MODE 0.3 Ω ~1.2k Ω 0.0375 Ω ~150 Ω (250W/16V) Operating Range 1.875 Ω ~7.5k Ω (250W/80V) (30W/16V) 15 Ω ~60k Ω (30W/80V) Setting Range 0.3 Ω ~1.2k Ω 0.0375 Ω ~150 Ω (250W/16V) (30W/16V) 1.875 Ω ~7.5k Ω (250W/80V) 15 Ω...
Page 310 PEL-2000A Series User Manual DYNAMIC MODE T1&T2 0.025ms ~ 10ms / Res: 1μs 10ms ~ 30s / Res: 1ms Accuracy 1us / 1ms + 100ppm CONSTANT CURRENT MODE Slew Rate 0.8 ~ 200mA/μs 0.64 ~160mA/μs 6.4 ~ 1600mA/μs Slew Rate 0.8mA/μs...
Page 311 APPENDIX Accuracy ±(0.05%set + 0.05% F.S. POWER READBACK Range 0~30W 0~25W 0~250W Accuracy ±(0.1%set + 0.1% ±(0.1%set + 0.1% F.S. F.S. NOTE : *1 : Power F.S. = Vrange F.S. x Irange F.S. *2 : F.S. = Full scale of H Range PROTECTIVE Over Power Protection Range...
Page 312 PEL-2000A Series User Manual MIN.OPERATING 0.4V at 7A 0.8V at 70A 1V at 1A 2V at 10A VOLTAGE(dc)Typ.) 0.2V at 3.5A 0.4V at 35A 0.5V at 0.5A 1V at 5A STATIC MODE CONSTANT CURRENT MODE Operating Range 0~7A 0~70A 0~1A...
Page 313 APPENDIX NOTE : *1 : F.S. = Full scale of H Range DYNAMIC MODE T1&T2 0.025ms~10ms/Res: 1μs 10ms ~ 30s / Res: 1ms Accuracy 1us / 1ms ± 100ppm CONSTANT CURRENT MODE Slew Rate 0.001 ~ 0.01 ~ 0.16 ~ 1.6 ~ 0.28A/μs 2.8A/μs...
Page 314 PEL-2000A Series User Manual Accuracy ±(0.1%set + 0.1% F.S. NOTE : *1 : Power F.S. = Vrange F.S. x Irange F.S. *2 : F.S. = Full scale of H Range PROTECTIVE Over Power Protection Range 1.75~357W Resolution 1.75W Accuracy ±(2%set + 0.25%F.S.)
Page 315: Dimensions
APPENDIX Dimensions PEL-2002A 318.4 532.3 583.3...
Page 316 PEL-2000A Series User Manual PEL-2004A 435.4 532.3 481.8 583.3...
Page 317 APPENDIX PEL-2020A/PEL-2030A/PEL-2040A/PEL-2041A 446.8 81.6...
Page 318: Ec Declaration Of Conformity
PEL-2000A Series User Manual Declaration of Conformity GOOD WILL INSTRUMENT CO., LTD. declare that the below mentioned product Type of Product: Programmable Electronic Load Model number: PEL-2004A, PEL-2002A. Load module: PEL-2020A, PEL-2030A, PEL-2040A, PEL-2041A satisfies all the technical relations application to the product within the scope of council: Directive: 2014/30/EU;...
Page 319 INDEX NDEX Alarm configuration ..217, 228 Channel duration time All Chan save/recall settings mode description .. 80 description ......98 Cleaning the instrument... 8 Baud rate configuration..232 Clear key ........22 Brightness & contrast ..212, 223 Configuration mode Calibration ......
Page 320 PEL-2000A Series User Manual measurement category ... 7 Interface menu ..... 232 Pollution degree ...... 9 RS232 ........232 Enter key ........24 USB configuration ....233 Internal memory save Environment description ......97 operation ........8 Storage ........9 Knob configuration ..
Page 321 INDEX R/L keys ....... 120 Programming ....... 150 Shorting ........ 123 Recall default chain ..... 157 Static ........121 Recall default sequence ..154 Lock key ........22 Run Sequence ....... 170 Save chain ......157 Mainframe configuration Save Program chain ..... 157 alarm sound ....
Page 322 PEL-2000A Series User Manual Constant Voltage + Constant Over voltage mode Current Mode ....68 description ......85 Constant Voltage –Go/NoGo69 Overview ......... 15 Constant Voltage -levels ..68 Display Overview ....25 External Voltage Control..90 Front panel ......20 File format ......
Page 323 INDEX RS-232C configuration ..281 Short key ........34 Safety Instructions..... 6 Shorting mode description ..89 Safety symbols ......6 Slave knob Save Memory data ....244 settings ......219, 229 Slave knob Save Memory data to USB ... 258 description ......
Page 324 PEL-2000A Series User Manual Utility Menu ......208 Von voltage mode description86 Voltage levels constant Wire Connections ....45 voltage mode description .. 68 Wire gauge ......45 Voltage sense terminal ... 33 Wire induction ......46 Von voltage configuration .. 187...

This manual is also suitable for:

Pel-2004a Pel-2002a Pel-2020a Pel-2030a Pel-2040a Pel-2041a

GW Instek PEL-2000A Series User Manual

Table of Contents

Etting Started

Perating Description

Utorials

Peration

Local Mode Operation

Mainframe Basic Operation

Creating a Program Sequence

Edit Sequence

OCP Test Automation

Channel Configuration

Mainframe Configuration

Interface Configuration (Settings)

RS232 and USB CDC Function Check

GPIB Function Check

Saving/Recalling Channels

Nterface

Interface Configuration

Appendix

Quick Links

Chapters

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GW Instek PEL-2000A Series

Summary of Contents for GW Instek PEL-2000A Series
