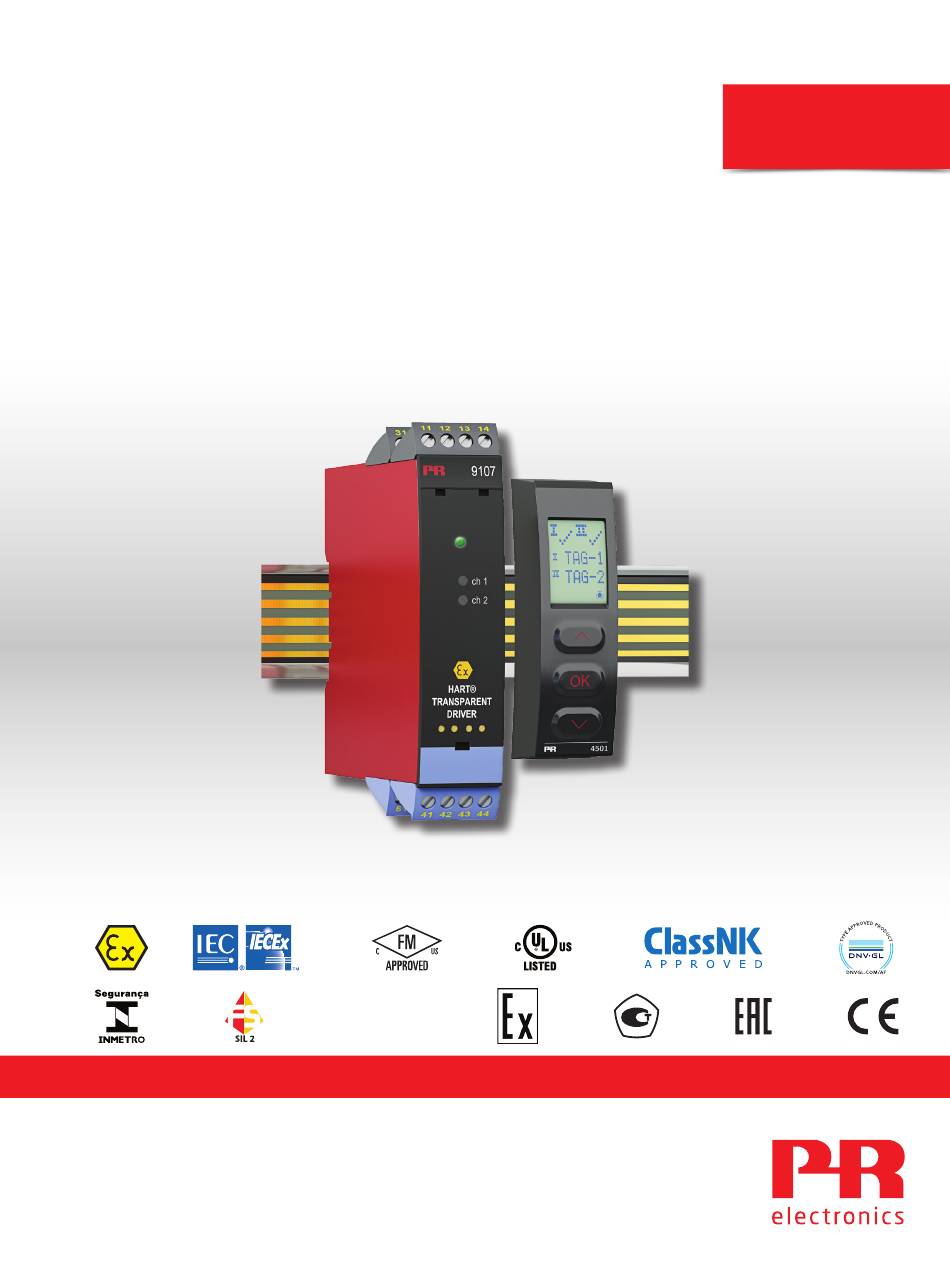

- Page 1 PERFORMANCE MADE SMARTER Product manual 9107B HART transparent driver CCOE T E M P E R AT U R E I . S . I N T E R FA C E S CO M M U N I C AT I O N I N T E R FA C E S...
- Page 2 6 Product Pillars to meet your every need Individually outstanding, unrivalled in combination With our innovative, patented technologies, we make signal conditioning smarter and simpler. Our portfolio is composed of six product areas, where we offer a wide range of analog and digital devices covering over a thousand applications in industrial and factory automation.
-
Page 3: Table Of Contents
HART transparent driver 9107B Table of contents Warning .................... -
Page 4: Warning
General mounting, wire connection and disconnection. Troubleshooting the device. Repair of the device and replacement of circuit breakers must be done by PR electronics A/S only. Warning Do not open the front plate of the device as this will cause damage to the connector for the display / programming front PR 4511/4501. -
Page 5: How To Demount System 9000
Should there be any doubt as to the correct handling of the device, please contact your local distributor or, alternatively, PR electronics A/S www.prelectronics.com The use of stranded wires is not permitted for mains wiring except when wires are fitted with cable ends. -
Page 6: Application
• 9107B can be mounted in the safe area or in zone 2 / Cl. 1, div. 2 and transmit signals to zone 0, 1, 2 and zone 20, 21, 22 including mining / Class I/II/III, Div. 1, Gr. A-G. -
Page 7: Applications
Applications Output signals: Input signals: Analog, 4...20 mA Channel 1 Channel 1 Channel 2 Power rail Status relay signal Rail, supply + Rail, supply - No connection No connection Power connection: Channel 2 Supply - Supply +19.2...31.2 VDC Device status N.C. -
Page 8: Pr 4511/4501 Display / Programming Front
Functions and configuration options are described in the section ”Configuration / operating the function keys”. Application • Communications interface for modification of operational parameters in 9107B. • When mounted in the process, the display shows process values and device status. Technical characteristics •... -
Page 9: Order
Order Type Unit channels 9107B Single Double Example : 9107BB Accessories 4501 = Display / programming front 4511 = Communication enabler 9400 = Power rail 9404 = Module stop for rail 9410 = Power control unit 9421 = Power supply 24 V - Ex nA nC... - Page 10 Communications interface ......Communication enabler 4511 / Programming front 4501 Signal dynamics, input /output ......Analog signal chain HART bi-directional communication frequency range .
- Page 11 Status relay output terminal 33-34: Relay function ........N.C. Programmable low setpoint .
-
Page 12: Visualisation In The 4511/4501 Of Hardware/Software Error
Visualisation in the 4511/4501 of hardware/software error Readout at hardware error Error search Readout Cause Communications test 4511/4501 and 9107 NO.CO Connection error Configuration error or CRC mismatch, recovery EEprom error - check configuration FL.ER configuration is loaded User error II ! / II ! Loop limit exceeded User error... -
Page 13: Connections
Connections Power rail Supply and connections status relay 91 92 93 94 95 31 32 NC = no connection Ex / I.S: outputs: Current Current Inputs: Current Current HART communication is possible directly on the input and output terminals if the output load impedance is >... -
Page 14: Block Diagram
Ch. 2 status, Red FLASH Status relay N.C. Status relay N.C. Current, 4...20 mA Output, Gnd. Input, Gnd. Channel 1 Channel 2 is identical to channel 1 Current, 4...20 mA Input, Gnd. 9107B Output, Gnd. Channel 2 9107 - Product version 9107-002... -
Page 15: Signal Error Indications Without Display Front
Signal error indications without display front List of LED and error signal indications Ch. 1: Ch. 2: Power rail Condition Green LED Status relay, N.C. signal status Device OK Blinking Energized No supply De-energized Device defective Blinking De-energized Ch. 1 defective (ch. 2 OK) Blinking De-energized Ch. -
Page 16: Configuration / Operating The Function Keys
Configuration / operating the function keys Documentation for routing diagram. In general When configuring the 9107, you will be guided through all parameters and you can choose the settings which fit the application. For each menu there is a scrolling help text which is automatically shown in line 3 on the display. Configuration is carried out by use of the 3 function keys: will increase the numerical value or choose the next parameter will decrease the numerical value or choose the previous parameter... -
Page 17: Routing Diagram
Routing diagram If no key is activated for 1 minute, the display will return to the default state 1.0 without saving configuration changes. 1 Increase value / choose next parameter 2 Decrease value / choose previous parameter 3 Save the chosen value and proceed to the next menu Hold 3 Back to previous menu / return to menu 1.0 without saving. -
Page 18: Routing Diagram, Advanced Settings (Adv.set)
Routing diagram, advanced settings (ADV.SET) DISP, PASS, LANG, RAIL LOOP DISP LOOP TAG1 TAG2 SETUP CONTRA DISP LIGHT TAGNO TAGNO Txt 6 Txt 9 Txt 12 Txt 10 Txt 11 Txt 11 9999 0000 PASS 0000 SETUP EN.PASS NEW.PAS Txt 6 Txt 15 Txt 16 To default... -
Page 19: Help Text Overview
Help text overview [01] Set correct password [PASS] [02] Enter advanced setup [ADV.SET] [03] Set low limit for loop error detection [LO.LIM1] [LO.LIM2] [04] Set high limit for loop error detection [HI.LIM1] [HI.LIM2] [05] Enable rail status signal output? [RAIL.ER] Enter display setup [SETUP] [06] Enter password setup [SETUP]... -
Page 20: Atex Installation Drawing
LERBAKKEN 10, 8410 RØNDE DENMARK ATEX Installation drawing For safe installation of 9107B the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area. - Page 21 9107QA01 LERBAKKEN 10, 8410 RØNDE DENMARK (terminal 11,12,13,14) Hazardous area Non Hazardous area (terminal 31,32,33,34) Zone 0,1,2, 20, 21, 22 or Zone 2 (terminal 91,92,93,94,95) Um: 253 V, max 400 Hz -20 ≤Ta ≤ +60ºC 4501 9107 91 92 93 94 95 Power Rail CH1 (terminal 41,42) CH2 (terminal 51,52)
-
Page 22: Iecex Installation Drawing
LERBAKKEN 10, 8410 RØNDE DENMARK IECEx Installation drawing For safe installation of 9107B the following must be observed. The module shall only be Installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area. - Page 23 9107QI01 LERBAKKEN 10, 8410 RØNDE DENMARK (terminal 11,12,13,14) Hazardous area Non Hazardous area (terminal 31,32,33,34) Zone 0,1,2, 20, 21, 22 or Zone 2 (terminal 91,92,93,94,95) Um: 253 V, max. 400 Hz -20 ≤Ta ≤ +60ºC 4501 9107 91 92 93 94 95 Power Rail CH1 (terminal 41,42) CH2 (terminal 51,52)
-
Page 24: Fm Installation Drawing
LERBAKKEN 10, 8410 RØNDE DENMARK FM Installation drawing For safe installation of 9107B the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area. - Page 25 9107QF01 LERBAKKEN 10, 8410 RØNDE DENMARK Hazardous Classified Location Unclassified Location or Hazardous Classified Location Class I / II / III, Division 1, Group A,B,C,D,E,F,G Class I, Division 2 Group A,B,C,D T4 Class I Zone 0 / 1 / 2 Group IIC, IIB, IIA or Class I, Zone 2, Group IIC, IIB, IIA T4 Zone 20 / 21 -20 ≤Ta ≤...
-
Page 26: Desenho De Instalaçao Inmetro
LERBAKKEN 10, 8410 RØNDE DENMARK INMETRO - Desenhos para Instalação Para instalação segura do 9107B o manual seguinte deve ser observado. O módulo deve ser instalado somente por profissionais qualificados que estão familiarizados com as leis nacionais e internacionais, diretrizes e normas que se aplicam a esta área. - Page 27 9107QB01 LERBAKKEN 10, 8410 RØNDE DENMARK Área de classificada Área de não classificada (terminais: 11,12,13,14) (terminais: 31,32,33,34) Zona 0,1,2, 20, 21, 22 ou Zona 2 (terminais: 91,92,93,94,95) Um: 253 V, máx. 400 Hz -20 ≤Ta ≤ +60ºC 4501 9107 91 92 93 94 95 TRILHO DE ENERGIA CN1 (terminais 41,42) CN2 (terminais51,52)
-
Page 28: Document History
Document history The following list provides notes concerning revisions of this document. Rev. ID Date Notes 1901 Specifications for max. required power added FM and INMETRO certificate numbers updated Installation drawings updated 9107 - Product version 9107-002... - Page 29 We are near you, all over the world Our trusted red boxes are supported wherever you are All our devices are backed by expert service and a 5-year business with a global reach. This means that we are warranty. With each product you purchase, you receive always nearby and know your local markets well.
- Page 30 Benefit today from PERFORMANCE MADE SMARTER PR electronics is the leading technology company specialized in making industrial process control safer, more reliable and more efficient. Since 1974, we have been dedicated to perfecting our core competence of innovating high precision technology with low power consumption.
