I
Manuale Operativo
Operating Manual
GB
MO.LabDMM.537.R3

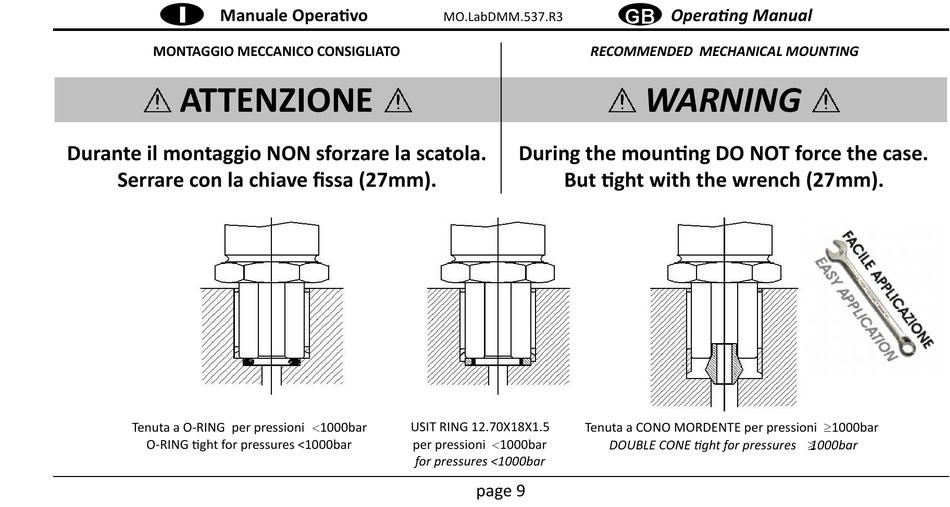

MONTAGGIO MECCANICO CONSIGLIATO
RECOMMENDED MECHANICAL MOUNTING
ATTENZIONE
WARNING
Durante il montaggio NON sforzare la scatola.
During the mounting DO NOT force the case.
Serrare con la chiave fissa (27mm).
But tight with the wrench (27mm).
Tenuta a O-RING per pressioni 1000bar
USIT RING 12.70X18X1.5
Tenuta a CONO MORDENTE per pressioni 1000bar
per pressioni 1000bar
O-RING tight for pressures <1000bar
DOUBLE CONE tight for pressures
1000bar
for pressures <1000bar
page 9
