Mitsubishi Electric MELSEC Q Series Quick Start Manual page 37

 Creating statements
Operating procedure
If a statement is entered, a program needs to be "converted" to reflect the input. For details on the
conversion, refer to the following page.
6 Programming - Converting a program (P.19)
P
oint
The followings are the two types of statement.
 Integrated (Embedded) statement
Integrated statements can be written to/read from the CPU module.
 Peripheral (Separate) statement
The program memory capacity can be saved since peripheral statements are not written to
the CPU module. "*" is prefixed to the peripheral statement in the program.

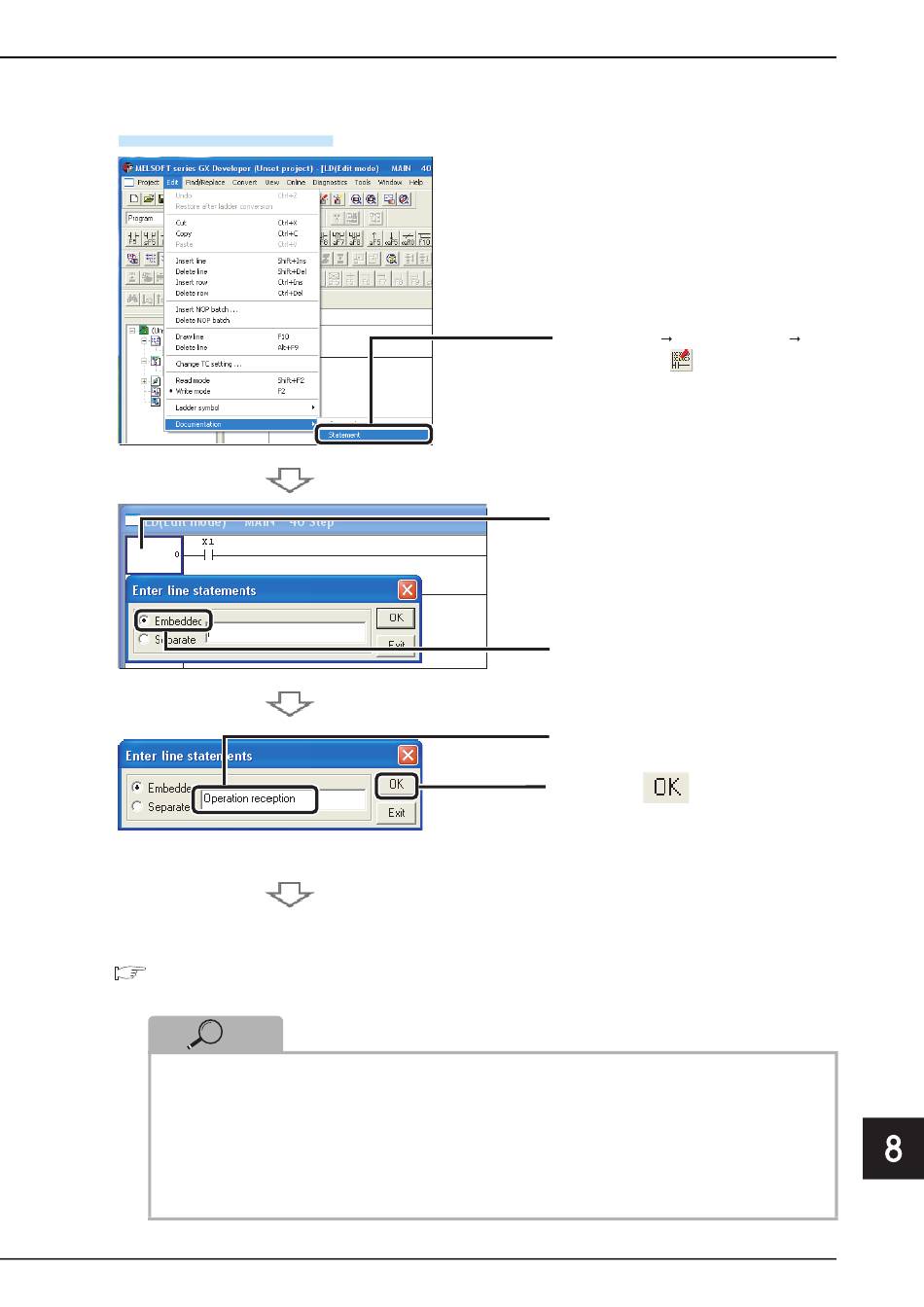

1 Select [Edit] [Documentation]
[Statement] ( ).
2 Double-click a ladder block to
enter a statement.
3 Select "Embedded".
4 Enter a statement on the
"Enter line statements" screen.
5 Click the button.
6 Select the [Statement]
menu in the step 1 again to finish
the operation.
