GE Evolve EFM1 Installation Manual

Led flood light.
Hide thumbs

Advertisement

Evolve
(EFM1)
Read these instructions completely and carefully.
Save these instructions for future use.
Risk of electrical shock. Disconnect power before servicing
or installing product.
Risk of injury or damage. Unit will fall if not installed
properly. Follow installation instructions.
Risk of fire. Use supply wire specified on nameplate.
Risk of injury. Wear safety glasses and gloves during
installation and servicing.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This Class [A] Lighting Equipment complies with Canadian standards
ICES-005[A]/NMB-005[A].
Note: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.

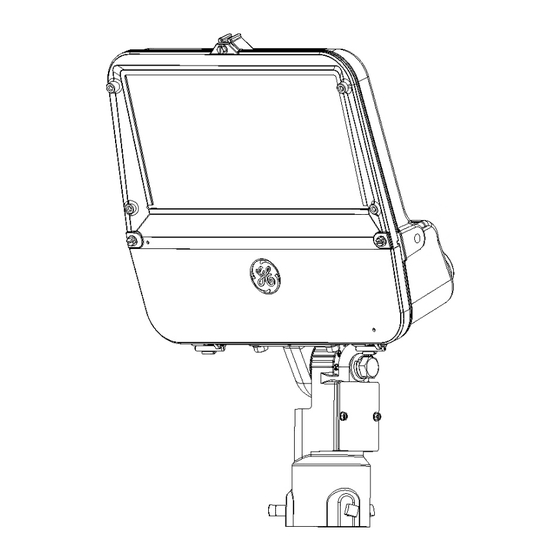

LED Flood Light
WARNING
WARNING
WARNING
CAUTION
GENERAL
• This luminaire is designed for outdoor lighting
applications, and should not be used indoors.
• Best results will be obtained if installed and
maintained according to this simplified guide.
• This flood light is provided with trunnion, pipe, or wall
mountings.
SPECIFICATIONS
• Weight: 25 lbs. (11.34 kg)
• Effective Projected Area (EPA):
- 90° aim (vertical glass) 1.96 sq. ft.
- 45° aim 1.22 sq. ft.
- Side profile (all aims) 0.73 sq. ft.
- 0° (face down) aim 0.79 sq. ft.
• Ingress Protection (IP) rating:
- Optical: IP66
- Electrical Enclosure: UL Wet Location
• Ambient temperature: -40°C (-40°F) to 50°C (140°F)
Installation Guide
GEH-6066

Advertisement

Table of Contents

   Related Manuals for GE Evolve EFM1

   Summary of Contents for GE Evolve EFM1

  • Page 1: Before You Begin

    Installation Guide GEH-6066 Evolve LED Flood Light ™ (EFM1) BEFORE YOU BEGIN Read these instructions completely and carefully. Save these instructions for future use. WARNING Risk of electrical shock. Disconnect power before servicing or installing product. WARNING Risk of injury or damage. Unit will fall if not installed properly.
  • Page 2 UNPACKING/HANDLING • Inspect luminaire to confirm no damage has occurred during transit. • To avoid damage, do not impact or stack luminaire after removal from packaging. MOUNTING 2a. Pipe Mount: Mount on vertical 1-7/8 to 2-3/8-inch Knuckle Bolt O.D. or 2-3/8 to 3-inch O.D. pipes. Wiring Cover •...
  • Page 3 WIRING Note: Make all electrical connections in accordance with National Electrical Code and any applicable local code requirements. Note: Verify supply voltage matches nameplate rating before wiring. 60° MAX • Verify service leads meet nameplate temperature rating. • Units are provided with cable or leads exiting the fixture for connection with service leads.
  • Page 4 Should further information be desired or should particular problems arise which are not covered sufficiently for the purchaser’s purposes, the matter should be referred to Current, powered by GE. All trademarks are the property of their respective owners. Information provided is subject to change without notice.
  • Page 5: Avant De Commencer

    Manuel d’Installation GEH-6066 Projecteur à DEL Evolve ™ (EFM1) AVANT DE COMMENCER Arrêtez Lisez ces instructions entièrement et attentivement. Conservez ces instructions pour usage futur. AVERTISSEMENT Risque d’électrocution. Coupez l’alimentation électrique avant l’installation en service ou avant un entretien de ce produit. AVERTISSEMENT Risque de blessure ou de dégâts.
  • Page 6 DÉBALLAGE/MANUTENTION • Inspectez le luminaire pour confirmer qu’il n’y a pas de dégâts dus au transport. • Pour éviter les dégâts, ne donnez pas de coups et n’empilez pas les luminaires après déballage. MONTAGE 2a. Montage sur tube: Se monte sur des tubes Boulon à...
  • Page 7 CÂBLAGE Remarque: Procédez à tous les raccordements électriques en respectant le National Electrical Code et toute autre norme locale d’application. Remarque: Avant câblage, vérifiez que la tension d’alimentation corresponde à la tension sur la plaque signalétique. 60° MAX • Vérifiez que les fils d’alimentation aient la classe de température indiquée à...
  • Page 8 Toutes les marques déposées sont la propriété de leurs propriétaires respectifs. Les informations fournies sont sujettes à modification sans préavis. Toutes les valeurs données sont théoriques ou typiques lorsque mesurées sous conditions de laboratoire. Current, powered by GE est une entreprise de General Electric Company. ©2018 GE.
  • Page 9 Guía de instalación GEH-6066 Proyector LED Evolve ™ (EFM1) ANTES DE COMENZAR ALTO Lea estas instrucciones completamente y con cuidado. Guarde estas instrucciones para el uso futuro. ADVERTENCIA Riesgo de choque eléctrico. Desconecte la alimentación antes del mantenimiento o la instalación del producto. ADVERTENCIA Riesgo de lesiones o daños.
  • Page 10 DESEMBALAJE/MANIPULACIÓN • Inspeccione la luminaria para confirmar que no se produjeron ningunos daños durante el transporte. • Para evitar daños, no dé golpes o apile la luminaria después de sacarla de su embalaje. MONTAJE 2a. Montaje de tubería: Monte en tubos de diámetro nominal de 4.76 cm (1-7/8 pulgadas) a 6.03 cm (2-3/8 pulgadas) o en tubos de diámetro nominal de 6.03 cm Perno de nudillo...
  • Page 11 CABLEADO Nota: Haga todas las conexiones eléctricas de acuerdo con el Código Eléctrico Nacional y cualquier requisitos de códigos locales. Nota: Antes de la instalación eléctrica, verifique que el voltaje de alimentación coincide con la clasificación en la placa de identificación. MÁXIMO DE 60°...
  • Page 12 Debe ser deseada más información o deben surgir problemas particulares que no estén cubiertos suficientemente para los propósitos del comprador, debe remitirse el asunto a Current, powered by GE.
