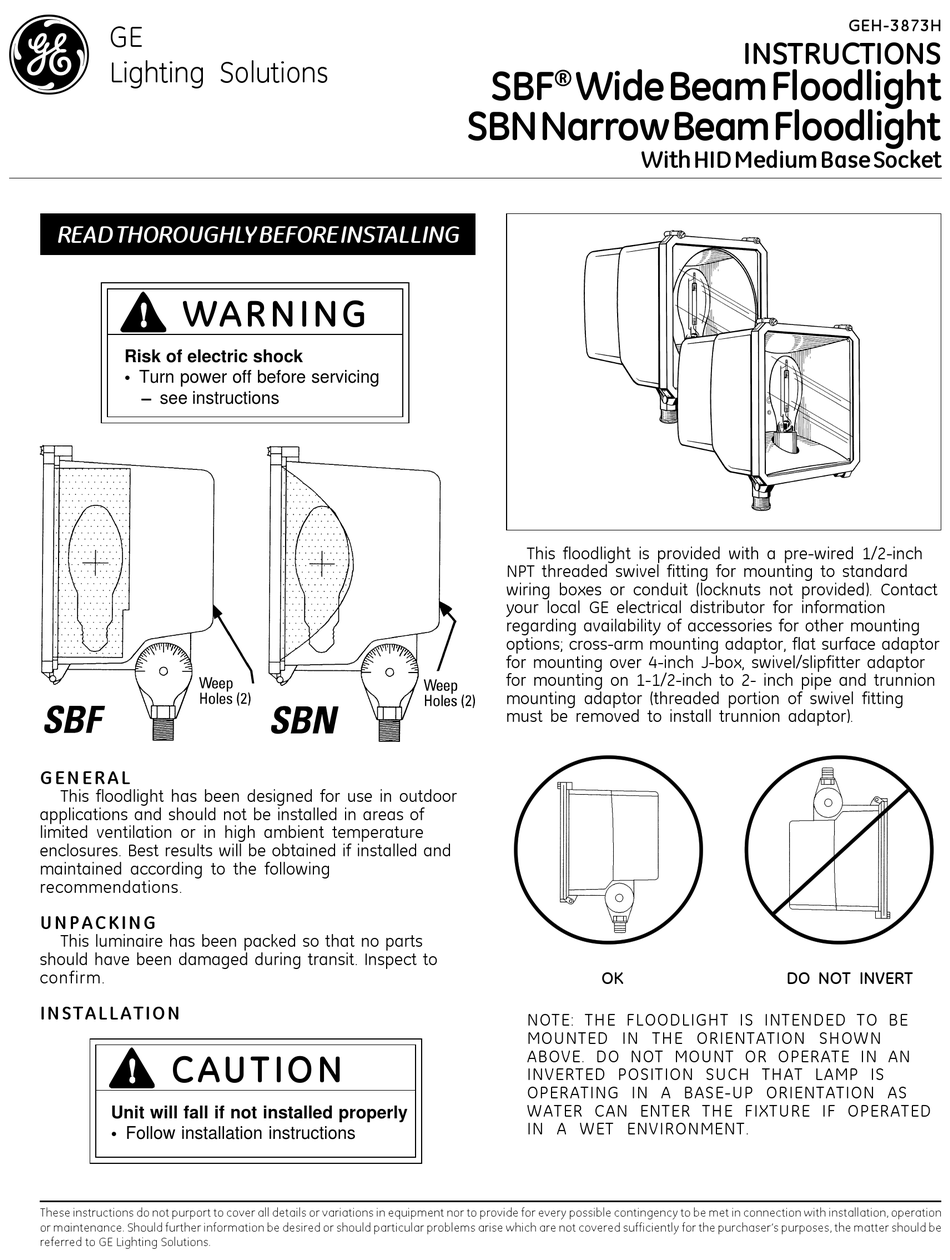

GE SBF Wide Beam Floodlight Instructions

g
GE
Lighting Solutions
READ THOROUGHLY BEFORE INSTALLING
WARNING
Risk of electric shock
• Turn power off before servicing
– see instructions
G E N E R A L
This floodlight has been designed for use in outdoor
applications and should not be installed in areas of
limited ventilation or in high ambient temperature
enclosures. Best results will be obtained if installed and
maintained according to the following
recommendations.
U N P A C K I N G
This luminaire has been packed so that no parts
should have been damaged during transit. Inspect to
confirm.
INSTALLATION
CAUTION
Unit will fall if not installed properly
• Follow installation instructions
These instructions do not purport to cover all details or variations in equipment nor to provide for every possible contingency to be met in connection with installation, operation
or maintenance. Should further information be desired or should particular problems arise which are not covered sufficiently for the purchaser's purposes, the matter should be
referred to GE Lighting Solutions.
SBF Wide Beam Floodlight
®
SBN Narrow Beam Floodlight
With HID Medium Base Socket
This floodlight is provided with a pre-wired 1/2-inch
NPT threaded swivel fitting for mounting to standard
wiring boxes or conduit (locknuts not provided). Contact
your local GE electrical distributor for information
regarding availability of accessories for other mounting
options; cross-arm mounting adaptor, flat surface adaptor
for mounting over 4-inch J-box, swivel/slipfitter adaptor
for mounting on 1-1/2-inch to 2- inch pipe and trunnion
mounting adaptor (threaded portion of swivel fitting
must be removed to install trunnion adaptor).
OK
NOTE: THE FLOODLIGHT IS INTENDED TO BE
MOUNTED IN THE ORIENTATION SHOWN
ABOVE. DO NOT MOUNT OR OPERATE IN AN
INVERTED POSITION SUCH THAT LAMP IS
OPERATING IN A BASE-UP ORIENTATION AS
WATER CAN ENTER THE FIXTURE IF OPERATED
IN A WET ENVIRONMENT.
GEH-3873H
INSTRUCTIONS
DO NOT INVERT
