g
GE
Lighting Solutions
READ THOROUGHLY BEFORE INSTALLING

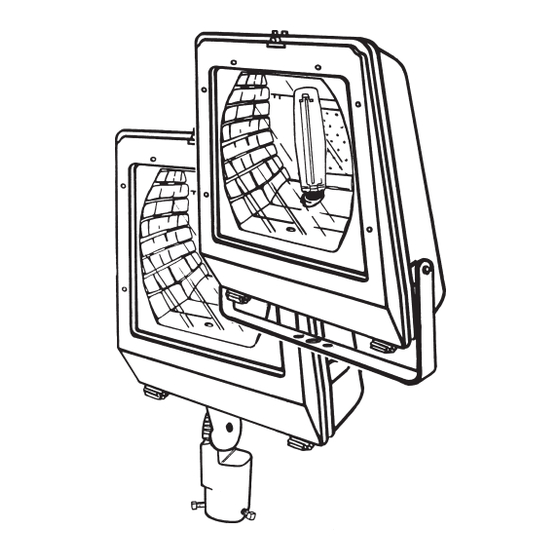

Figure 1
WARNING
Risk of electric shock
• Turn power off before servicing
– see instructions
G E N E R A L
This luminaire is designed for outdoor lighting applications,
and should not be used in areas of limited ventilation, or in high
ambient temperature enclosures. Best results will be obtained if
installed and maintained according to the following recommen-
dations.
U N P A C K I N G
This luminaire has been properly packed so that no parts
should have been damaged during transit. Inspect to confirm.
M O U N T I N G
CAUTION
Unit will fall if not installed properly
• Follow installation instructions
These instructions do not purport to cover all details or variations in equipment nor to provide for every possible contingency to be met in connection with installation, operation or
maintenance. Should further information be desired or should particular problems arise which are not covered sufficiently for the purchaser's purposes, the matter should be referred
to GE Lighting Solutions.
PF-400
Powerflood
®
Glarefighter
and Turnpike
This floodlight is provided with either trunnion mounting,
pipe mounting, or wall mounting.
NOTE: The unit may be mounted to point from straight up to
straight down but in no case may the ballast be located
above the optical. To mount from overhead structures, use
the top trunnion option.
NOTE: For aimed-up application, remove two screws from
rear bottom corners of back housing and reinstall them in
front housing rear bottom corners.
1. TRUNNION MOUNTED UNITS — Mounted directly on a flat
surface. Mounting adapters are available for installation on
poles, cross-arms, pipes, etc.
The trunnion bracket has a clearance hole for a 3/4-inch bolt
used for attachment to such mountings. The 3/8-inch holes on
either side permit additional anchoring, where required.
Tighten side trunnion bolts to 50 -55 foot pounds.
2. A. NORMAL PIPE MOUNTED UNITS (2G) — The slipfitter
can be mounted on 1-7/8-inch O.D. through
2-3/8-inch O.D. or 2-7/8-inch O.D. through 3-inch
O.D. pipes. Three set screws are used to clamp the
floodlight securely to the pipe. Tighten set screws to
18 -22 foot pounds.
GEH-3902H
INSTRUCTIONS
Floodlight,
®
Powerflood
®
Luminaire
