g
GE
Lighting Solutions
READ THOROUGHLY BEFORE INSTALLING
WARNING
Risk of electric shock
• Turn power off before servicing
– see instructions
NOTE: Make all electrical connections in accordance with
the National Electrical Code and any applicable local
code requirements.
NOTE: This luminaire is equipped with a safety circuit
to prevent lamp operation if the reflector lens is broken.
Complete optical assembly must be replaced if the reflec-
tor lens is broken.
This luminaire is shipped with the lamp installed.
This luminaire is designed for use in outdoor applica-
tions and should not be used in areas of limited ventilation
or high ambient temperature enclosures unless otherwise
stated on nameplate. Install and maintain it according to
the following recommendations.
NOTE: Connect ground lead to the green lead, green
ground screw on housing or terminal block provided.
Replace power fuses only with fuses of the same type
and ratings.
WARNING
Risk of fire
• Keep combustible materials
away from lens – see instructions
• Use lamps specified on nameplate

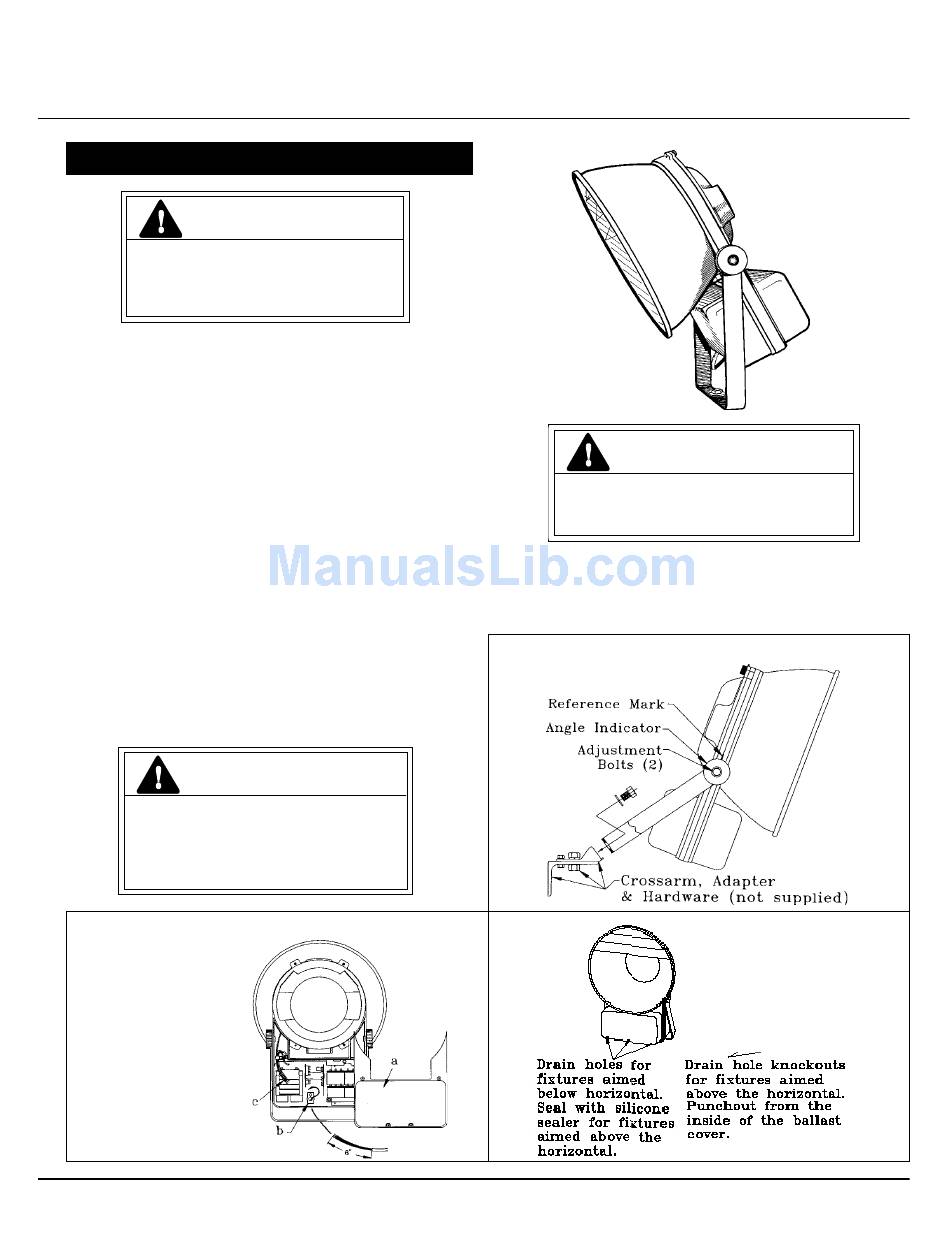

Step 1 — POWER CABLE INSTALLATION
A. Disconnect Power
B. Remove Cover (a)
C. Loosen clamp (b)
Insert cable thru
clamp and grommet
D. Splice leads (c)
to power cable
E. Tighten clamp (b)
F. Replace cover (a)
NOTE: Use 9/16 OD-
cable only.
3 conductor AWG #14
SEO 105C cable
is recommended.
These instructions do not purport to cover all details or variations in equipment nor to provide for every possible contingency to be met in connection with installation, operation or
maintenance. Should further information be desired or should particular problems arise which are not covered sufficiently for the purchaser's purposes, the matter should be referred to
GE Lighting Solutions.
Ultra✭Sport
CAUTION
Unit will fall if not installed properly
• Follow installation instructions
NOTE: Verify that supply voltage is correct by comparing
it to nameplate.
Do not place combustible materials within 7 feet (2 me-
ters) of the front of the reflector lens.
Step 2 — LUMINAIRE MOUNTING
Step 3
GEH-5897
INSTRUCTIONS
Floodlight
TM

Advertisement

Table of Contents

   Related Manuals for GE Ultra Sport GEH-5897

   Summary of Contents for GE Ultra Sport GEH-5897

  • Page 1 These instructions do not purport to cover all details or variations in equipment nor to provide for every possible contingency to be met in connection with installation, operation or maintenance. Should further information be desired or should particular problems arise which are not covered sufficiently for the purchaser’s purposes, the matter should be referred to GE Lighting Solutions.
  • Page 2 Step 5 Step 4 — LUMINAIRE AIMING Two sighting systems are provided for your convenience. Use the sight system which is most easily accessed. Optical Sight: A. Rotate sight into vertical position. B. Align the reference mark of top of reflector flange with notch in sight for proper aiming.
  • Page 3 REMOTE BALLAST MOUNTING See below illustration for bolt spacing and bracket mini- mum spacing.
  • Page 5 Si vous souhaitez des informations complémentaires, ou si vous rencontrez un problème particulier qui ne soit pas adressé de votre point de vue d’acheteur, le sujet doit être remonté jusqu’à la société GE Lighting Solutions...
  • Page 6 Étape 4 - ORIENTATION DU LUMINAIRE Étape 5 Deux systèmes de visée sont offerts à l’utilisateur. Employez celui qui vous semble le plus accessible. Marque de référence Visée optique : Dispositif de visée abaissé en position A. Faites tourner le viseur jusqu’à la position verticale.
  • Page 7 INSTALLATION DU BALLAST À DISTANCE L’illustration ci-dessous indique l’espacement des boulons et l’espacement minimum du support. Surface verticale...
  • Page 8 4 3 5 3 3 GE Lighting Solutions is a subsidiary of the General Electric Company. Evolve and other trademarks belong to GE Lighting Solutions. The GE brand and logo are trademarks of the General Electric Company. © 2011 GE Lighting Solutions. Information provided is subject to change without notice. All values are design or typical values when measured under laboratory conditions.
