g
GE
Lighting Solutions

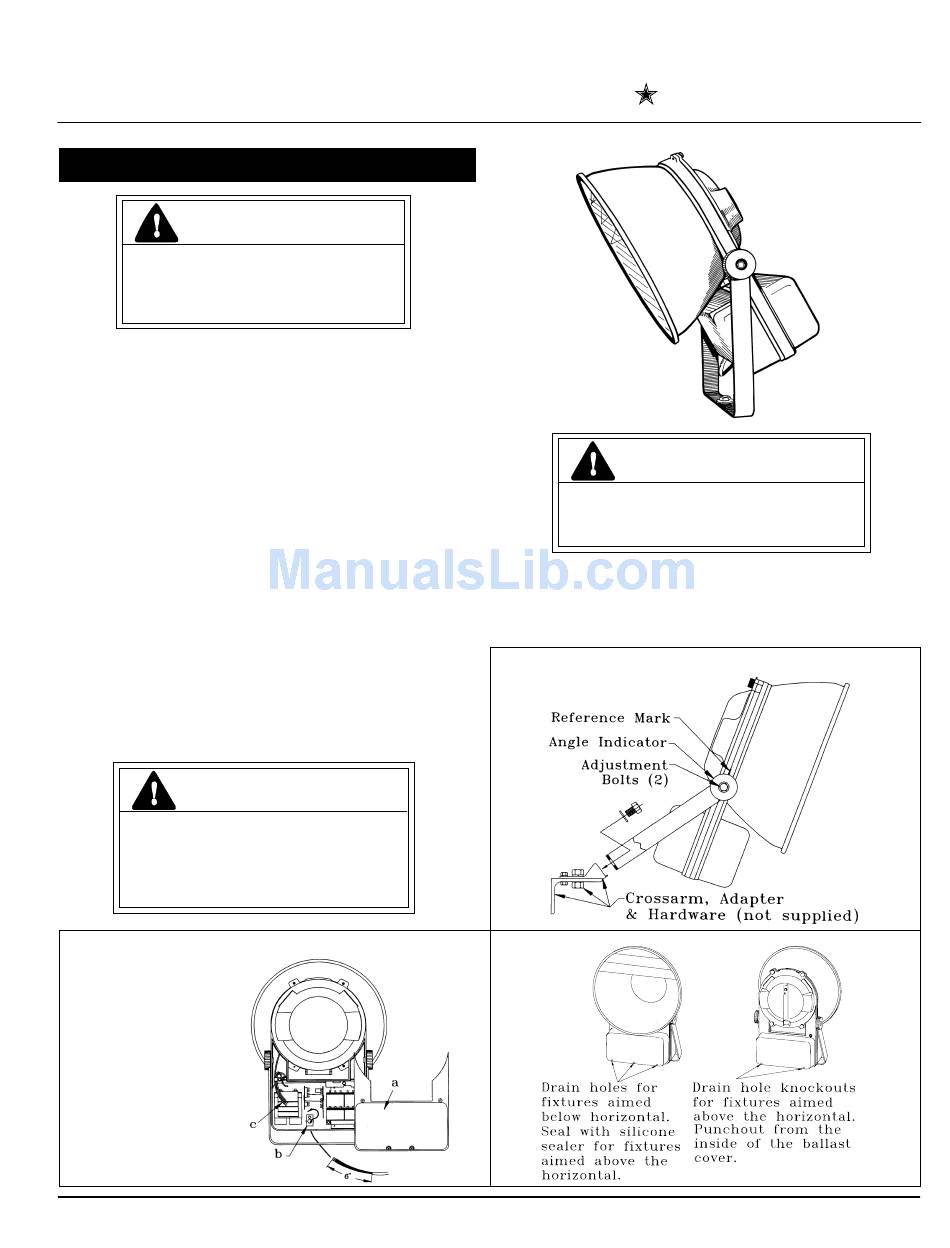

READ THOROUGHLY BEFORE INSTALLING
WARNING
Risk of electric shock
• Turn power off before servicing
– see instructions
NOTE: Make all electrical connections in accor-
dance with the National Electrical Code and any
applicable local code requirements.
NOTE: This luminaire is equipped with a safety
circuit to prevent lamp operation if the reflector
lens is broken. Complete optical assembly must
be replaced if the reflector lens is broken.
This luminaire is shipped with the lamp installed.
This luminaire is designed for use in outdoor applica-
tions and should not be used in areas of limited ventila-
tion or high ambient temperature enclosures unless
otherwise stated on nameplate. Install and maintain it
according to the following recommendations.
NOTE: Connect ground lead to the green lead,
green ground screw on housing or terminal block
provided.
Replace power fuses only with fuses of the same
type and ratings.
WARNING
Risk of fire
• Keep combustible materials away
from lens – see instructions
• Use lamps specified on nameplate
Step 1 — POWER CABLE INSTALLATION
A . Disconnect Power
B . Remove Cover (a)
C . Loosen clamp (b)
Insert cable thru
clamp and grommet
D . Splice leads (c)
to power cable
E . Tighten clamp (b)
F . Replace cover (a)
NOTE: Use 9/16 OD-
cable only.
3 conductor AWG #14
SEO 105C cable
is recommended.
These instructions do not purport to cover all details or variations in equipment nor to provide for every possible contingency to be met in connection with installation, operation
or maintenance. Should further information be desired or should particular problems arise which are not covered sufficiently for the purchaser's purposes, the matter should be
referred to GE Lighting Solutions.
Ultra Sport
CAUTION
Unit will fall if not installed properly
• Follow installation instructions
NOTE: Verify that supply voltage is correct by
comparing it to nameplate.
Do not place combustible materials within 7 feet
(2 meters) of the front of the reflector lens.
Step 2 — LUMINAIRE MOUNTING
Step 3
GEH-5736F
INSTRUCTIONS
Floodlight
TM
Advertisement
Table of Contents
Related Manuals for GE Ultra Sport GRH-5736F
-
Flood Light GE Evolve EFH1 Installation Manual
Led flood light (12 pages)
-
Flood Light GE PF-400 Powerflood Instructions
Floodlight, luminaire (2 pages)
-
Flood Light GE UltraSport Product Manual
General electric floodlight product guide (12 pages)
-
Flood Light GE PF-154 Instructions
Powerflood (4 pages)
Summary of Contents for GE Ultra Sport GRH-5736F
- Page 1 These instructions do not purport to cover all details or variations in equipment nor to provide for every possible contingency to be met in connection with installation, operation or maintenance. Should further information be desired or should particular problems arise which are not covered sufficiently for the purchaser’s purposes, the matter should be referred to GE Lighting Solutions.
- Page 2 Step 5 Step 4 — LUMINAIRE AIMING Two sighting systems are provided for your convenience. Use the sight system which is most easily accessed. Optical Sight: A . Rotate sight into vertical position. B . Align the reference mark of top of reflector flange with notch in sight for proper aiming.
- Page 3 REMOTE BALLAST MOUNTING See below illustration for bolt spacing and bracket minimum spacing.
- Page 4 4 3 5 3 3 GE Lighting Solutions is a subsidiary of the General Electric Company. Evolve and other trademarks belong to GE Lighting Solutions. The GE brand and logo are trademarks of the General Electric Company. © 2011 GE Lighting Solutions. Information provided is subject to change without notice. All values are design or typical values when measured under laboratory conditions.
