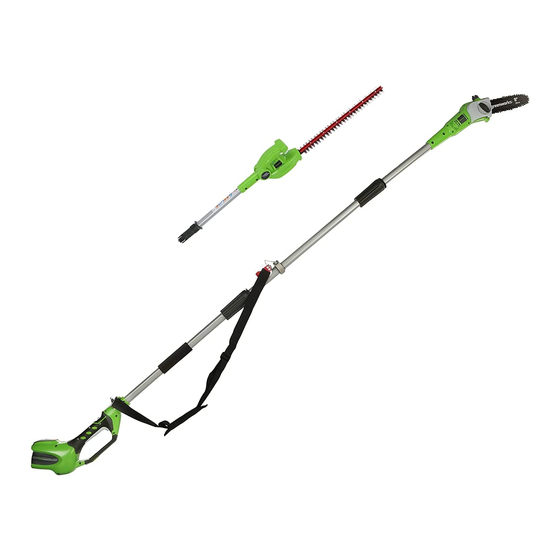

GreenWorks PSPH40B00 Owner's Manual

40v cordless pole saw and hedge trimmer
Hide thumbs Also See for PSPH40B00:

Advertisement

Table of Contents

40V CORDLESS POLE SAW AND HEDGE
TRIMMER
PSPH40B00
Owner's Manual
TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757)
www.GreenWorksTools.com
Read all safety rules and instructions carefully before operating this tool.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSPH40B00 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GreenWorks PSPH40B00

Summary of Contents for GreenWorks PSPH40B00

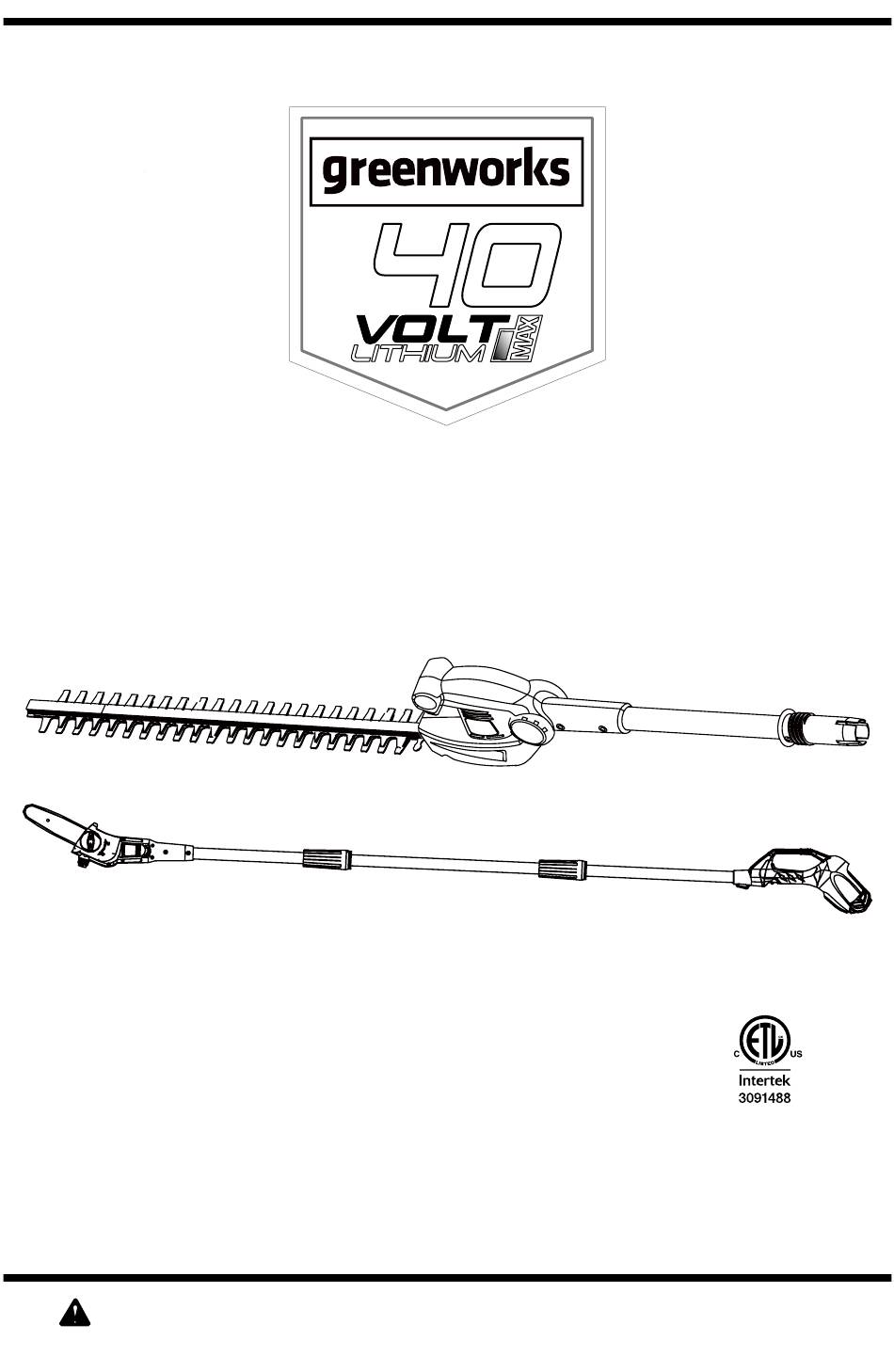

  • Page 1 40V CORDLESS POLE SAW AND HEDGE TRIMMER PSPH40B00 Owner’s Manual TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) www.GreenWorksTools.com Read all safety rules and instructions carefully before operating this tool.

  • Page 2: Table Of Contents

    CONTENTS Contents ..........................2 Product Specifications ......................3 Important Safety Instructions ....................4 Symbols ..........................9 Know Your Pole Saw and Hedge Trimmer ................11 Assembly ........................... 1 2 Operation ........................... 17 Battery Charger ......................... 2 1 Maintenance ........................2 3 Environmentally Safe Battery Disposal ................

  • Page 3: Product Specifications

    PRODUCT SPECIFICATIONS POLE SaW Input Voltage ......................40 V DC No-load Chain Speed ..................9.9 ±10% m/s Max Cutting Length .........................8" Chain Oil Tank Capacity ....................50 ml Chain Type .........................91PJ033X Guide Bar Type ....................080NDEA318 Weight (without battery) .................8.38 Ibs (3.8 kg) POLE HEdgE TRImmER Input Voltage ......................40 V DC No-Load Speed.....................2,800 SPM...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS W a R N I N g Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury. Save all warnings and instructions for future reference. The term “power tool”...
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS related hazards. 4. POWER TOOL USE aNd CaRE • do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. •...
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS POLE HEdgE TRImmER SaFETY WaRNINgS • Keep all parts of the body away from the cutting blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off and the battery has been removed when clearing jammed material.
  • Page 7 IMPORTANT SAFETY INSTRUCTIONS portion of the tip of the guide bar can cause the chain to dig into the object and stop the chain for an instant. The result is a lightning-fast, reverse reaction which kicks the guide bar up and back toward the operator.
  • Page 8 IMPORTANT SAFETY INSTRUCTIONS • Do not operate the saw with one hand! Serious injury to the operator, helpers, bystanders, or any combination of these persons may results from one hand operation. This saw intended for two-handed use. • Use extreme caution when cutting small-sized brush and saplings because slender material may catch the saw chain and be whipped toward you or pull you off balance.

  • Page 9: Symbols

    SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYmBOL NamE DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second)
  • Page 10 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYmBOL SIgNaL mEaNINg daNgER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WaRNINg Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

  • Page 11: Know Your Pole Saw And Hedge Trimmer

    KNOW YOUR POLE SAW AND HEDGE TRIMMER The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules.

  • Page 12: Assembly

    ASSEMBLY W a R N I N g Before assembly, remove the battery from the tool. FITTINg aNd REmOVINg THE BaTTERY (FIg.2) • To insert the battery (1), line it up with the battery compartment (3) on the tool. Slide the battery into the battery compartment and push until the battery snaps into place.
  • Page 13 ASSEMBLY otherwise contaminated oils. Damage may occur to the bar or chain. It is normal for oil to seep from the saw when not in use. To prevent seepage, empty the oil tank after each use, then run for one minute. When storing the unit for a long period of time (three months or longer), be sure the chain is lightly lubricated;...
  • Page 14 ASSEMBLY • Align the groove on the outside of the coupling end of the extension tube (9) with the tongue on the inside of the coupling end of the saw head (8). • Push the saw head (8) onto the extension tube (9). •...
  • Page 15 ASSEMBLY CHaIN TENSION (FIg.6) Chains stretch with use, check and tension often. Never tension a warm chain before storing, as chains shrink when cool; this can damage chain, bar and saw. LOCKING KNOB 1. Release chain tension by turning 2. Unscrew the locking knob. 3.Remove the cover.
  • Page 16 ASSEMBLY POLE HEdgE TRImmER FITTINg THE TRImmER HEad (FIg.7) • Align the arrow on the end of main handle (10) with the arrow on the trimmer head (11). • Push the trimmer head (11) onto the handle (10). • Fasten the trimmer head coupler (12). W a R N I N g Periodically check the connections to ensure that they are tightened securely.

  • Page 17: Operation

    OPERATION W a R N I N g Let the tool work at its own pace. Do not overload. CHaRgINg THE BaTTERY The battery needs to be changed before first use and whenever it fails to produce sufficient power on jobs that were easily done before.The battery may become warm while charging; this is normal and does not indicate a problem.
  • Page 18 OPERATION OPERaTINg THE POLE SaW PREPaRaTION FOR CUTTINg • Wear non-slip gloves for maximum grip and protection. • Maintain a proper grip on the unit whenever the motor is running. Use your right hand to firmly grip the rear handle while your left hand has a firm grip on the pole shaft. •...
  • Page 19 OPERATION LImBINg aNd PRUNINg (FIg.12&13) This unit is designed for trimming small branches and limbs up to 6” (15.2 cm) in diameter. For best results, observe the following precautions. • Plan the cut carefully. Be aware of the direction in which the branch will fall. •...
  • Page 20 OPERATION OPERaTINg THE POLE HEdgE TRImmER TIPS FOR OPTImUm USE • Start by trimming the top of the hedge. Slightly tilt the tool (up to 15° relative to the line of cut) so that the blade tips point slightly towards the hedge (FIG.14). This will cause the blades to cut more effectively.

  • Page 21: Battery Charger

    BATTERY CHARGER CHaRgINg PROCEdURE (See Figure 16.) NOTE: The battery is not shipped fully charged. It is recommended to fully charge before first use to ensure that maximum run time can be achieved. This lithium-ion battery will not develop a memory and may be charged at any time.
  • Page 22 BATTERY CHARGER CHECKINg THE CHaRgE If the battery pack does not charge properly: • Check the current at the power outlet with another tool . Make sure that the outlet is not turned off. • Check that the charger contacts have not been shorted by debris or foreign material. •...

  • Page 23: Maintenance

    MAINTENANCE CLEaNINg maINTENaNCE aNd STORagE Your tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.Your charger does not require any maintenance apart from regular cleaning. W a R N I N g Before performing any maintenance on the tool, remove the battery from the tool.

  • Page 24: Environmentally Safe Battery Disposal

    ENVIRONMENTALLY SAFE BATTERY DISPOSAL The following toxic and corrosive materials are in the batteries used in this string trimmer battery pack: Lithium-Ion, a toxic material. W a R N I N g All toxic materials must be disposed of in a specified manner to prevent contamination of the environment.

  • Page 25: Troubleshooting

    TROUBLESHOOTING POLE HEdgE TRImmER PROBLEm POSSIBLE CaUSE SOLUTION Tool will not start Battery not installed properly Check the battery installation Battery discharged Fully charge the battery by following the instructions in the charger manual. Lock-off button not actuated Pull back on the lock-off button before engaging the On/Off switch.

  • Page 26: Limited Warranty

    (4) years against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. This warranty is valid only for...

  • Page 27: Exploded View

    EXPLODED VIEW POLE HEdgE TRImmER...
  • Page 28 EXPLODED VIEW POLE SaW...

  • Page 29: Parts List

    PARTS LIST POLE HEdgE TRImmER Item No. Part No. description 34110648 Blade Cover 31104258 Hedger...
  • Page 30 PARTS LIST POLE SaW Item No. Part No. description 31111258 Side Cover Assembly 32901320 8” Chain 32902320-7 8” Guide Bar 34112320-2 Scabbard 3290875 Spring Φ10 33902102-2 Sproket 31112258 Oil Tank Cap 31113258 Upper Pole Assembly 31103258 Handle Assembly 31102257 Middle Pole Assembly...
  • Page 31 Tools P.O. Box 3130 mooresville, North Carolina 28117 TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Rev: 00 (01-11-16) Printed in China on 100% Recycled Paper...
