Introduction
®

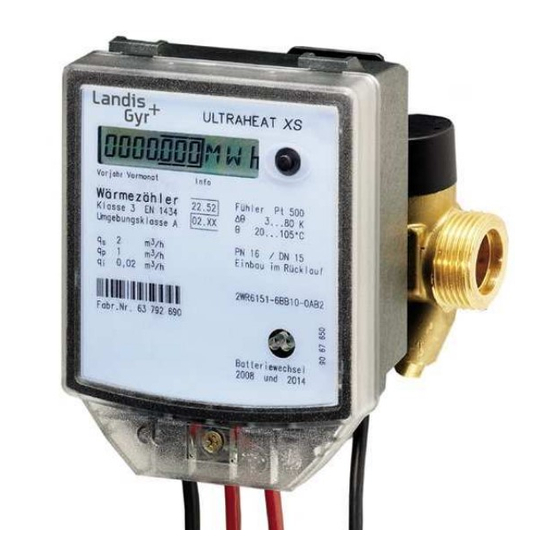

The ULTRAHEAT XS heat meter is a measuring instrument for
physically correct recording of heat consumption. It is required to
be certified by law in Germany and many other countries. The
device consists of a volume measuring unit, two permanently
connected temperature sensors, and an electronic unit that calcu-
lates the heat consumption from the volume flow and temperature
difference.
The volume measuring unit is a non-wearing ultrasonic measuring
device without mechanically moving parts. The long-life battery is
designed for the calibration validity period. ULTRAHEAT
cannot be opened without breaking the calibration seal.
The heat meter must only be operated under the conditions stated
in the device sheet and on the rating plate.

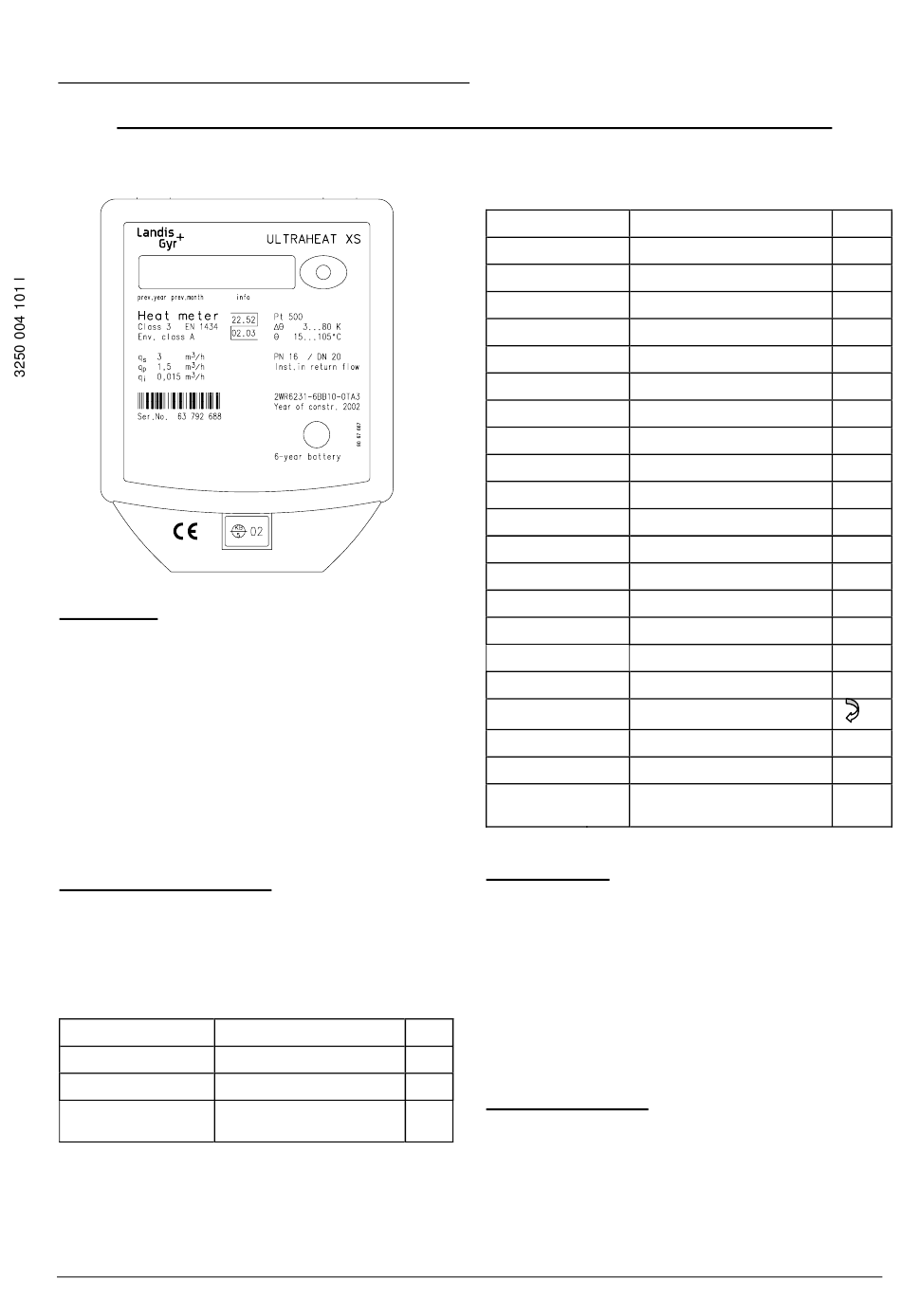

Information on the Display
The displays of the heat meter are structured on several levels
and may deviate from the standard described here. Each short
press of the button switches to the next display of the user loop
(level 1).
▼ indicates what sort of display it is.
User Loop
0054567 kWh Cumulated heat quantity
00065.43 m³ Cumulated volume
888888 kWh Segment test
F - - - Error message on fault with
fault number
Pressing the button for 10 seconds switches from the user loop to
the service loop (level 2).
Ultrasonic Heatmeter ULTRAHEAT
2WR6
UH304-101l
®
XS
▼
Info
Info
®
XS Subject to change without prior notice
Exiting the service loop by pressing the button for 3s or auto-
matically after 30 minutes.
Service Loop
0.534 m³/h Current flow rate
Current heat power
22.9 kW
Current supply-return temperature
84 47 °C
Date
04.06.02 D
Operating hours
786 Bh
Missing hours
56 Fh
Device number, 7-digit
3792701 G
Remote reading option (optional)
PulSE CH
Primary address when option M-Bus
123 A
Customer number, 7-digit
2345678 K
Date stamp for F0 prewarning
18.02.01 F0
Firmware version
3- 01 FW
Previous year's day of storage
31.12.01 V
0034321 kWh Heat previous year on set day
Volume previous year on set day
00923.12 m³
Missing hours previous year
12 Fh
Code entry for parameterization
- -.- -.- - C
Previous month's 1-15 day of storage
01.06.02 M
After pressing button for 3s:
0034321 kWh Heat previous month on set day
Volume previous month on set day
00923.12 m³
Missing hours previous month on set
12 Fh
day
Monthly Values
The calculator stores the following values for 15 months at each
end of month
- Heat (meter reading)
- Volume (meter reading)
- Missing hours (meter reading)
From the month set day display, press the service button for 3s to
enter the previous month's values.
The month values can also be read out via the optical interface.
Fault Codes and IDs
The heat meter constantly performs self-diagnosis and can dis-
play various faults.
ULTRAHEAT XS
Prev. year
Prev. year
Prev. year
Prev. year
Prv. month
Prv. month
Prv. month
Prv. month
UH 304 – 101k
▼
Info
Info
Info
Info
Info
Info
Info
