2. Removing the inner vessel
Inserting the inner vessel takes place in the reverse
order
Q
4. Switch on the device
Open the device and
switch the device on
and off with the front
power switch.

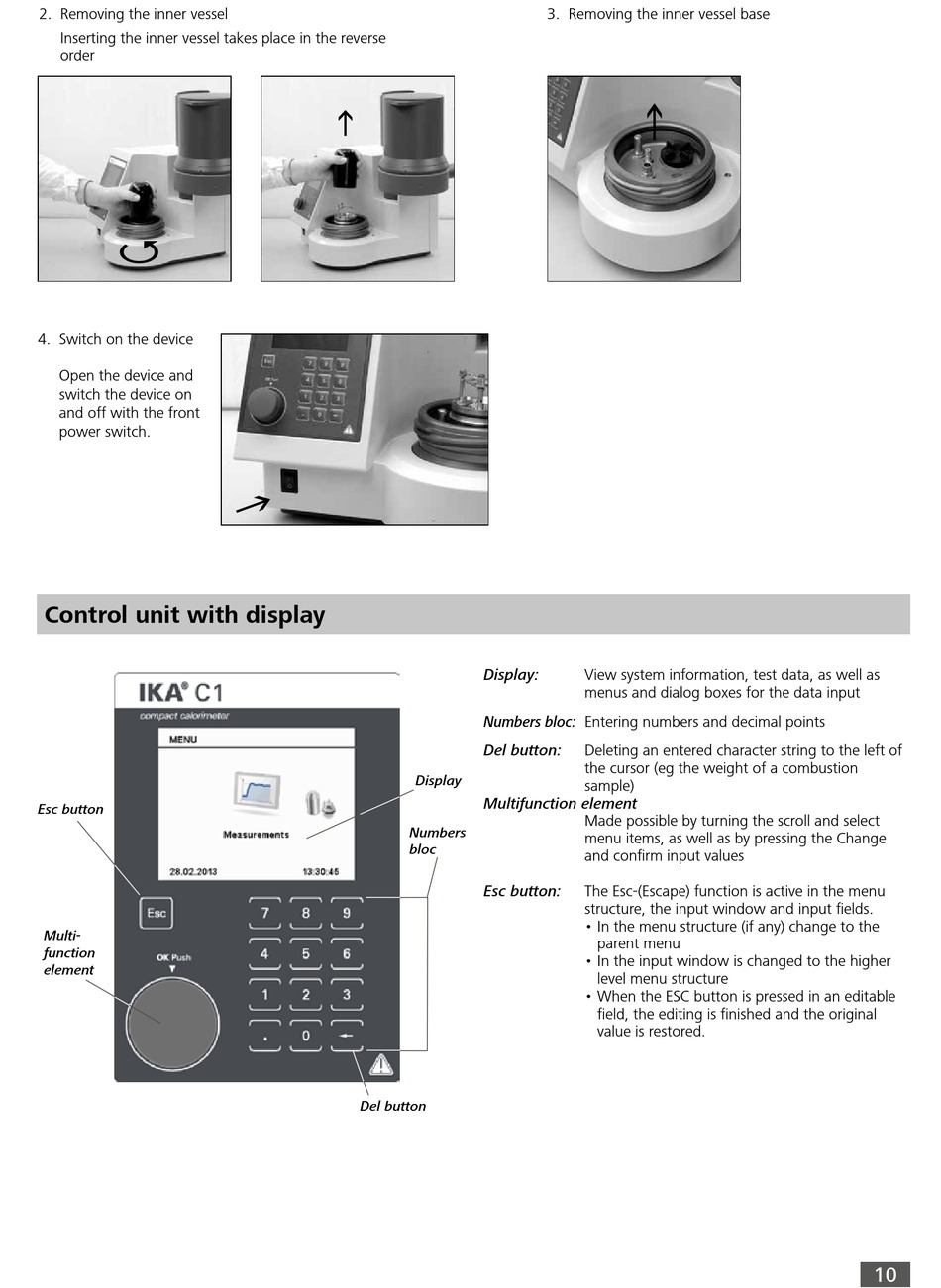

Control unit with display

Esc button
Multi-
function
element
h
Display:
Numbers bloc: Entering numbers and decimal points
Del button:
Display
Multifunction element
Numbers
bloc
Esc button:
Del button
3. Removing the inner vessel base
h
View system information, test data, as well as
menus and dialog boxes for the data input
Deleting an entered character string to the left of
the cursor (eg the weight of a combustion
sample)
Made possible by turning the scroll and select
menu items, as well as by pressing the Change
and confirm input values
The Esc-(Escape) function is active in the menu
structure, the input window and input fields.
• In the menu structure (if any) change to the
parent menu
• In the input window is changed to the higher
level menu structure
• When the ESC button is pressed in an editable
field, the editing is finished and the original
value is restored.
10
