elektraLite 1018 User Manual

Hide thumbs Also See for 1018:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

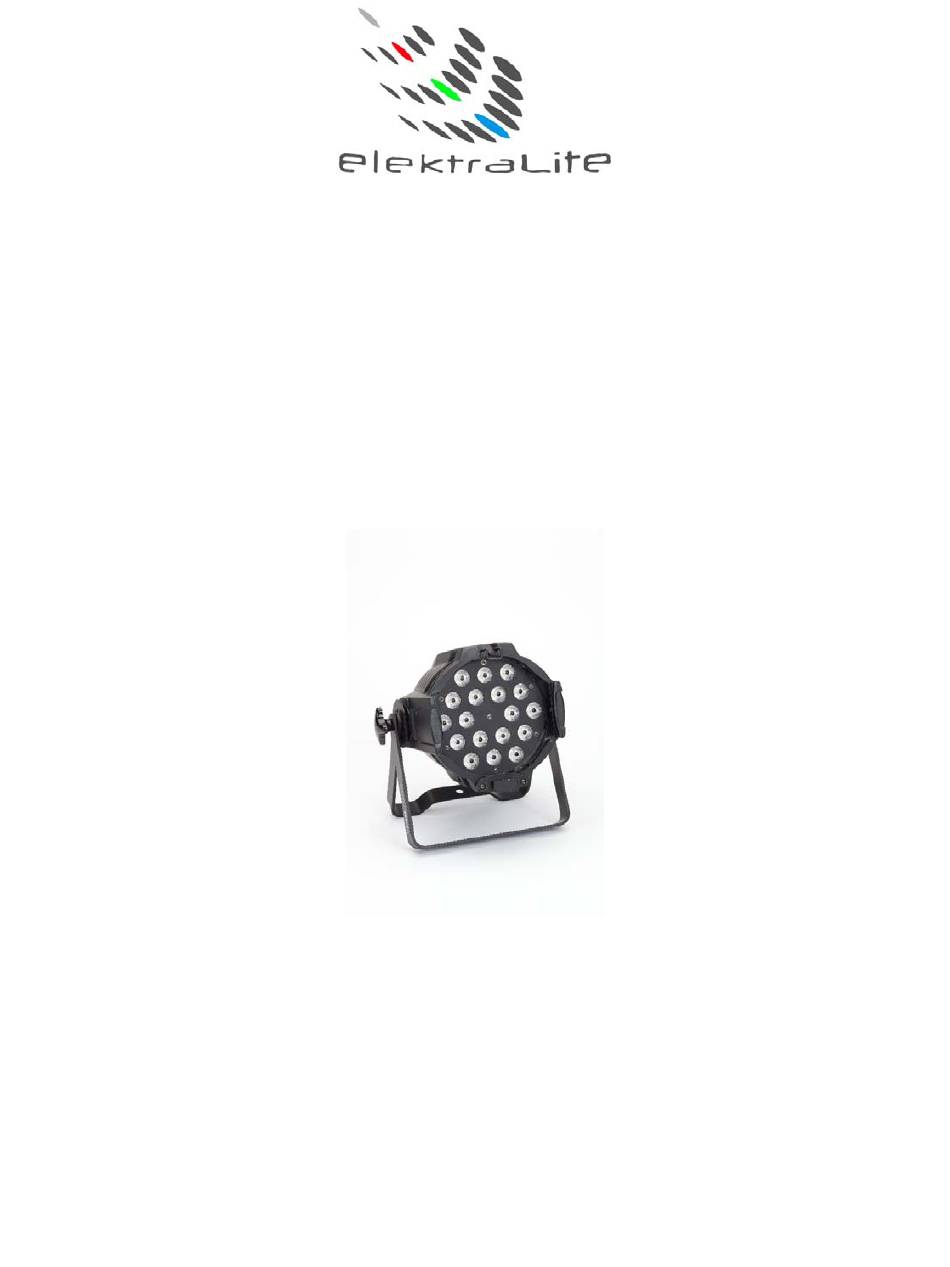

Elektralite LED
1018
USER MANUAL
(Version 4.0)
(From serial number 11915).
Elektralite (a division of Group One),
70, Sea Lane, Farmingdale, NY11735, U.S.A.
T. +1 (631)-396-0184.
F. +1 (631)-396-0190
WWW.MYELEKTRALITE.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1018 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for elektraLite 1018

Summary of Contents for elektraLite 1018

  • Page 1 Elektralite LED 1018 USER MANUAL (Version 4.0) (From serial number 11915). Elektralite (a division of Group One), 70, Sea Lane, Farmingdale, NY11735, U.S.A. T. +1 (631)-396-0184. F. +1 (631)-396-0190 WWW.MYELEKTRALITE.COM...

  • Page 2: Safety Instructions

    Elektralite 1018 be grounded. So under no circumstances break off the ground pin on the Edison plug or use the fixture where a ground is not present. A ground pin, like the fuse for the Elektralite 1018 is there for safety.

  • Page 3: General Guidelines

    Make sure the Gel frame (Gel holder) is clipped into position correctly and cannot come loose. If you are not qualified or have any doubts about hanging the Elektralite 1018 then do NOT hang Do not clamp the safety cable to the U bracket or clamp. That is not a secondary safety point.
  • Page 4 There should be no more than 5 Elektralite 1018 on a 20 amp 120 volt circuit, having no other load on it. That means to say a, maximum of 5 Elektralite 1018 are on a 20 amp 120 volt circuit...

  • Page 5: Dmx-512 Control Connection

    6. DMX-512 Control Connection Connect an XLR cable to the female 5-pin XLR output of your Elektralite CP 20 or other DMX controller. The other end should be connected to the male 5-pin XLR input of the Elektralite 1018. Then daisy-chain out of the first Elektralite 1018 into the next Elektralite 1018 or other dmx device.
  • Page 6 7. Menus in the fixture. Root Menu Sub Menu 1 Sub Menu 2 STAT (STATIC LOOK) R(ED) 0-255 G(REEN) 0-255 B(LUE) 0-255 W(HITE) 0-255 S(STROBE) 0-255 AUTO (AUTOMATIC) AT 01 THROUGH TO AT10 ASSIGN DMX CHANNEL 1-512 PERS (PERSONALITY) STAG(E) ARC1 ARC1d ARC2...
  • Page 7 8. Static Look. The Elektralite 1018 can be set to a single static look quickly. Use the Menu button to get to STAT. Press Enter. The next screen will read R000. This is addressing the RED leds. If Red is to be in the static look, then use the ↑ or ↓ to increase the value of the red.

  • Page 8: Auto Programs

    The full dmx number of channels is 11. 12. ID Address. An Elektralite 1018 can be addressed (controlled) through the dmx or instead it can have its own unique ID address. There are a total of 66 different ID addresses from 1 to 66.
  • Page 9 In order to work mode CAL1, BSW must be turned on. Using the Menu button, go through the Root Menu until Set. Press Enter and then use the ↑ or ↓ buttons to get to BSW. Press Enter and then chose ON if you want to change the Elektralite 1018 white calibration under CAL1...
  • Page 10 13. Set (Set has several Sub Menus which allow functions to be used). (Cont). 5). ID SW This mode turns On or OFF the ID address system. See section 12 above for an explanation of ID address. Using the Menu button, go through the Root Menu until Set. Press Enter and then use the ↑ or ↓ buttons to get to IDSW.
  • Page 11 14. CAL 1 CAL1 will allow you to set up the white balance for the RGBW components. To adjust the white balance, go through the Root Menu until CAL1., the screen will display R255, use the ↑ or ↓ to set the Red component to the value required. Press Enter to save and the screen will automatically advance to the value for G (G255 for example).
  • Page 12 19. Personality tables. (for the personality STAG please refer to the DMX channel assignments on pages 13 & 14. STAG uses all 11 channels as shown in the dmx channel assignment table). ARC1 0-255 0-255 GREEN 0-255 BLUE ARC1 D 0-255 MASTER 0-255...
  • Page 13 DMX Channel Assignments. (STAG) Grand Master for RGBW 0-255 0-255 Leds Leds 0-255 GREEN 0-255 Leds Blue White Leds 0-255 No effect 0-010 Crossfade Red 255 Green 000→255 011-030 Crossfade Red 255→000 Green 255 Blue 000 031-050 Crossfade Red 000 Green 255 Blue 000→255 051-070...
  • Page 14 DMX Channel Assignments (Cont.) Run speed for AT01-AT10 on channel 08 000-255 System default setting 000-009 Dim 00 (straight line dimmer) 009-055 Dim 01 (dimmer curve 1. Shortest fade time) 056-105 Dim 02 (dimmer curve 2. 2 Shortest fade time) 106-155 Dim 03 (dimmer curve 3.

  • Page 15: Cleaning And Maintenance

    The clear front plastic cover for the lenses should be cleaned so the light output is maintained. With the Elektralite 1018 turned off, use only a moist lint-free cloth, and clean the plastic cover. Never use alcohol or solvents to clean the fixture. Never spray anything onto the fixture at the front or in any place on the fixture.

  • Page 16: Other Products

    Other Products. For other great products that are manufactured under the Elektralite product line, please go to the website at www.myelektralite.com A preview of the products include:- Elektralite Elektrabar with glare shield for perfect cuts Utilizing homogenized 6-in-1 leds. RGBWAI where the I is indigo (not UV) ; this way perfect pastels like Lee 170 Lavender are flawlessly achieved.
  • Page 17 Elektralite Stingray Ellipsoidal The Elektralite Stingray is a 300 watt LED ellipsoidal with the output of a conventional 750 watt fixture. Different LED types are available including Warm White, 5600K, and RGBL Elektralite SLA The SLA is the perfect compact IP65 fixture for accent lighting everything from trees and walls to product high lighting.
  • Page 18 Elektralite Dazer Downlight The ideal pendant light. Made specifically for the installation market. Can be simply installed by an electrical contractor. 180 watts of power. Comes with 25 degree lenses installed but a lens pack (15,45, & 60) allows the beam angles to be changed.
