elektraLite eyeBall (5-in-1) User Manual

Rgbwa led 5-in-1
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

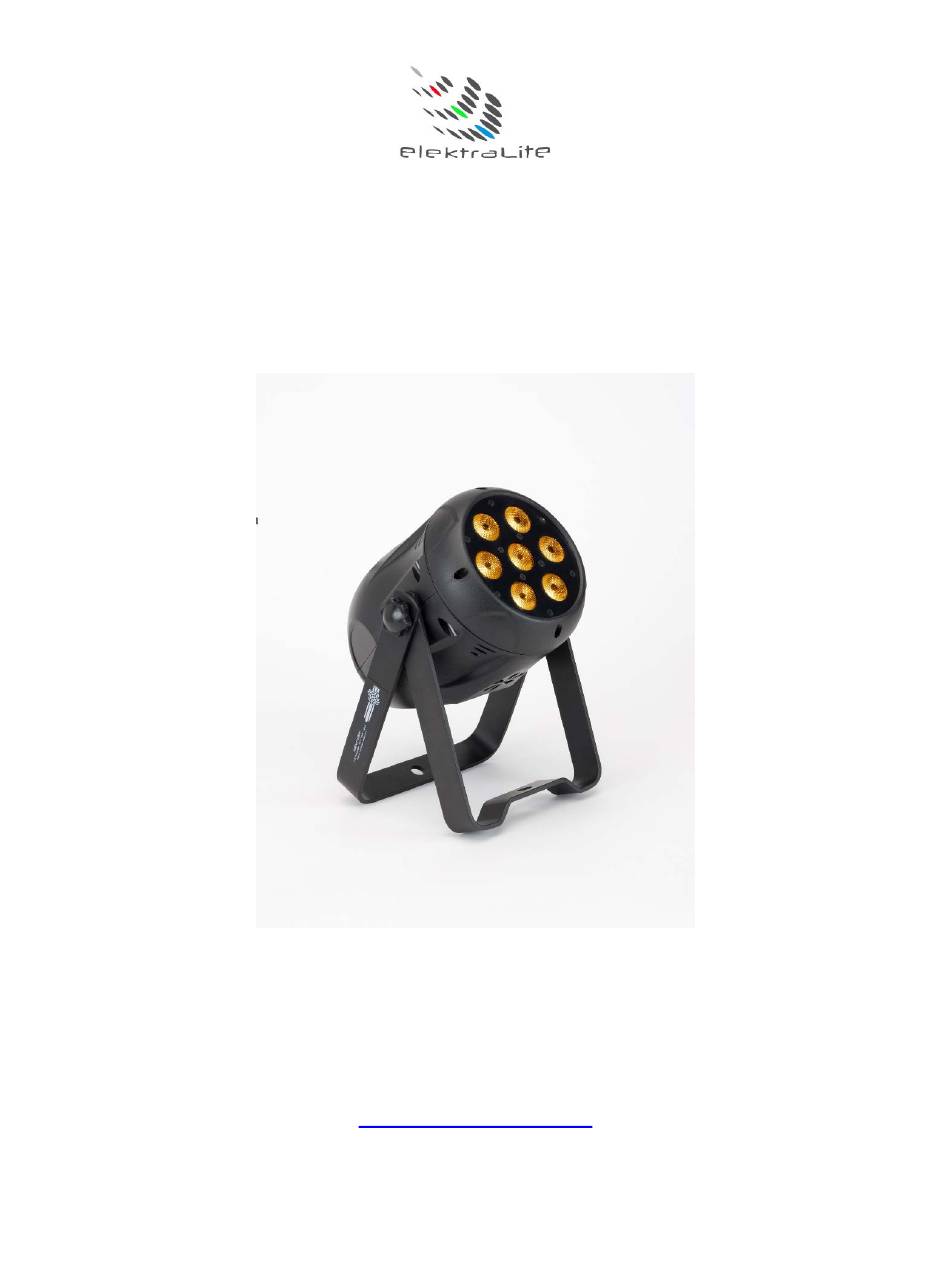

ElektraLite LED
eyeBall RGBWA (5-in-1)
USER MANUAL
ElektraLite (a division of Group One),
70, Sea Lane, Farmingdale, NY11735, U.S.A.
T. +1 (631)-396-0184.
www.myElektraLite.com
(Version3.0)
F. +1 (631)-396-0190

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eyeBall (5-in-1) and is the answer not in the manual?

Questions and answers

Related Manuals for elektraLite eyeBall (5-in-1)

Summary of Contents for elektraLite eyeBall (5-in-1)

  • Page 1 ElektraLite LED eyeBall RGBWA (5-in-1) USER MANUAL (Version3.0) ElektraLite (a division of Group One), 70, Sea Lane, Farmingdale, NY11735, U.S.A. T. +1 (631)-396-0184. F. +1 (631)-396-0190 www.myElektraLite.com...

  • Page 2: Safety Instructions

    ElektraLite eyeBall (5-in-1) is a high voltage fixture. Be careful when dealing with high voltages. Please read this manual. If you do not read this manual and damages occur to the ElektraLite eyeBall (5-in-1), then it could void the warranty.

  • Page 3: General Guidelines

    ElektraLite eyeBall (5-in-1) should not be operated 24/7 (24 hours a day; 7 days a week). ElektraLite eyeBall (5-in-1) needs operation breaks to ensure that it will work for a long time without problems. Please do not shake the ElektraLite eyeBall (5-in-1) and avoid using brute force when installing or operating it.

  • Page 4: Dmx-512 Control Connection

    The DMX terminator is simply a 5 pin XLR plug (male) with a 120 Ω resistor connected between pins 2 and 3. It is then plugged into the output XLR socket of the last ElektraLite eyeBall (5-in-1) or other dmx device in the chain. Please see illustration below.
  • Page 5 6. Menus in the fixture. Root Menu Sub Menu 1 Sub Menu 2 Auto Auto 0 SP(speed) 00-99 (automatic programs) Auto 1 SP (speed) 00-99 Auto 2 SP (speed) 00-99 Auto 3 SP (speed) 00-99 Auto 4 SP (speed) 00-99 STATIC Fix C Variety of Fixed Colors...

  • Page 6: Auto Programs

    Auto program returns. 8. Static Look. The ElektraLite eyeBall (5-in-1) can be set to a single static look. Use the Menu button to get to Static. On the second line of text, it will read either <Manu C> or <Fix C>.
  • Page 7 9. DIM The Dimmer function allows different Dimmer curves to be chosen. There are 5 choices. Choice 1:- this is Dim off. The Dimmer curve is 0 which means any change in dimmer level is instantaneous. Choice 2:- Dim 1. The dimmer curve has the shortest fade in and fade out time. Choice 3:- Dim 2.
  • Page 8 15. Fan. Fan speed for the eyeBall can be changed. There are three settings. High, medium and low. Using the Menu button, press until the display reads <HIGH> Press Enter and then using the ↑ or ↓ buttons, change the speed to either <MID> or <LOW> 16.
  • Page 9 18. Personality (Profile) tables. ARC.1 0-255 0-255 GREEN 0-255 BLUE 0-50 Linear dimmer speed（DIM=OFF） 51-100 nonlinear speed1（DIM1） 101-150 nonlinear speed 2（DIM2） 151-200 nonlinear speed 3（DIM3） 201-255 nonlinear speed 4（DIM4） ARC1.D 0-255 MASTER DIMMER 0-255 0-255 GREEN 0-255 BLUE 0-50 Linear dimmer speed（DIM=OFF） 51-100 nonlinear speed 1（DIM1）...
  • Page 10 18. Personality (Profile) tables continued. AR2.S 000-255 MASTER DIMMER 000-255 000-255 GREEN 000-255 BLUE 000-255 WHITE 000-255 STROBE 0-50 Linear dimmer speed（DIM=OFF） 51-100 nonlinear speed 1（DIM1） 101-150 nonlinear speed 2（DIM2） 151-200 nonlinear speed 3（DIM3） 201-255 nonlinear speed 4（DIM4） ARC3 0-255 0-255 GREEN 0-255...
  • Page 11 18. Personality (Profile) tables cont. ARC3.S 000-255 MASTER DIMMER 000-255 000-255 GREEN 000-255 BLUE 000-255 WHITE 000-255 AMBER 000-255 STROBE 0-50 Linear dimmer speed（DIM=OFF） 51-100 nonlinear speed 1（DIM1） 101-150 nonlinear speed 2（DIM2） 151-200 nonlinear speed 3（DIM3） 201-255 nonlinear speed 4（DIM4） 0-255 H hue 0-255...
  • Page 12 18. Personality (Profile) Tables cont : STAG(E) Grand Master for RGBWA 0-255 Leds 0-255 Leds 0-255 GREEN Leds 0-255 Blue White Leds 0-255 Leds 0-255 Amber No effect 0-010 Snap to Red 255 012-050 Crossfade Red 255→000 Green 000→255 Crossfade Green 255→000 Blue 000→255 051-090...

  • Page 13: Cleaning And Maintenance

    “visual inspection” should be done. The clear front plastic cover for the lenses should be cleaned so the light output is maintained. With the ElektraLite eyeBall (5-in-1) turned off, use only a moist lint-free cloth, and clean the plastic cover.
  • Page 14 Lee 170 Lavender are flawlessly achieved. The Elektralite 1018 Using 18 high powered 12 watt leds, the Elektralite 1018 is available using 4-in-1 or 6-in-1 leds. Each led can produce any combination of colors as each led is either an RGBW or RGBWAI device...
  • Page 15 16 bit pan and tilt. Elektralite Stingray Ellipsoidal The Elektralite Stingray is a 300 watt LED ellipsoidal with the output better than a conventional 750 watt fixture. Different LED types are available including Warm White, Cool white and RGBW.
  • Page 16 Even though it is compact it packs a massive punch with its 15 watt Cree RGBW leds. Elektralite Dazer Downlight The ideal pendant light. Made specifically for the installation market. Can be simply installed by an electrical contractor. 180 watts of power.
