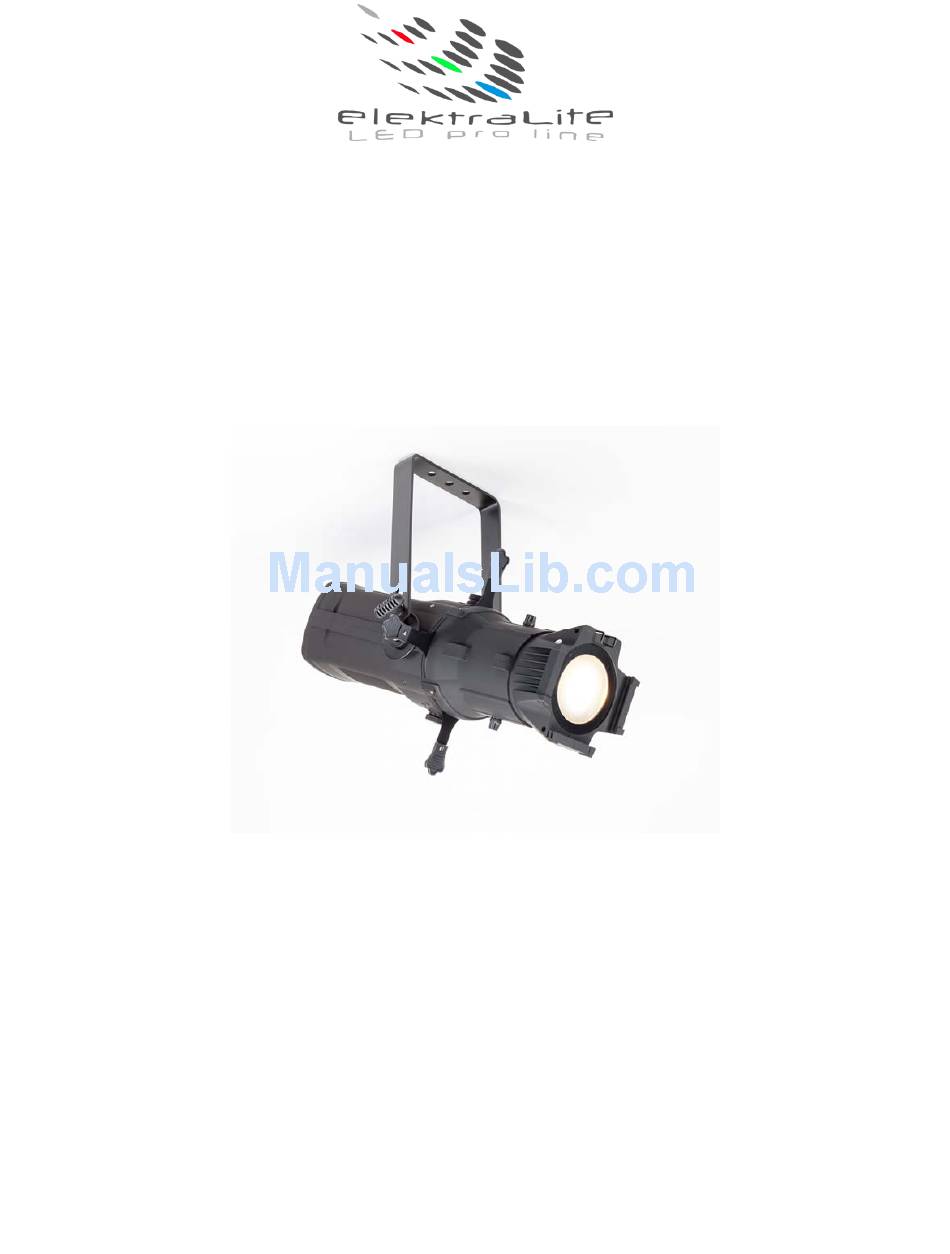

Page 1: User Manual
Stingray USER MANUAL ElektraLite (a division of Group One), 70, Sea Lane, Farmingdale, NY11735, U.S.A. T. +1 (631)-396-0184. F. +1 (631)-396-0190 WWW.MYELEKTRALITE.COM... -
Page 2: General Guidelines
ElektraLite Stingray should not be operated 24/7 (24 hours a day; 7 days a week). ElektraLite Stingray needs operation breaks to ensure that it will work for a long time without problems. Please do not shake the elektraLite Stingray and avoid using brute force when installing or operating it. -
Page 3: Installation During Construction
Circuit Limitation :- There should be no more than 4 elektraLite Stingray on a 20 amp 120 volt circuit, having no other load on it. That means to say a, maximum of 4 elektraLite Stingray are on a 20 amp 120 volt circuit with nothing else plugged into that circuit 6. - Page 4 5 pin XLR plug (male) with a 120 Ω resistor connected between pins 2 and 3. It is then plugged into the output XLR socket of the last elektraLite Stingray or other dmx device in the chain. Please see illustration below.
-
Page 5: Description Of Parts
Undoing the two lens locks will allow the lens tube to be moved up or down. Removing the two lens locks will allow the lens tube to be removed. The elektralite Stingray comes with a 19 degree lens tube. However other lens tubes are available : 5, 10, 26, 36 and 50. - Page 6 The shutter blades sometimes require cleaning as well. With the elektraLite Stingray turned off, use only a moist lint-free cloth. Never use alcohol or solvents to clean the fixture. Never spray anything onto the fixture at the front or in any place on the fixture.
-
Page 7: Other Products
Lee 170 Lavender are flawlessly achieved. The Elektralite 1018 Using 18 high powered 12 watt leds, the Elektralite 1018 is available using 4-in-1 or 6-in-1 leds. Each led can produce any combination of colors as each led is either an RGBW or RGBWAI device... - Page 8 Elektralite ML902 The ML902 utilizes a 120 watt Led and is brighter than a 250 discharge light source. Features include:- Color wheel, two gobo wheels, rotating gobos, rotating 3 facet prism, focus, dimmer, strobe and 16 bit pan and tilt.
- Page 9 Elektralite Dazer Downlight The ideal pendant light. Made specifically for the installation market. Can be simply installed by an electrical contractor. 180 watts of power. Comes with 25 degree lenses installed but a lens pack (15,45, & 60) allows you to change the beam angles.
