Polycom 5300LF2 VBP-E Series Hardware Manual page 8

5300LF2 Hardware Guide

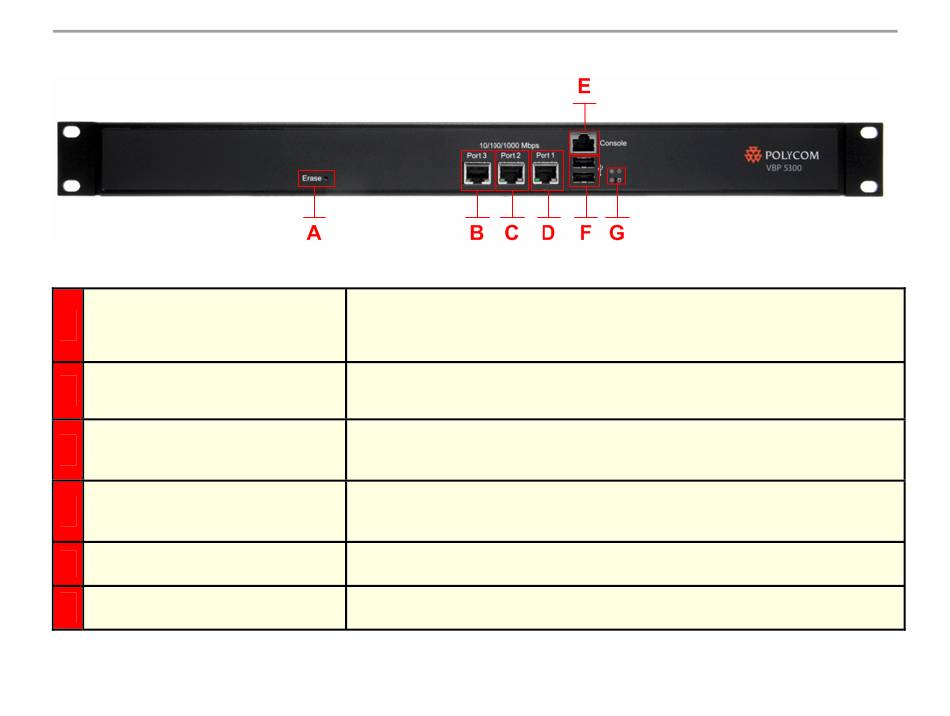

5300LF2 VBP-ST series Physical connections and LED's
A Erase
Port 3 - Management interface
B
Port 2 - Provider interface
C
D Port 1 - Subscriber interface
E
Console
F
USB
1 Click - Nothing
2 Clicks - Reset CLI password and restarts the system
3 Clicks - Restore to factory default
1 x 10/100/1000 Mbps Ethernet port for optional management network
connectivity, this interface must not be on the same network as the WAN or LAN
subnets. This network cannot be within a subnet contained in a "Route" statement
1 x 10/100/1000 Mbps Ethernet port for connectivity to the Provider or LAN
network connectivity
Default IP: none
1 x 10/100/1000 Mbps Ethernet port for Subscriber or WAN/Internet network
connectivity
Default IP: 192.168.1.1
1 x RS-232 8 pin module console port for management – 9600-N-8-1 NONE for
flow control – 8 pin modular to DB9 cable provided in system box
Not used
