5300LF2 Hardware Guide

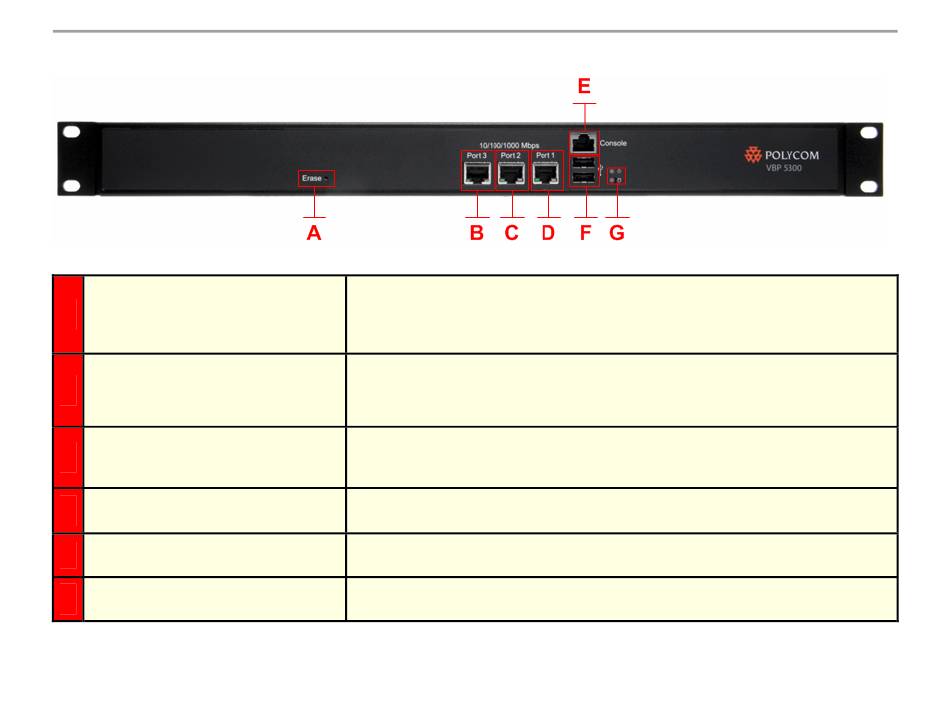

5300LF2 VBP-E Series Physical connections and LED's
Erase
A
B Port 3 - Management interface
C Port 2 - WAN interface
Port 1 - LAN interface
D
E
Console
USB
F
1 Click - Nothing
2 Clicks - Reset CLI password and restarts the system
3 Clicks - Restore to factory default
1 x 10/100/1000 Mbps Ethernet port for optional management network
connectivity, this interface must not be on the same network as the WAN or LAN
subnets. This network cannot be within a subnet contained in a "Route"
statement
1 x 10/100/1000 Mbps Ethernet port for connectivity to the WAN or Internet
network connectivity
Default IP: none
1 x 10/100/1000 Mbps Ethernet port for LAN network connectivity
Default IP: 192.168.1.1
1 x RS-232 8 pin modular console port for management – 9600-N-8-1 NONE for
flow control – 8 pin modular to DB9 cable provided in system box
Currently not used
