Interacoustics MT10 Instructions For Use Manual

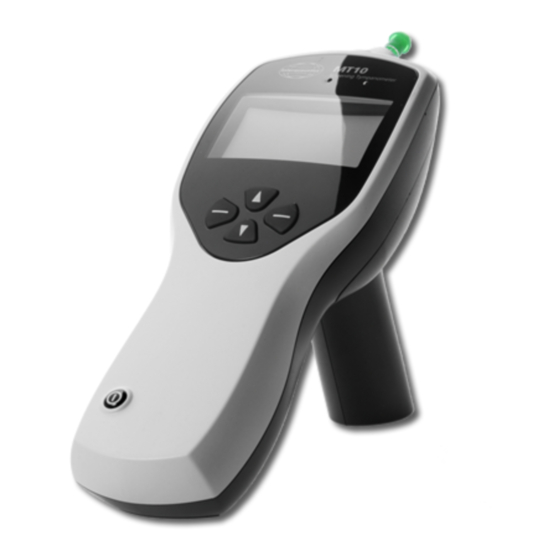

Hand held impedance tympanometer
Hide thumbs Also See for MT10:
Table of Contents

Advertisement

Quick Links

See also: Instructions for Use Manual
Instructions for Use
Part 1
Instructions for Use - GB
Gebrauchsanweisung - DE
Instructions d'utilisation - FR
Bruksanvisning - SE
Οδηγίες Χρήσης - GR
Istruzioni per l'Uso - IT
Instrucções para a utilização - PT
Brugsanvisning - DK
Käyttöohje - FI
Manual de instrucciones - ES

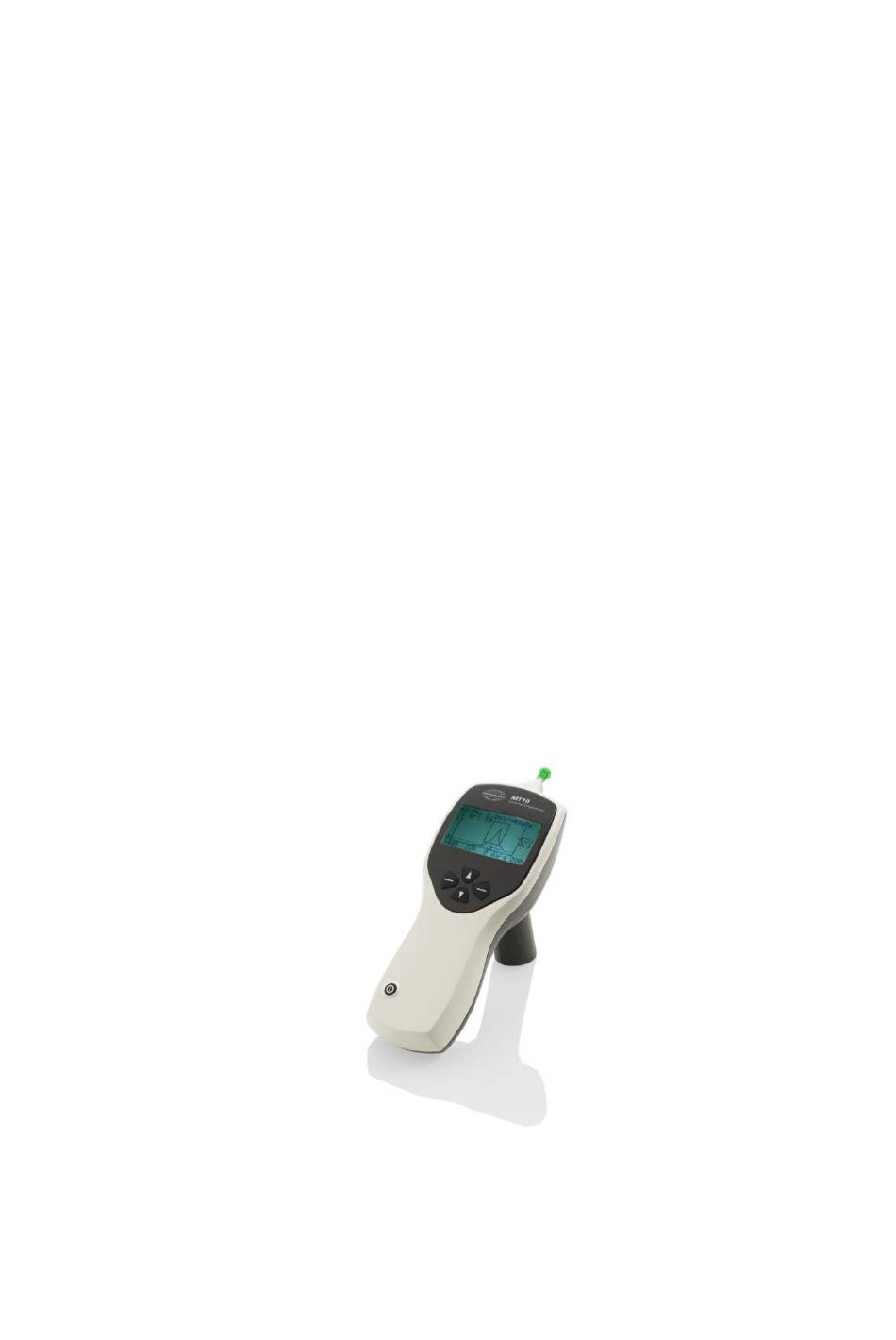

Hand Held Impedance
Tympanometer MT10
Item No. 8100256– ver. 10/2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Interacoustics MT10

Summary of Contents for Interacoustics MT10

  • Page 1 Instructions d’utilisation - FR Bruksanvisning - SE Οδηγίες Χρήσης - GR Istruzioni per l’Uso - IT Instrucções para a utilização - PT Brugsanvisning - DK Käyttöohje - FI Manual de instrucciones - ES Hand Held Impedance Tympanometer MT10 Item No. 8100256– ver. 10/2012...
  • Page 3 Instructions for Use - GB Hand Held Impedance Tympanometer MT10...

  • Page 5: Table Of Contents

    Operating instructions ....................5 Installing & replacing batteries ......................5 Controls and indicators ........................5 The Probe ............................6 Start up and menu display ......................... 7 MT10 – Menu Summery ........................7 3.5.1 Main menu Selections ......................7 3.5.2 Sub-Menu Selections ......................7 Maintenance.........................11...

  • Page 7: Introduction

    1.2 Intended Use The MT10 is a handheld screening tympanometer offering Tympanometry and optional Ipsi reflex testing. The MT10 allows storing of data by printing (optional printer) or by transferring data to a computer (optional software module). The MT10 tympanometer is intended to be used by an audiologist, hearing healthcare professional, or trained technician in a quiet environment (tymp and reflexes).

  • Page 8: Warnings And Precautions

    MT10 Instruction for Use - English Date: 2012-05-01 Page 2/16 Warnings and Precautions WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION, used with the safety alert symbol, indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

  • Page 9: Unpacking And Installation

    Keep carton for future shipment The MT10 comes in its own shipping carton, which is specially designed for the MT10. Please keep this carton. It will be needed if the instrument has to be returned for service.

  • Page 10: Marking

    Parts that are marked with this symbol are for single use only. Label to be found in the battery compartment beneath the battery. 2.4 Connections Infrared adapter (the MT10 has been tested with Actysis ACTIR2000U USB adapter and it is recommended by Interacoustics to use this device).

  • Page 11: Operating Instructions

    Nickel-Metal Hydride (NiMH) batteries. Four batteries are required. If the MT10 is to be used infrequently we recommend alkaline cells are fitted. NiMH batteries have a high self-discharge rate and are likely to need recharging if left unused for several weeks. To fit the cells remove the battery compartment cover on the base of the MT10.

  • Page 12: The Probe

    The function of the left and right keys is usually shown on the bottom line of the display. When not performing a test the MT10 will switch off automatically if no key is pressed for 90 seconds. This time can be extended to 180 seconds in the CONFIGURATION menu.

  • Page 13: Start Up And Menu Display

    Page 7/16 3.4 Start up and menu display When the MT10 is turned on the start-up screen is shown while internal tests are performed and the pump is initialised. When the start up sequence is complete the MAIN MENU is displayed: Menu items and instructions are shown in upper case text.
  • Page 14 ”NEVER MEASURE” – Reflexes are never measured. ”ONLY IF PEAK FOUND” – Reflexes will be measured only if MT10 detects a peak on the tympanogram. ”PROMPT TO MEASURE” – The user is asked whether to perform a reflex at the start of at each...
  • Page 15 MT10 Instruction for Use - English Date: 2012-05-01 Page 9/16 REFLEX LEVELS Select the maximum tone level to be used for the reflex test. Set to 100 dB (with 5 dB or 10 dB steps) or 95 dB, 90 dB or 85 dB with 5 dB steps.
  • Page 16 MT10 Instruction for Use - English Date: 2012-05-01 Page 10/16...

  • Page 17: Maintenance

    4 Maintenance 4.1 General Maintenance Procedure The MT10 is a precision instrument. Handle it carefully in order to ensure its continued accuracy and service. Before cleaning the instrument remove the batteries. Use a soft damp cloth and mild detergent to clean the instrument panel and case. Ensure no moisture enters the instrument.

  • Page 18: Concerning Repair

    4.5 Concerning Repair Interacoustics is only considered to be responsible for the validity of the CE marking, effects on safety, reliability and performance of the equipment if: 1. assembly operations, extensions, readjustments, modifications or repairs are carried out by authorised persons, 2.
  • Page 19  repaired by anyone other than an authorized Interacoustics service representative;  altered in any way so as, in Interacoustics judgement, to affect its stability or reliability;  subject to misuse or negligence or accident, or which has had the serial or lot number altered, effaced or removed;...
  • Page 20 MT10 Instruction for Use - English Date: 2012-05-01 Page 14/16...

  • Page 21: Technical Specifications

    Page 15/16 5. Technical Specifications ”The technical specifications provided here cover the general aspects of the instrument. The MT10 Tympanometer is classified as a Class II a device under Annex IX (Section 1) of the EU Medical Devices Directive. It is intended fortransient use as a screening tympanometer instrument...

  • Page 22: Electromagnetic Compatibility (Emc)

    MT10 Instruction for Use - English Date: 2012-05-01 Page 16/16 Serial Interface to PC Interface OBEX (Object Exchange) service running on top of IrDA stack. Auto- selects rate between 9600 – 115200 baud. Information sent Patient header, full left or right ear data.

  • Page 23: Data Transfer Guide

    Interacoustics A/S • Phone: +45 6371 3555 • Fax: +45 6371 3522 • info@interacoustics.com • www.interacoustics.com Data Transfer Guide – Existing Measurements Launch the Database (OtoAccess™ or NOAH) Select the right patient Launch Diagnostic Suite (via OtoAccess™ or NOAH) Select the IMP tab Turn on the MT10 Select ”Data Management”.
  • Page 24 Interacoustics A/S • Phone: +45 6371 3555 • Fax: +45 6371 3522 • info@interacoustics.com • www.interacoustics.com Data Transfer Guide – After a Measurement Launch the Database (OtoAccess™ or NOAH) Select the right patient Launch Diagnostic Suite (via OtoAccess™ or NOAH)
