Hardware Installation

1. Install one AAA battery into the mouse and two AA into the
keyboard.
2. Plug in your USB receiver to a USB port of your PC.

Software Installation

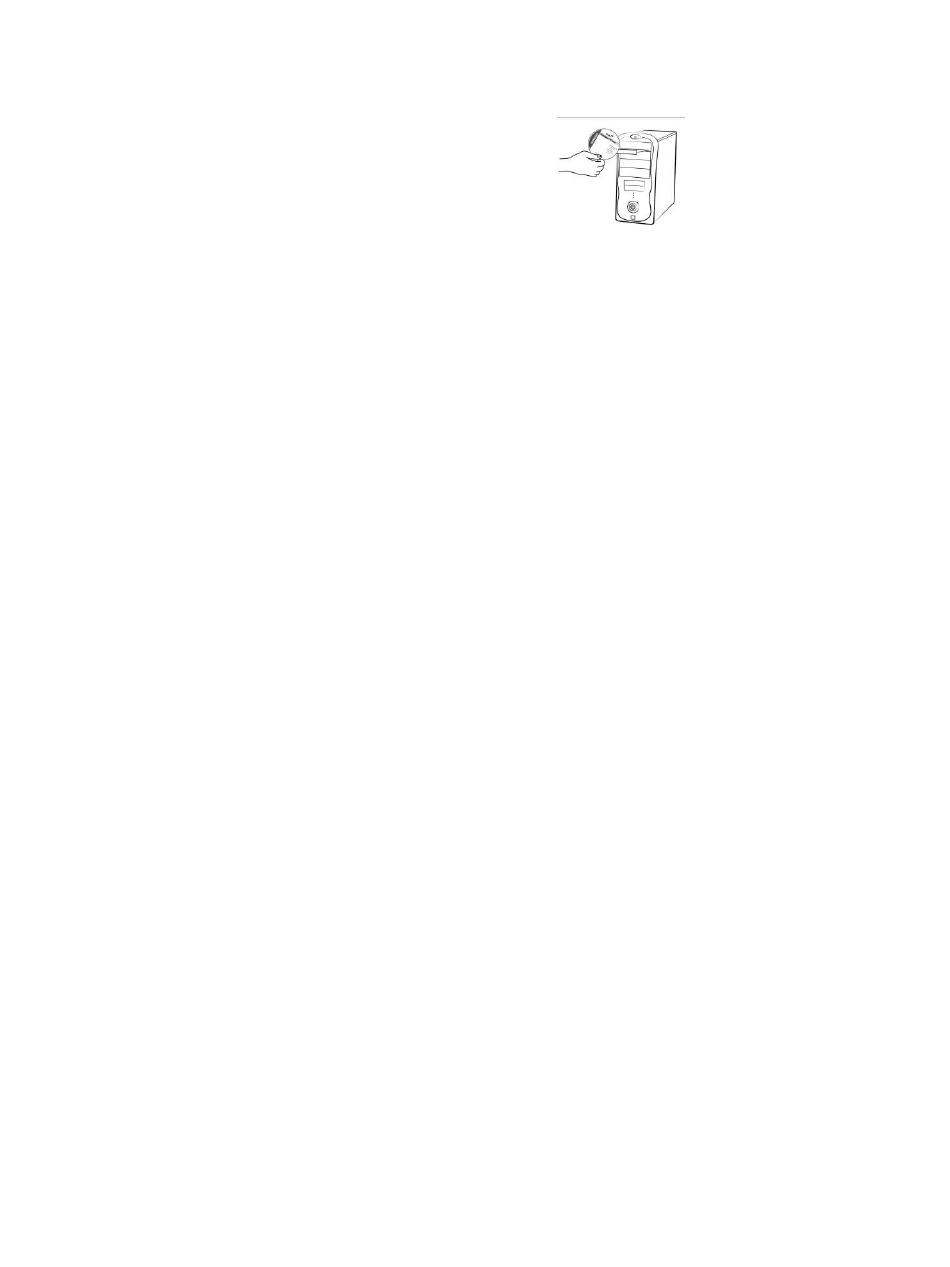

1. Place your CD driver in your PC drive for
software installation.
2. Follow the instructions on the screen to
finish the software installation.

Replace Batteries

If the mouse or keyboard does not work
properly, then the batteries have lost their charge, so you need to
replace them.
Warning: do not mix or use different types of batteries at the same
time.

ID Channel Setting and connection:

Follow these steps:
1.
The micro dongle is stored inside of the mouse, plug it into a USB
port and wait about 5-10 seconds.
2.
Press the connect button on the mouse first, then the keyboard.
3.
The connection will be executed and the kit will be ready for use.

Warning (Trouble shooting)

1.
Some of keyboard buttons may not work until the driver has been
installed. We recommend you install the driver first before you
use this product.
2.
To re-program other media programs, software installation is
required.
3.
In case the wireless device was not connected when you set the
ID channel setting, check if you have installed the batteries with
the positive (+) and negative (-) polarity in the correct position,
then repeat the ID channel setting again.
4.
For optimum performance, please make sure that the distance
between the wireless device and the micro dongle receiver does
not exceed 10M.

Important Notice:

The factory default for the sleep mode function is around 15 minutes
without usage; just press any key to wakeup the touch-panel.
ENGLISH
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LuxeMate T830 and is the answer not in the manual?

Questions and answers

Summary of Contents for Genius LuxeMate T830

  • Page 1 ENGLISH Hardware Installation 1. Install one AAA battery into the mouse and two AA into the keyboard. 2. Plug in your USB receiver to a USB port of your PC. Software Installation 1. Place your CD driver in your PC drive for software installation.
  • Page 2 ENGLISH To maximize the power-saving ability, you can disable the touch-panel. Press “Fn” and then “End” on your keyboard, and the touch-panel will be in “sleep mode” to reduce the power consumption. To activate the touch panel, press “Fn” and then “End” to wakeup the touch-panel. Keyboard hot key definition Active Windows Media Player Play/Pause audio and video sources...
  • Page 3 ENGLISH Active “My computer” function Open Internet “My favorite” function Search for Internet pages or file Return to previous Internet page Go to next Internet page Refresh current Internet page Close current windows Open Windows Office “Word” function Open Windows Office “Excel” function Open Windows Office “PowerPoint”...
  • Page 4 ENGLISH Active Windows “ Calculator” function Turn system into Screen Lock mode Active Windows Live Massager Open Internet page Open Email folder *Windows Vista - Open photo Gallery file. *Windows XP/2000 – Open my picture file. *Windows Vista - Turn the screen into 3D mode. *Windows XP/2000 –...
  • Page 5 ENGLISH Notes on Battery Usage When you use the battery, carefully read and strictly observe the Safety Instructions and the notes described below: Different battery types and surrounding temperatures may affect the battery performance. Avoid using batteries in extremely cold environments as low temperatures can shorten the battery life and reduce wireless device performance.
  • Page 6 Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. (15.21) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.(15.19(a)(3))
