Signode WTD-2 Operation, Safety And Parts Manual page 4

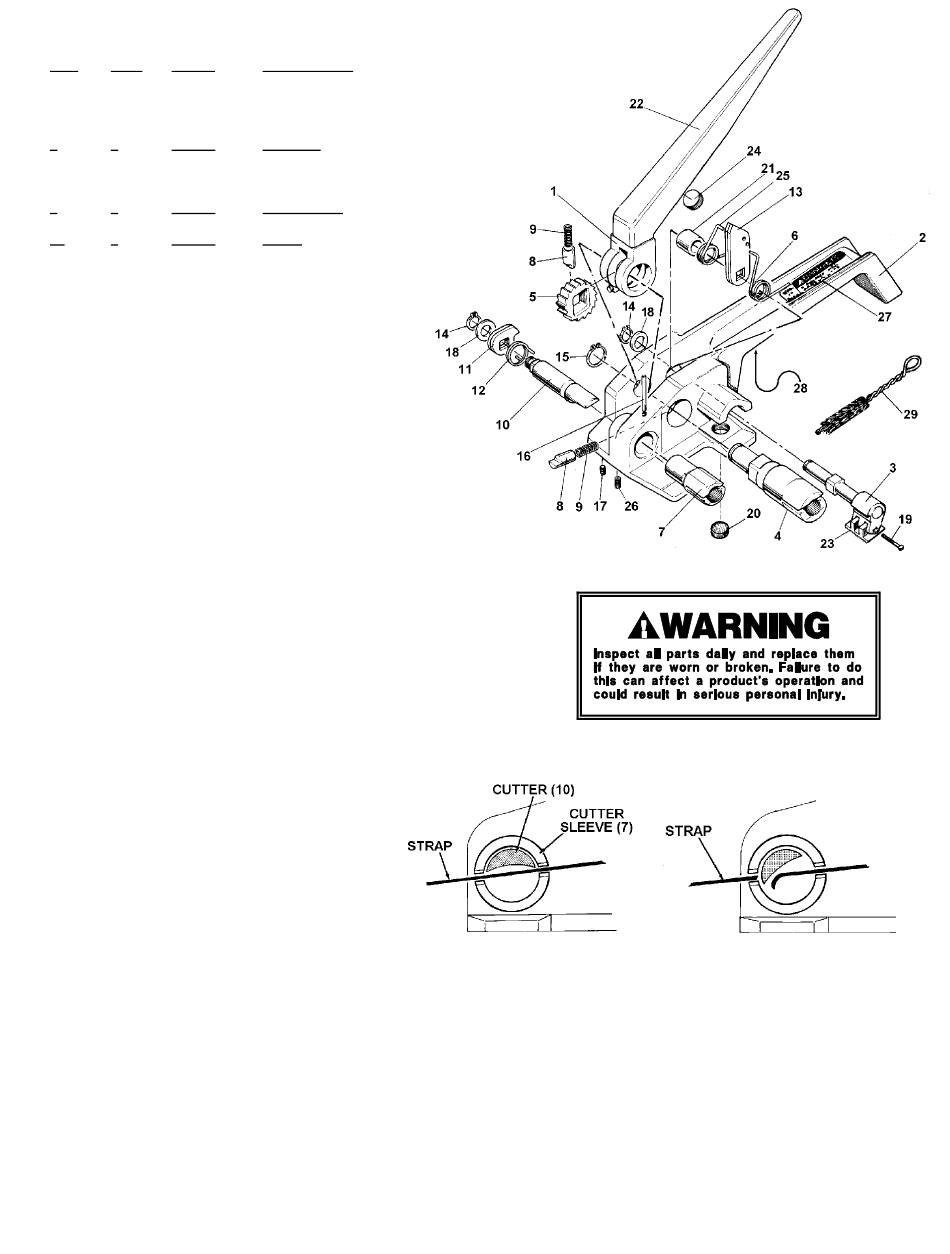

PARTS LIST, WTD-2 (260060)
KEY QTY. PART#
1 1 260058
2 1 424266
3 1 260062
4 1 260063
5 1 260064
6 1 260066
7 1 424267
8 2 260068
9 2 260069
10 1 424268
11 2 260071
12 1 260072
13 2 260073
14 2 171676
15 1 074189
16 1 171678
17 1 260077
18 2 260078
19 1 260079
20 1 260080
21 1 260081
22 1 260082
23 1 260083
24 1 260084
25 1 260085
26 1 260086
27 1 260087
28 1 260088
29 1 023963
NOTES:
1. When ordering parts, please show tool model, part number and name.
2. All recommended spare parts are underlined and should be stocked.
3. Standard hardware parts may be obtained from local hardware suppliers.
CUTTER CAM
The cutter (10), must be properly adjusted if the strap
is to be cut from the supply when sealing is
complete. Note the views to right. The cutter rotates
within the cutter sleeve. When properly adjusted, the
cutter is parallel to the slot in the cutter sleeve when
the tension handle is in a rest position. Fully
squeeze the tension handle against the tensioner
frame. The cutter must rotate about 30 degrees and
cover the left hand slot.
GRIPPER PLUG
Rotate the gripper plug (20), in or out, as needed, until the teeth of the plug are either flush with the base surface of the tensioner
frame or .005" above the base surface. Once adjusted, stake the plug into position.
MAINTENANCE
Clean and apply a light weight machine oil to all moving parts on a weekly basis. Clean the gripper (23) and gripper plug (20) daily with
a wire brush (29). Debris accumulated in the teeth of either the gripper or the gripper plug must be removed with a small wire brush. A
need to clean the teeth will become apparent when the lower straps slips through the gripper during tensioning.
DESCRIPTION
Handle
Housing base
Gripper shaft assy.
Windlass
Ratchet wheel
Gripper spring, LH
Cutter sleeve
Ratchet stop
Ratchet spring
Cutter
Cutter cam
Cutter spring
Gripper cam
Retaining ring
Retaining ring
Roll pin
Soc. head set screw
Washer support
Gripper screw
Gripper plug
Spacer
Plastic sleeve
Gripper
Lever stud
Gripper spring, RH
Set screw
Caution sign
Information sign
Brush
Cutter position, with tension handle
is rest position.
Tension handle full closed against
tensioner frame. Cutter rotated about
30 degrees, strap severed.
