Chef UC-PS18-30 User Manual page 8

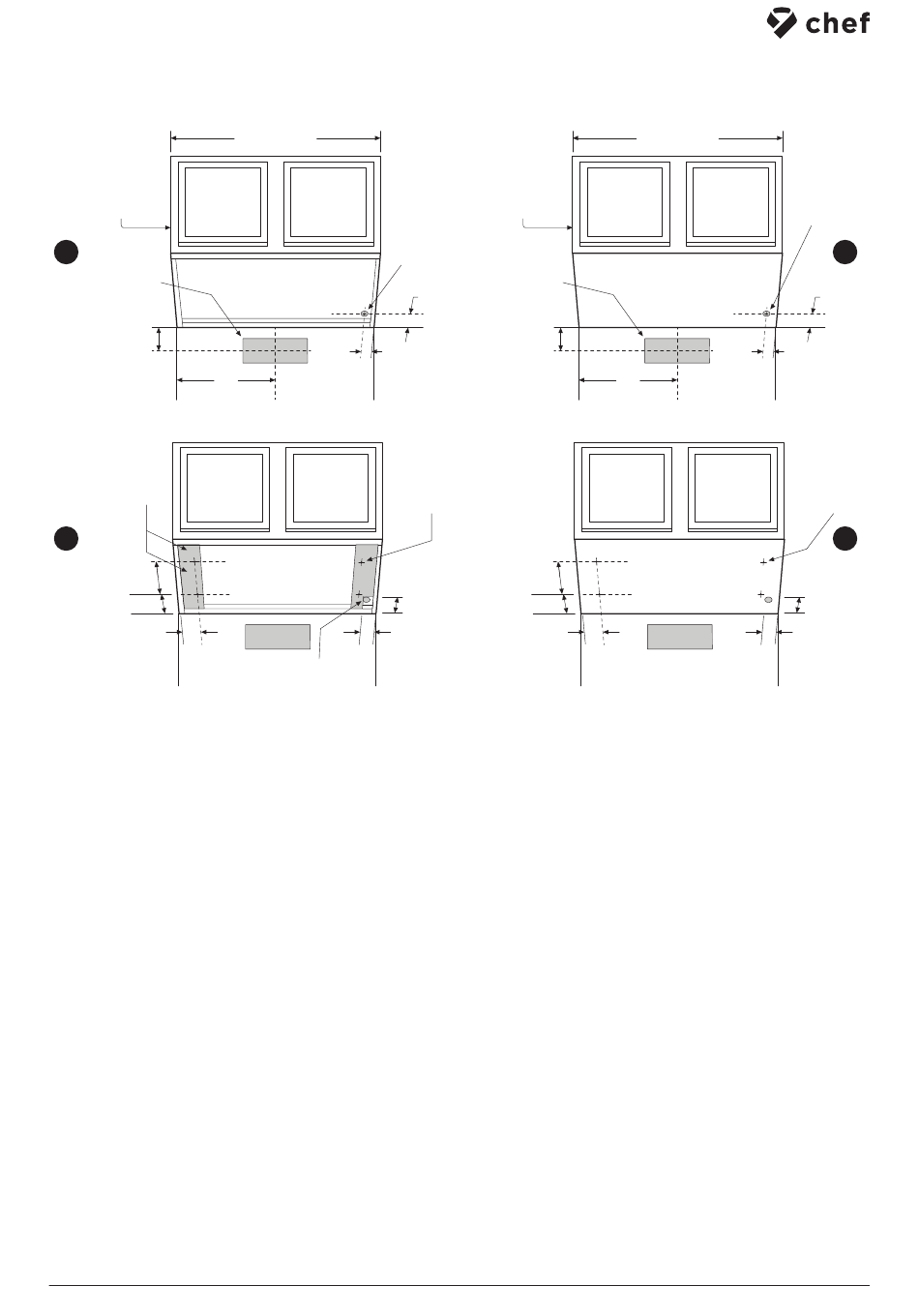

3. Rectangular Horizontal Adapter
Cabinet with recessed bottom
Cabinet with
recessed bottom
1
10-1/2" x 3-3/4" hole
2-3/8"
15"
3-1/2"
wide filler
along front
and sides
2
8-1/4"
2-1/2"
2-3/8"
UC-PS18 USER MANUAL
30" cabinet (typical)
1" hole
1-1/4"
CL
mounting holes mounting holes
3-1/4"
1-7/8"
RH filler notched
at back corner to
allow plug clrearance
Cabinet with
flush bottom
10-1/2" x 3-3/4" hole
2"
2-3/8"
Four, (4) Four, (4)
8-1/4"
2-1/2"
2-3/8"
Cabinet with flush bottom
30" cabinet (typical)
1-1/4"
15"
CL
1" hole
1
2"
Four, (4) Four, (4)
mounting holes mounting holes
2
3-1/4"
1-7/8"
