Summary of Contents for Chef UC-PS18-30

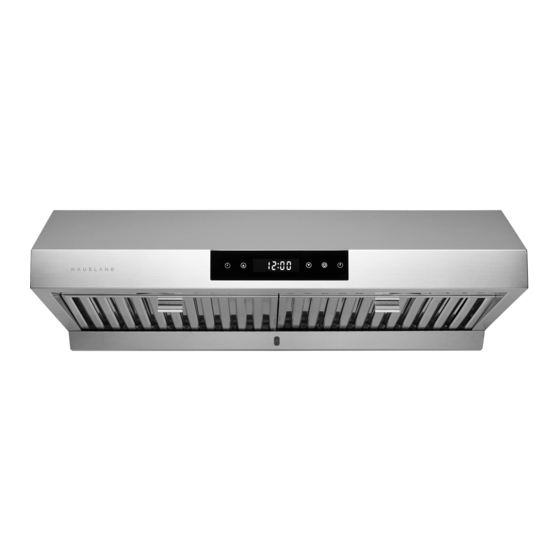

- Page 1 USER MANUAL Chef Kitchen Range Hood Models UC-PS18-30 & UC-PS18-36...
-
Page 2: Table Of Contents
INJURY, OBSERVE THE FOLLOWING: may ignite. Use this range hood only in the manner intended by the manufacturer. If you have the questions, contact Chef Kitch Heat oils slowly on low or medium settings. at 1-800-929-0168 or email at info@chefkitch.com. -
Page 3: Warranty Information
24"; any installation less than 24" may cause overheating and cause Please read product specification label on range hood damage to the range hood, CHEF KITCH does not warrant for further information and requirements. this improper installation. -
Page 4: Specifications
Bag of screws (AA) 2 x 3Watts LED Light (Preinstalled) User Manual Sealing Lid Aluminum Tape Grease Collector 2 x Baffle Filter (UC-PS18-30) 3 x Baffle Filter (UC-PS18-36) (Preinstalled) Tools Needed Electric Drill & Extended Utitlity Knife Safety Goggles length head driver bit Safety Gloves Keyhole Saw 1”... -
Page 5: Preparation: What To Do Before Installation
Preparation: What to Do Before Installation Before installing your range hood, carefully follow these steps: External roof External roof cap by others cap by others 1. Read This Manual Read through all the steps. If you fail to read the instructions carefully, we will not be responsible for damages incurred on your part. -
Page 6: Prepare The Cabinet (Soffit)
Is it a 6” round duct? You won’t have to make any extra preparations. The range hood will attach directly to your duct. Be sure to remove the tape holding up the dampers. IMPORTANT: Failure to remove the tape from the damper will cause reduction in performance. - Page 7 UC-PS18-30 1. Round Vertical Adapter Cabinet with recessed bottom Cabinet or soffit with flush bottom 30” cabinet (typical) 30” cabinet (typical) Cabinet with Cabinet with recessed bottom flush bottom 1” hole 1” hole 6-1/2” hole 6-1/2” hole 12” 12” (typical) (typical) 2”...
- Page 8 3. Rectangular Horizontal Adapter Cabinet with recessed bottom Cabinet with flush bottom 30” cabinet (typical) 30” cabinet (typical) Cabinet with Cabinet with recessed bottom flush bottom 1” hole 1” hole 10-1/2” x 3-3/4” hole 10-1/2” x 3-3/4” hole 2” 2” 2-3/8”...
- Page 9 UC-PS18-36 1. Round Vertical Adapter Cabinet with recessed bottom Cabinet or soffit with flush bottom 36” cabinet (typical) 36” cabinet (typical) Cabinet with Cabinet with recessed bottom flush bottom 1” hole 1” hole 6-1/2” hole 6-1/2” hole 12” 12” 2” 2”...
- Page 10 3. Rectangular Horizontal Adapter Cabinet with recessed bottom Cabinet with flush bottom 36” cabinet (typical) 36” cabinet (typical) Cabinet with Cabinet with recessed bottom flush bottom 1” hole 1” hole 10-1/2” x 3-3/4” hole 10-1/2” x 3-3/4” hole 2” 2” 2-3/8”...
-
Page 11: How To Install Your Range Hood
How to Install Your Range Hood When you’ve completed all the preparation steps, you’re ready to install your range hood. 1. Test the Unit Plug the unit into an outlet and press the touch panel to make sure that the unit is working. IMPORTANT: If the range hood is not working properly, please contact us immediately (1-800-929-0168 / info@chefkitch.com). -
Page 12: Double-Check Installation & Remove Support
5. Double-Check Installation and Remove Support 7. Plug the Range Hood In Be sure that the hood is securely attached before removing Plug the power cable into an outlet. the cabinet jacks and plywood. 6. Connect Damper & Check for Airtightness Turn on the hood to make sure that the damper opens and closes freely. -
Page 13: Basic Maintenance Instructions
Basic Maintenance Instructions Your range hood requires some easy routine maintenance to Maintaining the Lighting keep it running efficiently. This range hood uses two lamps of 3W. Maintaining the Baffle Filter Turn off power. For halogen lights, let light bulbs cool Clean the grease filters frequently—we suggest cleaning every completely before removing, if needed (about 5 2 weeks. -
Page 14: Wiring Diagram
Wiring Diagram TRANSFORMER ELECTRIC SWITCH AC 12V CONTROL PANEL MOTOR POWER BLACK YELLOW YELLOW WHITE WHITE GREEN YELLOW/GREEN YELLOW/GREEN UC-PS18 USER MANUAL... -
Page 15: Troubleshooting Tips
Troubleshooting Tips WARNING: Failure to maintain basic standards of care and cleaning will increase the risk of fire. Problem Solution My range hood won’t work. 1. Make sure the power supply and wiring are connected securely. 2. Double-check to see that the power breaker is on and the power supply is live. -
Page 16: Contact Chef Kitch
Contact Chef Kitch Extended Warranties If you are interested in an extended warranty, sign up on our website at www.chefkitch.com Parts and Accessories If you need replacement parts or accessories, visit www.chefkitch.com Contact Us We’d be happy to answer your questions or resolve any issues you may have.
