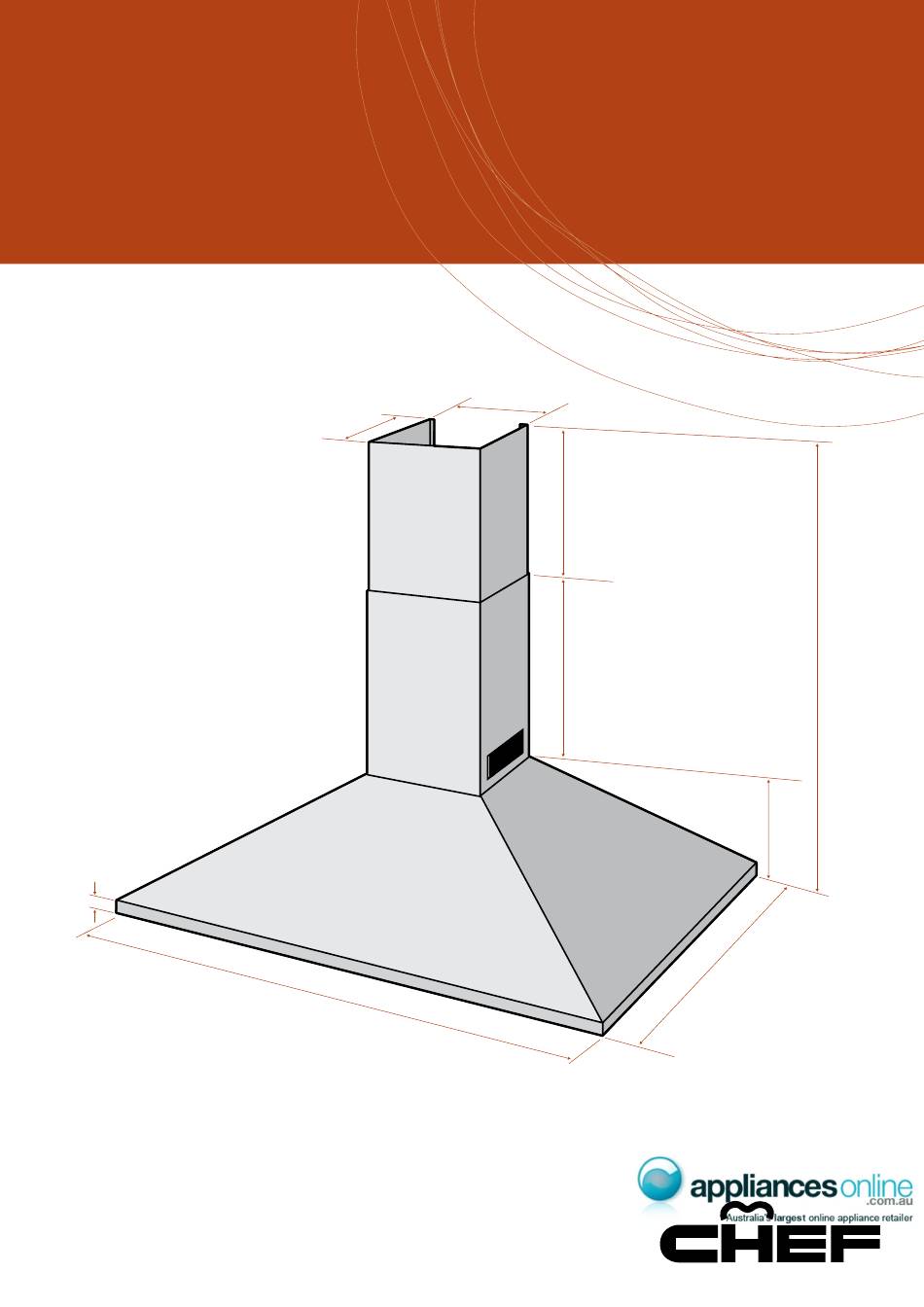

canopy rangehood dimensions
20mm
*1100mm extension flue cover is available if required where high ceilings are present (model no. ARF500FS).
All measurements in millimetres.
Current as at Dec 2006.
© 2006 Electrolux Home Products Pty Ltd. CDIMCANRH
models: CS601S, CS901S, RCD690S, RCD990S
165mm
600/900mm
page 1 of 3
installation guide
chef canopy rangehoods
222mm
470mm (max.)*
540mm
1240mm (max.)
230mm
500mm
Advertisement
Related Manuals for Chef CS601S
Summary of Contents for Chef CS601S
- Page 1 CS601S, CS901S, RCD690S, RCD990S canopy rangehood dimensions 222mm 165mm 470mm (max.)* 1240mm (max.) 540mm 230mm 20mm 500mm 600/900mm *1100mm extension flue cover is available if required where high ceilings are present (model no. ARF500FS).
- Page 2 CS601S, CS901S, RCD690S, RCD990S canopy rangehood fixing dimensions Flue cover mounting brackets 65mm 65mm Note: Some installations may require telescopic flue cover to be cut to length. Cut with tin snips or fine tooth hack saw blade, 490mm taking care not to distort or dent flue cover.
- Page 3 CS601S, CS901S, RCD690S, RCD990S canopy rangehood ducting accessories AR125RC AR125F Flashing not supplied AR500FS AR125FJ/AR125FJD AR125WV AR125B AR125FD Alternative flue connection AR500RK AR500CF part numbers description AR125RC roof cowl AR125B 90° bend AR125F flue 1200mm long AR125FD flexible duct –...
- Page 4 RFD602W, RFD602S, RFD902W, RFD902S fixed rangehood dimensions 300mm 25mm 25mm 25mm 30mm ø119mm 35mm 30mm 79mm 105mm 60mm 143mm 100mm 500mm 598mm/898mm 160mm fixed rangehood fixing distance Minimum distance of hood above hob GAS:...
- Page 5 RFD602W, RFD602S, RFD902W, RFD902S fixed rangehood ducting accessories AR125RC AR125F Flashing Not Supplied AR125B AR125FD AR125FJ/AR125FJD Alternative flue connection AR125W V part numbers description AR125RC roof cowl AR125B 90° bend AR125F flue 1200mm long AR125FD flexible duct –...
- Page 6 600mm slideout rangehoods models: REHR6S, REHR6W, RRE634W, RRE634S slideout rangehood dimensions 80mm 34mm ø121 40mm 210mm 100mm 20mm 470mm 158mm 550mm 598mm 175mm 458mm 280mm 42mm slideout rangehood fixing distance Minimum distance of hood above hob GAS:...
- Page 7 600mm slideout rangehoods models: REHR6S, REHR6W, RRE634W, RRE634S slideout rangehood ducting accessories AR125RC Flashing Not Supplied AR125F AR125FD (Alternative flue connection) AR125B AR125FJ/AR125FJD AR125WV part numbers description AR125RC roof cowl AR125B 90° bend AR125F flue 1200mm long AR125FD flexible duct –...
- Page 8 RRE635W, RRE635S slideout rangehood dimensions 80mm 34mm 70mm 210mm 100mm 20mm 470mm 158mm 550mm 598mm 175mm 458mm 280mm 42mm slideout rangehood fixing distance Minimum distance of hood above hob GAS: 650mm ELECTRIC: 600mm slideout rangehood exhaust options...
- Page 9 RRE635W, RRE635S slideout rangehood ducting accessories AR125RC Flashing not supplied AR125F AR125FD (Alternative flue connection) AR125B AR125FJ/AR125FJD AR125WV part numbers description AR125RC roof cowl AR125B 90° bend AR125F flue 1200mm long AR125FD flexible duct – 1 metre long when expanded...
- Page 10 900mm slideout rangehoods models: REHR9S, REHR9W, RRE934W, RRE934S slideout rangehood dimensions 80mm 34mm ø121 100mm 40mm 210mm 770mm 20mm 158mm 850.5mm 898.5mm 175mm 458mm 280mm slideout rangehood fixing distance 42mm Minimum distance of hood above hob GAS:...
- Page 11 900mm slideout rangehoods models: REHR9S, REHR9W, RRE934W, RRE934S slideout rangehood ducting accessories AR125RC Flashing Not Supplied AR125F AR125FD (Alternative flue connection) AR125B AR125FJ/AR125FJD AR125WV part numbers description AR125RC roof cowl AR125B 90° bend AR125F flue 1200mm long AR125FD flexible duct –...
