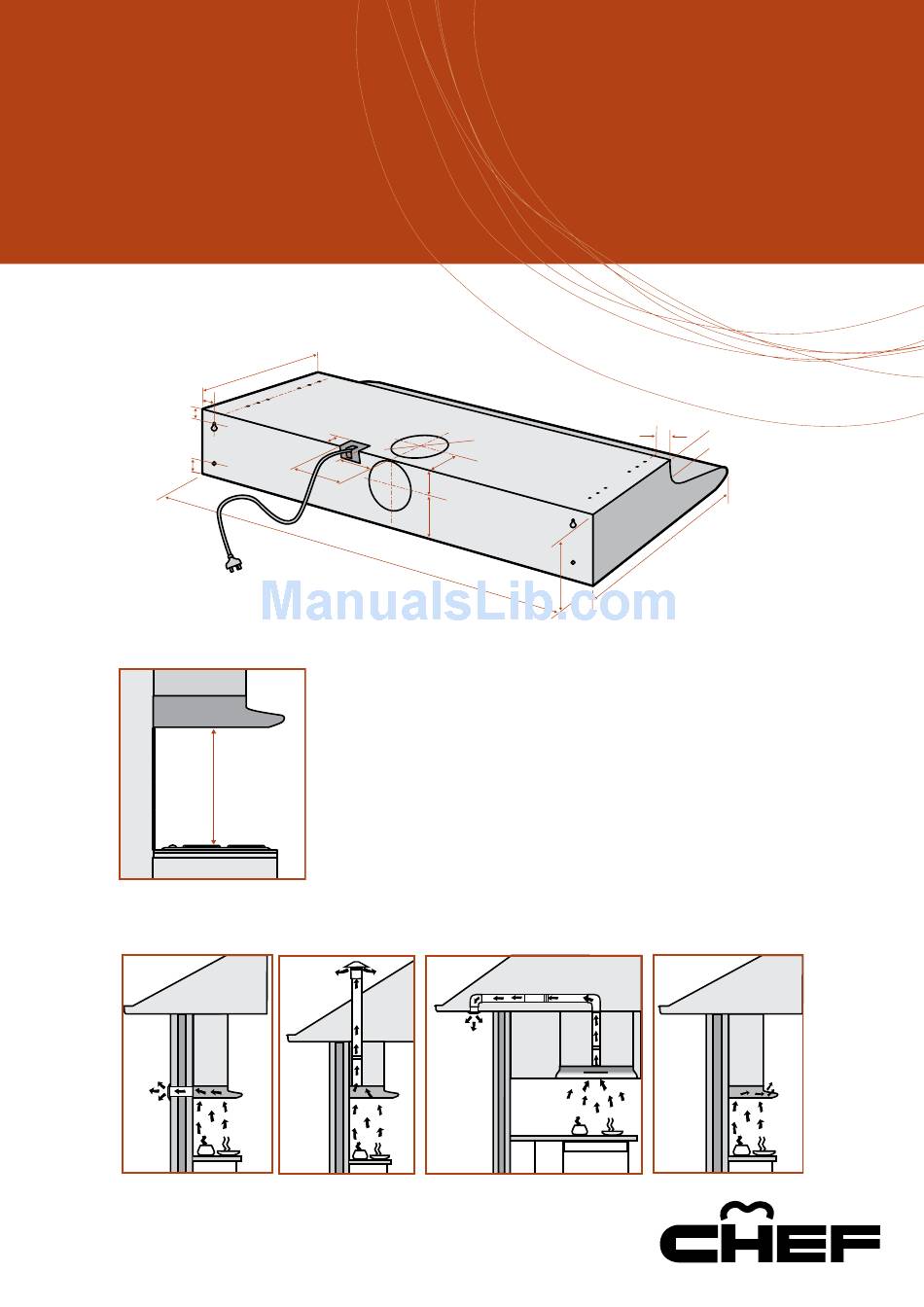

fixed rangehood dimensions
25mm
25mm
30mm
fixed rangehood fixing distance
Minimum distance
of hood above hob
fixed rangehood exhaust options
Rear Exhaust
to atmosphere
*In recirculating mode you must use a recirculating kit which includes carbon filters to eliminate cooking smells (model no. ARCFD).
All measurements in millimetres.
Current as at Dec 2006.
© 2006 Electrolux Home Products Pty Ltd. CDIMFIXRH
models: RFD602W, RFD602S, RFD902W, RFD902S
300mm
30mm
105mm
143mm
598mm/898mm
GAS:
650mm
ELECTRIC:
600mm
Top Exhaust
to atmosphere
installation guide
chef fixed rangehoods
ø119mm
79mm
60mm
100mm
160mm
Side Exhaust
to atmosphere
page 1 of 2
25mm
35mm
500mm
Front Recirculating
Exhaust*
