Service Manual
SERVICE MANUAL
EN
Your new Binks spray gun is
exceptionally rugged in
construction, and is built to
stand up under hard, continuous
use. However, like any other
fine precision instrument, its
most efficient operation
depends on a knowl edge of its
construction, operation, and
maintenance. Properly handled
and cared for, it will produce
beautiful, uniform finishing
results long after other spray
guns have worn out.
IMPORTANT!
DO NOT DESTROY
It is the customer's responsibility to have all
operators and service personnel read and
understand this manual.
Contact your local Binks representative for
additional copies of this manual.
READ ALL INSTRUCTIONS BEFORE OPERATING THIS BINKS PRODUCT.
77-3046-R4 (5/2018)

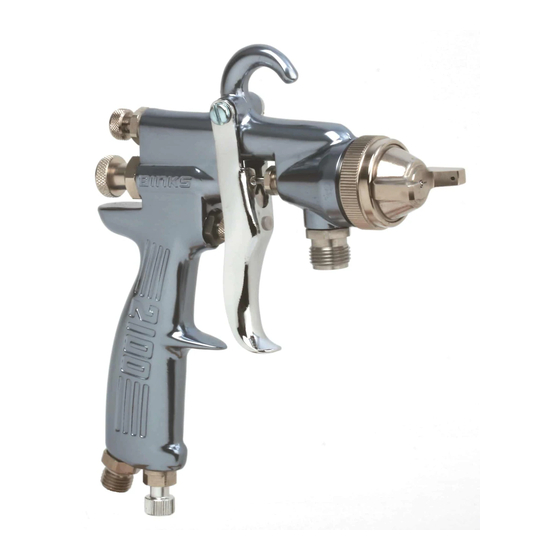

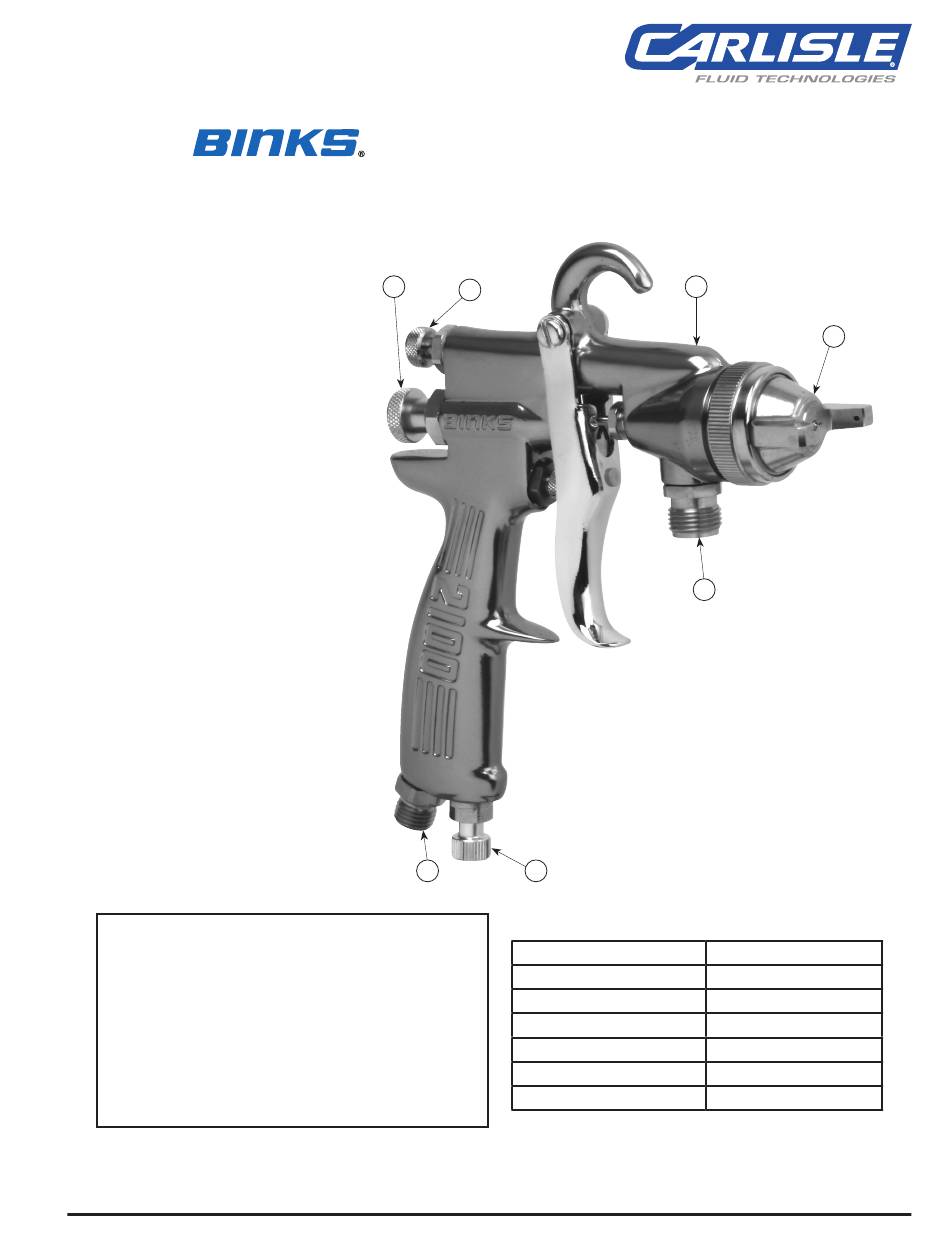

MODEL 2100™ SPRAY GUN
2101-XXXX-X
4
3
1. Air Nozzle Assembly
2. Gun Body
3. Side Port Control
4. Fluid Control Knob
5. Air Connection 1/4" NPS (m)
6. Fluid Connection 3/8" NPS (m)
7. Air Adjusting Valve
5
7
Maximum Air Pressure
Maximum Fluid Pressure
Gun Body
Fluid Path
Fluid Inlet Size
Air Inlet Size
Gun Weight
1 / 16
2
6
SPECIFICATIONS
100 psi / 6.9 bar
100 psi / 6.9 bar
Anodized Aluminum
Stainless Steel
3/8" NPS
1/4" NPS
1 lb 6 oz / 635 gm
www.carlisleft.com
1
Advertisement
Table of Contents
Related Manuals for Binks 2100
Summary of Contents for Binks 2100
- Page 1 Air Inlet Size 1/4" NPS Contact your local Binks representative for Gun Weight 1 lb 6 oz / 635 gm additional copies of this manual. READ ALL INSTRUCTIONS BEFORE OPERATING THIS BINKS PRODUCT. 77-3046-R4 (5/2018) 1 / 16 www.carlisleft.com...
- Page 2 WARNING: This product contains chemicals known warning. to the State of California to cause cancer and birth defects or other reproductive harm. FOR FURTHER SAFETY INFORMATION REGARDING BINKS AND DEVILBISS EQUIPMENT, SEE THE GENERAL EQUIPMENT SAFETY BOOKLET (77-5300). www.carlisleft.com 2 / 16...
-
Page 3: Types Of Installation
26 PSI between the air Binks recommends using Model supply and the gun. For this supply and the gun. HFRL-508 Oil and Water Separator / reason Binks recommends the use of 5/16" hose. Regulator. See your local distributor for other models. 77-3046-R4 (5/2018) 3 / 16 www.carlisleft.com... -
Page 4: Gun Handling
The spray pattern of In normal operation, the wings on the Binks gun is variable the nozzle are horizontal as Spray width adjustment from round to flat with illustrated here. This provides all patterns in between. a vertical fan shaped pattern which... - Page 5 FAULTY PATTERNS AND HOW TO CORRECT THEM PATTERN CAUSE CORRECTION Dried material in side-port Dissolve material in side-ports with thinner, “A” restricts passage of air. Greater flow of air from then blow gun clean. Do not poke into cleaner side-port “B” forces openings with metal instruments.
-
Page 6: Parts List
When ordering, please specify Part No. ITEM PART ITEM PART DESCRIPTION QTY. DESCRIPTION QTY. — 2100 GUN BODY ........1 19 20-3757 O-RING ........... 1 2 54-3347 SIDE PORT CONTROL ASSEMBLY ..1 20 54-738-5 PACKING ..........1 ❍ + 3 54-1013 MATERIAL BODY ........ - Page 7 Binks MODEL 2100 SIPHON SPRAY GUN – POINTERS ON CLEANING ™ When used with a cup, thinner or suitable LUBRICATION TO REPLACE THE FLUID PACKING: solvent should be siphoned through gun Daily oil fluid needle packing, air valve Remove the fluid control screw (17), by inserting tube in open container of packing, and trigger bearing screw.
-
Page 8: Nozzle Selection
Binks MODEL 2100 SPRAY GUN – GENERAL MAINTENANCE ™ SPRAY GUN AIR NOZZLE, FLUID NOZZLE, CAUTION FLUID NEEDLE 1. Immerse only the front end of the 1. All nozzles and needles are precision gun until solvent just covers the fluid Never use lubricants contaning sili- cone. - Page 9 NOZZLE SELECTION CHART MAX. CFM AT FLUID TYPE OF FLUID FLUID TYPE PAT. Needle TO BE SPRAYED NOZZLE NOZZLE (inches) No.★ AT 8 in. VERY THIN 63SS 10.0 14–16 Sec.—No. 2 Zahn 63ASS 12.2 11.0 563A Wash Primers, Dyes, Stains, Solvents, 63BSS 63PB 14.3...
- Page 10 FOR FLUID MODEL 2100 ™ FLUID NOZZLE ORIFICE NEEDLE PART PART NUMBER ORIFICE GUN NEEDLE DESIGNATION # NUMBER INCHES DESIGNATION 63SS 45-6301 0.028 47-56300 63ASS 45-6311 0.040 563A 47-56310 63BSS 45-6321 0.046 563A 47-56310 63CSS 45-6331 0.052 563A 47-56310 64VT 45-6402 0.064...
- Page 11 2100 GUN ASSEMBLY ORDERING INFORMATION ™ 2101-2800-0 2100 GUN 63BSS-L / AIR NOZZLE 2101-2800-7 2100 GUN 63BSS-63PB (P) 2101-2808-2 2100 GUN 63BSS-66D-3 2101-2821-3 2100 GUN 63BSS-21MD-3 (P) 2101-3100-0 2100 GUN 63CSS-L / AIR NOZZLE 2101-4300-0 2100 GUN 66SS-L / AIR NOZZLE...
- Page 12 SPECIAL NOZZLES – INTERNAL MIX HEAVY MATERIAL NOZZLE TIP: AIR NOZZLE 200 SERIES, #54-2065 NITRALLOY RING #559 NEEDLE ASSEMBLY GUIDE #54-1583 FLUID BASE NOZZLE SCREW #54-1584 RING (USED WITH 200 SERIES TIPS ONLY) SPECIAL NOZZLES – INTERNAL MIX HEAVY MATERIAL 709 SS 68 SS AIR NOZZLE TIP...
- Page 13 H AV- 5 0 0 d o e s n o t h ave available upon request. from the air line. all DeVilbiss, Binks, Finishline and other brand spray guns. pressure gauge. Use to control air usage at gun. Millennium 3000...
- Page 14 NOTES www.carlisleft.com 14 / 16 77-3046-R4 (5/2018)
- Page 15 NOTES 77-3046-R4 (5/2018) 15 / 16 www.carlisleft.com...
-
Page 16: Warranty Policy
Carlisle Fluid Technologies is a global leader in innovative finishing technologies. Carlisle Fluid Technologies reserves the right to modify equipment specifications without prior notice. DeVilbiss , Ransburg , ms , BGK , and Binks ® ® ® ® ® are registered trademarks of Carlisle Fluid Technologies, Inc.
