Pulsar AWO530 Installation Instructions

--

1. Application:

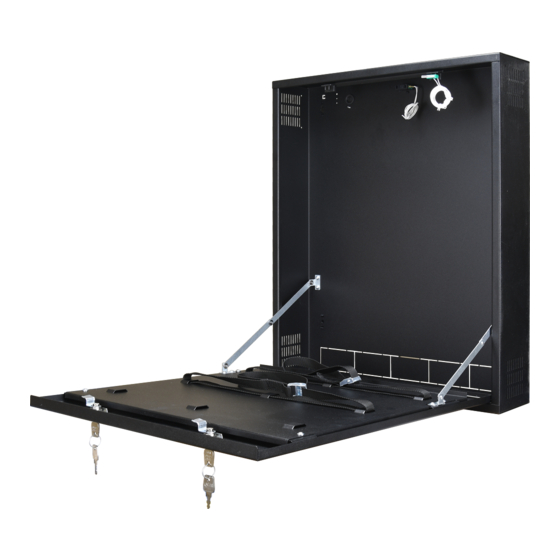

The enclosure protects the recorder against unauthorized access or theft. The enclosure is made of steel with a
thickness of 1mm. It is equipped with lock and two tamper switches, indicating enclosure opening and detachment from
the wall.
Due to the vertical installation and low depth, it is ideal for places where deeper enclosures or cabinets type Rack19"
cannot be installed.
After opening the enclosure, the front cover is held in a horizontal position, providing easy access to the buttons on the
front panel of DVR .
The enclosure is fitted with a special adjustable handle for installation of recorders with the following dimensions:
width from 245 mm to 445 mm, height: from 40 mm to 100 mm.
In addition, the fan with a temperature sensor, product code ARAW45, can be mounted to the enclosure.

2. Technical parameters

TECHNICAL
PARAMETERS
Internal dimensions:
External dimensions:
The adjustment range of
the mounting plate for the
recorder
Max Width / Height:
Net / Gross weight:
Operation conditions:
Finish:
Antisabotage protection:
Locking:
Application:
Certificates, declarations:
Notes:

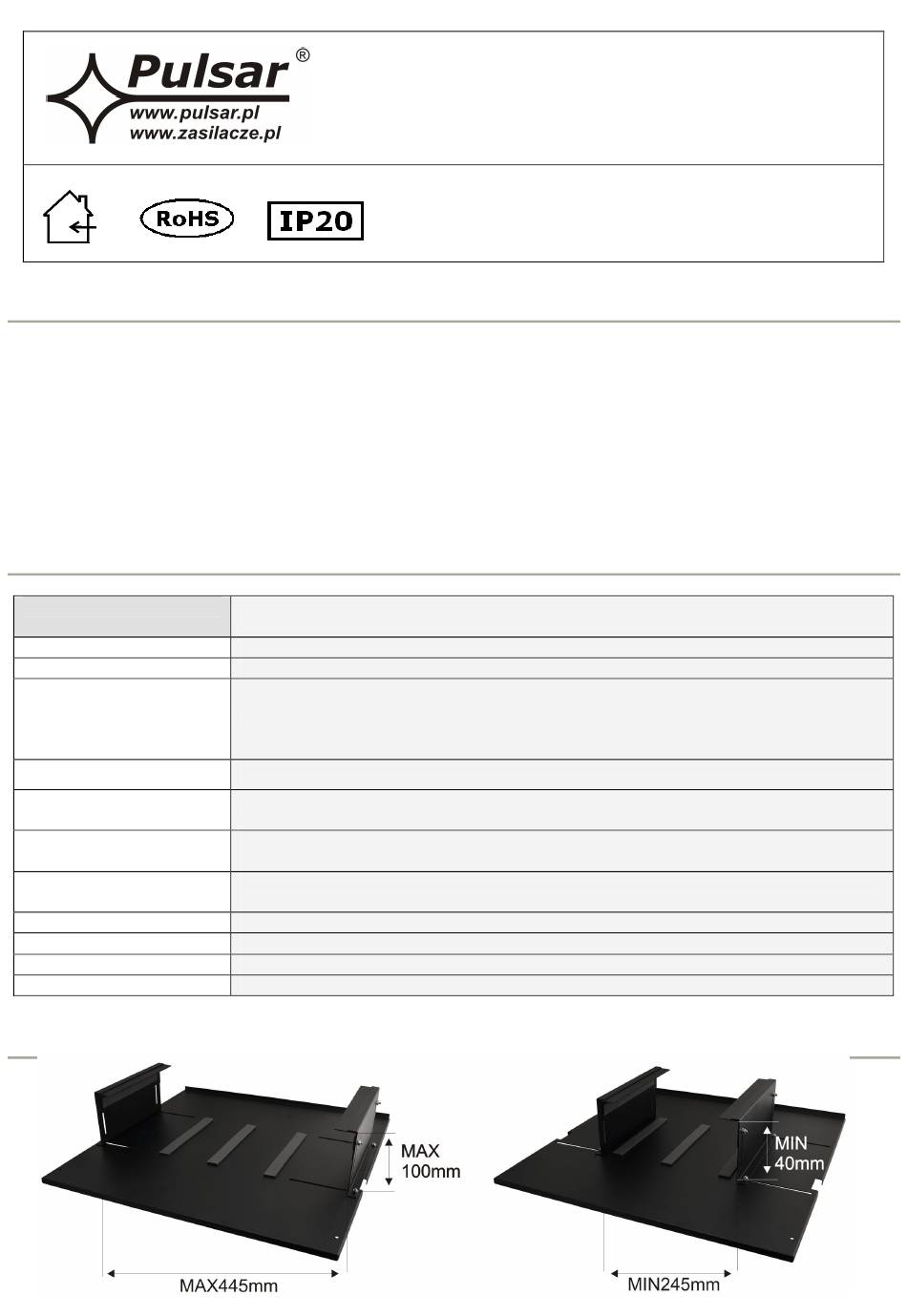

3. Mounting plate:

INSTALLATION INSTRUCTIONS
Name: DVR/MEDIUM/PIONOWA Enclosure
W=490, H=630, D=110 [mm, +/-2]
W=535, H=650, D=130 [mm, +/-2]
from 245 mm to 445 mm / from 40 mm to 100 mm
2nd environmental class, -10°C÷ 40°C
- DC01 sheet, thickness: 1mm, color: RAL9005 ( black matt)
2 x microswitch: opening and detachment of the enclosure, 0,5A@50V/DC
max. NC- normally closed contacts
ENGLISH
Code: AWO530
Replaces version No.: ----------------------
12,60 / 13,60 [kg]
- corrosion protection
lock
Indoor
RoHS
Distance from the wall 8mm
IM 530
Version No. 1 of: 03.10.2013
EN
