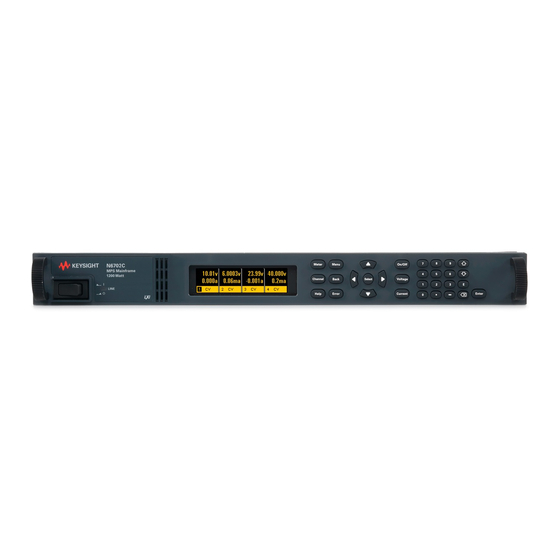

Keysight Series N6700C
Low-Profile Modular
Power System
Operating and
Service Guide

Advertisement

Table of Contents
loading

Related Manuals for Keysight N6700C Series

Summary of Contents for Keysight N6700C Series

  • Page 1 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com Keysight Series N6700C Low-Profile Modular Power System Operating and Service Guide...

  • Page 3: Table Of Contents

    Wire Sizing Keysight N678xA SMU Wiring Multiple Load Wiring Positive and Negative Voltages Load Capacitor Response Times Ferrite Core Installation - for Keysight N6792A only Protecting Sensitive Loads from AC Power Switching Transients Remote Sense Connections Wiring Open Sense Leads...
  • Page 4 Sequence Multiple Outputs Program the Output Relays Set the Output Bandwidth Set the Output Turn-Off Mode Programming an Input Short Enable Under-Voltage Inhibit Stepping the Output Synchronizing Output Turn-On Synchronizing Output Turn-On Delays Synchronizing Multiple Mainframes Keysight N6700C Operating and Service Guide...
  • Page 5 Terminate the Elog Using the Digital Control Port Bi-directional Digital IO Digital Input External Trigger I/O Fault Output Inhibit Input Fault/Inhibit System Protection Output State Using the Protection Functions Protection Functions Set the Over-Voltage Protection Keysight N6700C Operating and Service Guide...
  • Page 6 Command Separators and Terminators Syntax Conventions Parameter Types Device Clear Commands by Subsystem Abort Commands ARB Commands Calibrate Commands Current Commands Digital Commands Display Commands Fetch Commands Format Commands Function Command Hcopy Commands IEEE 488.2 Common Commands Keysight N6700C Operating and Service Guide...
  • Page 7 Negative Current Output - Models N6783A-BAT and N6783A-MFG Load Module Verification Tests - Models N6791A and N6792A Module Calibration Procedure Calibration Description Calibration Setups Calibration Procedure – Models N673xB, N674xB, N677xA Calibration Procedure – Models N675xA and N676xA Keysight N6700C Operating and Service Guide...
  • Page 8 Redundant Ground for 400 Hz Operation Disassembly Electrostatic Discharge (ESD) Precautions Disassembly Procedures Troubleshooting Preliminary Checkout Overall Troubleshooting Front Panel Troubleshooting Bias Assembly Troubleshooting Backplane Board Troubleshooting Calibration and Passwords Replaceable Parts Parts List Location Diagrams Index Keysight N6700C Operating and Service Guide...

  • Page 9: Legal And Safety Information

    Keysight shall not be liable for errors or for incidental or consequential damages in connection with the furnishing, use, or performance of this document or of any information contained herein.
  • Page 10 FAR and the DFARS and are set forth specifically in writing elsewhere in the EULA. Keysight shall be under no obligation to update, revise or otherwise modify the Software. With respect to any technical data as defined by FAR 2.101, pursuant to FAR 12.211 and 27.404.2 and DFARS 227.7102, the U.S.

  • Page 11: Safety Symbols

    This text indicates that the instrument is an Industrial Scientific and Medical Group 1 Class A product (CISPER 11, Clause 4). ICES/NMB-001 This text indicates product compliance with the Canadian Interference- Causing Equipment Standard (ICES- 001). Keysight N6700C Operating and Service Guide...

  • Page 12: Safety Notices

    Failure to comply with these precautions or with specific warnings or instructions elsewhere in this manual violates safety standards of design, manufacture, and intended use of the instrument. Keysight Technologies assumes no liability of the customer’s failure to comply with the requirements.
  • Page 13 Do Not Modify the Instrument Do not install substitute parts or perform any unauthorized modification to the product. Return the product to a Keysight Sales and Service Office for service and repair to ensure that safety features are maintained. Fuses The instrument contains an internal fuse, which is not customer accessible.

  • Page 15: Quick Reference

    Keysight N6700C Series Operating and Service Guide Quick Reference Legal and Safety Information Introduction to the Instrument Front Panel Menu Reference Command Quick Reference Models and Options Specifications and Characteristics...

  • Page 16: Introduction To The Instrument

    Keysight N6700–N6702 MPS mainframes are available in power levels of 400 W, 600 W, and 1,200 W. Up to four power modules can be installed in each mainframe. Power modules come in power levels of...
  • Page 17 Power and resistance pro- graming is available on Keysight N679xA load modules. Low output noise - Available on Keysight N676xA and N675xA power modules. Output noise is less than 4.5 mV peak-to-peak, which is comparable to linear supplies.

  • Page 18: Front Panel At A Glance

    Microampere current measurements - Available on Keysight N6761A, N6762A, and N678xA SMU power modules. Current measurement can be made as low as 1 μA in the 10 μA range. Fast Digitizing Available on Keysight N678xA SMU power modules. 5.12 μs/sample for one para- meter; 10.24 μs/sample for two parameters.

  • Page 19: Rear Panel At A Glance

    7. LAN - 10/100/1000 Base-T Left LED indicates activity. Right LED indicates link integrity. SHOCK HAZARD The power cord provides a chassis ground through a third conductor. Be certain that your power outlet is of the three-conductor type with the correct pin connected to earth ground. Keysight N6700C Operating and Service Guide...

  • Page 20: Front Panel Display At A Glance

    Voltage, Current, & Voltage measurement Current measurement and power Power View measurement Press to toggle between views 4-Channel View Voltage and Current measurements Press to toggle between views The highlighted channel is the active channel Keysight N6700C Operating and Service Guide...
  • Page 21 Err = an error has occurred (press Error key to display error message) indicators Lan = the LAN is connected and has been configured IO = there is activity on one of the remote interfaces Keysight N6700C Operating and Service Guide...

  • Page 22: Front Panel Keys At A Glance

    The E key enters an exponent. Add the value to the right of the E. Å back arrow key deletes digits as it backspaces over them. The Enter key enters a value. If you exit a field without pressing the Enter key, the value is ignored. Keysight N6700C Operating and Service Guide...

  • Page 23: Front Panel Menu Reference

    Selects Auxiliary voltage input on N6781A, N6785A Control Lets you abort a measurement in progress Transient Mode Selects voltage, current, resistance, or power transient modes Step Specifies the triggered step values List Pace Specifies Dwell or Trigger paced list Keysight N6700C Operating and Service Guide...
  • Page 24 Enables/disables oscillation protection on N678xA SMU Clear Clears protection conditions and displays output status States Reset Resets all instrument settings to the reset (*RST) state SaveRecall Saves and recalls instrument settings PowerOn Selects the power-on instrument state Keysight N6700C Operating and Service Guide...
  • Page 25 Calibrates High, Low, Aux voltage measurement ranges Curr Iprog Calibrates High and Low current ranges Ilim Calibrates current limit Imeas Calibrates High and Low current measurement ranges Misc CMRR Calibrates common mode rejection ratio Keysight N6700C Operating and Service Guide...
  • Page 26 Performs NISPOM secure erase of all user data Update Password protect firmware updates Password Changes the password for the admin functions About Frame Displays model, output ratings, serial number, firmware Module Displays model, serial number, options, output ratings Keysight N6700C Operating and Service Guide...

  • Page 27: Command Quick Reference

    Calibrates the auxiliary voltage measurement. (N6781A, N6785A) DISPlay [:WINDow] [:STATe] 0|OFF|1|ON Turns the front panel display on or off.             :CHANnel <channel> Selects the channel in 1-channel view.             :VIEW METER1|METER4|METER_VIP Selects 1-channel, 4-channel, or 1 channel with power view. Keysight N6700C Operating and Service Guide...
  • Page 28       :SDUMp             :DATA? Returns an image of the front panel display.             :DATA                  :FORMat BMP|GIF|PNG Specifies the format for front panel images returned. IEEE 488.2 Common Commands *CLS Clears status. *ESE <value> Sets standard event status enable. Keysight N6700C Operating and Service Guide...
  • Page 29 Takes a measurement; returns the minimum current.             :POWer [:DC]? (@chanlist) Takes a measurement; returns the averaged power. (N676xA, N678xA SMU)                   :MAXimum? (@chanlist) Takes a measurement; returns the maximum power.                   :MINimum? (@chanlist) Takes a measurement; returns the minimum power. Keysight N6700C Operating and Service Guide...
  • Page 30             :OSCillation0|OFF|1|ON, (@chanlist) Enables/disables output oscillation protection. (N678xA SMU)             :TEMPerature                   :MARGin? (@chanlist) Returns the margin remaining before the over-temperature trips.             :WDOG [:STATe] 0|OFF|1|ON Enables/disables the I/O watchdog timer.                   :DELay <value> Sets the watchdog delay time. Keysight N6700C Operating and Service Guide...
  • Page 31 Defines the number of points in a measurement.             :TINTerval <value>, (@chanlist) Defines the time period between measurement samples.                   :RESolution RES20|RES40 Sets the measurement resolution.       :VOLTage [:DC]                   :RANGe [:UPPer] <value>, (@chanlist) Selects a DC voltage measurement range. Keysight N6700C Operating and Service Guide...
  • Page 32 Sets the length of the start time or delay                   :SINusoid                         :AMPLitude <value>, (@chanlist) Sets the amplitude of the sine wave                         :FREQuency <value>, (@chanlist) Sets the frequency of the sine wave                         :OFFSet <value>, (@chanlist) Sets the DC offset of the sine wave                   :STAIRcase Keysight N6700C Operating and Service Guide...
  • Page 33 Resets the sequence to its power-on default setting                   :STEP                         :COUNt <value>|INFinity, <step#> (@chanlist) Sets the number of times the sequence step is repeated                         :CURRent <function>, <step#> (@chanlist) Programs the steps in a current sequence Keysight N6700C Operating and Service Guide...
  • Page 34 Enables/disables the maximum slew rate override. (N678xA SMU, N679xA)                   :COUPle 0|OFF|1|ON, (@chanlist) Sets the current slew tracking state. (N679xA)                   :NEGative [:IMMediate] <value>|INFinity, (@chanlist) Sets the negative current slew rate. (N679xA)                         :MAXimum 0|OFF|1|ON, (@chanlist) Enables/disables the maximum slew rate override. (N679xA) Keysight N6700C Operating and Service Guide...
  • Page 35 Generates a trigger out at the End Of STep                         :POINts? (@chanlist) Returns the number of list points (same as steps).             :VOLTage [:LEVel] <value>{,<value>}, (@chanlist) Specifies the setting for each list step.                   :POINts? (@chanlist) Returns the number of list points (same as steps). Keysight N6700C Operating and Service Guide...
  • Page 36 Sets the resistance slew tracking state. (N679xA)                   :NEGative [:IMMediate] <value>|INFinity, (@chanlist) Sets the negative resistance slew rate. (N679xA)                         :MAXimum 0|OFF|1|ON, (@chanlist) Enables/disables the maximum slew rate override. (N679xA)             :STATe 0|OFF|1|ON, (@chanlist) Enables/disables output resistance programming. (N6781A, N6785A) Keysight N6700C Operating and Service Guide...
  • Page 37 Sets the negative remote OV protection. (N6784A)                   :TRACking [:STATe] 0|OFF|1|ON, (@chanlist) Enables/disables tracking over-voltage protection. (Option J01)                         :OFFSet <value>, (@chanlist) Sets the tracking OVP offset. (Option J01)             :RANGe <value>, (@chanlist) Sets the output voltage range.             :RESistance [:LEVel] Keysight N6700C Operating and Service Guide...
  • Page 38 (GROup commands do NOT apply to models N678xA SMU)             :CATalog? Returns the groups that have been defined.             :DEFine <chanlist> Group multiple channels to create a single channel.             :DELete <channel> Remove the specified channel from the group.                   :ALL Ungroups all channels. Keysight N6700C Operating and Service Guide...
  • Page 39 Improves the alignment of measurement triggers with measurement data.       :TRANsient [:IMMediate] (@chanlist) Generates an immediate output transient trigger.             :SOURce <source>, (@chanlist) Selects the trigger source for the transient system:  BUS |EXTernal IMMediate |PIN<1-7> |TRANsient<1-4> Keysight N6700C Operating and Service Guide...

  • Page 40: Models And Options

    N6781A, N6782A, N6784A 20 W Source/Measure Unit (SMU) N6785A, N6786A 80 W Source/Measure Unit (SMU) N6783A-BAT / N6783A-MFG 18 W / 24 W Application-Specific DC Power Module N6791A, N6792A 100 W/ 200 W Electronic Load Module Keysight N6700C Operating and Service Guide...

  • Page 41: Model Differences

    Option 760 is not available on Models N6741B, N6751A, N6752A, N6761A, and N6762A. Note 2 Option 2UA.is only available on Models N6761A and N6762A. It includes Option 761. Note 3 Only available when using the remote interfaces; not from the front panel. Keysight N6700C Operating and Service Guide...
  • Page 42 Double-wide (occupies two channel locations) Note 1 Arbitrary waveforms and List capability is not available on the negative current output on Model N6783A Note 2 Only available when using the remote interfaces; not from the front panel. Keysight N6700C Operating and Service Guide...
  • Page 43 Note 1 The load module's input is referred to by the term "Output" throughout this document. Note 2 The input and measurement ranges re coupled. Note 3 Only available when using the remote interfaces; not from the front panel. Keysight N6700C Operating and Service Guide...

  • Page 44: Options

    N6700B, N6701A, or N6702A mainframe. Seamless measurement autoranging for Model N6784A. Included with Models N6781A, N6782A, N6785A, and N6786A. Note 1 A small AC network is always present across the output terminals. Keysight N6700C Operating and Service Guide...

  • Page 45: Specifications

    Supplemental Characteristics Dimension Diagrams This section lists the supplemental characteristics of the Keysight N6700C Modular Power System. Supplemental characteristics are not warranted but are descriptions of performance determined by design or by type testing. All supplemental characteristics are typical unless otherwise noted.
  • Page 46 Interface Capabilities   LXI Core 2011: 10/100/1000 Base-T Ethernet (Sockets, VXI-11 protocol, Web interface)   USB 2.0 (USB-TMC488): Requires Keysight IO Library version M.01.01 or 14.0 and up   10/100/1000 LAN: Requires Keysight IO Library version L.01.01 or 14.0 and up   Web server: Requires a Web browser   GPIB:...

  • Page 47: Dimension Diagrams

    Note 1 Under full load at 400 Hz, power factor drops from 0.99 @ 120 VAC to as low as 0.76 @ 265 VAC. Power factor degrades further under no load conditions. Dimension Diagrams Keysight N6700C Operating and Service Guide...

  • Page 49: Installation

    Keysight N6700C Series Operating and Service Guide Installation Preliminary Information Installing the Mainframe Connecting the Power Cord Connecting the Outputs Remote Sense Connections Parallel and Series Connections Auxiliary Measurement Connections Interface Connections...

  • Page 50: Preliminary Information

    Observe Environmental Conditions Check for Items Supplied Before getting started, check the following list and verify that you have received these items with your unit. If anything is missing, please contact your nearest Keysight Sales and Support Office. Mainframe Items Description...

  • Page 51: Inspect The Unit

    Inspect the Unit When you receive your power system, inspect it for any obvious damage that may have occurred during shipment. If there is damage, notify the shipping carrier and nearest Keysight Sales and Support Office immediately. Until you have turned on and checked out the power system, save the shipping carton and packing materials in case the unit has to be returned.

  • Page 52: Installing The Mainframe

    Tools required: T10 Torx driver; Small flat-blade screwdriver Step 1. Remove the blower cover. Remove the screws from the top and sides of the blower cover. Tilt the cover up and slide it out. Keysight N6700C Operating and Service Guide...
  • Page 53 Double-wide modules are assigned the number of the lowest numbered slot in which is installed. For example, if a double-wide module is installed in slots 3 and 4, it is assigned channel number 3. Keysight N6700C Operating and Service Guide...

  • Page 54: Rack Mounting

    The Rack Mount Kit is also available by ordering part number N6709A. Keysight N6700 MPS mainframes can be mounted in a 19-inch EIA rack cabinet. They are designed to fit in one rack-unit (1U) of space. Do not block the air intake and exhaust at the sides of the unit, or the exhaust at the rear of the unit.

  • Page 55: Bench Installation

    Refer to the Specifications section for power factor statistics at 400 Hz operation. Refer to Redundant Ground for installation instructions. Keysight N6700C Operating and Service Guide...

  • Page 56: Connecting The Power Cord

    100 VAC to 240 VAC. The frequency can be 50 Hz, 60 Hz, or 400 Hz. Keysight N6702C Mainframe Note: Standard AC mains circuits rated at nominal 100-120 VAC cannot supply enough current to power the N6702A mainframe when it is operated at its full rated power.

  • Page 57: Connecting The Outputs

    Load Capacitor Response Times Ferrite Core Installation - for Keysight N6792A only Protecting Sensitive Loads Keysight N679xA Load Module input terminals are referred to as "Outputs" throughout this document Output Wiring SHOCK HAZARD Turn off AC power before making rear panel connections. All wires and straps must be properly connected with the terminal block screws securely tightened.

  • Page 58: Wire Sizing

    (refer to the following table). To satisfy safety requirements, load wires must be heavy enough not to overheat while carrying the short-circuit output current of the unit. Keysight Model N678xA SMU wiring requirements are described in the following section.
  • Page 59 4. “x” indicates wire is not rated for the maximum output current of the power module. 5. Because of wire inductance considerations, it is also recommended that you keep your load leads twisted, tie wrapped, or bundled together and less than 50 feet (14.7 meters) in length per lead. Keysight N6700C Operating and Service Guide...

  • Page 60: Keysight N678Xa Smu Wiring

    2 to 10 meters (inductance per cable foot ≤ 32 nH) High Bandwidth Modes with Remote Sensing The following wiring requirements apply when using Keysight Models N678xA SMU in the High bandwidth modes with remote sensing. Refer to Output Bandwidth for more information about the bandwidth settings.
  • Page 61 1 μA and greater. As shown below, cable guards are available at the output connector of Keysight Models N678xA SMU. The guard is typically used to drive the shields of cables and test fixtures. It provides a buffered voltage that is at the same potential as the + output terminals of the module connector.

  • Page 62: Multiple Load Wiring

    The goal is to always minimize the loop area or physical space between the + and - load wires from the power system to the load. Note that Keysight Models N678xA SMU have additional wiring restrictions as previously discussed under Keysight N678xA SMU Wiring.

  • Page 63: Load Capacitor Response Times

    Note that programming into an external output capacitor may cause the power system to briefly enter constant current or constant power operating mode, which adds additional time to the estimation. Ferrite Core Installation - for Keysight N6792A only Compliance to radio frequency interference (RFI) standards requires a ferrite core to be installed on the load leads of the load module.

  • Page 64: Protecting Sensitive Loads From Ac Power Switching Transients

    AC line switch: 1. Install a ferrite core (Keysight p/n 9170-2131) on the power cord to insert additional impedance in the current path. This ferrite core is now installed inside N6701C and N6702C mainframes.

  • Page 65: Remote Sense Connections

    Keep the sense lead resistance less than about 0.5 Ω per lead (this requires 20 AWG or heavier for a 50 foot length). Keysight N6700C Operating and Service Guide...

  • Page 66: Open Sense Leads

    2 Installation Note that Keysight Models N678xA SMU require remote sensing when using any of the High output bandwidth modes discussed under Set the Output Bandwidth. Also, these models have additional wiring restrictions as discussed under Keysight N678xA SMU Wiring Requirements.

  • Page 67: Parallel And Series Connections

    Series Connections Parallel Connections Equipment Damage Only connect power supplies that have identical voltage and current ratings in parallel. Keysight Models N678xA SMU may be paralleled, but ONLY when operated in Current Priority mode. Voltage Priority operation is not allowed.
  • Page 68 Groups. If you are not grouping output channels, first program both outputs to the desired output voltage. Then program the current limit of each output. In Current Priority mode, program the output current of Keysight N6700C Operating and Service Guide...

  • Page 69: Series Connections

    240 VDC from chassis ground. Only connect outputs that have identical voltage and current ratings in series. Keysight Models N678xA SMU and N6783A cannot be connected in series. To prevent currents from damaging the power system when the load is connected, always turn series-connected outputs on and off together.
  • Page 70 Then program the voltage of each output so that the sum of both voltages equals the total desired operating voltage. The simplest way to accomplish this is to program each output to one half of the total desired operating voltage. Keysight N6700C Operating and Service Guide...
  • Page 71 CC load cross regulation, CC source effect, and CC short term drift. These are twice the current programming accuracy (including the percentage portion) at all operating points. Load Transient Recovery Time: Load transient specifications are typically twice the single output. Keysight N6700C Operating and Service Guide...

  • Page 72: Auxiliary Measurement Connections

    This information only applies to Keysight Models N6781A and N6785A. The auxiliary voltage measurement input is located on the rear panel of the Keysight N6781A and N6785A. It is primarily used for battery voltage rundown measurements, but it is also suitable for general purpose DC measurements.

  • Page 73: Interface Connections

    GPIB card 2. Connect your instrument to the GPIB interface card using a GPIB interface cable. 3. Use the Connection Expert utility of the Keysight IO Libraries Suite to configure the GPIB card’s parameters. 4. The power system is shipped with its GPIB address set to 5. Use the front panel menu if you need to change the GPIB address.

  • Page 74: Usb Connections

    1. Connect your instrument to the USB port on your computer using a USB cable. 2. With the Connection Expert utility of the Keysight IO Libraries Suite running, the computer will automatically recognize the instrument. This may take several seconds. When the instrument is recognized, your computer will display the VISA alias, IDN string, and VISA address.
  • Page 75 2 Installation 2. Use the Connection Expert utility of the Keysight IO Libraries Suite to add the power system and verify a connection. To add the instrument, you can request the Connection Expert to discover the instrument. If the instrument cannot be found, add the instrument using its hostname or IP address.

  • Page 76: Digital Port Connections

    2 Installation 3. Use the Connection Expert utility of the Keysight IO Libraries Suite to add the power system and verify a connection. To add the instrument, you can request the Connection Expert to discover the instrument. If the instrument cannot be found, add the instrument using its hostname or IP address.
  • Page 77 When Positive polarity is selected, a logical true signal is a voltage high at the pin. When Negative polarity is selected, a logical true signal is a voltage low at the pin. For information on configuring the digital port functions, Refer to Using the Digital Control Port. Keysight N6700C Operating and Service Guide...

  • Page 79: Getting Started

    Keysight N6700C Series Operating and Service Guide Getting Started Using the Front Panel Remote Interface Configuration...

  • Page 80: Using The Front Panel

    This section also contains information on how to configure the three remote interfaces that are provided on the back of the instrument. Detailed information on configuring the remote interfaces is included in the Keysight Technologies USB/LAN/GPIB Interfaces Connectivity Guide, which is available on the Automation-Ready CD included with this product.

  • Page 81: Set The Output Voltage

    Use the left and right navigation keys to navigate to the setting that you wish to Navigation keys change. In the display below, channel 1’s current setting is selected. Enter a value using the numeric keypad. Then press Enter. Keysight N6700C Operating and Service Guide...

  • Page 82: Enable The Output

    Press the left and right (t, u) navigation keys to move across the menu commands. Press the center Select key to select a command and move down to the next level in the menu. Keysight N6700C Operating and Service Guide...
  • Page 83 The menu path now lets you select from the available Protect commands on the second line. The OVP command is highlighted. The third line has a brief description of the OVP command. Press Select to select the OVP command. Keysight N6700C Operating and Service Guide...
  • Page 84 The front panel Err indicator comes on if self-test fails or if other operating problems occur with your instrument. Press the Error key to display the list of errors. Refer to the Service and Maintenance section for further information. Keysight N6700C Operating and Service Guide...

  • Page 85: Remote Interface Configuration

    Using the Web Interface Using Telnet Using Sockets Securing the Interfaces This Keysight N6700 MPS supports remote interface communication over three interfaces: GPIB, USB, and LAN. All three interfaces are live at power on. For information on connecting the interfaces, refer Interface Connections.

  • Page 86: Lan Configuration

    They should also work well for other network configurations. You can also reset the LAN to the as-shipped settings. This returns ALL LAN settings to the as-shipped values and restarts networking. All default LAN settings are listed under Non-volatile Settings. Keysight N6700C Operating and Service Guide...

  • Page 87: Modifying The Lan Settings

    The same numbering notation applies as for the IP Address. A value of 0.0.0.0 indicates that no default gateway is defined. Keysight N6700C Operating and Service Guide...
  • Page 88 A hostname may contain upper and lower case letters, numbers and dashes(-). The maximum length is 15 characters. Each power system is shipped with a default hostname with the format: Keysight-modelnumber- serialnumber, where modelnumber is the mainframe’s 6-character model number (e.g. N6700C), and serialnumber is the last five characters of the 10-character mainframe serial number located on the label on the top of the unit (e.g.
  • Page 89 A service name may contain upper and lower case let- ters, numbers and dashes(-). Each power system is shipped with a default service name with the format: Keysight-mod- elnumber-serialnumber, where modelnumber is the mainframe’s 6-character model number (e.g.

  • Page 90: Using The Web Interface

    If desired, you can control access to the Web interface using password protection. As shipped, no password is set. To set a password, click Log In on the top of the page. Refer to the on-line help for additional information about setting a password. Keysight N6700C Operating and Service Guide...

  • Page 91: Using Telnet

    IP address, and 5024 is the instrument’s telnet port. You should get a Telnet session box with a title indicating that you are connected to the power system. Type the SCPI commands at the prompt. Keysight N6700C Operating and Service Guide...

  • Page 92: Using Sockets

    Power supplies allow any combination of up to four simultaneous data socket, control socket, and telnet connections to be made. Keysight instruments have standardized on using port 5025 for SCPI socket services. A data socket on this port can be used to send and receive ASCII/SCPI commands, queries, and query responses. All commands must be terminated with a newline for the message to be parsed.

  • Page 93: Operating The Power System

    Keysight N6700C Series Operating and Service Guide Operating the Power System Programming the Output Stepping the Output Synchronizing Output Turn-On Programming Output Lists Generating Arbitrary Waveforms Making Measurements Using the Digitizer External Data Logging Using the Digital Control Port Using the Protection Functions...

  • Page 94: Programming The Output

    If a menu item is grayed-out, it is not available for the module, or not available in the mode that is presently selected. Keysight N679xA Load Module input terminals are referred to as "Outputs" throughout this document Select a Channel View...

  • Page 95: Select An Output Channel

    Front Panel Menu Reference SCPI Command Press the Current key. To set output 1 to 1 A: CURR 1,(@1) Enter a current value. Then press Select. To set all outputs to 2 A: CURR 2,(@1:4) Keysight N6700C Operating and Service Guide...

  • Page 96: Set The Output Resistance

    Select a lower range. Then press Select. CURR:RANG 1,(@1) For Keysight Models N678xA SMU, N6783A, and N679xA operating in voltage priority mode, you can specify a positive and negative current limit, which limits the output current at the specified value. In voltage priority mode, the output voltage remains at its programmed setting as long as the load current is within the positive or negative limit.

  • Page 97: Set The Output Power

    N6791A N6792A High power range from 0.3 W to 100 W from 0.5 W to 200 W Low power range from 0.04 W to 10 W from 0.1 W to 20 W Keysight N6700C Operating and Service Guide...

  • Page 98: Set The Output Mode

    The voltage will remain at its programmed setting as long as the load current remains within the current limit. Current priority mode applies to Keysight Models N678xA SMU and N679xA. In this mode, the output is controlled by a bi-polar constant current feedback loop, which maintains the current at its programmed setting.

  • Page 99: Enable The Output

    4 Operating the Power System The current slew rate is only available on Keysight Models N678xA SMU and N679xA . It determines the rate at which the current changes to a new programmed setting. Power and resistance slew rates ars only available on Keysight Models N679xA .

  • Page 100: Sequence Multiple Outputs

    Front Panel Menu Reference SCPI Command Not Available To leave the relays closed when output 1 is turned off: OUTP OFF,NOR,(@1) To leave the relays open when output 1 is turned on: OUTP ON,NOR,(@1) Keysight N6700C Operating and Service Guide...

  • Page 101: Set The Output Bandwidth

    Set the Output Bandwidth This information applies to Keysight Models N678xA SMU only. Keysight Models N678xA SMU have several voltage bandwidth settings that let you optimize output response time with capacitive loads. The Low bandwidth setting provides stability with a wide range of capacitive loads. Additional settings provide faster output response when the load capacitance is restricted to smaller values.

  • Page 102: Set The Output Turn-Off Mode

    Then press Select. Set the Output Turn-Off Mode This information applies to Keysight Models N678xA SMU only. This lets you specify high impedance or low impedance mode at output turn-on and turn-off. Low impedance - At turn-on the output relays are closed after which the output is programmed to the set value.

  • Page 103: Enable Under-Voltage Inhibit

    4 Operating the Power System Enable Under-Voltage Inhibit This information applies to Keysight Models N679xA only. When the under-voltage inhibit function is enabled, the N679xA load modules are prevented from sinking current until the voltage-on level is exceeded. This condition is annunciated by the UVI status bit.

  • Page 104: Stepping The Output

    Resistance and Power trigger levels apply to If you have a model that has multiple ranges, the selected triggered settings must be within the same range that the output channel is presently operating in Keysight N6700C Operating and Service Guide...
  • Page 105 Initiating the trigger system moves it from the idle state to the initiated state, which enables the power system to receive triggers. To initiate the trigger system, use:. Keysight N6700C Operating and Service Guide...
  • Page 106 Navigate to Abort. Then press Select. When a trigger is received, the triggered functions are set to their programmed trigger levels. When the triggered actions are completed, the trigger system returns to the idle state. Keysight N6700C Operating and Service Guide...
  • Page 107 Use the Channel key to select the channel that is the To program channel 3’s step function to generate a trigger source. Select Transient\Step. trigger signal, use STEP:TOUT ON,(@3) Check Enable Trig out. Then press Select. Keysight N6700C Operating and Service Guide...

  • Page 108: Synchronizing Output Turn-On

    Off command is received. Synchronizing Output Turn-On Delays All N6700 series power modules that are installed in Keysight N6700C mainframes exhibit a minimum delay offset that applies from the time that a command to turn on the output is received until the output actually turns on.
  • Page 109 10 ms, 20, ms, 30 ms, and 40 ms – the exact values originally specified. Step 1. Enable the Synchronization Function Output turn-on synchronization must be enabled on the mainframe as follows: Keysight N6700C Operating and Service Guide...
  • Page 110 Note that you can program a common delay that is longer than the maximum delay offset of the mainframe. You may choose a longer value to make your program flexible for future configurations that may have power modules with longer delay offsets. However, if you program a value that is Keysight N6700C Operating and Service Guide...

  • Page 111: Synchronizing Multiple Mainframes

    In this example, pin 6 will be configured as the output On control. Pin 7 will be configured as the output Off control. The ground or Common pins also need to be connected together. Keysight N6700C Operating and Service Guide...

  • Page 112: Synchronization Operation

    If a mainframe has its ON/OFF key coupled (located in the System\Preferences\Keys menu), turning the output on or off on any coupled channel will cause all coupled channels as well as non-coupled channels on that mainframe to turn on or off. Keysight N6700C Operating and Service Guide...

  • Page 113: Programming Output Lists

    For convenience, a list may be programmed with only one step or value. In this case, a single- step list is treated as if it had the same number of steps as the other lists, with all values being equal to the one value. Keysight N6700C Operating and Service Guide...

  • Page 114: Program An Output Pulse Or Pulse Train

    Front Panel Menu Reference SCPI Command Select Transient\List\Pace. LIST:STEP AUTO,(@1) Select Dwell paced. Then press Select. If you only wish to program a single pulse, skip steps 4 and 5 and go to step 6. Keysight N6700C Operating and Service Guide...
  • Page 115 Select a trigger source from the following: Bus Selects GPIB device trigger, *TRG, or <GET> (Group Execute Trigger). Imm An immediate trigger command either from the front panel or over the bus will generate an immediate trigger. Keysight N6700C Operating and Service Guide...

  • Page 116: Program An Arbitrary List

    Step 1. Set the voltage, current, power, or resistance function for which you want to generate a list to List mode. This example programs a voltage list. Resistance and Power modes apply to Keysight N6700C Operating and Service Guide...
  • Page 117 The dwell time associated with each step determines the minimum time that the output remains at the step. If a trigger is received before the dwell time completes, the trigger is ignored. To ensure that no triggers are lost in a trigger-paced list, set the dwell time to zero. Keysight N6700C Operating and Service Guide...
  • Page 118 Enter the number of List repetitions (2). Then press Select. Step 8. Select a trigger source, then initiate, and trigger the list. This is previously described under Program an Output Pulse or Pulse Train. Keysight N6700C Operating and Service Guide...

  • Page 119: Generating Arbitrary Waveforms

    The maximum bandwidth is based on the type of power module that is installed. This is documented in the Keysight N6700 Modular Power System Family Specifications Guide. The arbitrary waveform generator has a variable dwell period, where each point in the waveform is defined by the current, voltage, power, or resistance setting along with the dwell time or duration to stay at that setting.

  • Page 120: Configuring Step Arbs

    Step 3. Configure the final steps common to all Arbs. Refer to Configuring Steps Common to all Arbs the end of this section. Configuring Pulse Arbs Step 1. Select the Arb Type and Shape. Power and Resistance types apply to Keysight N6700C Operating and Service Guide...

  • Page 121: Configuring Ramp Arbs

    Select a Voltage, Current, Power, or Resistance Arb Type. ARB:FUNC:TYPE VOLT|CURR|POW|RES,(@1) ARB:FUNC:SHAP RAMP,(@1) Then select the Ramp Shape. Then press Select. Step 2. Configure the ramp parameters. The parameters apply to the selected Arb type (Voltage, Current, Power, or Resistance). Keysight N6700C Operating and Service Guide...

  • Page 122: Configuring Trapezoid Arbs

    Current, Power, or Resistance). Enter the values for the level before and during the top of the trapezoid. Enter the time before the trapezoid, the rise-time, top-time, fall-time, and the time after the trapezoid. Keysight N6700C Operating and Service Guide...

  • Page 123: Configuring Staircase Arbs

    Enter the Start and End level in volts. Then press Select. ARB:VOLT:STA:END 10,(@1) ARB:VOLT:STA:STAR:TIM 0.25,(@1) Select Transient\Arb\Config\Stair\Time. ARB:VOLT:STA:TIM 0.5,(@1) Enter the Start, Stair, and End times in seconds. ARB:VOLT:STA:END:TIM 0.25,(@1) ARB:VOLT:STA:NST 6,(@1) Enter the number of steps. Then press Select. Keysight N6700C Operating and Service Guide...

  • Page 124: Configuring Exponential Arbs

    Select Transient\Arb\Function. To select a current, voltage, power, or resistance sinusoid Arb, use: Select a Voltage, Current, Power, or Resistance Arb Type. ARB:FUNC:TYPE VOLT|CURR|POW|RES,(@1) ARB:FUNC:SHAP SIN,(@1) Then select the Sine Shape. Then press Select. Keysight N6700C Operating and Service Guide...

  • Page 125: Configuring Constant-Dwell Arbs

    Current, Power, or Resistance). Enter the dwell time that will be used for each point in the CD Arb. Program the number of points in the CD Arb. Assign a value for each point. Keysight N6700C Operating and Service Guide...

  • Page 126: Configuring An Arb Sequence

    The following figure illustrates a sequence comprised of a pulse Arb, a ramp Arb, and a sine Arb. The repeat count value indicates how many times each Arb repeats before moving to the next type. Keysight N6700C Operating and Service Guide...
  • Page 127 ARB:SEQ:TERM:LAST ON,(@1) Set a repeat count for the entire sequence. To make the entire sequence repeat twice: ARB:SEQ:COUN 3,(@1) To set up the transient trigger system and trigger the sequence: VOLT:MODE ARB,(@1) INIT:TRAN (@1) *TRG Keysight N6700C Operating and Service Guide...

  • Page 128: Configuring User-Defined Arbs

    1 runs the Arb once. Front Panel Menu Reference SCPI Command Select Transient\Arb\Repeat. To specify an Arb count, use: ARB:COUN 1,(@1) Specify a repeat count, or run the Arb continuously. Then press Select. Keysight N6700C Operating and Service Guide...

  • Page 129: Running The Arb

    Select Initiate. TRIG:TRAN (@1) Wait a second, then select Trigger to generate an Alternatively, you can also program a *TRG or an IEEE-488 immediate trigger signal regardless of the trigger source <get> command. setting. Keysight N6700C Operating and Service Guide...
  • Page 130 You can test the WTG_tran bit (bit 4) in the operation status register to know when the instrument is ready to receive a trigger after being initiated. Keysight N6700C Operating and Service Guide...

  • Page 131: Making Measurements

    3.06 A range To select, program values > 0.1 A and ≤ 3.06 A. 0.10 A range To select, program values > 200 µA and ≤ 0.1 A. 200 μA range (option 2UA) To select, program values ≤ 200 µA. Keysight N6700C Operating and Service Guide...

  • Page 132: Seamless Measurements

    Auxiliary Voltage Measurements This information applies to models N6781A and N6785A only. Keysight Models N6781A and N6785A have an auxiliary voltage measurement input, whose primary use is for battery voltage rundown measurements. It may also be suitable for other applications including general purpose DC voltage measurements between +/-20 VDC.
  • Page 133 When the auxiliary voltage measurement terminals are left unconnected, the front panel meter will indicate a voltage reading of approximately 1.6V. This is a normal indication which does not affect the voltage measurement once the auxiliary measurement terminals are connected. Keysight N6700C Operating and Service Guide...

  • Page 134: Using The Digitizer

    MIN - is the minimum value of the digitized measurement. Array queries are also available to return ALL values in the voltage and current measurement buffer. No averaging is applied, only raw data is returned from the buffer. Keysight N6700C Operating and Service Guide...

  • Page 135: Programming The Digitizer

    N678xA SMU and with Option SMR. Seamless measurement autoranging enables a wide dynamic measurement range with no data lost when transitioning across ranges. Seamless autoranging does not include the 10 μA range, which must be selected manually. Keysight N6700C Operating and Service Guide...
  • Page 136 Values above 20.48 microseconds are rounded to the nearest 20.48- microsecond increment when the resolution is set to RES20. Values above 40.96 microseconds are rounded to the nearest 40.96-microsecond increment when the resolution is set to RES40. Keysight N6700C Operating and Service Guide...
  • Page 137 SCPI Command Select Measure\Window. To select the Hanning window function: SENS:WIND HANN,(@1) Select Auto from the voltage or current dropdown menu. Then press Select. Trigger the Measurement The following commands trigger and return measurement data: Keysight N6700C Operating and Service Guide...
  • Page 138 This may tie up the computer if the measurement trigger does not occur immediately. You can test the MEAS_active bit in the operation status register to know when the measurement has completed as explained in the following section. Keysight N6700C Operating and Service Guide...

  • Page 139: Synchronizing Digitizer Measurements

    The measurement system lets you capture data before, after, or at the trigger signal. As shown in the following figure, you can move the block of data being read into the acquisition buffer with reference to the trigger. This allows pre- or post-trigger data sampling. Keysight N6700C Operating and Service Guide...
  • Page 140 Pin<n> - Selects a specific pin that is configured as a Trigger Input on the digital port. <n> specifies the pin number. The selected pin must be configured as a Trigger Input in order to be used as a trigger source (see Using the Digital Port). Keysight N6700C Operating and Service Guide...
  • Page 141 It takes a few milliseconds for the instrument to be ready to receive a trigger signal after receiving the INITiate:ACQuire command, and it can take longer for Keysight Models N678xA SMU. If a trigger occurs before the trigger system is ready for it, the trigger will be ignored. You can test the WTG_meas bit in the operation status register to know when the instrument is ready to receive a trigger after being initiated.
  • Page 142 To return the high or low level of a pulse: FETC:VOLT:HIGH? (@1) FETC:CURR:HIGH? (@1) FETC:VOLT:LOW? (@1) FETC:CURR:LOW? (@1) To return the maximum or minimum value: FETC:VOLT:MAX? (@1) FETC:CURR:MAX? (@1) FETC:VOLT:MIN? (@1) FETC:CURR:MIN? (@1) To return power: FETC:POW? (@1) Keysight N6700C Operating and Service Guide...
  • Page 143 If a bit value of 32 is returned in the query, the MEAS_active bit is true, and the measurement is NOT complete. When the MEAS_active bit is false, you can retrieve the measurement. Refer to Status Tutorial for more information. Keysight N6700C Operating and Service Guide...

  • Page 144: External Data Logging

    Data Logging Functions The external data logging function can only be programmed using SCPI commands. The Keysight N6700C models have an "external" data logging function (Elog) that lets you continuously log voltage and current measurements. Data logging is external to the instrument because it can only be implemented using SCPI commands.

  • Page 145: Specify The Integration Period

    The integration period can be set from a minimum of 102.4 microseconds to a maximum of 60 seconds. Front Panel Menu Reference SCPI Command Not available To set an integration period of 600 microseconds: SENS:ELOG:PER 0.0006, (@1) Keysight N6700C Operating and Service Guide...

  • Page 146: Select The Elog Trigger Source

    Bus - Selects GPIB device trigger, *TRG, or <GET> (Group Execute Trigger). External - Selects all digital port pins that have been configured as trigger inputs. Immediate - Selects the immediate trigger source. This triggers the data logger immediately when initiated Keysight N6700C Operating and Service Guide...

  • Page 147: Initiate And Trigger The Elog

    Elog sensing. If all functions are enabled, then one record will contain the following data in the specified order: Current average Current minimum Current maximum Voltage average Keysight N6700C Operating and Service Guide...

  • Page 148: Terminate The Elog

    Binary data is returned as a comma-separated list of data for each channel requested. The data is a definite length binary block, with the byte order specified by the FORMat:BORDer command. Terminate the Elog Front Panel Menu Reference SCPI Command Not available ABOR:ELOG, (@1) Keysight N6700C Operating and Service Guide...

  • Page 149: Using The Digital Control Port

    The digital I/O pin can be used to control both relay circuits as well as digital interface circuits. The following figure illustrates typical relay circuits as well as digital interface circuit connections using the digital I/O functions. Keysight N6700C Operating and Service Guide...

  • Page 150: Digital Input

    When configured as a trigger input, you can apply either a negative-going or a positive-going pulse to the designated trigger input pin. The trigger latency is 5 microseconds. The minimum pulse width is 4 Keysight N6700C Operating and Service Guide...

  • Page 151: Fault Output

    The polarity of pin 3 can also be configured. The input is level triggered. The signal latency is 5 microseconds. Pin 8 is the common for pin 3. Keysight N6700C Operating and Service Guide...

  • Page 152: Fault/Inhibit System Protection

    Note that when using the Fault/Inhibit signals in this manner, both signals must be set to the same polarity. Keysight N6700C Operating and Service Guide...

  • Page 153: Output State

    Inhibit input on each unit to Latched mode. Output State Only pins 4 through 7 can be configured to control the output state. This function lets you connect multiple Keysight N6700 mainframes together and synchronize the output on/off sequence across mainframes. Refer to Synchronizing Output Turn-On for detailed information.

  • Page 154: Using The Protection Functions

    OV - Over-voltage protection is a hardware OVP whose trip level is a programmable value. The OVP is always enabled. OV− - Negative voltage protection is a hardware OVP. Only applies to Keysight N6784A and N6783A. OC - Over-current protection is a programmable function that can be enabled or disabled. When enabled, the output will be disabled when the output current teaches the current limit setting.

  • Page 155: Set The Over-Voltage Protection

    CV to CC operation. Front Panel Menu Reference SCPI Command Select Protect\OCP To enable OCP: CURR:PROT:STAT ON, (@1) Check Enable to enable OCP. Then press Select. Keysight N6700C Operating and Service Guide...

  • Page 156: Set The Over-Power Protection

    110% of the module's power rating. You can program an over-power protection delay to prevent the over-power protection function from being triggered during the delay time. This Keysight N6700C Operating and Service Guide...

  • Page 157: Couple Output Protection

    Select. Set the Oscillation Protection This information applies to Keysight Models N678xA SMU only. If open sense leads or capacitive loads outside the allowable range cause the output to oscillate, the oscillation protection function detects the oscillation and latches the output off. The condition is annunciated on the front panel by the OSC status annunciator.

  • Page 158: Watchdog Timer Protection

    Then, clear the protection function as follows: Front Panel Menu Reference SCPI Command Select Protect\Clear To clear a protection fault: OUTP:PROT:CLE (@1) Select Clear. Keysight N6700C Operating and Service Guide...

  • Page 159: System-Related Operations

    *TST? Instrument Identification Keysight N6700C MPS mainframes are identified by the serial number located on the interface cover. Power module serial numbers are located on their top covers. The serial number consists of a 10-character number (e.g. MY24D00013) located on the label on the top of the interface board.

  • Page 160: Instrument State Storage

    Select Recall State 0. Then press Select. Output Groups Output grouping does not apply to Keysight Models N678xA SMU. Output channels can be configured or “grouped” to create a single output with higher current and power capability. Almost all instrument functionality is supported by grouped channels, including...

  • Page 161: Front Panel Display

    When output channels have been grouped, they are addressed using the channel number of the lowest channel in the group. Power limiting should not be used when Keysight N673xB, N674xB, and N677xA power modules are grouped. Refer to Power Allocation.
  • Page 162 Saver checkbox. Then press Select. Enter a value in minutes in the Saver Delay field to specify the time when the screen saver will activate. Check Wake on I/O to activate the display with I/O bus activity. Keysight N6700C Operating and Service Guide...

  • Page 163: Front Panel Keys

    You can configure the On/Off key to enable or disable ALL outputs. Front Panel Menu Reference SCPI Command Select System\Preferences\Keys Not available Check On/Off key affects all channels. Press Select. The ON/Off key will now be active on ALL channels. Keysight N6700C Operating and Service Guide...

  • Page 164: Password Protection

    If the message "Locked out by internal switch setting" or "Calibration is inhibited by switch setting" appears, the internal switch is set to prevent the password from being changed. Refer to Calibration Switches for more information. Keysight N6700C Operating and Service Guide...

  • Page 165: Mainframe Power Allocation

    Power Limit Allocation Mainframe Power Ratings For the majority of Keysight N6700C MPS configurations, full power is available from all installed power modules. However, it is possible to configure a power system in which the combined ratings of the power modules exceed the power rating of the mainframe. The power system will continue to operate normally as long as the combined module output power is within the power rating of the mainframe.

  • Page 166: Power Limit Allocation

    For Keysight N675xA, and N676xA power modules, the power limit function will limit the output power at its programmed setting. A status bit (CP+) will indicate that the output is in power limit mode. When the power drawn by the load is reduced below the power limit setting, the output automatically returns to normal operation - either constant voltage or constant current mode.

  • Page 167: Operating Mode Tutorial

    Keysight N679xA Load Module Operation Single-Quadrant Operation The Keysight N6700C Modular Power System can operate in either constant voltage (CV) or constant current (CC) over the rated output voltage and current. Constant voltage mode is defined as an operating mode in which the dc source maintains its output voltage at the programmed voltage setting in spite of changes in load, line, or temperature.

  • Page 168: Multi-Quadrant Operation

    Keysight Models N678xA SMU can be operated in either voltage or current priority mode. They can source as well as sink output power. Note that Keysight Models N6781A, N6782A, N6785A, and N6786A operate only in the + Voltage quadrants. Voltage Priority Mode In voltage priority mode, the output voltage should be programmed to the desired positive or negative value.
  • Page 169 OV or OV- and the PROT status bits will be set. Either the user-defined over-voltage setting or the local over-voltage function can trip the over- voltage protection. Keysight N6700C Operating and Service Guide...
  • Page 170 Either a LIM+ (positive voltage limit) or LIM- (negative voltage limit) status flag is set to indicate that either the positive or negative voltage limit has been reached. Keysight N6700C Operating and Service Guide...

  • Page 171: Keysight N679Xa Load Module Operation

    OC and PROT status bits will be set. Keysight N679xA Load Module Operation The operating modes of operation for Keysight N6791xA Load modules are: current priority, voltage priority, power priority, and resistance priority. When programmed to a mode, a module remains in that mode until the mode is changed or until a fault condition, such as an over=power or over-temperature occurs.
  • Page 172 In this mode, the load module will regulate the power being drawn from the DUT according to the programmed constant power value. The load module regulates the input power by measuring the input voltage and current and adjusting the input power based on data streamed from the measurement ADCs. Keysight N6700C Operating and Service Guide...
  • Page 173 The load module automatically selects the resistance range that best corresponds to the resistance value that you program. If the resistance value falls in a region where ranges overlap, the load selects the range with the highest resolution for the resistance value Keysight N6700C Operating and Service Guide...

  • Page 175: Scpi Programming Reference

    Keysight N6700C Series Operating and Service Guide SCPI Programming Reference Related Information Introduction to the SCPI Language Commands by Subsystem Status Tutorial Reset and Non-Volatile Settings SCPI Error Messages Compatibility With A and B Version MPS...

  • Page 176: Related Information

    USB/LAN/GPIB Interfaces Connectivity Guide included with the Keysight IO Libraries Suite. Web Interface The N6700C series provides a Web interface that is built into the instrument. You can use this interface over LAN for remote access and control of the instrument via a Web browser. See...

  • Page 177: Introduction To The Scpi Language

    Some [optional] commands have been included for clarity OUTPut [:STATe] OFF|0|ON|1,(@1)       :INHibit             :MODE OFF       :PROTection             :CLEar (@1) Keywords Keywords, also referred to as headers, are instructions recognized by the instrument. Common commands are also keywords. Keysight N6700C Operating and Service Guide...

  • Page 178: Queries

    This also occurs if a level is programmed with a value too large for the present range. These types of errors can be avoided by sending the both level and range commands as a set, in the same SCPI message. For example, CURRent 10,(@1);CURRent:RANGe 10,(@1)<NL> Keysight N6700C Operating and Service Guide...

  • Page 179: Command Separators And Terminators

    <NL>. A carriage return followed by a new line (<CR><NL>) is also accepted. Command string termination will always reset the current SCPI command path to the root level. Keysight N6700C Operating and Service Guide...

  • Page 180: Syntax Conventions

    When adding a channel list parameter to a query, you must include a space character between the query indicator (?) and the channel list parameter. Otherwise error –103, Invalid separator will occur. Keysight N6700C Operating and Service Guide...
  • Page 181 You can include the quote delimiter as part of the string by typing it twice without any characters in between. The following command uses a string parameter: CALibrate:DATE "12/12/12",(@1) Keysight N6700C Operating and Service Guide...

  • Page 182: Device Clear

    The instrument returns to the trigger idle state. The instrument's input and output buffers are cleared. The instrument is prepared to accept a new command string. The ABORt command is the recommended method to terminate an instrument operation. Keysight N6700C Operating and Service Guide...

  • Page 183: Commands By Subsystem

    5 SCPI Programming Reference Commands by Subsystem Abort Calibrate Current Digital Display Fetch Format Function Hcopy IEEE 488.2 Common Initiate List Measure Output Power Resistance Sense Status Step System Trigger Voltage Keysight N6700C Operating and Service Guide...

  • Page 184: Abort Commands

    ABORt:ACQuire and ABORt:TRANsient are also executed at power-on and upon execution of the *RST command. Abort:TRANsient does not turn off continuous triggers if INITiate:CONTinuous:TRANsient ON been programmed. In this case, the trigger system will automatically re-initiate. Keysight N6700C Operating and Service Guide...

  • Page 185: Arb Commands

    Arb at any time. When the Arb is aborted, the output returns to the settings that were in effect before the Arb started. If a count of 9.9E37 is returned, it means that the Arb is set to repeat continuously. Keysight N6700C Operating and Service Guide...
  • Page 186 Specifies a pulse TRAPezoid Specifies a trapezoid EXPonential Specifies a exponential waveform UDEFined Specifies a user-defined waveform CDWell Specifies a constant-dwell waveform SEQuence Specifies a sequence of arbitrary waveforms NONE Specifies no arbitrary waveform Keysight N6700C Operating and Service Guide...
  • Page 187 Sets the ARB to terminate with the voltage, resistance, or current set at the last Arb value: ARB:TERM:LAST ON,(@1) The query returns 0 if the output returns to the settings that were in effect before the Arb started, and 1 if the output remains at the last Arb value. Keysight N6700C Operating and Service Guide...
  • Page 188 Each block contains all the records for one of the channels given in the <chanlist> para- meter. If multiple channels are given, then each definite length arbitrary block of data is separated by a comma. Keysight N6700C Operating and Service Guide...
  • Page 189 Returns the number of current, voltage, power, or resistance points in a constant-dwell Arb in the form +n.nnnnnnE+nn. Parameter Typical Return (none) <number of points> Program a constant-dwell time of 0.2 seconds: ARB:CURR:CDW:DWEL 0.2,(@1) ARB:VOLT:CDW:DWEL 0.2,(@1) ARB:POW:CDW:DWEL 0.2,(@1) ARB:RESISTANCE:CDW:DWEL 0.2,(@1) Keysight N6700C Operating and Service Guide...
  • Page 190 Programs an end level current: ARB:CURR:EXP:END 1,(@1) Programs an end level voltage: ARB:VOLT:EXP:END 20,(@1) Programs an end level power: ARB:POW:EXP:END 50,(@1) Programs an end level resistance: ARB:RESISTANCE:EXP:END 100,(@1) Programs an end current for step 0: ARB:SEQ:STEP:CURR:EXP:END 1, 0,(@1) Keysight N6700C Operating and Service Guide...
  • Page 191 >, (@<chanlist>) [SOURce:]ARB:VOLTage:EXPonential:STARt:TIMe? [MIN|MAX,] (@<chanlist>) value [SOURce:]ARB:POWer:EXPonential:STARt:TIMe< >, (@<chanlist>) [SOURce:]ARB:POWer:EXPonential:STARt:TIMe? [MIN|MAX,] (@<chanlist>) value [SOURce:]ARB:RESISTANCE:EXPonential:STARt:TIMe< >, (@<chanlist>) [SOURce:]ARB:RESISTANCE:EXPonential:STARt:TIMe? [MIN|MAX,] (@<chanlist>) Specifies the delay in seconds after the trigger is received, but before the exponential waveform occurs. Keysight N6700C Operating and Service Guide...
  • Page 192 >, (@<chanlist>) step# [SOURce:]ARB:SEQuence:STEP:RESISTANCE:EXPonential:TCONstant ? [MIN|MAX,] < >, (@<chanlist>) Specifies the time constant of the exponential curve for Arb sequence steps. Parameter Typical Return 0 – 262.144 | MIN | MAX, *RST 1 <time constant> Keysight N6700C Operating and Service Guide...
  • Page 193 Programs the total time for the voltage Arb: ARB:VOLT:EXP:TIM 10,(@1) Programs the total time for the power Arb: ARB:POW:EXP:TIM 10,(@1) Programs the total time for the resistance Arb: ARB:RESISTANCE:EXP:TIM 10,(@1) Programs the total time for step 0: ARB:SEQ:STEP:CURR:EXP:TIM 10, 0,(@1) Keysight N6700C Operating and Service Guide...
  • Page 194 Programs an end time for the voltage pulse:ARB:VOLT:PULS:END:TIM 2,(@1) Programs an end time for the power pulse:ARB:POW:PULS:END:TIM 2,(@1) Programs an end time for the resistance pulse:ARB:RESISTANCE:PULS:END:TIM 2,(@1) Programs an end time for step 0: ARB:SEQ:STEP:CURR:PULS:END:TIM 2, 0,(@1) Keysight N6700C Operating and Service Guide...
  • Page 195 >, (@<chanlist>) [SOURce:]ARB:VOLTage:PULSe:STARt[:LEVel]? [MIN|MAX,] (@<chanlist>) value [SOURce:]ARB:POWer:PULSe:STARt[:LEVel] < >, (@<chanlist>) [SOURce:]ARB:POWer:PULSe:STARt[:LEVel]? [MIN|MAX,] (@<chanlist>) value [SOURce:]ARB:RESISTANCE:PULSe:STARt[:LEVel] < >, (@<chanlist>) [SOURce:]ARB:RESISTANCE:PULSe:STARt[:LEVel]? [MIN|MAX,] (@<chanlist>) Specifies the current, voltage, power, or resistance before and after the pulse occurs. Keysight N6700C Operating and Service Guide...
  • Page 196 >, (@<chanlist>) value step# [SOURce:]ARB:SEQuence:STEP:RESISTANCE:PULSe:STARt:TIMe < >, < >, (@<chanlist>) step# [SOURce:]ARB:SEQuence:STEP:RESISTANCE:PULSe:STARt:TIMe? [MIN|MAX,] < >, (@<chanlist>) Specifies the delay in seconds after the trigger is received, but before the pulse occurs for Arb sequence steps. Keysight N6700C Operating and Service Guide...
  • Page 197 Programs the top level current: ARB:CURR:PULS:TOP 2,(@1) Programs the top level voltage: ARB:VOLT:PULS:TOP 20,(@1) Programs the top level power: ARB:POW:PULS:TOP 50,(@1) Programs the top level resistance: ARB:RESISTANCE:PULS:TOP 20,(@1) Programs the top level for step 0: ARB:SEQ:STEP:CURR:PULS:TOP 2, 0,(@1) Keysight N6700C Operating and Service Guide...
  • Page 198 Programs a top time for the voltage pulse: ARB:VOLT:PULS:TOP:TIM 2,(@1) Programs a top time for the power pulse: ARB:POW:PULS:TOP:TIM 2,(@1) Programs a top time for the resistance pulse: ARB:RESISTANCE:PULS:TOP:TIM 2,(@1) Programs a top time for step 0: ARB:SEQ:STEP:CURR:PULS:TOP:TIM 2, 0,(@1) Keysight N6700C Operating and Service Guide...
  • Page 199 Programs an end level current: ARB:CURR:RAMP:END 2,(@1) Programs an end level voltage: ARB:VOLT:RAMP:END 20,(@1) Programs an end level power: ARB:POW:RAMP:END 20,(@1) Programs an end level resistance: ARB:RESISTANCE:RAMP:END 50,(@1) Programs an end level current for step 0: ARB:SEQ:STEP:CURR:RAMP:END 2, 0,(@1) Keysight N6700C Operating and Service Guide...
  • Page 200 >, (@<chanlist>) [SOURce:]ARB:CURRent:RAMP:RTIMe? [MIN|MAX,] (@<chanlist>) value [SOURce:]ARB:VOLTage:RAMP:RTIMe< >, (@<chanlist>) [SOURce:]ARB:VOLTage:RAMP:RTIMe? [MIN|MAX,] (@<chanlist>) value [SOURce:]ARB:POWer:RAMP:RTIMe< >, (@<chanlist>) [SOURce:]ARB:POWer:RAMP:RTIMe? [MIN|MAX,] (@<chanlist>) value [SOURce:]ARB:RESISTANCE:RAMP:RTIMe< >, (@<chanlist>) [SOURce:]ARB:RESISTANCE:RAMP:RTIMe? [MIN|MAX,] (@<chanlist>) Specifies the rise time of the ramp in seconds. Keysight N6700C Operating and Service Guide...
  • Page 201 [SOURce:]ARB:SEQuence:STEP:POWer:RAMP:STARt[:LEVel]? [MIN|MAX,] < >, (@<chanlist>) value step# [SOURce:]ARB:SEQuence:STEP:RESISTANCE:RAMP:STARt[:LEVel] < >, < >, (@<chanlist>) step# [SOURce:]ARB:SEQuence:STEP:RESISTANCE:RAMP:STARt[:LEVel]? [MIN|MAX,] < >, (@<chanlist>) Specifies the initial current, voltage, power, or resistance level before the ramp occurs for Arb sequence steps. Keysight N6700C Operating and Service Guide...
  • Page 202 Programs a start time for the voltage ramp: ARB:VOLT:RAMP:STAR:TIM 1,(@1) Programs a start time for the power ramp: ARB:POW:RAMP:STAR:TIM 1,(@1) Programs a start time for the resistance ramp: ARB:RESISTANCE:RAMP:STAR:TIM 1,(@1) Programs a start time for step 0: ARB:SEQ:STEP:CURR:RAMP:STAR:TIM 1, 0,(@1) Keysight N6700C Operating and Service Guide...
  • Page 203 Programs a current amplitude: ARB:CURR:SIN:AMPL 5,(@1) Programs a voltage amplitude: ARB:VOLT:SIN:AMPL 10,(@1) Programs a power amplitude: ARB:POW:SIN:AMPL 30,(@1) Programs a resistance amplitude: ARB:RESISTANCE:SIN:AMPL 50,(@1) Programs a current amplitude for step 0: ARB:SEQ:STEP:CURR:SIN:AMPL 5, 0,(@1) Keysight N6700C Operating and Service Guide...
  • Page 204 >, (@<chanlist>) [SOURce:]ARB:VOLTage:SINusoid:OFFSet? [MIN|MAX,] (@<chanlist>) value [SOURce:]ARB:POWer:SINusoid:OFFSet < >, (@<chanlist>) [SOURce:]ARB:POWer:SINusoid:OFFSet? [MIN|MAX,] (@<chanlist>) value [SOURce:]ARB:RESISTANCE:SINusoid:OFFSet < >, (@<chanlist>) [SOURce:]ARB:RESISTANCE:SINusoid:OFFSet? [MIN|MAX,] (@<chanlist>) Specifies the offset of the current, voltage, power, or resistance sine wave from zero. Keysight N6700C Operating and Service Guide...
  • Page 205 Programs a current offset: ARB:CURR:SIN:OFFS 5,(@1) Programs a voltage offset: ARB:VOLT:SIN:OFFS 10,(@1) Programs a power offset: ARB:POW:SIN:OFFS 30,(@1) Programs a resistance offset: ARB:RESISTANCE:SIN:OFFS 50,(@1) Programs a current offset for step 0: ARB:SEQ:STEP:CURR:SIN:OFFS 5, 0,(@1) Keysight N6700C Operating and Service Guide...
  • Page 206 Programs an end level current: ARB:CURR:STA:END 2,(@1) Programs an end level voltage: ARB:VOLT:STA:END 20,(@1) Programs an end level power: ARB:POW:STA:END 20,(@1) Programs an end level resistance: ARB:RESISTANCE:STA:END 50,(@1) Programs an end level current for step 0: ARB:SEQ:STEP:CURR:STA:END 2, 0,(@1) Keysight N6700C Operating and Service Guide...
  • Page 207 >, (@<chanlist>) [SOURce:]ARB:CURRent:STAircase:NSTeps? [MIN|MAX,] (@<chanlist>) value [SOURce:]ARB:VOLTage:STAircase:NSTeps< >, (@<chanlist>) [SOURce:]ARB:VOLTage:STAircase:NSTeps? [MIN|MAX,] (@<chanlist>) value [SOURce:]ARB:POWer:STAircase:NSTeps< >, (@<chanlist>) [SOURce:]ARB:POWer:STAircase:NSTeps? [MIN|MAX,] (@<chanlist>) value [SOURce:]ARB:RESISTANCE:STAircase:NSTeps< >, (@<chanlist>) [SOURce:]ARB:RESISTANCE:STAircase:NSTeps? [MIN|MAX,] (@<chanlist>) Specifies the number of steps in the staircase. Keysight N6700C Operating and Service Guide...
  • Page 208 Specifies the initial current, voltage, power, or resistance before the staircase occurs for Arb sequence steps. The difference between the start level and the end level is divided equally among the number of steps. Keysight N6700C Operating and Service Guide...
  • Page 209 Programs a start time for the voltage staircase:ARB:VOLT:STA:STAR:TIM 1,(@1) Programs a start time for the power staircase:ARB:POW:STA:STAR:TIM 1,(@1) Programs a start time for the resistance staircase: ARB:RESISTANCE:STA:STAR:TIM 1,(@1) Programs a start time for step 0:ARB:SEG:STEP:CURR:STA:STAR:TIM 1, 0,(@1) Keysight N6700C Operating and Service Guide...
  • Page 210 Programs a time for the voltage staircase: ARB:VOLT:STA:TIM 10,(@1) Programs a time for the power staircase: ARB:POW:STA:TIM 10,(@1) Programs a time for the resistance staircase: ARB:RESISTANCE:STA:TIM 10,(@1) Programs a time for step 0:ARB:SEG:STEP:CURR:STA:TIM 10, 0,(@1) Keysight N6700C Operating and Service Guide...
  • Page 211 Programs the step level current: ARB:CURR:STEP:END 2,(@1) Programs the step level voltage: ARB:VOLT:STEP:END 20,(@1) Programs the step level power: ARB:POW:STEP:END 50,(@1) Programs the step level resistance: ARB:RESISTANCE:STEP:END 100,(@1) Programs a step level for step 0: ARB:SEQ:STEP:CURR:STEP:END 2, 0,(@1) Keysight N6700C Operating and Service Guide...
  • Page 212 >, (@<chanlist>) [SOURce:]ARB:VOLTage:STEP:STARt:TIMe? [MIN|MAX,] (@<chanlist>) value [SOURce:]ARB:POWer:STEP:STARt:TIMe< >, (@<chanlist>) [SOURce:]ARB:POWer:STEP:STARt:TIMe? [MIN|MAX,] (@<chanlist>) value [SOURce:]ARB:RESISTANCE:STEP:STARt:TIMe< >, (@<chanlist>) [SOURce:]ARB:RESISTANCE:STEP:STARt:TIMe? [MIN|MAX,] (@<chanlist>) Specifies the delay in seconds after the trigger is received, but before the step occurs. Keysight N6700C Operating and Service Guide...
  • Page 213 Programs a start time for the voltage step: ARB:VOLT:STEP:STAR:TIM 1,(@1) Programs a start time for the power step: ARB:POW:STEP:STAR:TIM 1,(@1) Programs a start time for the resistance step: ARB:RESISTANCE:STEP:STAR:TIM 1,(@1) Programs a start time for step 0: ARB:SEQ:STEP:CURR:STEP:STAR:TIM 1, 0,(@1) Keysight N6700C Operating and Service Guide...
  • Page 214 Programs an end time after the voltage trapezoid: ARB:VOLT:TRAP:END:TIM 2,(@1) Programs an end time after the power trapezoid: ARB:POW:TRAP:END:TIM 2,(@1) Programs an end time after the resistance trapezoid: ARB:RESISTANCE:TRAP:END:TIM 2,(@1) Programs an end time for step 0:ARB:SEQ:STEP:CURR:TRAP:END:TIM 2, 0,(@1) Keysight N6700C Operating and Service Guide...
  • Page 215 >, (@<chanlist>) [SOURce:]ARB:CURRent:TRAPezoid:RTIMe? [MIN|MAX,] (@<chanlist>) value [SOURce:]ARB:VOLTage:TRAPezoid:RTIMe< >, (@<chanlist>) [SOURce:]ARB:VOLTage:TRAPezoid:RTIMe? [MIN|MAX,] (@<chanlist>) value [SOURce:]ARB:POWer:TRAPezoid:RTIMe< >, (@<chanlist>) [SOURce:]ARB:POWer:TRAPezoid:RTIMe? [MIN|MAX,] (@<chanlist>) value [SOURce:]ARB:RESISTANCE:TRAPezoid:RTIMe< >, (@<chanlist>) [SOURce:]ARB:RESISTANCE:TRAPezoid:RTIMe? [MIN|MAX,] (@<chanlist>) Specifies the rise time of the trapezoid in seconds. Keysight N6700C Operating and Service Guide...
  • Page 216 >, (@<chanlist>) value step# [SOURce:]ARB:SEQuence:STEP:RESISTANCE:TRAPezoid:STARt[:LEVel] < >, < >, (@<chanlist>) step# [SOURce:]ARB:SEQuence:STEP:RESISTANCE:TRAPezoid:STARt[:LEVel]? [MIN|MAX,] < >, (@<chanlist>) Specifies the initial and final current, voltage, power, or resistance level of the trapezoid for Arb sequence steps. Keysight N6700C Operating and Service Guide...
  • Page 217 Programs a start time for the voltage trapezoid: ARB:VOLT:TRAP:STAR:TIM 1,(@1) Programs a start time for the power trapezoid: ARB:POW:TRAP:STAR:TIM 1,(@1) Programs a start time for the resistance trapezoid: ARB:RESISTANCE:TRAP:STAR:TIM 1,(@1) Programs a start time for step 0: ARB:SEQ:STEP:CURR:TRAP:STAR:TIM 1, 0,(@1) Keysight N6700C Operating and Service Guide...
  • Page 218 [SOURce:]ARB:CURRent:TRAPezoid:TOP:TIMe? [MIN|MAX,] (@<chanlist>) value [SOURce:]ARB:VOLTage:TRAPezoid:TOP:TIMe< >, (@<chanlist>) [SOURce:]ARB:VOLTage:TRAPezoid:TOP:TIMe? [MIN|MAX,] (@<chanlist>) value [SOURce:]ARB:POWer:TRAPezoid:TOP:TIMe< >, (@<chanlist>) [SOURce:]ARB:POWer:TRAPezoid:TOP:TIMe? [MIN|MAX,] (@<chanlist>) value [SOURce:]ARB:RESISTANCE:TRAPezoid:TOP:TIMe< >, (@<chanlist>) [SOURce:]ARB:RESISTANCE:TRAPezoid:TOP:TIMe? [MIN|MAX,] (@<chanlist>) Specifies the time of the top level of the trapezoid in seconds. Keysight N6700C Operating and Service Guide...
  • Page 219 Programs a top time for the voltage trapezoid: ARB:VOLT:TRAP:TOP:TIM 2,(@1) Programs a top time for the power trapezoid: ARB:POW:TRAP:TOP:TIM 2,(@1) Programs a top time for the resistance trapezoid: ARB:RESISTANCE:TRAP:TOP:TIM 2,(@1) Programs a top time for step 0: ARB:SEQ:STEP:CURR:TRAP:TOP:TIM 2, 0,(@1) Keysight N6700C Operating and Service Guide...
  • Page 220 To create a valid user-defined Arb, the current level, voltage level, power level, resistance level, BOST, and dwell lists must either all be the same length, or have a length of 1, which is inter- polated as having the same length as the maximum length list. Keysight N6700C Operating and Service Guide...
  • Page 221 Dwell time is the time that the output will remain at a specific point. Dwell times can be programmed from 0 through 262.144 seconds with the resolution shown in the table below: Keysight N6700C Operating and Service Guide...
  • Page 222 BOST, and dwell lists must either all be the same length, or have a length of 1, which is inter- polated as having the same length as the maximum length list. [SOURce:]ARB:CURRent:UDEFined:DWELl:POINts? (@<chanlist>) [SOURce:]ARB:VOLTage:UDEFined:DWELl:POINts? (@<chanlist>) [SOURce:]ARB:POWer:UDEFined:DWELl:POINts? (@<chanlist>) [SOURce:]ARB:RESISTANCE:UDEFined:DWELl:POINts? (@<chanlist>) Returns the number of dwell points in the user-defined Arb, not the point values. Keysight N6700C Operating and Service Guide...
  • Page 223 [SOURce:]ARB:SEQuence:STEP:RESISTANCE:UDEFined:LEVel? < >, (@<chanlist>) Specifies the level of each current, voltage, power, or resistance point in a user-defined Arb for Arb sequence steps. The last value in the sequence is the step number. Keysight N6700C Operating and Service Guide...
  • Page 224 Returns the number of voltage points: ARB:VOLT:UDEF:LEV:POIN? (@1) Returns the number of power points: ARB:POW:UDEF:LEV:POIN? (@1) Returns the number of resistance points: ARB:RESISTANCE:UDEF:LEV:POIN? (@1) Returns the number of points for step 0: ARB:SEQ:STEP:CURR:UDEF:LEV:POIN? 0,(@1) Keysight N6700C Operating and Service Guide...
  • Page 225 511-point limit. Parameter Typical Return (none) a value between 16 and 100 Returns the quality of the Arb sequence : ARB:SEQ:QUAL? (@1) Keysight N6700C Operating and Service Guide...
  • Page 226 Arb command. The <step#> parameter indicates the step number within the Arb sequence. The following Arb functions use the ARB:SEQuence <step#> format: Exponential, Pulse, Ramp, Sinusoid, Staircase, Step, Trapezoid, and User-defined. Keysight N6700C Operating and Service Guide...
  • Page 227 When dwell paced, the step moves to the next step when the dwell time is finished. TRIGgered When trigger paced, the step waits at the last value of the step until a trigger is received. The next step is started upon receipt of the trigger. Keysight N6700C Operating and Service Guide...
  • Page 228 Sets the sequence to terminate with the voltage, resistance, or current set at the last sequence value: ARB:SEQ:TERM:LAST ON,(@1) The query returns 0 if the output returns to the settings that were in effect before the sequence started, and 1 if the output remains at the last sequence value. Keysight N6700C Operating and Service Guide...

  • Page 229: Calibrate Commands

    Typical Return The maximum current of the range. (none) Calibrates the negative current limit: CAL:CURR:LIM:NEG -2, (@1) CALibrate:CURRent:LIMit:POSitive <value>, (@<channel>) Calibrates the positive current limit. The value entered selects the range that is being calibrated. Keysight N6700C Operating and Service Guide...
  • Page 230 <"date">String program data. Enclose string parameters in Date of last calibration single or double quotes. Enters the calibration date: CAL:DATE "12/12/12" The firmware does not interpret the string format. The command only stores the calibration date. Keysight N6700C Operating and Service Guide...
  • Page 231 Calibrates the output resistance. The parameter selects the voltage range. Note that the 6 V range only applies to Model N6781A. Parameter Typical Return 20|6 (none) Calibrates the output resistance of the 20 V range: CAL:RES 20, (@1) Keysight N6700C Operating and Service Guide...
  • Page 232 Calibrates the output voltage. The value entered selects the range that is being calibrated. Parameter Typical Return The maximum voltage of the range. (none) Calibrates the voltage of the 50 V range: CAL:VOLT 51, (@1) CALibrate:VOLTage:CMRR (@<channel>) Calibrates the voltage common mode rejection ratio. Keysight N6700C Operating and Service Guide...
  • Page 233 The maximum voltage of the range. (none) Calibrates the voltage measurement range: CAL:VOLT:MEAS 51, (@1) CALibrate:VOLTage:MEASure:AUXiliary (@<channel>) Calibrates the auxiliary voltage measurement input. Parameter Typical Return (none) (none) Calibrates the auxiliary voltage measurement input: CAL:VOLT:MEAS:AUX (@1) Keysight N6700C Operating and Service Guide...

  • Page 234: Current Commands

    The query returns the programmed current limit in the form +n.nnnnnnE+nn for each channel spe- cified. Multiple responses are separated by commas. The negative current limit of Model N6783A-MFG is not programmable, but is fixed at -2A. Keysight N6700C Operating and Service Guide...
  • Page 235 <delay value> Sets the protection delay to 0.2 seconds: CURR:PROT:DEL 0.2, (@1) The operation of over-current protection is affected by the setting of the current protection delay start event, which is specified by CURRent:PROTection:DELay:STARt. Keysight N6700C Operating and Service Guide...
  • Page 236 Parameter Typical Return 0 - maximum|MIN|MAX, *RST MAX <current range> The maximum value is 102% of the current rating of the power module. Sets the output current range to 3 A: CURR:RANG 3, (@1) Keysight N6700C Operating and Service Guide...
  • Page 237 [SOURce:]CURRent:SLEW:COUPle 0|OFF|1|ON, (@<chanlist>) [SOURce:]CURRent:SLEW:COUPle? (@<chanlist>) Sets the current slew tracking state. Parameter Typical Return 0|OFF|1|ON, *RST OFF 0 or 1 Enables the current slew tracking state: CURR:SLEW:COUP ON, (@1) Keysight N6700C Operating and Service Guide...
  • Page 238 The CURRent:SLEW:MAX command is coupled to the CURRent:SLEW command. If the CURRent:SLEW command sets the slew rate to MAX or INFinity, CURRent:SLEW:MAX is enabled. If the slew rate is set to any other value, CURRent:SLEW:MAX is disabled. Keysight N6700C Operating and Service Guide...

  • Page 239: Digital Commands

    Pin 3 functions as an inhibit input. INHibit Pins 4 -7 synchronize the output On state. ONCouple Pins 4 -7 synchronize the output Off state. OFFCouple A trigger input function. TINPut A trigger output function TOUTput Keysight N6700C Operating and Service Guide...
  • Page 240 Enable BUS triggered signals on the digital pins: CURR:TOUT:BUS ON The query returns 0 (OFF) if the trigger signal will NOT be generated with a BUS trigger command, and 1(ON) if a trigger signal will be generated with a BUS trigger command. Keysight N6700C Operating and Service Guide...

  • Page 241: Display Commands

    METER4 displays all output channels up to a maximum of four. METER_VIP displays voltage, current, and power for one channel. Parameter Typical Return METER1|METER4|METER_VIP, *RST METER1 METER1, METER4, METER_VIP Sets the front panel to display up to four channels: DISP VIEW METER4 Keysight N6700C Operating and Service Guide...

  • Page 242: Fetch Commands

    Returns the High level of a pulse waveform.  Values returned are either in amperes, or volts.  See Measurement Types. The reading is in the form +n.nnnnnnE+nn for each channel specified. Multiple responses are separated by commas. Keysight N6700C Operating and Service Guide...
  • Page 243 Returns the measured maximum voltage FETC:VOLT:MAX? (@1) Returns the measured maximum power FETC:POW:MAX? (@1) FETCh:ARRay:CURRent[:DC]? (@<chanlist>) FETCh:ARRay:VOLTage[:DC]? (@<chanlist>)  FETCh:ARRay:POWer[:DC]? (@<chanlist>) Returns an array with the instantaneous measurement. Values returned are either in amperes, volts, or watts. Keysight N6700C Operating and Service Guide...
  • Page 244 REAL, data is returned as single precision floating point values in definite length arbitrary block response format. Parameter Typical Return [<maxrecords>] the number of records <value> [,<value>] returned (1 to 16,384) or <Block> Returns 100 data records FETC:ELOG? 100, (@1) Keysight N6700C Operating and Service Guide...

  • Page 245: Format Commands

    Parameter Typical Return NORMal|SWAPped, *RST NORMal NORM or SWAP Sets the data transfer to Swapped: FORM:BORD SWAP The byte order is used when fetching real data from SCPI measurements. These include: FETC:ARR:CURR? and FETC:ARR:VOLT?. Keysight N6700C Operating and Service Guide...

  • Page 246: Function Command

    Refer to Operating Mode Tutorial for more information. Parameter Typical Return CURRent|VOLTage|POWer|RESistance, CURR, VOLT, POW, or RES *RST CURRent for N679xA *RST VOLTage for N678xA SMU Selects current priority regulation mode: FUNC CURR, (@1) Keysight N6700C Operating and Service Guide...

  • Page 247: Hcopy Commands

    Returns the image in GIF format: HCOP:SDUM:DATA? GIF HCOPy:SDUMp:DATA:FORMat BMP|GIF|PNG HCOPy:SDUMp:DATA:FORMat? Specifies the format for front panel images returned. Parameter Typical Return BMP|GIF|PNG, *RST PNG BMP, GIF, or PNG Specify GIF as the image format: HCOP:SDUM:DATA:FORM GIF Keysight N6700C Operating and Service Guide...

  • Page 248: Ieee 488.2 Common Commands

    Standard Event Status group. The event register is a read-only register, which stores (latches) all standard events. Refer to Status Tutorial for more information. Parameter Typical Return (none) <bit value> Read event status enable register: *ESR? Keysight N6700C Operating and Service Guide...
  • Page 249 *OPC? returns a 1 to the Output buffer when all pending operations complete. The response is delayed until all pending operations complete. Parameter Typical Return (none) Sets the Operation Complete bit: *OPC Returns a 1 when commands complete: *OPC? Keysight N6700C Operating and Service Guide...
  • Page 250 Returns the output channel descriptions. The description is an arbitrary ASCII string with up to four semicolon-separated fields. To read the string into your computer, be sure to dimension a string variable with at least 50 characters. Keysight N6700C Operating and Service Guide...
  • Page 251 Summary (MSS) bit and the Request for Service (RQS) summary bit. A 1 in any Service Request Enable register bit position enables the corresponding Status Byte register bit. All such enabled bits are then Keysight N6700C Operating and Service Guide...
  • Page 252 SelfTest Query. Performs an instrument self-test. A 0 (zero) indicates the instrument passed self-test. If self-test fails, one or more error messages will provide additional information. Use SYSTem:ERRor? to read the error queue. See SCPI Error Messages for more information. Keysight N6700C Operating and Service Guide...
  • Page 253 Pauses additional command processing until all pending operations are complete. See *OPC for more information. Parameter Typical Return (none) (none) Wait until all pending operations complete.*WAI *WAI can only be aborted by sending the instrument a Device Clear command. Keysight N6700C Operating and Service Guide...

  • Page 254: Initiate Commands

    INITiate:CONTinuous:TRANsient 0|OFF|1|ON, (@<chanlist>) INITiate:CONTinuous:TRANsient? (@<chanlist>) Continuously initiates the transient trigger system. This allows multiple triggers to generate multiple output transients. Parameter Typical Return 0|OFF|1|ON , *RST ON 0 or 1 Continually initiates the trigger system: INIT:CONT:TRAN ON, (@1) Keysight N6700C Operating and Service Guide...
  • Page 255 With continuous triggering disabled, the trigger system must be initiated for each trigger using the INITiate:TRANsient command. ABORt:TRANsient does not abort continuous triggers if INITiate:CONTinuous:TRANsient ON has been programmed. In this case, the trigger system will automatically re-initiate. Keysight N6700C Operating and Service Guide...

  • Page 256: List Commands

    512 steps may be programmed. Parameter Typical Return 0 to maximum. Values are range and module-rating dependent. <list value 1>, *RST 1 step set to the minimum programmable value. <list value 2>, <list value 3>... Keysight N6700C Operating and Service Guide...
  • Page 257 1, which is interpreted as having the same length as the longest list. This command overwrites any present list in active memory; it does not append to the present list. Keysight N6700C Operating and Service Guide...
  • Page 258 Parameter Typical Return 0|OFF|1|ON , *RST OFF 0 or 1 Terminate with the output at the last step value: LIST:TERM:LAST ON, (@1) Keysight N6700C Operating and Service Guide...
  • Page 259 1, which is interpreted as having the same length as the longest list. This command overwrites any present list in active memory; it does not append to the present list. Keysight N6700C Operating and Service Guide...

  • Page 260: Lxi Commands

    To blink the front panel LXI indicator: LXI:IDEN ON LXI:MDNS[:STATe] 0|OFF|1|ON LXI:MDNS[:STATe]? Controls the state of the mDNS server. Enables or disables multitasking DNS service on a private LAN. Parameter Typical Return 0|OFF|1|ON , *RST OFF 0 or 1 To enable mDNS: LXI:MDNS ON Keysight N6700C Operating and Service Guide...

  • Page 261: Measure Commands

    Initiates, triggers, and returns the High level of a pulse waveform. Values returned are either in amperes, or volts. See Measurement Types. The reading is in the form +n.nnnnnnE+nn for each channel specified. Multiple responses are separated by commas. Keysight N6700C Operating and Service Guide...
  • Page 262 Returns the measured minimum voltage MEAS:VOLT:MIN? (@1) Returns the measured minimum power MEAS:POW:MIN? (@1) Returns the measured maximum current MEAS:CURR:MAX? (@1) Returns the measured maximum voltage MEAS:VOLT:MAX? (@1) Returns the measured maximum power MEAS:POW:MAX? (@1) Keysight N6700C Operating and Service Guide...
  • Page 263 REAL, data is returned as single precision floating point values in definite length arbitrary block response format. Parameter Typical Return (none) <value> [,<value>] or <Block> Returns the measured current array MEAS:ARR:CURR? (@1) Returns the measured power array MEAS:ARR:POW? (@1) Returns the measured voltage array MEAS:ARR:VOLT? (@1) Keysight N6700C Operating and Service Guide...

  • Page 264: Output Commands

    5 SCPI Programming Reference Output Commands Output commands control the output, power-on, and protection clear functions. Keysight N679xA Load Module inputs are referred to as "Outputs" throughout this document OUTPut[:STATe] 0|OFF|1|ON [,NORelay], (@<chanlist>) OUTPut[:STATe]? (@<chanlist>) Enables/disables the output. The state of a disabled output is a condition of zero output voltage and zero current.
  • Page 265 This parameter is saved in non-volatile memory. Parameter Typical Return 0 to 1.023 <delay value> Specifies a delay of 60 milliseconds: OUTP:COUP:DOFF 0.06 When this command is sent, all channels in the unit will go to the output off state. Keysight N6700C Operating and Service Guide...
  • Page 266 1.03E–1 to 1.023E+0 1 millisecond 1.03E–4 to 1.023E–3 1 microsecond 1.03E+0 to 1.023E+1 10 milliseconds 1.03E–3 to 1.023E–2 10 microseconds 1.03E+1 to 1.023E+2 100 milliseconds 1.03E–2 to 1.023E–1 100 microseconds 1.03E+2 to 1.023E+3 1 second Keysight N6700C Operating and Service Guide...
  • Page 267 LOWZ - sets the output to a low impedance mode at turn-off. In low impedance mode, the output is first down-programmed to zero, after which the output relays are opened. Parameter Typical Return HIGHz|LOWZ, *RST HIGHz HIGH or LOWZ Sets the turn-off mode to high impedance: OUTP:TMODE HIGH, (@1) Keysight N6700C Operating and Service Guide...
  • Page 268 Clears the latched protection status: OUTP:PROT:CLE (@1) All conditions that generate the fault must be removed before the latched status can be cleared. The output is restored to the state it was in before the fault condition occurred. Keysight N6700C Operating and Service Guide...
  • Page 269 Enables/Disables oscillation protection. If capacitive loads cause the output to oscillate on any of the bandwidth settings, this protection function will detect the oscillation and latch the output off. Parameter Typical Return 0|OFF|1|ON, *RST OFF 0 or 1 Enables oscillation protection: OUTP:PROT:OSC ON, (@1) Keysight N6700C Operating and Service Guide...
  • Page 270 Sets the polarity of the output relays on power modules with polarity reversal relays installed (Option 760). Polarity reversal affects both the output and the sense terminals. Normal causes the output polarity to be the same as the output connector labeling. Keysight N6700C Operating and Service Guide...
  • Page 271 Turning the short circuit on does not affect the programmed settings, and the load input will return to the previously programmed values when the short is turned off. Parameter Typical Return 0|OFF|1|ON, *RST OFF 0 or 1 Simulate a short on the load input terminals: OUTP:SHOR ON Keysight N6700C Operating and Service Guide...

  • Page 272: Power Commands

    Sets the power limit on output channels. Units are in Watts. For the majority of Keysight N6700C configurations, full power is available from all installed power modules. However, it is possible to configure a mainframe in which the combined ratings of the power...
  • Page 273 10%, the output is disabled and the Questionable Condition status register CP+ bit is set. Parameter Typical Return 0|OFF|1|ON, *RST OFF 0 or 1 Enable the power protection state: POW:PROT:STAT ON, (@1) A power protection condition can be cleared with OUTPut:PROTection:CLEar after the cause of the condition is removed. Keysight N6700C Operating and Service Guide...
  • Page 274 0 – 9.9E+37|MIN|MAX|INFinity, *RST MAX <slew rate> Sets the input power slew rate to 10 watts per second: POW:SLEW 10, (@1) Sets the negative input power slew rate to 10 watts per second: POW:SLEW:NEG 10, (@1) Keysight N6700C Operating and Service Guide...
  • Page 275 The POWer:SLEW:MAX command is coupled to the POWer:SLEW command. If the POWer:SLEW command sets the slew rate to MAX or INFinity, POWer:SLEW:MAX is enabled. If the slew rate is set to any other value, POWer:SLEW:MAX is disabled. Keysight N6700C Operating and Service Guide...

  • Page 276: Resistance Commands

    ARB - causes the resistance to follow the arbitrary waveform values when a trigger occurs. Parameter Typical Return FIXed|STEP|LIST|ARB, *RST FIXed FIX, STEP, LIST, or ARB Sets the resistance mode to Step: RES:MODE STEP, (@1) Keysight N6700C Operating and Service Guide...
  • Page 277 0 and 9.9E+37. For very large values, the slew rate will be limited by the analog performance of the output circuit. The keywords MAX or INFinity set the slew rate to maximum. Keysight N6700C Operating and Service Guide...
  • Page 278 RESistance:SLEW command sets the slew rate to MAX or INFinity, RESistance:SLEW:MAX is enabled. If the slew rate is set to any other value, RESistance:SLEW:MAX is disabled. [SOURce:]RESistance:STATe 0|OFF|1|ON, (@<chanlist>) [SOURce:]RESistance:STATe? (@<chanlist>) Enables/disables output resistance programming. Keysight N6700C Operating and Service Guide...
  • Page 279 0|OFF|1|ON , *RST OFF 0 or 1 Turns resistance programming on: RES:STAT ON, (@1) This command has been superceded by the VOLTage:RESistance:STAte command, which should be used in new applications. RESistance:STATe is still available for backward compatibility. Keysight N6700C Operating and Service Guide...

  • Page 280: Sense Commands

    Selects the 2 A range: SENS:CURR:RANG 2, (@1) The query returns the maximum current that can be measured on the range that is presently set. SENSe:CURRent[:DC]:RANGe:AUTO 0|OFF|1|ON, (@<chanlist>) SENSe:CURRent[:DC]:RANGe:AUTO? (@<chanlist>) Enables or disables seamless measurement autoranging. Keysight N6700C Operating and Service Guide...
  • Page 281 0|OFF|1|ON, *RST OFF 0 or 1 Enable Elog measurement autoranging: SENS:ELOG:CURR:RANG:AUTO ON, (@1) SENS:ELOG:VOLT:RANG:AUTO ON, (@1) SENSe:ELOG:FUNCtion:CURRent 0|OFF|1|ON, (@<chanlist>) SENSe:ELOG:FUNCtion:CURRent? (@<chanlist>) SENSe:ELOG:FUNCtion:VOLTage 0|OFF|1|ON, (@<chanlist>) SENSe:ELOG:FUNCtion:VOLTage? (@<chanlist>) Enables or disables the Elog current or voltage measurement function. Keysight N6700C Operating and Service Guide...
  • Page 282 This command is required so that the acquisition system knows which function to acquire when a measurement is triggered. Selecting NONE disables the measurement function. Parameter Typical Return "CURRent"|"VOLTage"|"NONE", *RST VOLTage CURR, VOLT, or NONE Selects the current measurement function: SENS:FUNC "CURR", (@1) Keysight N6700C Operating and Service Guide...
  • Page 283 Negative values represent data samples taken prior to the trigger. Parameter Typical Return –524,287 to 2,000,000,000|MIN|MAX, *RST 0 <offset points> Specifies -2048 offset points: SENS:SWE:OFFS:POIN -2048, (@1) Keysight N6700C Operating and Service Guide...
  • Page 284 Selects a DC voltage measurement range.  The value that you enter must be the highest value that you expect to measure.  Units are in volts.  The instrument selects the range with the best resolution for the value entered. Keysight N6700C Operating and Service Guide...
  • Page 285 4883 measurement points. The instrument will revert to a rectangular window when the points exceed 4883. Rectangular - window returns measurement calculations with no signal conditioning. Parameter Typical Return HANNing|RECTangular, *RST RECTangular RECT or HANN Specifies a Hanning window function: SENS:WIND HANN, (@1) Keysight N6700C Operating and Service Guide...

  • Page 286: Status Commands

    The enable register is a mask for enabling specific bits from the Operation Event register to set the OPER (operation summary) bit of the Status Byte register. STATus:PRESet clears all bits in the enable register. Keysight N6700C Operating and Service Guide...
  • Page 287 Presets all Enable, PTR, and NTR registers. Operation register Questionable register Preset setting STAT:OPER:ENAB STAT:QUES:ENAB all defined bits are disabled STAT:OPER:NTR STAT:QUES:NTR all defined bits are disabled STAT:OPER:PTR STAT:QUES:PTR all defined bits are enabled Keysight N6700C Operating and Service Guide...
  • Page 288 Status Byte register. STATus:PRESet clears all bits in the enable register. Parameter Typical Return A decimal value that corresponds to the binary-weighted sum of the bits <bit value> in the register. Enable bit 2 and 4 in the questionable enable register: STAT:QUES:ENAB 24, (@1) Keysight N6700C Operating and Service Guide...
  • Page 289 If the same bits in both NTR and PTR registers are set to 0, then no transition of that bit at the Ques- tionable Condition register can set the corresponding bit in the Questionable Event register . The value returned is the binary-weighted sum of all bits set in the register. Keysight N6700C Operating and Service Guide...

  • Page 290: Step Command

    Sets the step trigger signal to ON: STEP:TOUT ON The query command returns 0 if the trigger signal will NOT be generated (OFF) when a step occurs, and 1 if a trigger signal will be generated (ON) when a step occurs. Keysight N6700C Operating and Service Guide...

  • Page 291: System Commands

    SYSTem:CHANnel:SERial? (@<chanlist>) Returns the serial numbers of the selected channels. Multiple responses are separated by semicolons. Parameter Typical Return <channel list> MY00123456; MY00234567 Returns the serial numbers in channels 2 and 3: SYST:SER? (@2,3) Keysight N6700C Operating and Service Guide...
  • Page 292 Reads and clears the first error in error queue: SYST:ERR? The front-panel ERR annunciator turns on when one or more errors are currently stored in the error queue. Error retrieval is first-in-first-out (FIFO), and errors are cleared as you read them. Keysight N6700C Operating and Service Guide...
  • Page 293 All channels in a group must have identical model numbers and have identical options installed. Refer to Output Groups for more information. For the group definitions to take effect, reboot the unit by cycling AC power or sending the SYSTem:REBoot command. Keysight N6700C Operating and Service Guide...
  • Page 294 Resets the front panel lockout password to zero. This command does not reset the calibration password. The front panel password can also be reset to 0 by setting an internal switch on the unit. Refer to Calibration Switches for more information. Parameter Typical Return (none) (none) Keysight N6700C Operating and Service Guide...
  • Page 295 *IDN? contains "Agilent" instead of "Keysight" Default LAN hostname has the prefix A instead of K The LXI XML file fields include "Agilent" instead of "Keysight" The mDNS service name contains "Agilent" instead of "Keysight" The DEFault command returns the manufacturer's ID back to Keysight.
  • Page 296 Typical Return (none) <"version"> Return the SCPI version: SYST:VERS? The command returns a string in the form "YYYY.V", where YYYY represents the year of the version and V represents a version for that year. Keysight N6700C Operating and Service Guide...

  • Page 297: Trigger Commands

    Voltage: 0 - maximum|MIN|MAX, *RST 0 The maximum values are 102% of the rating of the module. Set the triggered current level to 3 A: TRIG:ACQ:CURR 3, (@1) Set the triggered voltage level to 50 V: TRIG:ACQ:VOLT 50, (@1) Keysight N6700C Operating and Service Guide...
  • Page 298 TRIGger:ARB:SOURce - selects the trigger source for the arbitrary waveform generator. TRIGger:ELOG:SOURce - selects the trigger source for external data logging. TRIGger:TRANsient:SOURce - selects the trigger source for the transient system. The following trigger sources can be selected for the specified trigger system: Keysight N6700C Operating and Service Guide...
  • Page 299 Improves the time alignment of measurement triggers with measurement data when enabled. The power-on state is OFF for backwards compatibility. Parameter Typical Return 0|OFF|1|ON, *RST OFF 0 or 1 To improve the measurement trigger alignment: TRIG:MEAS:TAL:CORR ON, (@1) Keysight N6700C Operating and Service Guide...

  • Page 300: Voltage Commands

    7–150 μF <frequency> specifies the bandwidth range frequency. This setting is optional, for faster output response time above the default frequency. The minimum frequencies are also the *RST settings. Keysight N6700C Operating and Service Guide...
  • Page 301 Sets the inhibit mode to latching: VOLT:INH:VON:MODE LATC The under-voltage inhibit function will ignore any programmed on/off delays. The under-voltage inhibit function is not available when load modules are grouped. The under-voltage inhibit function is not available in CV operating mode. Keysight N6700C Operating and Service Guide...
  • Page 302 ARB - causes the output to follow the arbitrary waveform values when a trigger occurs. Parameter Typical Return FIXed|STEP|LIST|ARB, *RST FIXed FIX, STEP, LIST, or ARB Sets the voltage mode to Step: VOLT:MODE STEP, (@1) Keysight N6700C Operating and Service Guide...
  • Page 303 60 μs - 5 ms | MIN | MAX, *RST 0 <delay value> Sets the protection delay to 1 millisecond: VOLT:PROT:DEL 0.001, (@1) [SOURce:]VOLTage:PROTection:REMote[:POSitive][:LEVel] <value> , (@<chanlist>) [SOURce:]VOLTage:PROTection:REMote[:POSitive][:LEVel]? [MIN|MAX,] (@<chanlist>) [SOURce:]VOLTage:PROTection:REMote:NEGative[:LEVel] <value>, (@<chanlist>) [SOURce:]VOLTage:PROTection:REMote:NEGative[:LEVel]? [MIN|MAX,] (@<chanlist>) Keysight N6700C Operating and Service Guide...
  • Page 304 Typical Return 0 to maximum|MIN|MAX, *RST MAX <tracking offset> The maximum value is dependent on the voltage rat- ing of the power module. Sets the tracking OVP offset to 2 V: VOLT:PROT:TRAC:OFFS 2, (@1) Keysight N6700C Operating and Service Guide...
  • Page 305 This command replaces the previous RESistance <value> command and should be used in new applications. RESistance <value> is still available for backward compatibility. [SOURce:]VOLTage:RESistance:STATe 0|OFF|1|ON, (@<chanlist>) [SOURce:]VOLTage:RESistance:STATe? (@<chanlist>) Enables or disables output resistance in voltage priority mode. Keysight N6700C Operating and Service Guide...
  • Page 306 [SOURce:]VOLTage:SLEW:COUPle 0|OFF|1|ON, (@<chanlist>) [SOURce:]VOLTage:SLEW:COUPle? (@<chanlist>) Sets the voltage slew tracking state. Parameter Typical Return 0|OFF|1|ON, *RST OFF 0 or 1 Enables the voltage slew tracking state: VOLT:SLEW:COUP ON, (@1) Keysight N6700C Operating and Service Guide...
  • Page 307 The VOLTage:SLEW:MAX command is coupled to the VOLTage:SLEW command. If the VOLTage:SLEW command sets the slew rate to MAX or INFinity, VOLTage:SLEW:MAX is enabled. If the slew rate is set to any other value, VOLTage:SLEW:MAX is disabled. Keysight N6700C Operating and Service Guide...

  • Page 308: Status Tutorial

    3 (value 8) and bit 5 (value 32) being set, the query returns +40. Operation Status Group These registers record signals that occur during normal operation. The group consists of a Condition, PTR/NTR, Event, and Enable register. The outputs of the Operation Status register group are logically- Keysight N6700C Operating and Service Guide...

  • Page 309: Questionable Status Group

    In voltage priority mode, the output is in negative current limit In current priority mode, the output is in negative voltage limit Output is disabled by an external INHibit signal 1024 Output is unregulated Keysight N6700C Operating and Service Guide...

  • Page 310: Standard Event Status Group

    Decimal Value Definition not used not used 0 is returned not used not used 0 is returned Error Queue One or more errors in the Error Queue. Use SYSTem:ERRor? to read and delete errors. Keysight N6700C Operating and Service Guide...

  • Page 311: Error And Output Queues

    The Output Queue is a first-in, first-out (FIFO) data register that stores instrument-to-controller messages until the controller reads them. Whenever the queue holds messages, it sets the MAV bit (4) of the Status Byte register. Keysight N6700C Operating and Service Guide...

  • Page 312: Status Diagram

    5 SCPI Programming Reference Status Diagram Keysight N6700C Operating and Service Guide...

  • Page 313: Reset (*Rst) And Non-Volatile Settings

    OUTPut:PROTect:OSCillation ARB:CURRent|VOLTage:EXPonential:END OUTPut:PROTect:WDOG ARB:CURRent|VOLTage:EXPonential:STARt OUTPut:RELay:POLarity NORM ARB:CURRent|VOLTage:EXPonential:STARt:TIMe OUTPut:SHORt ARB:CURRent|VOLTage:EXPonential:TCONstant OUTPut:TMODe LOWZ ARB:CURRent|VOLTage:EXPonential:TIMe POWer ARB:CURRent|VOLTage:PULSe:END:TIMe POWer:LIMit ARB:CURRent|VOLTage:PULSe:STARt POWer:MODE ARB:CURRent|VOLTage:PULSe:STARt:TIMe POWer:PROTection:DELay 0.02 ARB:CURRent|VOLTage:PULSe:TOP POWer:PROTection:STATe ARB:CURRent|VOLTage:PULSe:TOP:TIMe POWer:RANGe ARB:CURRent|VOLTage:RAMP:END POWer:SLEW ARB:CURRent|VOLTage:RAMP:END:TIMe POWer:SLEW:COUPle ARB:CURRent|VOLTage:RAMP:RTIMe POWer:SLEW:MAX ARB:CURRent|VOLTage:RAMP:STARt POWer:SLEW:NEGative ARB:CURRent|VOLTage:RAMP:STARt:TIMe POWer:SLEW:NEGative:MAX Keysight N6700C Operating and Service Guide...
  • Page 314 ARB:CURRent|VOLTage:TRAPezoid:TOP:TIMe SENSe:ELOG:FUNCtion:VOLTage:MINMax ARB:CURRent|VOLTage:UDEFined:BOSTep SENSe:ELOG:PERiod ARB:CURRent|VOLTage:UDEFined:DWELl 0.001 SENSe:ELOG:VOLTage:RANGe:AUTO ARB:CURRent|VOLTage:UDEFined:LEVel SENSe:FUNCtion "VOLT" ARB:FUNCtion:SHAPe NONE SENSe:FUNCtion:CURRent ARB:FUNCtion:TYPE VOLT SENSe:FUNCtion:VOLTage ARB:SEQuence:COUNt SENSe:FUNCtion:VOLTage:INPut MAIN ARB:SEQuence:STEP:COUNt SENSe:SWEep:POINts 1024 or 4883 ARB:SEQuence:STEP:FUNCtion:SHAPe PULS SENSe:SWEep:OFFset:POINts ARB:SEQuence:STEP:PACing DWEL SENSe:SWEep:TINTerval 20.48E–6 ARB:SEQuence:TERMinate:LAST SENSe:SWEep:TINTerval:RESolution RES20 Keysight N6700C Operating and Service Guide...
  • Page 315 VOLTage CURRent:SLEW:NEGative VOLTage:BWIDth CURRent:SLEW:NEGative:MAX VOLTage:INHibit:VON 0.01 CURRent:TRIGgered VOLTage:INHibit:VON:MODE DIGital:OUTPut:DATA VOLTage:LIMit INITiate:CONTinuous:TRANsient VOLTage:LIMit:COUPle LIST:COUNt VOLTage:LIMit:NEGative LIST:CURRent VOLTage:MODE LIST:DWELl 0.001 VOLTage:PROTection LIST:STEP AUTO VOLTage:PROTection:DELay LIST:TERMinate:LAST VOLTage:PROTection:REMote LIST:TOUTput:BOSTep VOLTage:PROTection:REMote:NEGative LIST:TOUTput:EOSTep VOLTage:RANGe LIST:VOLTage VOLTage:SLEW OUTPut VOLTage:SLEW:COUPle OUTPut:DELay:FALL VOLTage:SLEW:MAX Keysight N6700C Operating and Service Guide...
  • Page 316 5 SCPI Programming Reference CPI Command *RST Settings OUTPut:DELay:RISE VOLTage:SLEW:NEGative OUTPut:PMODe VOLT VOLTage:SLEW:NEGative:MAX VOLTage:TRIGgered Keysight N6700C Operating and Service Guide...

  • Page 317: Non-Volatile Settings

    LAN interface Enabled On/Off key affects all channels Disabled Output inhibit mode Saved states *RST command Screen saver Enabled Screen saver delay 60 minutes USB interface Enabled Wake on I/O Enabled Web server Enabled Keysight N6700C Operating and Service Guide...
  • Page 318 Subnet mask 255.255.0.0 Default gateway 0.0.0.0 Host name Keysight-<serial number> mDNS service name Keysight N67xxx Modular Power System <serial number> LAN service - VXI-11 Enabled LAN service - Telnet Enabled LAN service - mDNS Enabled LAN service - Web server...

  • Page 319: Scpi Error Messages

    5 SCPI Programming Reference SCPI Error Messages The Keysight instrument returns error messages in accord with the SCPI standard. Up to 20 errors can be stored in each interface-specific error queue (one each for GPIB, USB, VXI- 11, and Telnet/Sockets.) Errors appear in the error queue of the I/O session that caused the error.
  • Page 320 116 Locked out by internal switch setting This function has been locked out by an internal switch. 117 Calibration error A calibration error has occurred. Do not save calibration constants. Try re-calibrating the unit. 200 Hardware error channel <1> Keysight N6700C Operating and Service Guide...
  • Page 321 There is no valid data in the measurement buffer. 304 Volt and curr in incompatible transient modes Voltage and current cannot be in Step and List mode at the same time. 305 A triggered value is on a different range Keysight N6700C Operating and Service Guide...
  • Page 322 Invalid syntax was found in the command string. Check for blank spaces. -103 Invalid separator An invalid separator was found in the command string. Check for proper use of , ; : -104 Data type error Keysight N6700C Operating and Service Guide...
  • Page 323 The mantissa of a numeric parameter contained more than 255 digits, excluding leading zeros. -128 Numeric data not allowed A numeric parameter was received but a character string was expected. -130 Suffix error Generic suffix error -131 Invalid suffix Keysight N6700C Operating and Service Guide...
  • Page 324 Data was sent in arbitrary block format but is not allowed for this command. Execution Errors (these errors set Standard Event Status register bit #4) -200 Execution error Generic syntax error -220 Parameter error Keysight N6700C Operating and Service Guide...
  • Page 325 The command could not be executed because of missing hardware, such as an option. −260 Expression error An expression program data element related error occurred. −261 Math error in expression An expression program data element could not be executed due to a math error. Keysight N6700C Operating and Service Guide...
  • Page 326 202 Self-test Fail DACs 3 expected <n1> to <n2>, measured <n3>, chan <n4> Both voltage and current DACs are at full scale. n1 and n2 are the expected limits. n3 is the measured value. n4 is the channel location of the failed module. Keysight N6700C Operating and Service Guide...

  • Page 327: Compatibility With A And B Version Mps

    To return the model number to the factory shipped setting: SYST:PERS:MOD:DEF Manufacturer ID The following list documents the manufacturer compatibility: Keysight Technologies is compatible with Agilent Technologies To change the manufacturer ID to Agilent Technologies: SYST:PERS:MAN Agilent Technologies To return the manufacturer to the factory shipped setting:...

  • Page 328: New Feature Comparison With A And B Mps Mainframes

    Returns -100 Command error the OT trip point PERSona commands switch manufacturer and SYSTem:PERSona:MANufacturer Returns -100 Command error model number for backward compatibility SYSTem:PERSona:MANufacturer:DEFault SYSTem:PERSona:MODel SYSTem:PERSona:MODel:DEFault Memory sanitization NISPOM compatible SYSTem:SECurity:IMMediate Returns -100 Command error Keysight N6700C Operating and Service Guide...

  • Page 329: Verification And Calibration

    Performance Verification Module Calibration Test Record Forms The verification procedures described in this section verify that the Keysight Series N6700C Modular Power System is operating normally and is within published specifications. Perform the verification tests before calibrating your power system. If the power system passes the verification tests, the power modules are operating within their calibration limits and do not need to be re-calibrated.

  • Page 330: Test Equipment And Setups

    1 – 50 Ω BNC termination 2 – 50 Ω 1/8 W termination resistors Power supply 80 V, 50 A, 300 W minimum (for N679xA load modules) Keysight N6763A, N6764A, and V, C N6776A or equivalent Keysight N6700C Operating and Service Guide...

  • Page 331: Measurement Setups

    100 power line cycles per measurement. If you are using a Keysight 3458A DMM also turn on auto-calibration (ACAL) and the autorange function (ARANGE). For best results, auto-calibration should be performed every 24 hours when verifying or calibrating models N678xA SMU.

  • Page 332: Performance Verification

    Negative Current Output - Models N6783A-BAT and N6783A-MFG Load Module Verification Tests Verification Description The verification procedures described in this section verify that the Keysight N6700C series MPS is operating normally and is within published specifications. The following types of performance verification tests are available:...

  • Page 333: Verification Test Setups

    Load lead lengths for models N678xA SMU must be between 1 and 4 feet. The following figures show the verification test set-ups. Connect all leads to the output terminals as shown in the figure. The 50 A load and sense connections are shown under Connecting the Outputs. Keysight N6700C Operating and Service Guide...

  • Page 334: Constant Voltage Tests

    This test measures the change in output voltage resulting from a large change in output current from full load to no load. Step 1. Turn off the power system and connect a DMM and an electronic load (see Test Setup Keysight N6700C Operating and Service Guide...
  • Page 335 Step 8. Record the output voltage reading on the DMM. The difference between the DMM reading in steps 6 and 8 is the source effect, which should not exceed the value listed in the test record form for the appropriate model under “CV Source Effect”. Keysight N6700C Operating and Service Guide...
  • Page 336 “CV Ripple and Noise” and enable the output. Let the oscilloscope run for a few seconds to generate enough measurement points. On the Keysight Infiniium scope, the maximum peak-to-peak voltage measurement is indicated at the bottom of the screen on the right side. Divide this value by 10 to get the CV peak-to-peak noise measurement.

  • Page 337: Transient Recovery Time

    Twist the load leads, length must be between 1 and 4 ft. b. Connect a 150 μF capacitor and 50 mΩ resistor across the load. c. Disconnect the sense jumpers. Keep 4-wire sensing enabled. Keysight N6700C Operating and Service Guide...

  • Page 338: Auxiliary Voltage Measurement Accuracy - Models N6781A And N6785A

    Step 3. Record the external DMM reading and the auxiliary DVM readings. The auxiliary voltage reading should be within the designated voltage limit indicated in the test record form under “Auxiliary Voltage Readback”. Step 4. Reverse the leads of the external power supply and repeat step 3. Keysight N6700C Operating and Service Guide...

  • Page 339: Constant Current Tests

    3458A. Also, record the current reading measured over the interface. The readings should be within the limits specified under “Current Programming & Readback, Low Range”. Step 7. For models N6761A and N6762A with option 2UA only. Connect the Keysight 3458A and a 20k resistor to the output (see Test Setup D).
  • Page 340 3458A and the current measured over the interface. The readings should be within the limits specified under “100 mA Range Readback”. Step 12. Connect the Keysight 3458A in series with a 10 kΩ resistor to the output (see Test Setup Set the Keysight 3458A to measure current using the 10 mA range.
  • Page 341 (Iout). The difference between the DMM reading in steps 6 and 8 is the source effect, which should not exceed the value listed in the test record form for the appropriate model under “CC Source Effect”. Keysight N6700C Operating and Service Guide...

  • Page 342: Resistance Programming Accuracy

    Step 3. Divide the voltage drop (DMM reading) across the current shunt by its resistance to convert to amperes and record this value. The reading should be within the limits specified on the test record under Constant Current Tests, “Negative Current Output”. Keysight N6700C Operating and Service Guide...

  • Page 343: Load Module Verification Tests - Models N6791A And N6792A

    (Iin). Also record the current measured over the interface. The readings should be within the limits specified in the test record form for the appropriate model under “Current Programming & Readback - High range, Minimum current”. Keysight N6700C Operating and Service Guide...
  • Page 344 Step 3. Turn the load input on. The load status should be “CR” Step 4. Divide the voltage drop (DMM reading) across the current shunt by the shunt resistance to convert to amps and record this value (Iin). Keysight N6700C Operating and Service Guide...
  • Page 345 Programming - Low range, Minimum resistance”. Program the power supply to the power supply settings described in the test record form. Step 16.Divide the voltage drop (DMM reading) across the current shunt by the shunt resistance to convert to amps and record this value (Iin). Keysight N6700C Operating and Service Guide...
  • Page 346 Calculate the power as follows: P = Iin x Vin. Vin is the voltage measured by the second DMM. The readings should be within the limits specified in the test record form for the appropriate model under “Power Programming & Readback - High range, High power”. Keysight N6700C Operating and Service Guide...
  • Page 347 (Iin). Also, record the current reading measured over the interface. The readings should be within the limits specified in the test record form for the appropriate model under “Power Programming & Readback, Low range, Low power”. Keysight N6700C Operating and Service Guide...

  • Page 348: Module Calibration Procedure

    The Keysight N6700C series MPS features closed-case electronic calibration; no internal mechanical adjustments are required. The instrument calculates correction factors based on input reference values that you set and stores correction factors in non-volatile memory until the next calibration adjustment is performed.
  • Page 349 The power modules should be calibrated on a regular interval determined by the accuracy requirements of your application. The recommended calibration interval for Keysight N6700 Series power modules is one year. Keysight N6700C, N6701C, and N6702C MPS mainframes do not require calibration.

  • Page 350: Calibration Setups

    The following figures show the calibration test set-ups. Connect all leads to the output terminals as shown in the figure. The 50 A load and sense connections are shown under Connecting the Outputs. Keysight N6700C Operating and Service Guide...

  • Page 351: Calibration Procedure - Models N673Xb, N674Xb, N677Xa

    Voltage Calibration High Range Programming and Measurement Step 1. Connect the voltage input of the Keysight 3458A DMM to an output channel as shown in Setup Step 2. Select the full-scale voltage programming and measurement range. The value entered must be the maximum voltage of the range that you are calibrating.
  • Page 352 Step 1. Connect a precision shunt resistor to the output. The shunt resistor should be able to measure at least 120% of the output’s full-scale current (see Cal Setup B). Connect the Keysight 3458A DMM across the shunt resistor. Step 2. Select the full-scale current programming range. The value to program a range must be the maximum current of the range.

  • Page 353: Calibration Procedure - Models N675Xa And N676Xa

    Voltage Calibration High Range Programming and Measurement Step 1. Connect the voltage input of the Keysight 3458A DMM to an output channel as shown in Setup Step 2. Select the full-scale voltage programming and measurement range. The value entered must be the maximum voltage of the range that you are calibrating.
  • Page 354 Step 3. Select the second voltage calibration point and enter the data. Front Panel Menu Reference SCPI Command Display shows: “Enter P2 measured data”Enter the data from the external DMM. CAL:LEV P2 Press Select when done. *OPC? Press Next to finish calibration. CAL:DATA <data> Keysight N6700C Operating and Service Guide...
  • Page 355 Step 1. Connect a precision shunt resistor to the output. The shunt resistor should be able to measure at least 120% of the output’s full-scale current (see Cal Setup B). Connect the Keysight 3458A DMM across the shunt resistor. Step 2. Select the full-scale current programming range. The value to program a range must be the maximum current of the range.
  • Page 356 6 Verification and Calibration Low Range Current Programming - Models N6761A through N6766A Step 1. Connect only the current measurement terminals of the Keysight 3458A to the output terminals (see Cal Setup D without the resistor). Step 2. Select the low-current programming range. The value to program a range must be the maximum current of the range.
  • Page 357 6 Verification and Calibration Steps 4 and 5 apply only to models N6761A and N6762A Step 4. Disconnect the Keysight 3458A from the output terminals. Then select the second current calibration point. Front Panel Menu Reference SCPI Command The second calibration point is automatically selected. “Disconnect Meter”...
  • Page 358 Step 4. Set the electronic load or connect the appropriate resistor for the second calibration point. Step 5.Select the second current calibration point. Front Panel Menu Reference SCPI Command Select Next. The calibration is automatic. CAL:LEV P2 *OPC? Keysight N6700C Operating and Service Guide...
  • Page 359 Enter the calibration date in the Date field. CAL:DATE "<date>" Select System\Admin\CAL\Save. To save the calibration data: Select Save to save all calibration data. CAL:SAVE Select System\Admin\Logout To exit calibration mode: to exit calibration mode. CAL:STAT OFF Keysight N6700C Operating and Service Guide...

  • Page 360: Calibration Procedure - Models N678Xa Smu

    Voltage Calibration High Range Programming and Measurement - All Models Step 1. Connect the voltage input of the Keysight 3458A DMM to an output channel as shown in Setup Step 2. Select the full-scale voltage programming and measurement range. The value entered must be the maximum voltage of the range that you are calibrating.
  • Page 361 This example selects the 1 V range of output 1. Front Panel Menu Reference SCPI Command Select System\Admin\Cal\Volt\Vmeas. CAL:VOLT:MEAS 1, (@1) Select the Low1 range. Then press Next. Keysight N6700C Operating and Service Guide...
  • Page 362 Step 2. Select the first voltage calibration point and enter the data. Front Panel Menu Reference SCPI Command Display shows: “Enter P1 measured data” Enter the data from the external CAL:LEV P1 DMM. Press Select when done. *OPC? CAL:DATA <data> Keysight N6700C Operating and Service Guide...
  • Page 363 Auxiliary Voltage Measurement - Models N6781A, N6785A Step 1. Connect the auxiliary input terminals to the output terminals of model N6781A. Also connect the voltage input of the Keysight 3458A to the output terminals of model N6781A (see Cal Setup Step 2.
  • Page 364 Step 1. Connect a precision shunt resistor to the output. The shunt resistor should be able to measure at least 120% of the output’s full-scale current (see Cal Setup B). Connect the Keysight 3458A DMM across the shunt resistor. Step 2. Select the full-scale current programming range. The value to program a range must be the maximum current of the range.
  • Page 365 6 Verification and Calibration Low Range Current Programming - Models N6781A, N6782A, N6784A Step 1. Connect only the current measurement terminals of the Keysight 3458A to the output terminals (see Cal Setup D without the resistor). Step 2. Select the low-current programming range. The value to program a range must be the maximum current of the range.
  • Page 366 *OPC? when done. CAL:DATA <data> 1 mA Measurement Range - All Models Step 1. Connect the Keysight 3458A in series with a 10 kΩ resistor to the output (see Equipment Required Cal Setup Step 2. Select the 1 mA measurement range of output 1.
  • Page 367 6 Verification and Calibration 10 µA Measurement Range - Models N6781A, N6782A, N6784A Step 1. Connect the Keysight 3458A in series with a 1 MΩ resistor to the output (see Equipment Required Cal Setup D). Set the Keysight 3458A to measure current using the 100 μA range (no autoranging).
  • Page 368 Resistance Calibration - Models N6781A, N6785A Step 1. Connect an electronic load directly to the output terminals. Also connect the voltage input of the Keysight 3458A to the output terminals (see Cal Setup F). Set the load to constant current mode, current to 0.95A.
  • Page 369 Enter the calibration date in the Date field. CAL:DATE "<date>" Select System\Admin\CAL\Save. To save the calibration data: Select Save to save all calibration data. CAL:SAVE Select System\Admin\Logout To exit calibration mode: to exit calibration mode. CAL:STAT OFF Keysight N6700C Operating and Service Guide...

  • Page 370: Calibration Procedure - Models N6783A-Bat And N6783A-Mfg

    Voltage Calibration High Range Programming and Measurement Step 1. Connect the voltage input of the Keysight 3458A DMM to an output channel as shown in Setup Step 2. Select the full-scale voltage programming and measurement range. The value entered must be the maximum voltage of the range that you are calibrating.
  • Page 371 *OPC? Press Next to finish calibration. CAL:DATA <data> Low Range Current Measurement Step 1. Connect only the current measurement terminals of the Keysight 3458A to the output terminals (see Cal Setup D without the resistor). Step 2. Select the low-current measurement range. The value to program a range must be the maximum current of the range.
  • Page 372 CAL:DATA <data> Negative Current Limit Calibration Step 1. Connect the Keysight 3458A, current shunt, and an external power supply to the output (see Cal Setup H). Connect plus to plus, minus to minus. Set the external power supply to 3V, 3A.

  • Page 373: Calibration Procedure - Models N6791A And N6792A

    Front Panel Menu Reference SCPI Command Display shows: “Enter P2 measured data”Enter the data from the external CAL:LEV P2 DMM.Press Select when done. *OPC? Press Next to finish calibration. CAL:DATA <data> Keysight N6700C Operating and Service Guide...
  • Page 374 Front Panel Menu Reference SCPI Command Display shows: “Enter P3 measured data”Calculate the shunt current (I=V/R) CAL:LEV P3 and enter the data. *OPC? Press Select when done.Press Next to finish calibration. CAL:DATA <data> Keysight N6700C Operating and Service Guide...
  • Page 375 The following example selects the 20 A full-scale range of output 1. Full-scale ranges vary according to model. Front Panel Menu Reference SCPI Command Select System\Admin\Cal\Curr\Ilim CAL:CURR:LIM:POS 20, (@1) Select the High range. Then press Next. Keysight N6700C Operating and Service Guide...
  • Page 376 Front Panel Menu Reference SCPI Command Display shows: “Enter P2 measured data” CAL:LEV P2 Calculate the shunt current (I=V/R) and enter the data.Press Select when *OPC? done.Press Next to finish calibration. CAL:DATA <data> Keysight N6700C Operating and Service Guide...

  • Page 377: Test Record Forms

    Test Record Form - Keysight N6775A Test Record Form - Keysight N6776A Test Record Form - Keysight N6777A Test Record Form - Keysight N6781A, N6782A, and N6784A Test Record Form - Keysight N6785A and N6786A Test Record Form - Keysight N6783A-BAT and N6783A-MFG...
  • Page 378 6 Verification and Calibration Test Record Form - Keysight N6731B and N6741B N6731B and N6741B Report Number ______ Date__________ Test Description Model Min. Specs Results Max. Specs Constant Voltage Tests Voltage Programming & Readback     Minimum voltage (Vout): Both − 4 mV...
  • Page 379 6 Verification and Calibration Test Record Form - Keysight N6732B and N6742B N6732B and N6742B Report Number ______ Date__________ Test Description Model Min. Specs Results Max. Specs Constant Voltage Tests Voltage Programming & Readback     Minimum voltage (Vout): Both − 4 mV...
  • Page 380 6 Verification and Calibration Test Record Form - Keysight N6733B and N6743B N6733B and N6743B Report Number ______ Date__________ Test Description Model Min. Specs Results Max. Specs Constant Voltage Tests Voltage Programming & Readback     Minimum voltage (Vout): Both − 10 mV...
  • Page 381 6 Verification and Calibration Test Record Form - Keysight N6734B and N6744B N6734B and N6744B Report Number ______ Date__________ Test Description Model Min. Specs Results Max. Specs Constant Voltage Tests Voltage Programming & Readback     Minimum voltage (Vout): Both + 5 mV...
  • Page 382 6 Verification and Calibration Test Record Form - Keysight N6735B and N6745B N6735B and N6745B Report Number ______ Date__________ Test Description Model Min. Specs Results Max. Specs Constant Voltage Tests Voltage Programming & Readback     Minimum voltage (Vout): Both + 10 mV...
  • Page 383 6 Verification and Calibration Test Record Form - Keysight N6736B and N6746B N6736B and N6746B Report Number ______ Date__________ Test Description Model Min. Specs Results Max. Specs Constant Voltage Tests Voltage Programming & Readback     Minimum voltage (Vout): Both + 0 mV...
  • Page 384 6 Verification and Calibration Test Record Form - Keysight N6751A and N6752A N6751A and N6752A Report Number ______ Date__________ Test Description Model Min. Specs Results Max. Specs Constant Voltage Tests Voltage Programming & Readback     Minimum voltage (Vout): Both − 1 mV...
  • Page 385 6 Verification and Calibration Test Record Form - Keysight N6753A and N6755A N6753A and N6755A Report Number ______ Date__________ Test Description Model Min. Specs Results Max. Specs Constant Voltage Tests Voltage Programming & Readback     Minimum voltage (Vout): Both 0 mV...
  • Page 386 6 Verification and Calibration Test Record Form - Keysight N6754A and N6756A N6754A and N6756A Report Number ______ Date__________ Test Description Model Min. Specs Results Max. Specs Constant Voltage Tests Voltage Programming & Readback     Minimum voltage (Vout): Both 0 mV...
  • Page 387 6 Verification and Calibration Test Record Form - Keysight N6761A and N6762A N6761A and N6762A Report Number ______ Date__________ Test Description Model Min. Specs Results Max. Specs Constant Voltage Tests Voltage Programming & Readback     Minimum voltage (Vout): Both + 9 mV...
  • Page 388 6 Verification and Calibration Test Record Form - Keysight N6763A and N6765A N6763A and N6765A Report Number ______ Date__________ Test Description Model Min. Specs Results Max. Specs Constant Voltage Tests Voltage Programming & Readback     Minimum voltage (Vout): Both +5 mV...
  • Page 389 6 Verification and Calibration Test Record Form - Keysight N6764A and N6766A N6764A and N6766A Report Number ______ Date__________ Test Description Model Min. Specs Results Max. Specs Constant Voltage Tests Voltage Programming & Readback     Minimum voltage (Vout): Both +13 mV...
  • Page 390 6 Verification and Calibration Test Record Form - Keysight N6773A Keysight N6773A Report Number ______ Date__________ Test Description Model Min. Specs Results Max. Specs Constant Voltage Tests Voltage Programming & Readback     Minimum voltage (Vout): + 10 mV _______ + 50 mV     Voltage measured over interface:...
  • Page 391 6 Verification and Calibration Test Record Form - Keysight N6774A Keysight N6774A Report Number ______ Date__________ Test Description Model Min. Specs Results Max. Specs Constant Voltage Tests Voltage Programming & Readback     Minimum voltage (Vout): + 5 mV _______ + 75 mV     Voltage measured over interface:...
  • Page 392 6 Verification and Calibration Test Record Form - Keysight N6775A Keysight N6775A Report Number ______ Date__________ Test Description Model Min. Specs Results Max. Specs Constant Voltage Tests Voltage Programming & Readback     Minimum voltage (Vout): + 10 mV _______ + 130 mV     Voltage measured over interface:...
  • Page 393 6 Verification and Calibration Test Record Form - Keysight N6776A Keysight N6776A Report Number ______ Date__________ Test Description Model Min. Specs Results Max. Specs Constant Voltage Tests Voltage Programming & Readback     Minimum voltage (Vout): + 0 mV _______ + 200 mV     Voltage measured over interface:...
  • Page 394 6 Verification and Calibration Test Record Form - Keysight N6777A Keysight N6777A Report Number ______ Date__________ Test Description Model Min. Specs Results Max. Specs Constant Voltage Tests Voltage Programming & Readback     Minimum voltage (Vout): + 0 mV _______ + 300 mV     Voltage measured over interface:...
  • Page 395 6 Verification and Calibration Test Record Form - Keysight N6781A, N6782A, and N6784A N6781A, '82A, and '84A Report Number ______ Date__________ Test Description Model Min. Specs Results Max. Specs Constant Voltage Tests Voltage Programming & Readback     Minimum voltage (Vout): − 1.8 mV _______ + 1.8 mV...
  • Page 396 N6781A Resistance Programming, 20 V range Voltage Priority; 10 V, 1 Ω (Elect. load: CC mode, 20 V, 1A) N6781A Resistance Programming, 6 V range Voltage Priority; 6 V, 1 Ω (Elect. load: CC mode, 20 V, 3A) Keysight N6700C Operating and Service Guide...
  • Page 397 6 Verification and Calibration Test Record Form - Keysight N6785A and N6786A N6785A and N6786A Report Number ______ Date__________ Test Description Model Min. Specs Results Max. Specs Constant Voltage Tests Voltage Programming & Readback     Minimum voltage (Vout): Both − 1.8 mV _______ + 1.8 mV...
  • Page 398 6 Verification and Calibration Test Record Form - Keysight N6783A-BAT and N6783A-MFG N6783A-BAT, N6783A-MFG Report Number ______ Date__________ Test Description Model Min. Specs Results Max. Specs Constant Voltage Tests Voltage Programming & Readback     Minimum voltage (Vout): Both − 5 mV...
  • Page 399 6 Verification and Calibration Test Record Form - Keysight N6791A Keysight N6791A Report Number ______ Date__________ Test Description Model Min. Specs Results Max. Specs Voltage Priority Tests Voltage Programming & Readback     Minimum voltage: 2.9919 V _______ 3.0081 V     Voltage measured over interface: Vin −...
  • Page 400 Power Programming & Readback - Low Range, Minimum power Power priority; 5 W 25 V; 0.5 A Power Programming & Readback - Low Range, Low power Power priority; 10 W 25 V; 0.5 A Keysight N6700C Operating and Service Guide...
  • Page 401 6 Verification and Calibration Test Record Form - Keysight N6792A Keysight N6792A Report Number ______ Date__________ Test Description Model Min. Specs Results Max. Specs Voltage Priority Tests Voltage Programming & Readback     Minimum voltage: 2.9919 V _______ 3.0081 V     Voltage measured over interface: Vin −...
  • Page 402 Power Programming & Readback - Low Range, Minimum power Power priority; 10 W 25 V; 0.5 A Power Programming & Readback - Low Range, Low power Power priority; 20 W 25 V; 0.5 A Keysight N6700C Operating and Service Guide...

  • Page 403: Service And Maintenance

    Keysight N6700C Series Operating and Service Guide Service and Maintenance Introduction Firmware Update Instrument Sanitize Calibration Switches Redundant Ground for 400 Hz Operation Disassembly Troubleshooting Replaceable Parts...

  • Page 404: Introduction

    7 Service and Maintenance Introduction Types of Service Available If your instrument fails during the warranty period, Keysight Technologies will repair or replace it under the terms of your warranty. After your warranty expires, Keysight offers repair services at competitive prices.

  • Page 405: Firmware Update

    Download and unzip the Keysight N6700 Firmware Update file located under "Documents & Down- loads" at the bottom of the Web page. Make a note of where you saved the unzipped file.

  • Page 406: Instrument Sanitize

    The first time the unit is turned on after it has been sanitized, several NVRAM checksum errors will be generated. These errors annunciate the fact that two files were missing, which have been recreated with default values. The next time the unit tuns on, there should be no errors. Keysight N6700C Operating and Service Guide...

  • Page 407: Calibration Switches

    The admin/calibration password is reset to 0 when the instrument is first powered on. Use this set- Password ting if you have forgotten the password. Inhibit All calibration commands are disabled. This is useful where calibration access is guarded by instru- Calibration ment seals. Keysight N6700C Operating and Service Guide...

  • Page 408: Switch Location

    7 Service and Maintenance Switch Location Switches shown in the ON position Keysight N6700C Operating and Service Guide...

  • Page 409: Redundant Ground For 400 Hz Operation

    Step 5. Rotate the ring terminal so that the ground wire does not interfere with any other connectors on the back of the unit. Use the wrench to tighten the binding post (Torque = 20 – 25 in-lb.). Keysight N6700C Operating and Service Guide...

  • Page 410: Disassembly

    7 Service and Maintenance Disassembly Electrostatic Discharge Disassembly Procedures This section discusses the disassembly procedures for troubleshooting and repairing Keysight N6700C, N6701C, and N6702C MPS mainframes. Electrostatic Discharge (ESD) Precautions Almost all electrical components can be damaged by electrostatic discharge (ESD) during handling.
  • Page 411 Because the RFI strips are applying upward pressure, continue pushing down on the module until the screws are fully tightened. Step 5. Replace the blower cover when finished. Keysight N6700C Operating and Service Guide...
  • Page 412 Step 4. Disconnect the wires going to the S1 switch assembly. For reassembly, make a note of the color coding of the wires and the pins to which they are connected. Keysight N6700C Operating and Service Guide...
  • Page 413 2 –pin connector on the bulk supply. Cable assembly Connected to Pin Cable assembly Connected to Pin Red (DC) +48 V Red/white (AC) Black (DC) –48 V Green/yellow (AC) ground Grey (AC) Sense cable 2-pin connector Keysight N6700C Operating and Service Guide...

  • Page 414: Troubleshooting

    This will help isolate a problem to a specific power module. The following test equipment is required for troubleshooting Keysight N6700 MPS mainframes: Keysight 34401A or equivalent - Digital multimeter for measuring voltage and resistance SHOCK HAZARD.
  • Page 415 Turn off the unit and cycle power to run self-test again. If the supply passes self-test and there are no obvious faults, perform the Verification Procedures determine if any functions are not calibrated, or are not operating properly. Keysight N6700C Operating and Service Guide...

  • Page 416: Overall Troubleshooting

    7 Service and Maintenance Overall Troubleshooting Keysight N6700C Operating and Service Guide...
  • Page 417 7 Service and Maintenance Keysight N6700C Operating and Service Guide...
  • Page 418 7 Service and Maintenance Keysight N6700C Operating and Service Guide...

  • Page 419: Front Panel Troubleshooting

    If biases are still not present, replace the inter- face/bias board. TP 3 U48 - 2,3 + 5 V Same as above. TP 4 P17 - 1 + 3.3 V Same as above. TP 5 EGND (black) common Keysight N6700C Operating and Service Guide...

  • Page 420: Backplane Board Troubleshooting

    If there are bent pins, carefully try to straighten the pin. If you are unsuccessful, replace the board. Closely examine the solder connections at the pins. If there are cracks in the solder, carefully re- solder the connector. If unsuccessful, replace the board. Keysight N6700C Operating and Service Guide...

  • Page 421: Calibration And Passwords

    The calibration password will automatically be reset to the factory default, which is zero (0). Front panel access to the Admin menu will be unrestricted unless a password is set. Refer to Password Protection for information on setting the calibration password as well as the Admin menu password. Keysight N6700C Operating and Service Guide...

  • Page 422: Replaceable Parts

    AC cable, bulk supply to switch 5185-1358 5185-1358 5185-1358 Cable, minus terminal to chassis 5190-4482 5190-4482 5190-4482 Cable, bulk supply to chassis 5188-4206 5188-4206 5188-8430 (qty. 2) DC power cable 5185-1354 5185-1354 5185-1354 Ribbon cable, to front panel Keysight N6700C Operating and Service Guide...
  • Page 423 8160-1713 8160-1713 RFI strips (qty. 3) 5002-2830 Bulk supply bracket Covers and Labels 5002-2809 5002-2809 5003-2184 Bulk supply cover 5002-2810 5002-2810 5002-2810 Blower cover 5002-2807 5002-2807 5002-2807 Interface cover N6700C-80001 N6701C-80001 N6702C-80001 Front/Rear/Cover labels Keysight N6700C Operating and Service Guide...

  • Page 424: Location Diagrams

    7 Service and Maintenance Location Diagrams N6700C/N6701C Mainframe Part Locations Keysight N6700C Operating and Service Guide...
  • Page 425 7 Service and Maintenance N6702C Mainframe Part Locations Keysight N6700C Operating and Service Guide...

  • Page 426: Index

    Coupled commnds 178 ESR? 248 Air flow 47 Current 81 External Data Logging 144 Arbitrary list 116 CURRent 234 Arbitrary waveform 225 CURRent commands 234 auxiliary measurement Factory Reset 251, 319 connector 72 Keysight N6700C Series Operating and Service Guide...
  • Page 427 Making Measurements 131 over-temperature 154 configuring 151 MEASure commands 261 margin 157 connections 151 menus 23 over-voltage 154 INITiate commands 254 Message Available 251- Inspect 51 local 66 installation 56 Models 40 Keysight N6700C Series Operating and Service Guide...
  • Page 428 19 Register 251-252 Types of service 404 Redundant ground 409 Standard Operation Sum- mary 251-252 REFerence 27 Verification 329, 332 STATus 286 remote interface 85 setup 333 Status Byte 251 Replaceable parts 422 Keysight N6700C Series Operating and Service Guide...
  • Page 429 Voltage 81 VOLTage commands 300 WAI 253 Wiring multiple loads 62 remote sense 65 sizing 58 SMU 60 Keysight N6700C Series Operating and Service Guide...

This manual is also suitable for:

N6702cN6701cN6700c

Table of Contents
