Launch X-431 HD Module Quick Start Manual

X-431 HD Module
了 解 诊 断 盒
Knowledge of X-431 HD Module
X-431 HD module works as a vehicle communication interface device, which is used read the
vehicle data and then send it to the diagnostic tool via wireless communication and data cable
connection. The LED indicators enable you to easily identify the working status of the module.
Technical parameters:
Working voltage: 9-36V
–
Power consumption:≤ 2W
–
Working temp.: - 10℃-55℃
–
Communication via:
–
1) Data cable connection
2) Wireless communication

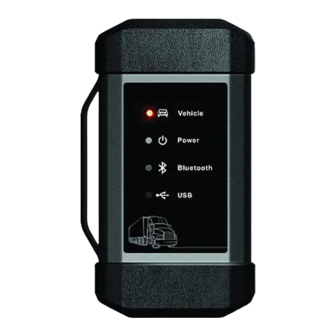

LED Indicators
Displays the working status of the module. t is defined as
follows:
1. Vehicle: While the module is communicating with the
vehicle, the indicator lights up and flashes. Otherwise,
it will not illuminate.
2. Power: It illuminates solid red when the module is
powered on.
3. Wireless communication: Blue indicates the module is
working in wireless communication mode.
4. USB: It lights up when the module is connected to the
diagnostic tool via data cable.
Note: When the diagnostic
cable or adaptor cable keeps
unused, please remember to
unplug it from the vehicle's
DLC.
Quick Start Guide
Diagnostic socket
(For connecting the diagnostic cable.)
DC-IN power jack
(For connecting the power adaptor
or cigarette lighter/battery clamps
cable to obtain power.
I
Data transmission port
(For connecting it to the diagnostic
tool to perform vehicle diagnosis.)
Accessory Checklist
X-431 HD module
(For accessing vehicle
live data)
Cigarette lighter
(To supply power to the HD
module through connection
to cigarette lighter
receptacle.)
Power adaptor
(To supply power to the HD
module through AC outlet.)
X-431 HD module
Vehicle
(For collecting vehicle live data)
Power
Wireless
USB
Diagnostic cable
(To connect the HD (To connect the
module and diagnostic module to the diagnostic
tool to perform vehicle tool with different type of
diagnosis.)
data transmission ports.)
Battery clamps cable Adaptor cable kit
(For different vehicle
(To supply power to the HD
diagnostic socket, it may
module through connection
be necessary to use one of
to vehicle's battery.)
the adaptor cables included
Password envelope
(A piece of paper bearing
S/N and Activation Code,
which is needed for your
registration.)
Working Principle
Diagnostic cable
Wireless communication
(Sends the vehicle data
to diagnostic tool)
Data cable connection
L diagnostic tool
aunch's Android-based
(such as X-431 PAD II etc.)
(For analyzing received vehicle
data and indicating the test results.)
LAUNCH
Data cables
HD
within the kit.)
To vehicle's DLC
