Launch X-431 HD Quick Start Manual

X-431 HD Module
了 解 诊 断 盒
Knowledge of X-431 HD Module
X-431 HD module works as a vehicle communication interface device, which is used read the
vehicle data and then send it to the diagnostic tool via Bluetooth communication and USB
connection. The LED indicators enable you to easily identify the working status of the module.
Technical parameters:
Working voltage: 9-36V
–
Power consumption:≤ 2W
–
Working temp.: - 10℃-55℃
–
Communication via:
–
1) USB cable
2) Bluetooth

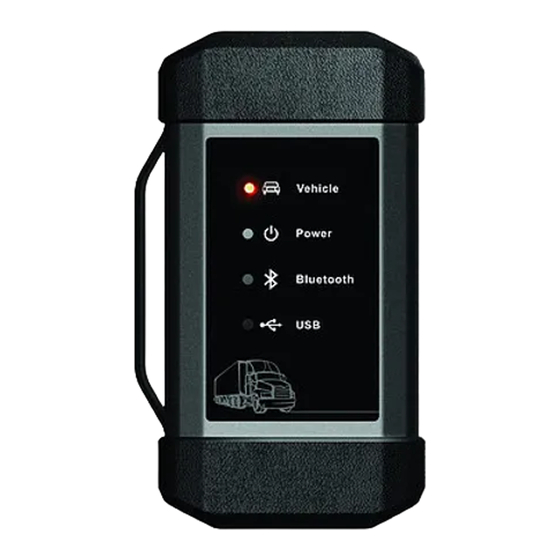

LED Indicators
Displays the working status of the module. t is defined as
follows:
1. Vehicle: While the module is communicating with the
vehicle, the indicator lights up and flashes. Otherwise,
it will not illuminate.
2. Power: It illuminates solid red when the module is
powered on.
3. Bluetooth: Blue indicates the module is working in
Bluetooth mode.
4. USB: It lights up when the module is connected to the
diagnostic tool via USB cable.
Note: When the diagnostic
cable or adaptor cable keeps
unused, please remember to
unplug it from the vehicle's
DLC.

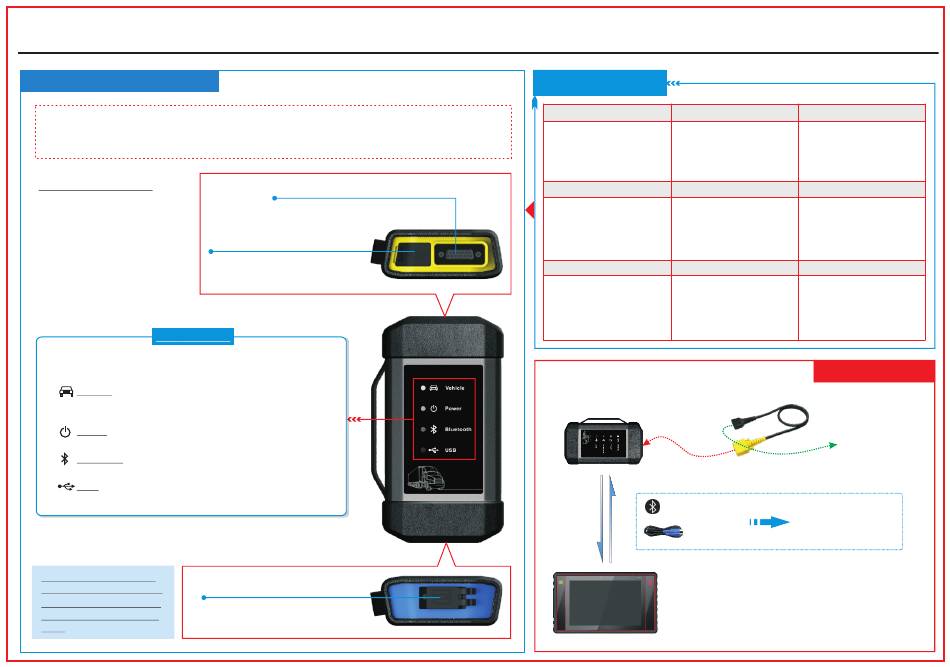

Quick Start Guide
Diagnostic socket
(For connecting the diagnostic cable.)
DC-IN power jack
(For connecting the power adaptor
or cigarette lighter/battery clamps
cable to obtain power.
I
USB port
(For connecting it to the diagnostic
tool to perform vehicle diagnosis.)
Accessory Checklist
HD module Diagnostic cable
(To connect the
(For accessing vehicle
module and diagnostic
live data)
tool to perform vehicle
diagnosis.)
Cigarette lighter Battery clamps cable
(To supply power to the HD
(To supply power to the HD
module through connection
module through connection
to cigarette lighter
to vehicle's battery.)
receptacle.)
Power adaptor Password envelope
(A piece of paper bearing
S/N and Activation Code,
(To supply power to the HD
which is needed for your
module through AC outlet.)
registration.)
X-431 HD module
(For collecting vehicle live data)
Bluetooth
USB cable
Launch's Android-based diagnostic tool
(such as X-431 PAD II etc)
(For analyzing received vehicle data and
LAUNCH
USB cables
HD (To connect the HD
module to the diagnostic
tool with different type of
USB port.)
Adaptor cable kit
(For different vehicle
diagnostic socket, it may
be necessary to use one of
the adaptor cables included
within the kit.)
Working Principle
Diagnostic cable
To vehicle's DLC
(Sends the vehicle data
to diagnostic tool)
indicating the test results.)
