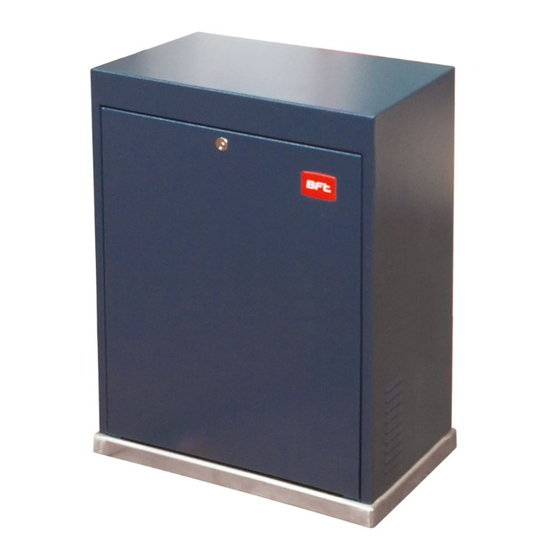

- Page 1 OBERON Limit Switch Adjustment & Control Board Settings Please remember these instruction are only a substitude and the full Instruction manuals should always be read prior to the install...
- Page 2 Also in the logic menu the “HOLD —TO — RUN” may be switched on from the factory ( setting no 1 ) you need to switch this off ( setting 0 ) At this stage I would also program all your remotes in, under the RADIO menu www.bft.it...
- Page 3 Setting the Motor Direction...
-
Page 4: Limit Switch Adjustment
Limit Switch Adjustment Unlock the gate and manually open it to the desired open position. During this manoeuvre look at which direction the cams turn. You will notice that the cams turn in a clockwise direction, for a gate opening to the right and in an anti-clockwise direction for a gate opening to the left. - Page 5 Limit switch adjustment By now you should have 1) Set your motor direction and identified which cam is for your opening and which one is your closing...
- Page 6 Limite switch adjustment Now loosen the central screw ( lose enough to turn the cams ) but not to lose And manually move the gate to your desired open position ( make sure you leaving a gap between the gate and post ) Then turn your limit cam by hand until you hear the click of the micro switch.
- Page 7 Limite switch adjustment Manually move the gate off its limit switch, and lock the gearbox back in. Now give the gate a start command from a remote or by a short across terminals 60 and 61. The gate will now move at a slow speed until it reaches the opening limit switch.
- Page 8 Limit Switch Adjustment At this point you can run an autoset. Important NOTE: adjust the parameters “slowdown distance“ in the opening and closing, to ensure that the engine arrives in proximity of the limit switch after at least 20-30 cm of slow speed, otherwise the stop ramp in to the limit switch position is not precise.
- Page 9 THANK YOU © 2010, Bft Spa – All rights reserved. This document is protected by copyright. No part of it may be modified, reproduced or distributed in any form by any means without prior written authorization of Bft Spa..
