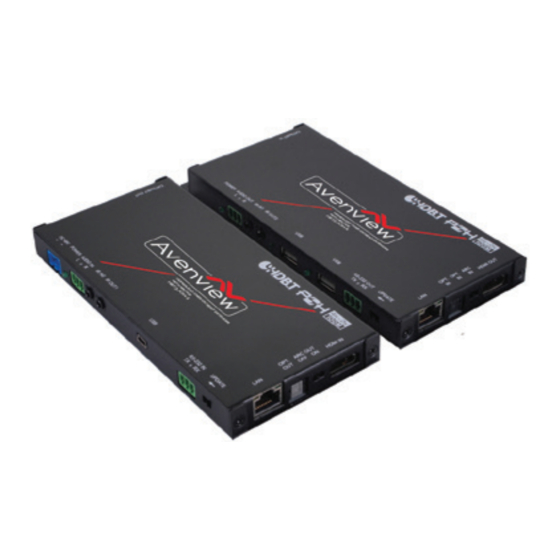

- Page 1 VIDEO WALLS VIDEO PROCESSORS VIDEO MATRIX SWITCHES EXTENDERS SPLITTERS WIRELESS CABLES & ACCESSORIES Control Your Video PRODUCT MANUAL Model: HBT2-C6POH-USB-SET CAT5e/6 HDMI 2.0 Ethernet EXTENDER with Audio Support (IR/RS232/ARC/OPTICAL)
- Page 2 Copyright © 2018 Avenview Inc. All rights reserved. Revision History The contents of this document are provided in Rev. Changes Date connection with Avenview Inc. (“Avenview”) products. 0.00 Initial Release 02/01/2018 Avenview makes no representations or warranties with respect to the accuracy or completeness of the contents...
-
Page 3: Table Of Contents
PANEL DESCRIPTION............6 2.4.1 INPUT PANEL (TRANSMITTER, HBT2-C6POH-S) FRONT......6 2.4.2 INPUT PANEL (TRANSMITTER, HBT2-C6POH-S) SIDE......6 2.4.3 INPUT PANEL (RECEIVER, HBT2-C6POH-R) FRONT......7 2.4.4 INPUT PANEL (RECEIVER, HBT2-C6POH-R) SIDE......7 IR EXTENDERS..............8 INSTALLATION (HBT2-C6POH-USB-SET)..........9 GENERAL TROUBLESHOOTING............10 CABLE SPECIFICATION.............11 SPECIFICATION..............14 WARRANTY CARD..............16 www.avenview.com Rev.00 03/2018... -
Page 4: Getting Started
SECTION 1 : GETTING STARTED IMPORTANT SAFEGUARDS Please read instructions carefully before you use the device. Save this manual for future reference. Avenview warranty certificate please refer to page #23 Warranty does not include: • Any product on which the serial number has been defaced, modified or removed. -
Page 5: Regulatory Notices Federal Communications Commission (Fcc)
Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. Avenview is not responsible for any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or modifications to this equipment. -
Page 6: Introduction
4K sources streaming, network connected devices and new demand for Smart TV, ultra HD monitors,, and content. The HBT2-C6POH-USB-SET finds its way into market sectors such as Medical, Education, command & control environments and any long distance extension application. -
Page 7: Package Contents
PACKAGE CONTENTS Before you start the installation of the HBT2-C6BPOC-SET, please ensure that the packaging has the listed items below. ITEM HBT2-C6POH-USB-SET POWER BRICK (48V/0.83A) + C7 POWER CORD IR EXTENDER IR BLASTER PHOENIX CONTACT MOUNTING BRACKETS PRODUCT USER MANUAL... -
Page 8: Application Diagram
APPLICATION DIAGRAM www.avenview.com Rev.00 03/2018... -
Page 9: Panel Description
Audio Return Channel (ARC) signals from the Recievers OPTICAL IN port. HDMI device connected to the Receiver. HDMI IN: Connect to HDMI source device such as set-top box or media player. www.avenview.com Rev.00 03/2018... -
Page 10: Input Panel (Receiver, Hbt2-C6Poh-R) Front
Transmitter from signal to the Transmitter OPTICAL OUT port. ARC channel or Receivers OPTICAL IN port. HDMI IN: Connect to HDMI source device such as a DVD or Blu-ray player. www.avenview.com Rev.00 03/2018... -
Page 11: Ir Extenders
IR signals. IR RECEIVER: plug in the IR receiver to receive all IR command signals from the IR remote controls of the corresponding devices. Definition of IR 3.5mm Jack www.avenview.com Rev.00 03/2018... -
Page 12: Installation (Hbt2-C6Poh-Usb-Set)
The Transmitter should be connected to the source (Computer’s HDMI Port/IR Signal/USB/RS-232) and the Receiver should be connected to the HDMI of the digital display device (Monitor). Avenview HBT2-C6POH-USB-SET Transmitter / Receiver is designed to be used with a standard Cat5e/6/7 To setup Avenview HBT2-C6POH-USB-SET please follow these steps for connecting to a device: 1. -
Page 13: General Troubleshooting
(sink end), the clock rate, frame compare, video pattern, audio, EDID and HDCP with Quantum 780 (recommended). Passive monitoring enables an integrator to view the HDCP transactions, PASSIVE EDID exchange, as well as the connection events between the actual MONITORING devices in the network. www.avenview.com Rev.00 03/2018... -
Page 14: Cable Specification
CABLE SPECIFICATIONS We highly recommend achieving best results with our HBT2-C6POH-USB-SET you acquire a high quality 26 or 24 AWG HDMI cable with the below specifications to maintain signal integrity and distances. Features - Supports the HDBaseT 2.0 specification over a - 1×USB 2.0 Mini-B port (on the transmitter),... - Page 15 CABLE SPECIFICATIONS (CONT) www.avenview.com Rev.00 03/2018...
- Page 16 CABLE SPECIFICATIONS (CONT) To achieve the best results with your HBT2-C6POH-USB-SET, Avenview highly recommends using Premium High Speed HDMI Cables or Premium High Speed HDMI Cables with Ethernet. Cables certified as Premium High Speed are individually tested for performance and will carry a special anti-counterfeit label to differentiate them from other HDMI cables.
-
Page 17: Specification
SPECIFICATION ITEM DESCRIPTION NO IMAGE HBT2-C6POH-USB-SET MODEL DESCRIPTION 4K@60 HDMI/Audio over CAT5e/6/7 Extender with 48V PoE HDMI COMPLIANCE HDCP VIDEO BANDWIDTH 340 MHz/10.2 Gbps2.22.0 Cat5e/6/7: 100 m - Up to 1080p@60 Hz Cat5e: 90 m - 4K2K@30/60Hz SUPPORTED RESOLUTIONS Cat6/7: 100 m - 4K2K@30/60 Hz... - Page 18 5. Because the quality of the category cables has the major effects in how long transmission distance will be made and how good is the received display, the actual transmission length is subject to your category cables. For resolution greater than 1080i or 1280x1024, a solid CAT6 cable is the only viable choice. www.avenview.com Rev.00 03/2018...
-
Page 19: Warranty Card
www.avenview.com... - Page 20 Disclaimer While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the operation or use of Avenview hardware, software or other products and documentation described herein, for any act or omission of Avenview concerning such products or this documentation, for any interruption of service, loss or interruption of business, loss of anticipatory profits, or for punitive, incidental or consequential damages in connection with the furnishing, performance, or use of the Avenview hardware, software, or other products and documentation provided herein.
