Summary of Contents for Climax Vesta Series

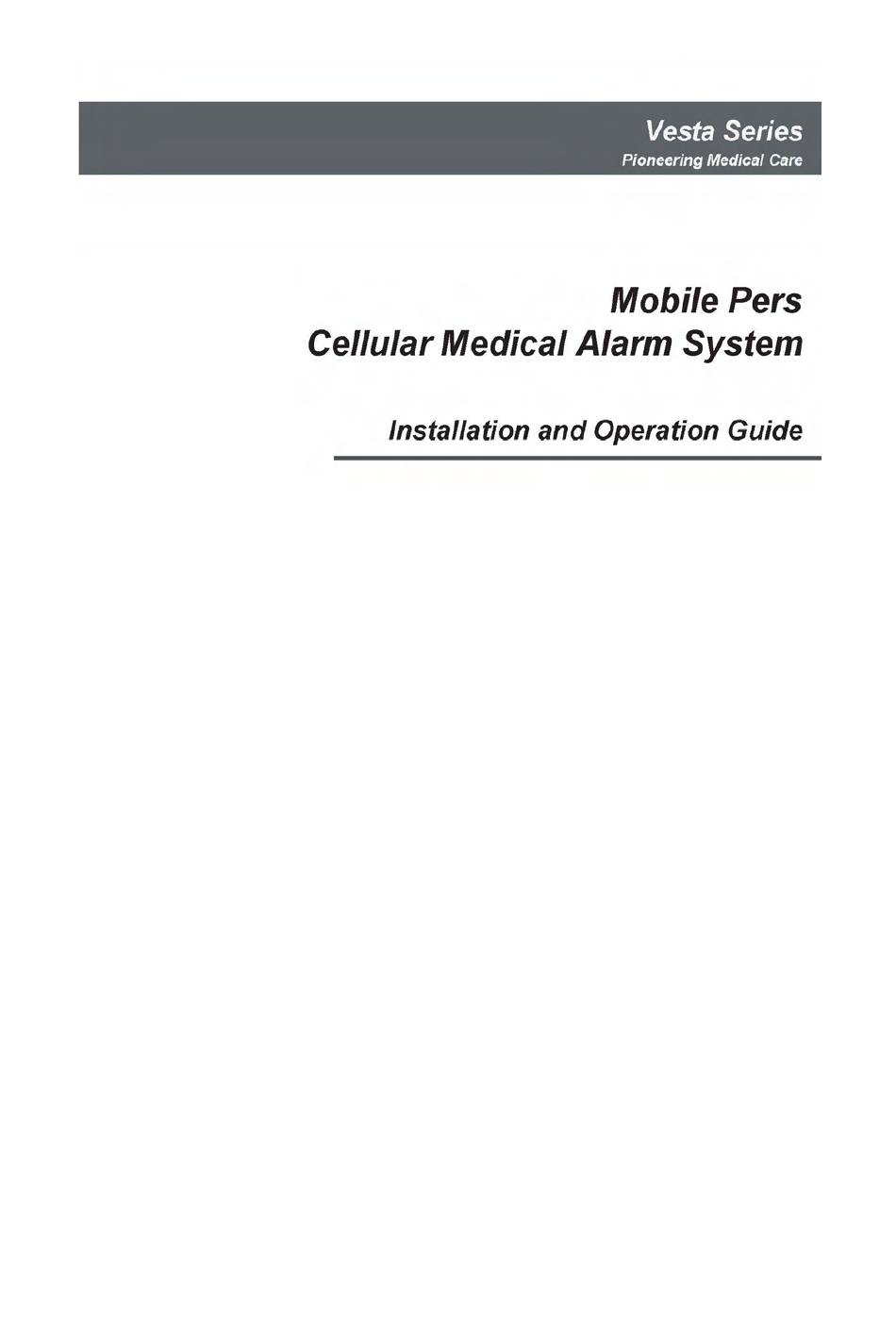

  • Page 1 26-Feb-2013...

  • Page 2: Table Of Contents

    Table of Contents INTRODUCTION ........................1 1.1......................1 OBILE ERIES 1.2. ’ ......................2 S IN THE 1.3................3 PTIONAL OFTWARE AND CCESSORIES SYSTEM OVERVIEW ......................4 2.1......................4 DENTIFYING THE ARTS 2.1.1. Base Station ........................4 2.1.2.
  • Page 3 6.2.1. Idle Mode ........................66 6.2.1.1. Answering Incoming Calls ................... 66 6.2.1.2. Non-Emergency Calls ....................67 6.2.1.3. AC Power Checkup ......................67 6.2.1.4. Base Station Low on Battery ..................68 6.2.1.5. Base Station’s Battery Disconnected ............... 68 6.2.1.6. Devices Low on Battery ....................68 6.2.1.7.

  • Page 4: Introduction

    1. Introduction 1.1. Mobile Pers Series Mobile Pers is a portable and richly featured Cellular Medical Alarm System with GSM or 3G network that protects the user wherever he goes. Patented in the United States and Europe, this system includes a Base Station and a Mobile Unit that works both inside and outside home.

  • Page 5: What's In The Box

    1.2. What’s in the Box Your Mobile Pers sample package includes the following items: For whom Item For the Mobile Pers user Base Station Mobile Unit Protective jelly case with a lanyard (for the Mobile Unit) AC power adapter (CT-1) Installation Kits* for the USB cable installer...

  • Page 6: Optional Software And Accessories

    1.3. Optional Software and Accessories You can purchase the following software or accessories separately from the Mobile Pers package: Item Usage SMS iWizard SMS iWizard is designed to facilitate SMS remote programming via a PC. You can use this tool to conveniently configure Mobile Pers on your PC without sending SMS text messages from a mobile phone.

  • Page 7: System Overview

    2. System Overview 2.1. Identifying the Parts 2.1.1. Base Station Top View Back View Side View...
  • Page 8 Base Station Definitions Button/LED/Component Behavior Function/Indication Red Help Button Pressed in idle/normal mode To summon emergency help Pressed once in learning To select Pendant #2 mode Pressed for 3 seconds in To delete a selected pendant learning mode Red Backlight Dimly lit Idle/normal mode Blinking...
  • Page 9 Button/LED/Component Behavior Function/Indication Blue Backlight Blinking The Base Station is in learning mode. Orange Backlight Steady on 1. After a non-emergency call is dialed out and until the call is hung up 2. Busy with status reporting 1. Idle mode 2.
  • Page 10 16 Ethernet Port (On MP-3 and MP-5 only) 17 USB Port...

  • Page 11: Mobile Unit

    2.1.2. Mobile Unit Front View Side View Bottom View Mobile Unit Definitions Button/LED/Component Behavior Function/Indication Red Help Button Pressed once when the To pick up the call Mobile Unit is ringing Pressed for 5 seconds To terminate the call during a call Pressed once (when off the To trigger a panic Base Station and in normal...
  • Page 12 Button/LED/Component Behavior Function/Indication LED 1A (Green) Blinking every 2 seconds The Mobile Unit is being charged. Steady on The Mobile Unit is fully charged. Blinking every 5 seconds The Mobile Unit is in normal operation. 2 LED 1B (Orange) Blinking every 3 seconds The Mobile Unit is low on battery.

  • Page 13: Usage Advice

    2.1.3. Usage Advice Please follow the usage advice below to avoid operational glitches. Inserting the Mobile Unit: When you insert the Mobile Unit into the Base Station, please press your hand softly on the speaker area of the Base Station to keep the Base Station staying stable on the table.
  • Page 14 Taking out the Mobile Unit: When you take out the Mobile Unit from the Base Station’s charging base, please press your hand softly on the speaker area of the Base Station to keep the Base Station staying firm and stable on the table. Push the Mobile Unit forward as shown below before taking it out.
  • Page 15 Using the Mobile Unit: When you press the Mobile Unit’s red button to summon help, please make sure that your hand does not cover the area with white dots. Please hold your Mobile Unit as shown in the photo below. The Mobile Unit’s operating temperature ranges from 0° C to 45° C. Mobile Unit Case: A protective jelly case for the Mobile Unit is provided in your Mobile Pers package.

  • Page 16: Power Supply

    2.2. Power Supply 2.2.1. Base Station Plug the AC power adapter into the Base Station’s DC jack and connect to the mains power. Make sure that you use an adapter with the appropriate AC voltage rating to prevent component damage. An AC-DC 12V/2A switching power adapter is generally used to power the standard version of the Base Station.

  • Page 17: Battery Life

    2.2.3. Battery Life Comparing the battery life (1100mAh battery) of different models: 433AM 868FM Mobile Unit Base Station Mobile Unit Base Station MP-1 Classic 46 hrs 24 hrs 62 hrs 18 hrs MP-2 Classic 53 hrs 21 hrs 69 hrs 16 hrs MP-3 Classic 46 hrs...

  • Page 18: Getting Started - Installing Mobile Pers

    3. Getting Started – Installing Mobile Pers 3.1. Setting up the Base Station Step 1. Choose a suitable location for the Base Station. The Base Station requires the mains power and PSTN/Ethernet connections (PSTN for MP-2 and MP-5; Ethernet for MP-3 and MP-5) and should be easily accessible.

  • Page 19: Setting Up The Mobile Unit

    3.2. Setting up the Mobile Unit Step 1. Please take the Mobile Unit out of the protective jelly case and use tweezers to pull open the rubber cap covering the SIM card slot. Step 2. Hold the Mobile Unit with its front side facing you. Insert a micro SIM card into the SIM card slot on the side of the Mobile Unit with the chip side of the SIM card facing you.

  • Page 20: Programming Mobile Pers

    4. Programming Mobile Pers 4.1. Installing USB Driver Please first install the USB Driver provided in your CD-ROM on your PC. < > < > It is recommended that you use Windows XP or Windows 7 operating systems. Step 1. Plug the USB cable into the Base Station’s USB port and connect to a PC.
  • Page 21 Step 3. Click on the “Device Manager” icon and find “MOBILE PERS BASE ISP” under “Other devices.” Click “Update Driver.”...
  • Page 22 Step 4. When the Hardware Update Wizard window pops up, select “Install from a list or specific location (Advanced)” and click “Next.”...
  • Page 23 Step 5. Search for the USB Driver folder. If you have copied and pasted the USB Driver folder to your desktop, tick “Include this location in this search” and click “Browse.” Step 6. Select the “USB Driver” and click “OK.”...
  • Page 24 Step 7. It takes a short while for your PC to install the USB Driver. If the Hardware Installation warning window pops up, please click “Continue Anyway.”...
  • Page 25 Step 8. When the installation has been completed, click “Finish” on the Hardware Update Wizard window to close the wizard.
  • Page 26 Step 9. Please remember the COM port number of Mobile Pers as shown in the “Device Manager” section. You will need the COM port number when doing PC programming. Now that the USB Driver has been successfully installed, you can proceed with PC programming of Mobile Pers.

  • Page 27: Pc Programming Tool

    4.2. PC Programming Tool You can easily configure both the Base Station and the Mobile Unit via the PC Programming Tool provided in the CD-ROM. Step 1. Find and open the “PC Programming Tool” folder in the supplied CD-ROM. Click “MPTool_x.xx.exe” to execute the programming tool. The following configuration screen will be opened.
  • Page 28 Step 2. Select the following settings in the top section of the configuration screen and click “Open.” Port: Select the COM port generated for Mobile Pers after installing the USB Driver (the USB port connected to Mobile Pers). Baud rate: 115200 Data: 8 Parity: None Stop: 1...
  • Page 29 Step 3. Enter SMS Keyword and Access Code and click “Read.” When a pop-up window shows “Read configuration success,” configuration page below will be opened and you can proceed with the programming of Mobile Pers. SMS Keyword: PROG (default) Access Code: 1111 (default)
  • Page 30 Step 4. SMS Program Click “SMS Program” to set a SMS Keyword (15 characters max.) and a PIN Code (4-8 digits) and click “Write.” Please note that the SMS Keyword is case-sensitive. < > < > The version of your Mobile Pers model will be shown on the top of the screen.
  • Page 31 Step 5. APN Click “APN” to set APN Name, APN User and APN Password and click “Write.” Access Point Name (APN): The name of an access point for GPRS. Please ask your SIM card service provider for your APN. Username: Offered by your SIM card service provider. Please ask your service provider for your GPRS username.
  • Page 32 Step 6. Report Click “Report” program reporting numbers communication formats/options for alarm reporting and status reporting. Click “Write” after you have completed the settings. The procedure and details are as follows: 1. See Group 1, Group 2, Group 3, Group 4 and Group 5. Each group stands for a report destination.
  • Page 33 formats: Account@phone number (example: 0001@0912345678) Speech reporting over the phone: phone number (example: 0912345678) Each group can have more than one reporting number. If a reporting number contains digits in parentheses like (02)27940559, the Base Station will not dial the digits in the parentheses when reporting via PSTN (it will only dial 27940559) but will dial the digits in the parentheses when reporting via GSM (it will dial 0227940559).
  • Page 34 Step 7. Non-Emergency Call Click “Non-Emergency Call” to program the non-emergency call number and click “Write.” When the Base Station is in normal mode, you can make a non-emergency call by pressing the green reset button for 3 seconds or press the yellow button once (if the yellow button has been programmed as a non-emergency call button).
  • Page 35 Step 8. Setting Click “Setting” to program “Guard Time Normal,” “Guard Time for Fall Sensor,” “Auto Check-In Interval,” “Auto Check-in Offset,” “Yellow Away/Home Button,” “Inactivity Timer,” “Inactivity Interval,” “Inactivity Warning Time,” “Callback Timer,” “Two-Way Timer,” “Supervision Timer Interval” and “Speaker Volume Two-Way,”...
  • Page 36 An emergency alarm cannot be cancelled after guard time has expired. If an emergency alarm is triggered by Fall Sensor, guard time will be determined by the setting of Fall Sensor instead of the setting of guard time. 2. Guard Timer for Fall Sensor: You can set a guard time period for Fall Sensor.
  • Page 37 If the setting is “off,” no code will be sent to the CMS. When the Base Station is in idle mode, you can toggle on/off the inactivity timer by pressing the yellow button once (if the yellow button has been programmed as an away/home button). 7.
  • Page 38 communication methods. The Access Code must be entered within 15 seconds, otherwise the system will disconnect the call automatically. Press DTMF (9), the red help button on the Mobile Unit for five seconds or the reset button on the Base Station to terminate the call. When callback time is up, the system will automatically exit the waiting mode and return to idle mode.
  • Page 39 16. Sound Setting Confirm Beep: Select “on” to enable confirmation beeps during reporting or “off” to disable confirmation beeps during reporting. 17. Answering Incoming [Calls]: When this function is set as “on,” the Base Station rings for incoming calls. You can answer an incoming call by pressing the red help button on the Base Station.
  • Page 40 Step 9. Sensors 1. Viewing the data of sensors: When you have learned sensors into the Base Station via the local learning method (see 5.1. Learning in Pendant #1, Pendant #2 and Other Devices), you can click “Sensors” and “Read” to view the zone numbers, types, battery status, tamper conditions, operating status and sound attributes of all of the sensors that have been learned in.
  • Page 41 2. Adding sensors: In addition to the local learning method, you can also use the “Add Sensor” section on the “Sensors” page to learn sensors into the Base Station. Enter the zone number (Zone 1~Zone 100) to which you wish to assign a sensor and the Sensor ID, which is the barcode on the back of the sensor, and click “Add Sensor.”...
  • Page 42 3. Editing and removing sensors: Editing the sound attribute of a sensor: Click any box in the section of the sensor that you wish to configure. For example, if you wish to edit the sound attribute of the sensor in Zone 3, you can click any box in the Zone 3 section.
  • Page 43 Step 10. System When you click “System” to enter the “System” screen, you can carry out the following operations: 1. Rebooting the Base Station: You can click “Reboot Base” to reboot the Base Station. The Base Station will emit 2 beeps about 2 seconds after you click the “Reboot Base”...
  • Page 44 2. Rebooting GSM: You can reset the u-blox in the Mobile Unit by clicking “Reboot GSM.” This function is available only when the Mobile Unit is inserted in the charging base on the Base Station. If this command is successful, the message “!XSMSC=<OK>RSTG” will be shown at the bottom left-hand corner of the screen.
  • Page 45 3. Checking the condition of the Base Station: You can click “Alive” to check if the Base Station can respond to your commands properly. If the Base Station responds properly, the message “!XSMSC=<OK> ECHO” will be shown at the bottom left-hand corner of the screen.
  • Page 46 4. Restoring the system to factory settings: You can click “Factory Reset” to restore the system to factory settings. The system will immediately restore all programmed parameters to factory settings and the Base Station will emit 2 beeps after you click the “Factory Reset”...
  • Page 47 5. Selecting an event code: You can select the event code to be sent to the CMS when either the red button of the Base Station or the red button of the Mobile Unit is pressed. Choose your preferred event code in the box after “Help Event”...
  • Page 48 6. Jamming reports: You can select to enable or disable jamming reports. Select your setting in the box after “Jamming Report” and click “Write.” Jamming reports can only be sent in the CID format and not in the Scancom or Tunstall format.
  • Page 49 7. AC power failure reports: You can disable AC power failure reports or set the interval between an AC power failure and the reporting of the power failure. Select your setting in the box after “AC Fail Report” and click “Write.”...
  • Page 50 Step 11. Firmware Update You can enter the “Firmware Update” page to update the firmware of the Base Station. 1. Click “Open File” to select the intended firmware.
  • Page 51 2. When the system is updating its firmware, a pop-up window will remind you not to close the PC Programming Tool while the firmware is being updated. Click “OK” and the system will start the firmware update. Updating the firmware will take a few minutes.
  • Page 52 3. When firmware update completed, message “STAT_SND_FW_END” will be shown at the bottom of the screen and the Base Station will emit 2 beeps. Please carry out a manual factory reset (not the factory reset via this PC Programming Tool) according to the following steps after the completion of the firmware update.

  • Page 53: Sms Remote Programming

    4.3. SMS Remote Programming You can do SMS remote programming via a mobile phone or SMS iWizard. Make sure that the Mobile Unit is inserted in the charging base of the Base Station before you proceed with SMS remote programming, which is effective only when the Mobile Unit is inserted in the Base Station’s charging base.
  • Page 54 Comma Programmed parameter < > < > You can compose multiple commands in one SMS text message by using “;” to separate each command.
  • Page 55 SMS Remote Programming Commands Table (for the Mobile Unit) Item Command Example & Usage Default Sounding the SCREAM Scream:PROG,1111,60 Mobile Unit To set the length of the Mobile Unit’s beeping period (0~60 seconds) to help the search for the Mobile Unit when the device is lost Resetting RSTG...
  • Page 56 Item Command Example & Usage Default Inactivity timer INACT INACT:PROG,1111,1,0,720,30 1, 0, 720, 30 To configure settings of the inactivity timer (function type of the yellow button, on or off, interval: 0~1440 minutes, warning time: 0~60 minutes) Button function type: 1 = away/home button, 2 = non-emergency call button On = 1, off = 0 Callback time...
  • Page 57 Item Command Example & Usage Default Answering ANSIN ANSIN:PROG.1111.1 incoming calls To allow or disallow incoming calls to be answered by pressing the Base Station’ s red help button or a pendant button (1 = allow, 0 = disallow) NWCFG:PROG,1111,1,192.168.0.1,255.255.255.0,192.168.0.254,192. 1,192.168.0 Network NWCFG...
  • Page 58 SMS Remote Programming via SMS iWizard Mobile Pers is compatible with Climax’s SMS iWizard, which is designed to facilitate SMS remote programming via a PC. This tool allows you to conveniently program Mobile Pers from your PC without sending SMS text...

  • Page 59: Device Management

    5. Device Management You can use the local learning method to learn 100 devices into the Base Station. These devices include: Door Contact: DC Water Sensor: WS Panic Button: PB Wrist Transmitter and Pendant Transmitter: WTR Passive Infrared Motion Detector: IR Smoke Detector: SD Gas Detector: GAS Carbon Monoxide Detector: CO...

  • Page 60: Removing Pendant #1, Pendant #2 And Other Devices

    is not pressed, the device will be automatically assigned to Zone 3~Zone 100 by sequence. Step 7. Proceed to press the button of the next device until the Base Station emits 2 beeps to indicate the device has been learned in. Please repeat this procedure to learn in the rest of your devices.
  • Page 61 Pendant #2. The Base Station will emit 1 beep once the red help button is pressed. Release the red help button when you hear 2 beeps that indicate Pendant #2 has been removed.

  • Page 62: Operation

    6. Operation 6.1. Mobile Unit The Mobile Unit enables the Mobile Pers user to summon emergency help anytime, anywhere. 6.1.1. Normal Mode When the Mobile Unit is in normal mode, it is ready to execute the following functions. 6.1.1.1. Answering Incoming Calls The Mobile Unit rings for an incoming call.

  • Page 63: Battery Checkup

    6.1.1.2. Battery Checkup The Mobile Unit uses its LEDs and voice prompt to remind you of its battery condition. LED indicators: Behavior Indication LED 1A (Green) Blinking every 2 seconds The Mobile Unit is being charged. Steady on The Mobile Unit is fully charged.
  • Page 64 progress. Confirmation beeps will last for 15-20 seconds. If two-way voice is selected, the Mobile Unit will not emit beeps but will play this voice prompt: “Alarm received, please stand by” to remind the user to prepare to answer the call. GPRS Reporting Method Access Point Name, Username and Password need to be set via SMS remote programming before GPRS reporting is activated.
  • Page 65 Upon reception of the correct Access Code, the Mobile Unit will open full-duplex communication between the call recipient and the Mobile Unit user. You can use the following DTMF commands to switch between speech modes: Enter (1) to talk only. Enter (2) to open two-way voice communication.
  • Page 66 Send code (C0601BD) to hang up or put the handset back to the base cradle to end the all. Speech Reporting Method If the speech reporting method is selected, the Mobile Unit will after dialing open two-way voice communication between the call recipient and the Mobile Unit user for 5 minutes.

  • Page 67: Voice Prompts

    Retry Method Retry cycle: Each phone number can be retried up to 3 times in one round. If one GPRS or SMS reporting fails during the retry cycle, the Mobile Unit will make a 10-second pause before starting another reporting. If any reporting other than GPRS or SMS reporting fails during the retry cycle, the Mobile Unit will make a 1-minute pause before starting another reporting.
  • Page 68 reset mode. All the Mobile Unit’s LEDs will be on for 1 second and then go off. Step 2. Press the red button once within 10 minutes. After 3-5 seconds, all LEDs will be on for 1 second and LED 2B (orange) will blink to indicate the Mobile Unit’s GSM module has been reactivated.

  • Page 69: Base Station

    6.2. Base Station 6.2.1. Idle Mode When the Base Station is in idle mode, it is ready to execute the following functions. 6.2.1.1. Answering Incoming Calls The Base Station emits cycles of 2 quick beeps for an incoming call. The user can answer the call by pressing the pendant button or the red help button on the Base Station.

  • Page 70: Non-Emergency Calls

    6.2.1.2. Non-Emergency Calls Step 1. Press the yellow button once or press the green reset button for 3 seconds when the Base Station is in idle mode. One short beep will be emitted and the Base Station will dial the programmed non-emergency call number.

  • Page 71: Base Station Low On Battery

    The interval between an AC power failure and the Base Station’s sending the AC failure report (factory default is 5 minutes) is programmed as explained in Step 10. System of 4.2. PC Programming Tool. After AC power has been restored for more than 5 minutes, the Base Station will send an AC power restored report to the CMS.

  • Page 72: Automatic Check-In Reports

    6.2.1.7. Automatic Check-In Reports When the Base Station is programmed to send auto check-in reports, it will dispatch the reports to the CMS accordingly. After the Base Station is powered on, the first auto check-in report it sends will be conditioned by the setting of the offset timer. Afterwards auto check-in reports will be sent according to the setting of the auto check-in timer.

  • Page 73: Alarm Activation

    6.2.2. Alarm Activation When an alarm is triggered, the Base Station will enter guard time. Both the orange backlight and the red help button’s backlight will turn steady on. A voice prompt announcing “help call in progress” will be played every 2-3 seconds during guard time to alert the user.
  • Page 74 Digital Reporting Method Callback Operation After the alarm reporting has been successfully received by the CMS, the Base Station will follow your programmed choice to enter follow-on and/or callback mode. < > < > If a trigger takes place on the Base Station’s side, the Base Station will enter callback mode once a call to a group is received successfully (the callback time will be renewed with every successful call to a group).
  • Page 75 Follow-On Operation During the follow-on period, the CMS can remotely control the Base Station by the following DTMF commands: 1. Contact ID/Scancom/Tunstall formats: Enter (1) to talk only. Enter (2) to open two-way voice communication. Enter (3) to listen in only. Enter (9) to hang up.
  • Page 76 CID code 1-661 to the CMS. Step 3. After the nurse has helped the user and completed his/her job, he/she presses the green reset button on the Base Station again to signal that his/her job has been completed. The Base Station sends CID code 3-661 to the CMS.
  • Page 77 signal that help has arrived with the 15 minutes after the red help button is pressed to summon help. The Base Station will keep sending CID code 1-662 to the CMS every 15 minutes for an hour to signal that no help has arrived. Speech Reporting Method If the speech reporting method is selected, the Base Station will after dialing open two-way voice communication between the call recipient and...

  • Page 78: Arming/Disarming The System

    received successfully, the system will not go on to dial the phone numbers under the groups which have previously failed to receive the calls. Retry Method Retry cycle: Each phone number can be retried up to 3 times in one round. During the retry period, the red backlight will be steady on.

  • Page 79: Voice Prompts

    seconds after the yellow button is pressed. The Base Station will emit two beeps to signal that it has entered disarmed mode. < > < > Please disarm your system during entry time. Failure to disarm the system during entry time will trigger an alarm. 6.2.4.

  • Page 80: Walk Test (Range Test)

    Voice Prompt Condition Inactivity timer expiring. Please reset. Played upon the expiry of the inactivity timer once every 5 minutes afterwards for 6 times (over a 30-minute period). After the 30 minutes, the Base Station will start reporting (this warning period is conditioned by the inactivity warning timer and its default is 30 minutes).
  • Page 81 Step 3. Plug the power cord into the DC jack while pressing both the help and the reset buttons until one long beep is emitted to indicate the factory reset has been successfully executed. Step 4. Release both buttons. Step 5. Slide the battery switch back to the on position. <...

  • Page 82: Appendix

    7. Appendix 7.1. Contact ID Event Codes 100 – Base Station Emergency When the red help button on the Base Station is pressed. 101 - Personal Emergency When Wrist Transmitter/Emergency Pendant (WTR) or Fall Sensor is pressed. 102 - Inactivity An inactivity code will be sent to the CMS if there is no movement during guard time after fall detection.

  • Page 83: Scancom Event Codes

    383 - IR Tamper Open When an IR tamper is opened. 384 - All Devices Low on Battery When all devices are low on battery, the green LED blinks every 2 seconds. 602 - Auto Check-In Report When the Base Station makes an auto check-in report to the CMS. 606 - Follow-On Operation When the Base Station receives a kiss-off from the CMS to open the speech channel.
  • Page 84 When the red help button on the Base Station is pressed. When Pendant #1 is pressed or triggered. When Water Sensor is triggered. When Fall Sensor is pressed or triggered. When WTR (Pendant #1) or PB is pressed. 555155517 - Pendant #2 Emergency When Pendant #2 is pressed or triggered.

  • Page 85: Tunstall Ttnew Event Codes

    When WS’ emergency status is cleared. 555555558 - Device Low on Battery When a device is low on battery, the green LED blinks every 2 seconds. 555555557 - Device’s Low Battery Status Cleared When a device’s low battery status is cleared. 155555517 –...

  • Page 86: Climax Cpc Dialect Event Codes

    When the Base Station’s battery is disconnected, the green LED blinks every 2 seconds. 7.4. Climax CPC Dialect Event Codes 55 – Base Station Emergency When the red help button on the Base Station is pressed. When Pendant #1 is pressed.

  • Page 87: Franklin Event Codes

    When the Base Station is low on battery, the green LED blinks every 2 seconds. When the Base Station’s battery is disconnected, the green LED blinks every 2 seconds. 18 - Base Station’s Low Battery Status Cleared/Base Station’s Battery Disconnected Status Cleared When the Base Station’s low battery status is cleared.
  • Page 88 4X - Crisis of Fire, Smoke, Gas, Carbon Monoxide or Water Leakage is relieved. When a crisis of fire, smoke, gas, carbon monoxide or water leakage is relieved. 61 - AC Failure When the Base Station’s AC power fails, the green LED blinks twice every second.
  • Page 89 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
