Introduction
1 1

1.2 Purpose of the Manual

This manual provides detailed information for the instal-
lation and start up of the frequency converter.
Chapter 3 Installation provides requirements for mechanical
and electrical installation, including:
•
Input
•
Motor
•
Control wiring
•
Serial communications wiring
•
Control terminal functions
®
VLT is a registered trademark.

1.3 Product Overview

A frequency converter is an electronic motor controller
that converts DC into a variable AC waveform output. The
frequency and voltage of the output are regulated to
control the motor speed or torque. The frequency
converter can vary the speed of the motor in response to
remote commands from external controllers.
The frequency converter offers many control, monitoring
and efficiency functions such as
•
monitoring the system and motor status
•
Issuing warnings or alarms for fault conditions
•
starting and stopping the motor
•
optimising energy efficiency
Operation and monitoring functions are available as status
indications to an outside control system or serial communi-
cation network.

1.4 Internal Controller Functions

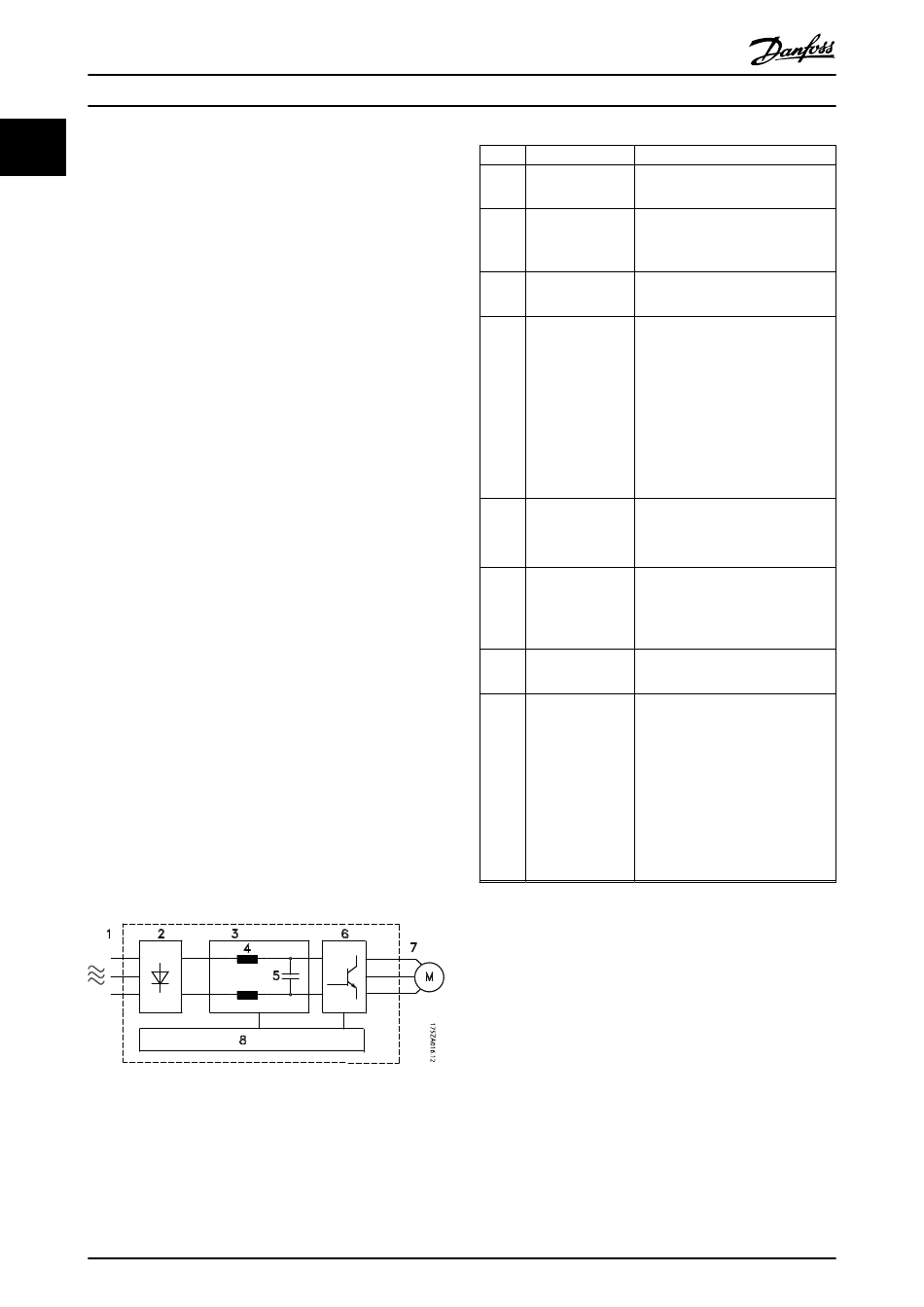

Illustration 1.3 is a block diagram of the frequency
converter's internal components.
Illustration 1.3 Frequency Converter Block Diagram
4
Danfoss Turbocor
Area
1
2
3
4
5
6
7
8
Table 1.2 Legend to Illustration 1.3
Danfoss A/S © 01/2015 All rights reserved.
Title
•
3-phase AC mains supply to the
Mains input
frequency converter
•
The rectifier bridge converts the
AC input to DC current to
Rectifier
supply inverter power.
•
Intermediate DC-bus circuit
DC-bus
handles the DC current.
•
Filter the intermediate DC circuit
voltage.
•
Prove line transient protection.
•
Reduce RMS current.
DC reactors
•
Raise the power factor reflected
back to the line.
•
Reduce harmonics on the AC
input.
•
Stores the DC power.
•
Capacitor bank Provides ride-through protection
for short power losses.
•
Converts the DC into a
controlled PWM AC waveform
Inverter
for a controlled variable output
to the motor.
•
Regulated 3-phase output
Output to motor
power to the motor
•
Input power, internal processing,
output, and motor current are
monitored to provide efficient
operation and control.
•
User interface and external
Control circuitry
commands are monitored and
performed.
•
Status output and control can
be provided.
Functions
