Introduction

1 Introduction

1.1 Product Overview

1.1.1 Interior Views
1
15
13
(IP 21/54
NEMA 1/12)

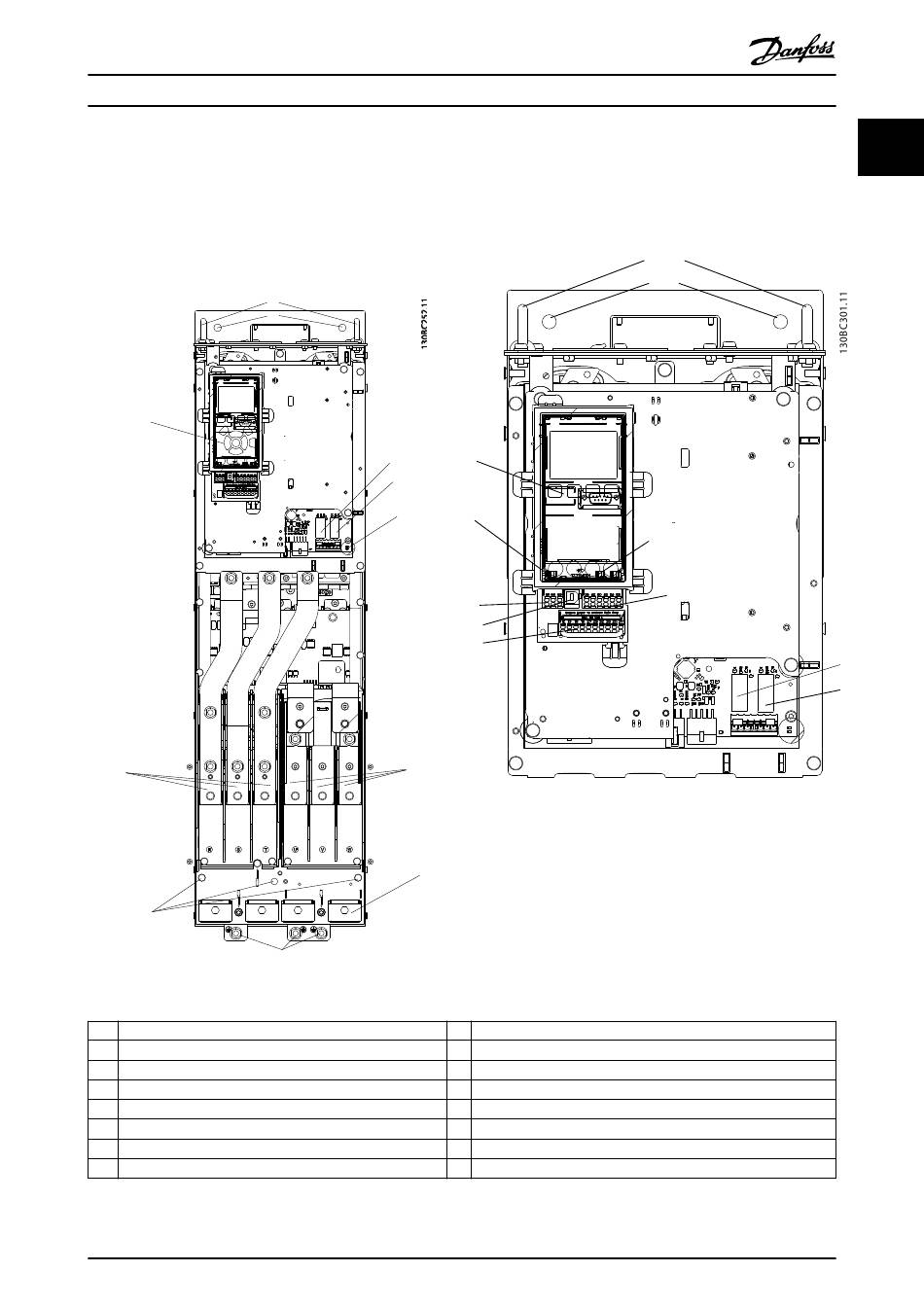

Illustration 1.1 D1 Interior Components
1 LCP (Local Control Panel)
2 RS-485 serial bus connector
3 Digital I/O and 24 V power supply
4 Analog I/O connector
5 USB connector
6 Serial bus terminal switch
7 Analog switches (A53), (A54)
8 Relay 1 (01, 02, 03)
Table 1.1 Legend to Illustration 1.1 and Illustration 1.2
MG35Q202
Installation Guide
10
11
8
9
16
14
12
13 (IP 20/Chassis)
Danfoss A/S © 01/2015 All rights reserved.
1
6
2
5
3
Illustration 1.2 Close-up View: LCP and Control Functions
9 Relay 2 (04, 05, 06)
10 Lifting ring
11 Mounting slot
12 Cable clamp (PE)
13 Earth (ground)
14 Motor output terminals 96 (U), 97 (V), 98 (W)
15 Mains input terminals 91 (L1), 92 (L2), 93 (L3)
16 TB5 (IP21 only). Terminal block for anti-condensation heater
