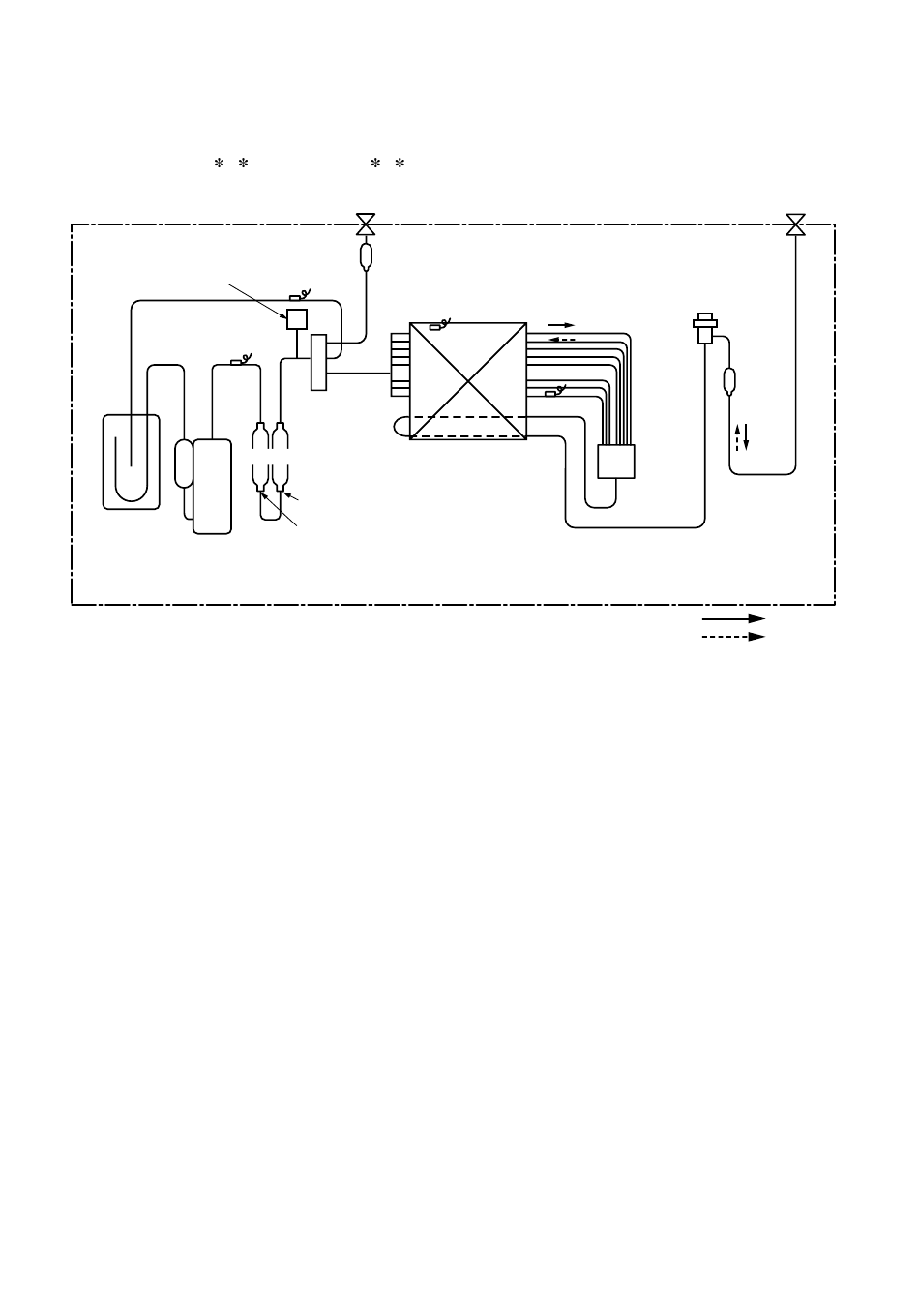

3-2. Outdoor Unit

RAV-GM1101AT8 P , GM1401AT8 P
Pressure
switch
TD sensor
Accumulator
(1800cc)
Rotary
compressor
(RX330A2T-20M)
Ball valve
Outer dia. Ø15.88
Strainer
TS sensor
P
4-way valve
(STF-H0218)
Heat exchanger
Muffler
Ø8, 2 rows, 40 steps
FP1.3 flat fin
Ø25 × L180
Ø25 × L210
TL sensor
TE
sensor
- 22 -
FILE NO.SVM-18044
Packed valve
Outer dia. Ø9.52
PMV
(Pulse Motor Valve)
(CAM-BD25TCTH-1)
Strainer
Distributor
R32 : 2.1kg
Cooling
Heating
