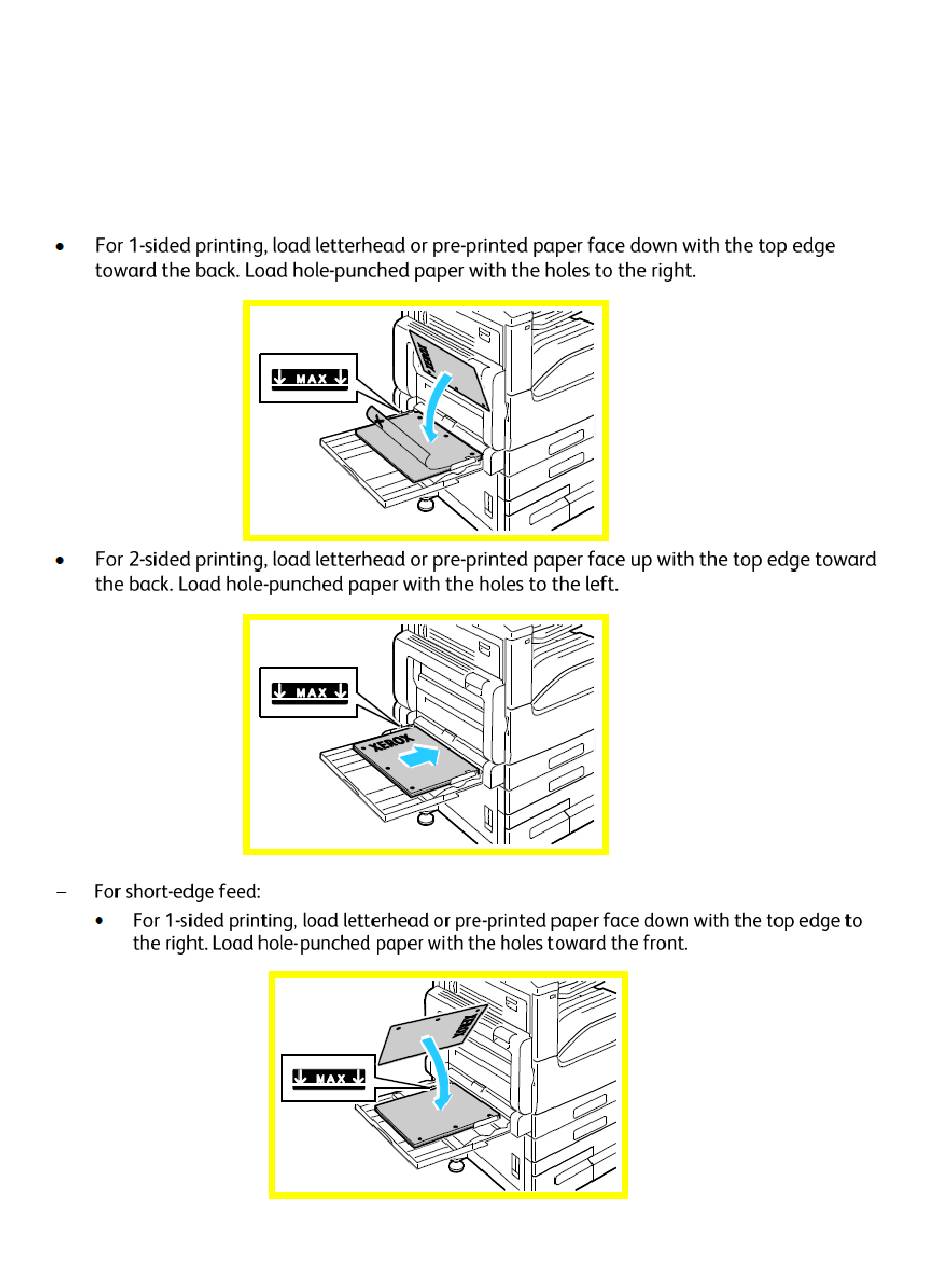

How to Load Special Paper - Bypass Tray
B7025/30/35
USdw 2017
Adjust the guides to the edge of your media. Fan the paper before loading and do not fill above
the Max line on any tray or document handler. Do not remove paper from its packaging and
follow any picture guides on the tray for best results. For more detail, see the User Guide or
www.xerox.com/support
Advertisement
Related Manuals for Xerox VersaLink B7025
Summary of Contents for Xerox VersaLink B7025
- Page 1 Adjust the guides to the edge of your media. Fan the paper before loading and do not fill above the Max line on any tray or document handler. Do not remove paper from its packaging and follow any picture guides on the tray for best results. For more detail, see the User Guide or www.xerox.com/support...
- Page 2 Optional Tray 6 High Capacity – normally used for dedicated plain paper white.
- Page 3 Recommended to use the Envelope Tray for #10 envelopes. (See Tray Specifications.) Bypass tray does not show #10, it will with the Envelope Tray installed.
- Page 4 For DL, Monarch, No.10 and C5 envelopes with the flap on a long edge load envelopes face down with the flaps closed and flaps toward the left.
- Page 5 Load labels in Tray 1 -2 (Recommended Bypass Tray).
- Page 6 Load labels in the Bypass Tray See your User Guide at Xerox.com/support for more support detail and the User Guide in the Documentation Tab.
