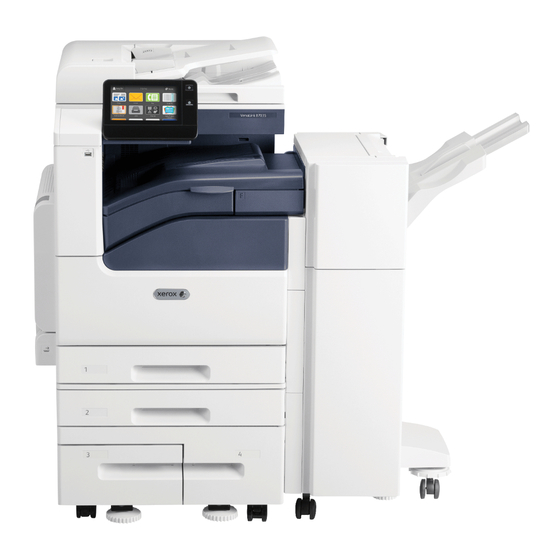

Xerox VersaLink B7025 Maintenance
Hide thumbs
Also See for VersaLink B7025:
- Service manual (1341 pages) ,
- User manual (281 pages) ,
- Security function supplementary manual (50 pages)
Advertisement
Quick Links
Maintenance B7025/30/35 VersaLink NW
When a consumable or cartridge requires replacement, a message appears on the control panel. You
can find directions in the box, User Guide and
Supplies area for consumable information.
NOTE: The Power Wake button re-starts, powers up and down the device.
NOTE: The Fuser and Bias Transfer Roll is only ordered via service call by technician who may order on
determination of need when the error or message occurs. Customers place the call.
How to Replace Toner
1. Open the front door.
2. Place your fingers under the lip of the toner cartridge the
touch screen tells you to replace when it says replace NOW.
Tip: You can check in the Device App to make sure it is less
than 5% left.
3. Remove the new toner from the box and tilt it up and down,
left and right 10 times gently to loosen the toner.
4. Engage the new toner cartridge guides with the slot around
the correct open housing and push it in until it stops.
5. Close the door.
How to Replace the Drum Cartridge
1. Open the clearance door on the left side of the device FIRST! (This releases the Drum from that
side.)
2. Open the front door and remove the drum cartridge from
the device using the unlock lever.
3. Carefully remove the protective shield from the new drum.
Do not touch any shiny surfaces or the hot fuser by the
open clearance door on the left.
4. CAUTION: Do not touch the left side of the Drum Cartridge.
Do not leave the drum exposed to light for more than 5
minutes.
5. Insert the new drum cartridge and return the orange lever
downward to lock the new cartridge in place. You will hear it click into place.
6. The cleaning rod is located below the drum cartridge on the inside of the front door. Shown
above.
7. Insert the cleaning rod into the cleaning hole. Slide the rod as far as it will go then slide it out of
the cleaning hole. Repeat this two more times.
8. Close the door.
CAUTION: Do not expose the drum cartridge to direct sunlight or strong indoor fluorescent lighting.
Do not touch or scratch the surface of the drum.
www.xerox.com/support
Check in the Device App in the
Advertisement
Related Manuals for Xerox VersaLink B7025
Summary of Contents for Xerox VersaLink B7025
- Page 1 Maintenance B7025/30/35 VersaLink NW When a consumable or cartridge requires replacement, a message appears on the control panel. You can find directions in the box, User Guide and www.xerox.com/support Check in the Device App in the Supplies area for consumable information.
- Page 2 WARNING: Never throw drum cartridges into heat or flame. Never touch a labeled area on or near the heat roller in the fuser, you may be burned. If a sheet of paper wraps around the heat roller, do not try to remove it immediately. Turn off the printer and wait 40 minutes for the fuser to cool. Try to remove the jam after the printer has cooled.
- Page 3 Replace Staple Cartridges: If the printer has the optional Integrated Office Finisher, Office Finisher, or Office Finisher with Booklet Maker installed, the control panel displays a message when a staple cartridge is empty and needs replacement. Integrated Office Finisher 1. Open Finisher Door. 2.
- Page 4 Office Finisher 1. Open the Finisher door 2. Reach into the finisher cabinet and pull the stapler toward you until it stops. 3. Push the stapler assembly to the right. 4. To remove the staple cartridge, grasp the orange handle, then pull it firmly toward you. 5.
- Page 5 Replace Staples in the Booklet Maker for the Office Finisher 1. Open the door. 2. If the staple cartridges are not visible, grasp the vertical panels on each side of the opening and slide the staple cartridges to the center. 3.
