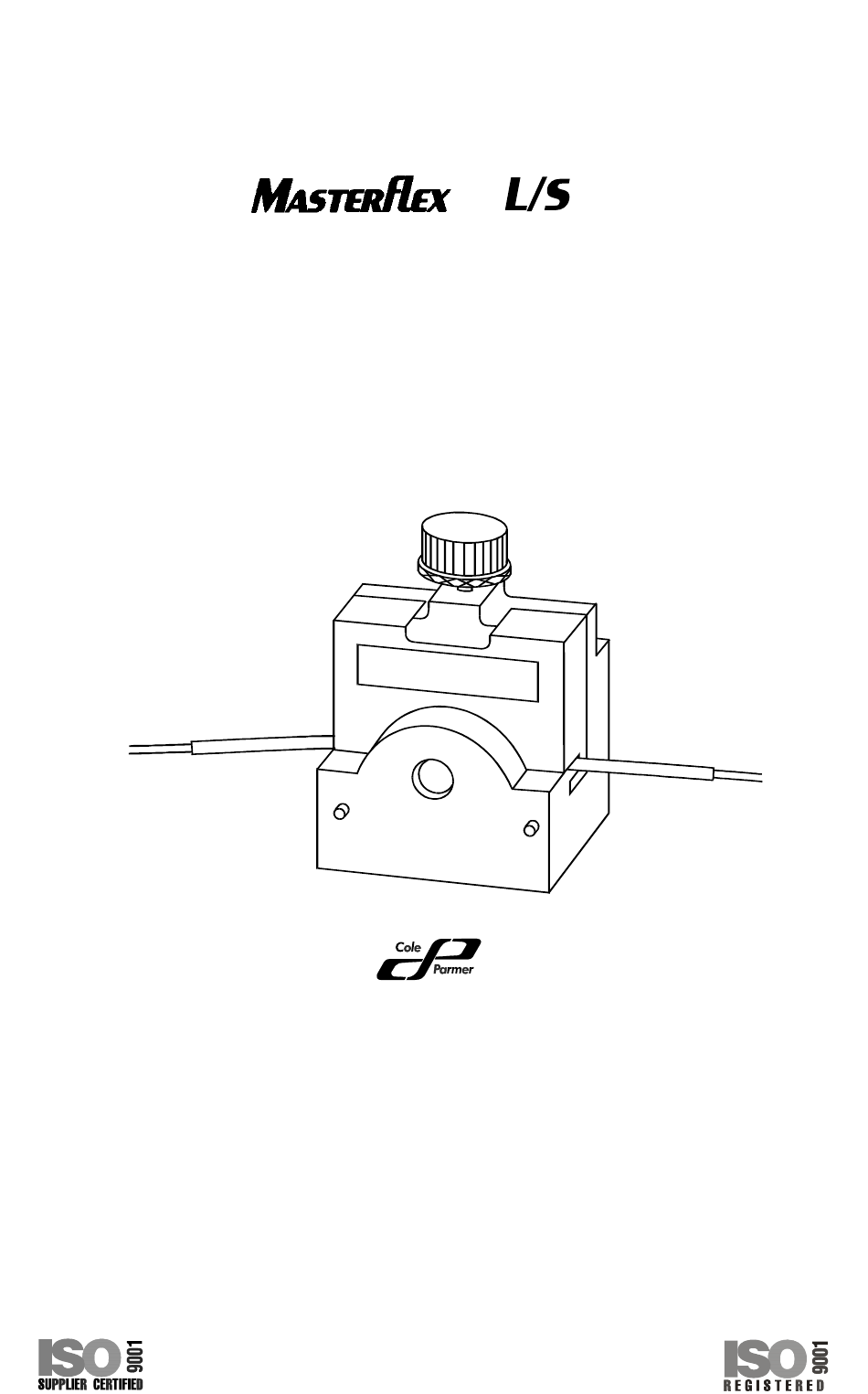

PTFE TUBING PUMP
Cole-Parmer Instrument Co.
1-800-MASTERFLEX (627-8373) (U.S. and Canada only)
11 (847) 549-7600 (outside U.S.)
1-800-637-3739 (U.S. and Canada only)
11 (847) 381-7050 (outside U.S.)
OPERATING MANUAL
Model 77390-00
(847) 549-7600 (Local)
www.masterflex.com
Barnant Company
(847) 381-7050 (Local)
www.barnant.com
A-1299-0538
Edition 07
®
®
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cole Parmer Masterflex L/S 77390-00
Summary of Contents for Cole Parmer Masterflex L/S 77390-00
- Page 1 OPERATING MANUAL ® ® PTFE TUBING PUMP Model 77390-00 ® Cole-Parmer Instrument Co. 1-800-MASTERFLEX (627-8373) (U.S. and Canada only) 11 (847) 549-7600 (outside U.S.) (847) 549-7600 (Local) www.masterflex.com Barnant Company 1-800-637-3739 (U.S. and Canada only) 11 (847) 381-7050 (outside U.S.) (847) 381-7050 (Local) www.barnant.com...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Title Page SAFETY PRECAUTIONS ............... 4 INTRODUCTION ..................5 APPLICATION DATA ................6 GENERAL DESCRIPTION ..............6 INSTALLATION ..................7 SETUP AND OPERATION ..............8 Selecting Tubing Size ................8 Loading Tubing ..................9 Recommended Occlusion Setting ............11 Optimized Occlusion Settings ............ -
Page 4: Safety Precautions
SAFETY PRECAUTIONS ® ® CAUTION: Use only pre-formed MASTERFLEX PTFE tub- ing. Use of other tubing may result in premature or unknown failure modes. WARNINGS: Turn drive off before removing or installing tubing. Fin- gers or loose clothing could be caught in the rollers. Use recommended fittings only. -
Page 5: Introduction
INTRODUCTION The Model 77390-00 PTFE Tubing Pump, Figure 1, provides quick loading of the special PTFE tubing assemblies. The pump is designed to work with the MASTERFLEX 2mm ID PTFE Tubing Model 77390-50 and 4mm ID Model 77390-60 and provides a wide flow range when used with compatible ®... -
Page 6: Application Data
APPLICATION DATA The Model 77390-00 PTFE Tubing Pump is used to pump caustic and/or sterile liquids, particularly those liquids that are not compatible with other existing MASTERFLEX tubing materials. The use of PTFE tubing provides improved liquid compatibility and maintenance of liquid purity. The specially designed tubing assemblies provide for intermittent operation at pressures up to 100 psig. -
Page 7: Installation
INSTALLATION ® ® Mounting the Pump Head to a MASTERFLEX Pump Drive The Pump Head is attached to the drive unit with four supplied screws as shown in Figure 2. NOTE: Two Tang Boots are provided. The Pump Head is shipped with the closed end Tang Boot (A-3480) installed which matches most ®... -
Page 8: Setup And Operation
SETUP AND OPERATION Selecting Tubing Size The following chart provides approximate flow rates for the different tubing sizes when used at various speeds. Liquid medium is distilled water at 72°F (22.2°C) and zero psig backpressure. Tubing Catalog No. 77390-50 77390-60 Drive Speed r/min Initial Flow Rate mL/min... -
Page 9: Loading Tubing
Loading Tubing WARNING: Turn drive off before removing or installing tubing. Fin- gers or loose clothing could be caught in the rollers. 1. Rotate Locking Ring fully counterclockwise to unlock Occlusion Adjust- ment Knob. 2. Rotate the Occlusion Adjustment Knob completely counterclockwise. Figure 3. - Page 10 4. Install the pre-formed PTFE tubing assembly in the groove of the Occlusion Bed as shown in Figure 4. Figure 4. Positioning Tubing Assembly in Occlusion Bed 5. Slide the occlusion assembly into the front of the body assembly. WARNING: Use recommended fittings only.
-
Page 11: Recommended Occlusion Setting
c. where higher pressure filters are used that do not have a built-in pressure relief system. 2. HIGH SYSTEM-generated back pressures. AN INJECTION CHECK/BACK PRESSURE VALVE should always be installed when pumping into a pressurized reservoir or line. This will prevent siphoning and/or backflow of liquid from a treated line in the event of tubing failure. -
Page 12: Optimized Occlusion Settings
Optimized Occlusion Settings Occlusion is reduced by rotating the Adjustment Knob counterclockwise. Some applications require adjustment of the occlusion setting to maximize tube life while others require adjustment to maintain flow rate when substan- tial system pressure exists. However, the recommended setting will meet the requirements of most applications, giving both good tube life and some pressure capabilities. -
Page 13: Specifications
SPECIFICATIONS PUMP Maximum Torque load: 150 in-oz (12 kg-cm) Operating Speed: 300 r/min maximum Operating Temperature: 32°F to 104°F (0°C to 40°C) −50°F to 150°F (−45°C to 65°C) Storage Temperature: Humidity (Non-cond): 10% to 90% RH Dimensions (L x W x H): 2-11/16 in x 3-5/16 in x 5-1/2 in (6.83 cm x 8.4 cm x 14.0 cm) Weight:... -
Page 14: Warranty
WARRANTY Use only pre-formed MASTERFLEX ® ® PTFE tubing. Use of other tubing may result in premature or unknown failure modes. The Manufacturer warrants this product to be free from significant deviations from published specifications. If repair or adjustment is necessary within the warranty period, the problem will be corrected at no charge if it is not due to misuse or abuse on your part as determined by the Manufacturer. - Page 15 NOTES ® Cole-Parmer Instrument Co. 625 East Bunker Court Vernon Hills, Illinois U.S.A. 60061-1844 1-800-MASTERFLEX (627-8373) (U.S. and Canada only) 11 (847) 549-7600 (outside U.S.) (847) 549-7600 (Local) FAX (847) 247-2929 (U.S. and Canada only) 11 (847) 549-1700 (Fax outside U.S.) www.masterflex.com...
