OPERATING MANUAL
HIGH PERFORMANCE
PUMP HEAD
Model 77600-62
Cole-Parmer
1-800-MASTERFLEX (627-8373) (U.S. and Canada only)
11 (847) 549-7600 (Outside U.S.) • (847) 549-7600 (Local)
www.masterflex.com • techinfo@coleparmer.com
Thermo Fisher Scientific
1-800-637-3739 (U.S. and Canada only)
11 (847) 381-7050 (Outside U.S.) • (847) 381-7050 (Local)
www.thermo.com • bar.barnant@thermofisher.com
I/P
I/P
®
®
A-1299-0756
Edition 08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Masterflex I/P 77600-62 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cole Parmer Masterflex I/P 77600-62

Summary of Contents for Cole Parmer Masterflex I/P 77600-62

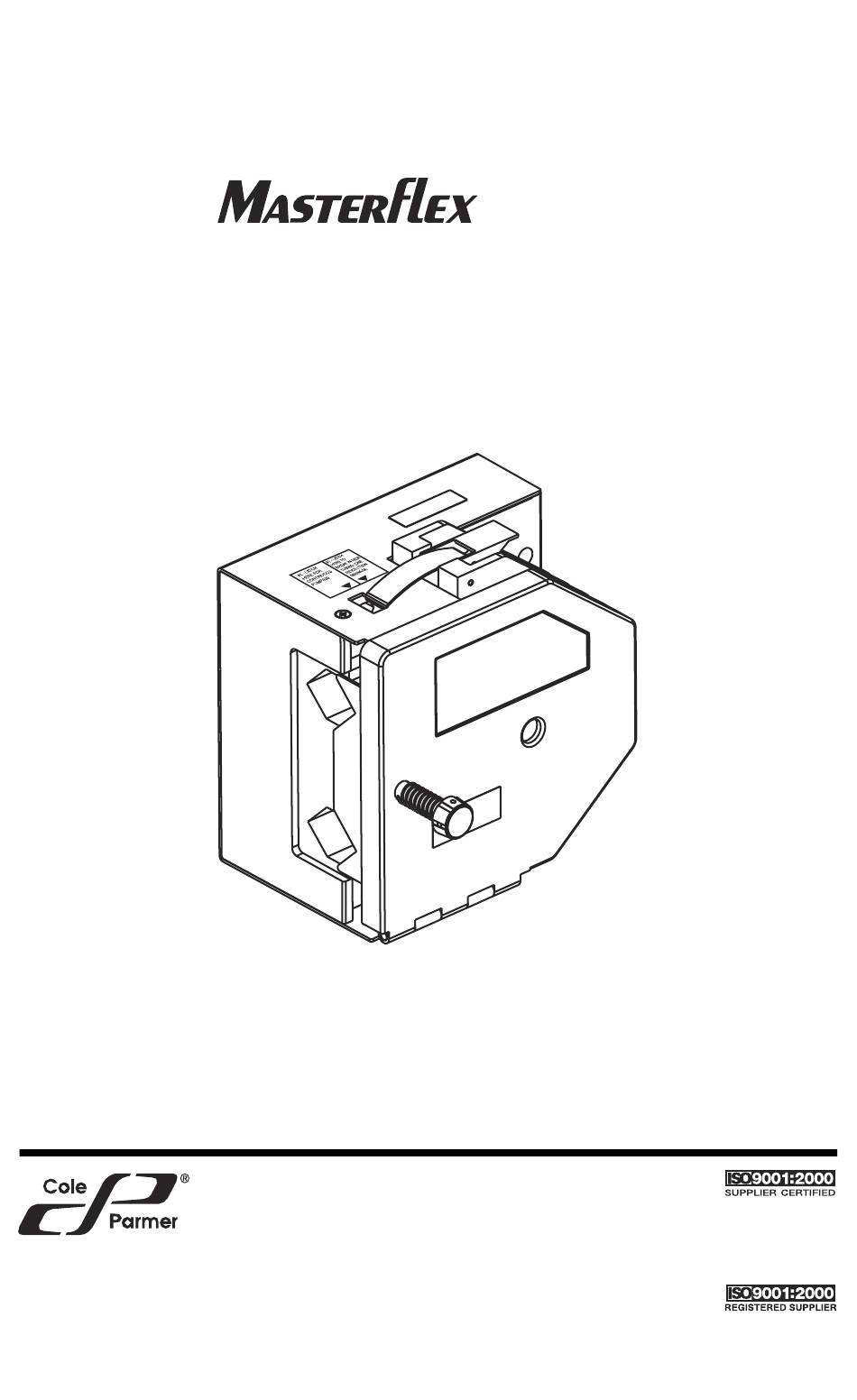

  • Page 1 ® HIGH PERFORMANCE PUMP HEAD Model 77600-62 A-1299-0756 Edition 08 Cole-Parmer 1-800-MASTERFLEX (627-8373) (U.S. and Canada only) 11 (847) 549-7600 (Outside U.S.) • (847) 549-7600 (Local) www.masterflex.com • techinfo@coleparmer.com Thermo Fisher Scientific 1-800-637-3739 (U.S. and Canada only) 11 (847) 381-7050 (Outside U.S.) • (847) 381-7050 (Local)

  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS WARNING: Turn drive off before removing or installing tubing. Fingers or loose clothing could be caught in the rollers. WARNING: PRODUCT USE LIMITATION This product is not designed for, nor intended for use in patient connected applications; including, but not limited to medical and dental use and accordingly, has not been submitted for FDA approval.

  • Page 3: Specifications

    SPECIFICATIONS Pump Head number Pump Material Occlusion Shaft Length ® Tubing 77600-62 PE/SS Fixed Short ® 70, 88, 89 Typical Flow, Pressure and Vacuum Data, (CW Direction): Flow rate Discharge Pressure* Vacuum* Suction Lift* ® @20 rpm @ 650 rpm Continuous Intermittent @ 650 rpm...

  • Page 4: Setup And Operation

    INTRODUCTION ® ® The MASTERFLEX High Performance Pump Head delivers in excess of 17 L/min flow at normal MASTERFLEX operating speeds and pressures. It is designed for optimal pumping in the clockwise direction. There are two mounting positions. Tubing entry and exit are either on the left side or on top of the pump ®...
  • Page 5 Figure 1. Mounting Holes for Console Drive, 07549 Series Loading Tubing WARNING: Turn drive off before removing or installing tubing. Fingers or loose clothing could be caught in the rollers. 1. Rotate tubing retainer knob, Figure 2, counterclockwise to release retainer, then pull to open cover.
  • Page 6 3. Insert the MASTERFLEX tubing inside tubing guide and around rotor with the ends of the tubing extending out the tubing entrance and tubing exit as shown in Figure 3. Position tubing on center of roller. 4. Press the occlusion bed against the tubing and snap the latch closed, using latch slot 1 as shown in Figure 3.

  • Page 7: Maintenance

    MAINTENANCE Maintenance is limited to replacement of the parts listed in the replacement parts list and cleaning the Pump Head. Replacement Parts DESCRIPTION ORDER NUMBER Rotor/Body Kit 77600-69 Tubing Retainer Kit 77600-66 Occlusion Bed Assembly Kit 77600-67 Tang Boot 77600-02 Mounting Screws (not shown) 77600-01 Figure 4.

  • Page 8: Warranty

    Any damages resulting from improper packaging are your responsibility. TECHNICAL ASSISTANCE If you have any questions about the use of this product, contact the Manufacturer or authorized seller. Cole-Parmer 1-800-MASTERFLEX (627-8373) (U.S. and Canada only) 11 (847) 549-7600 (Outside U.S.) (847) 549-7600 (Local) www.masterflex.com techinfo@coleparmer.com...
