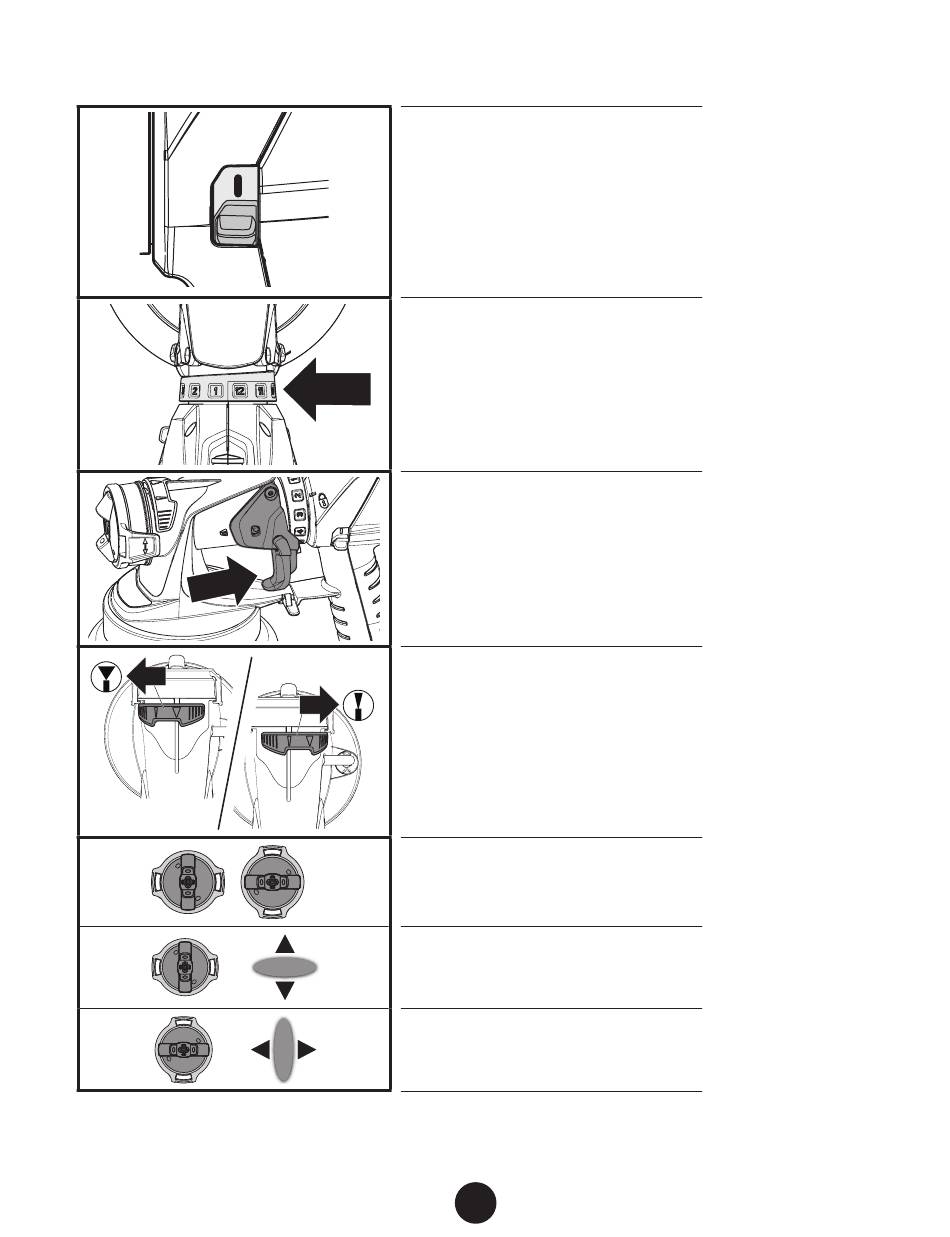

ControlS anD FUnCtionS

wiDe
=
=
=
=
narrow
=
=
on / oFF SwitCh
The ON/ OFF switch turns the turbine ON (I)
and OFF (0).
No spray material will be delivered until trigger
is pulled.
Material Flow Control
The material flow control knob determines the
amount of material that is sprayed from the
nozzle assembly.
triGGer
Pulling the trigger will deliver material from
the material container to the nozzle assembly,
where it is sprayed.
SPraY wiDth lever
The spray width lever determines the width of
the spray pattern.
aDjUStMent rinG
The spray pattern shape is adjusted by turning
the adjustment ring to either the vertical or
horizontal positions.
Horizontal pattern (use 'up and down' spraying
motion)
Vertical pattern (use 'side to side' spraying
motion)
