CONNECTION SCHEME

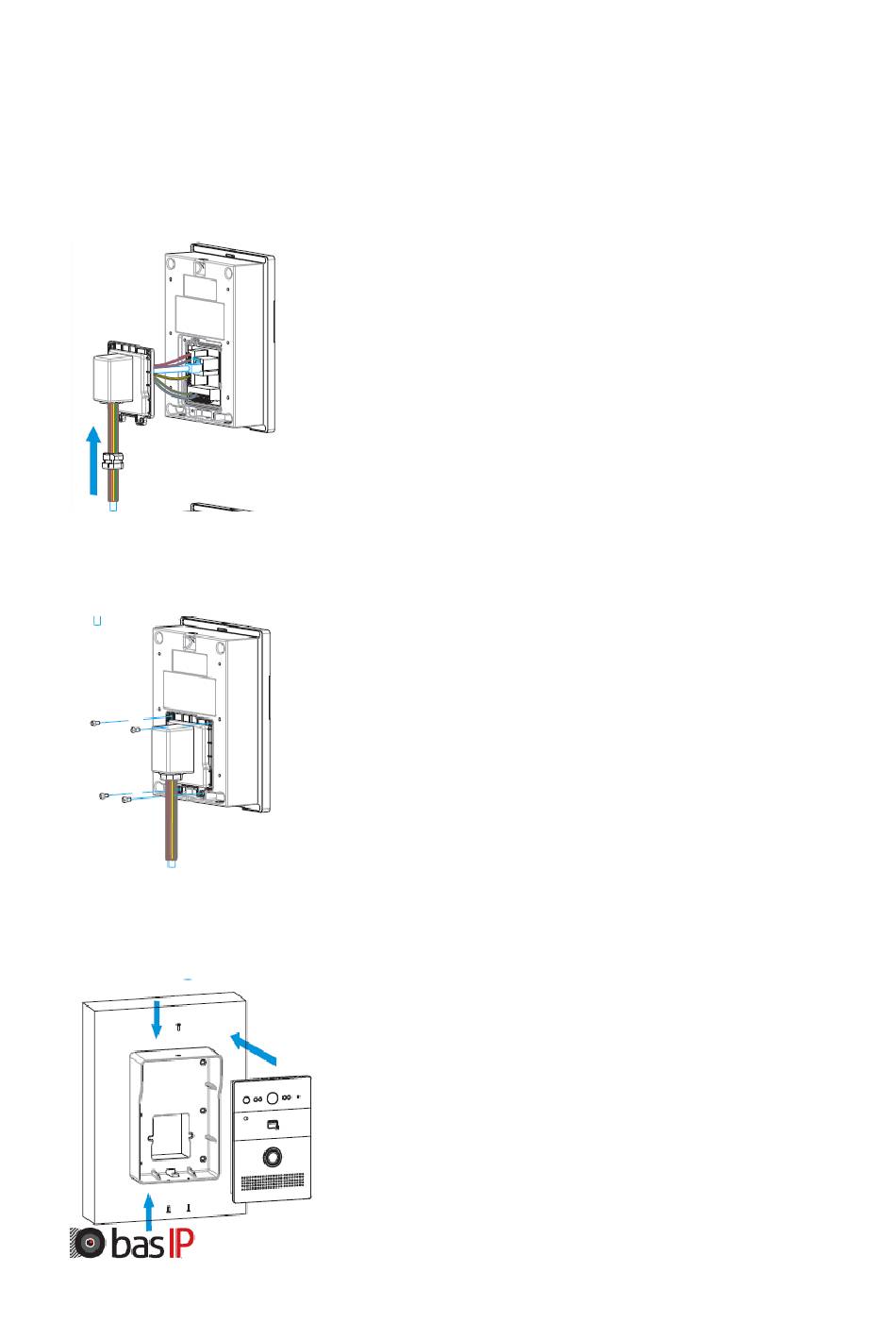

7. Make a connection of all wires and connect the sealing ring with protective
shroud as shown in figure.
8. Install the protective cover with M3X5 screws as shown in figure.
9. Install the panel in the bracket for the wall mounting and fix it using M2.5X6.5
screws.
