IDENTIFICATION OF CONTROLS

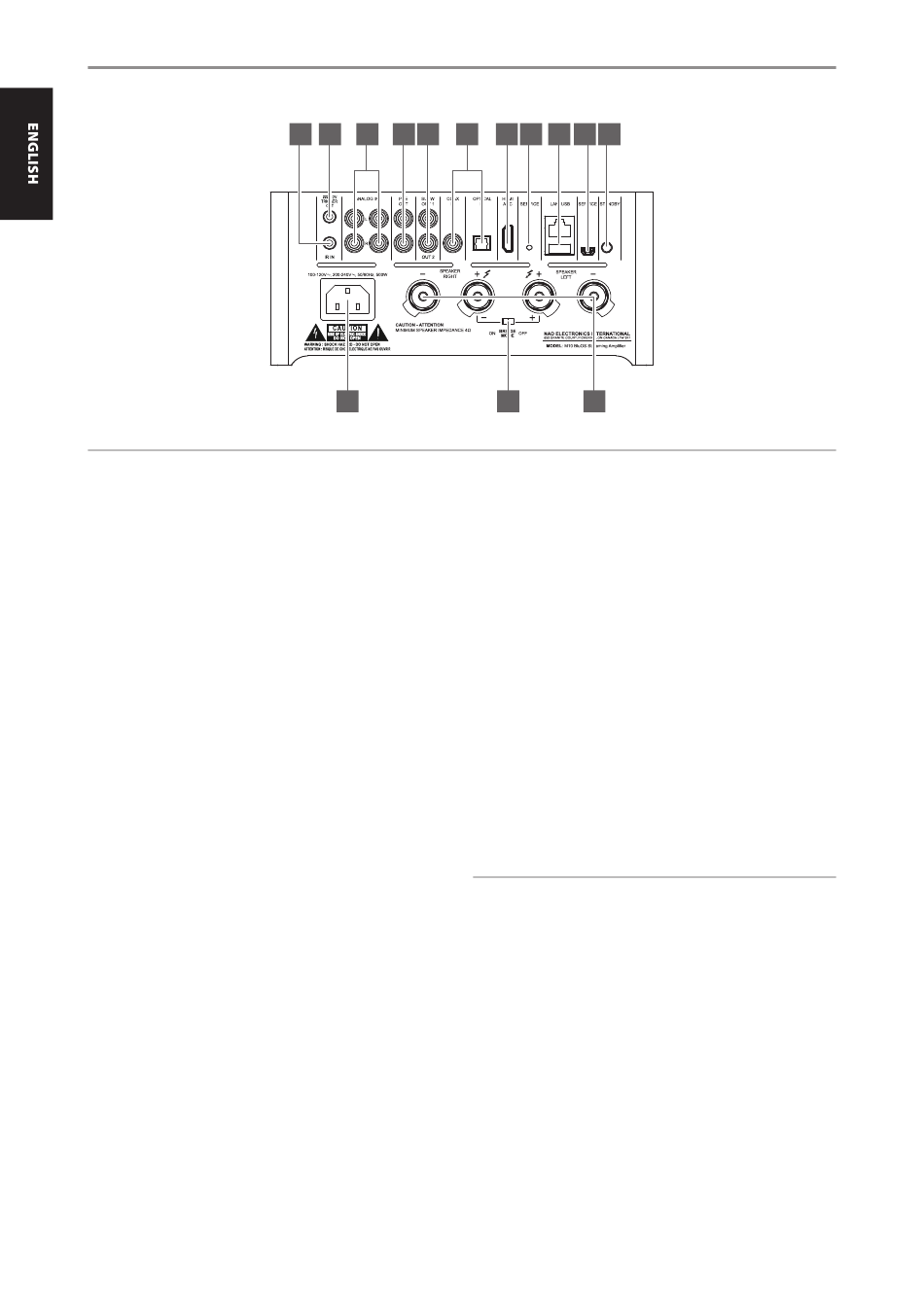

REAR VIEW

ATTENTION!
Please ensure that the M10 is powered off or unplugged from the mains power outlet before making any connections. It is also advisable to power down or
unplug all associated components while making or breaking any signal or AC power connections.
1 IR IN
This input is connected to the output of an IR (infrared) repeater
(Xantech or similar) or IR output of another compatible device to
allow control of the M10 from a remote location.
To program IR Remote commands into your M10 via IR IN, go
to the Settings menu of the BluOS App, select Player and
then IR remote. Simply select the function desired from the IR
Remote menu, point an IR remote control at the IR repeater and
press the button to perform that function. Once successful, a
check-mark will appear beside the programmed function. You
can now use the IR remote control to command the M10 with the
programmed functions.
2 +12V TRIGGER OUT
The +12V TRIGGER OUT is used for controlling external equipment
equipped with a +12V trigger input.
Connect this +12V TRIGGER OUT to the other equipment's
corresponding +12V DC input jack using a mono cable with 3.5mm
male plug.
This output will be 12V when the M10 is ON and 0V when it is either
OFF or in standby mode.
3 ANALOG IN 1-2
Input for line level sources such as CD player, tuner or any
compatible devices. Use dual RCA-to-RCA cable to connect the
source device's left and right "Audio Output" to these line input
ports.
The sources will appear as "Analog Input 1" and "Analog Input 2" in
the navigation drawer of the BluOS App.
4 PRE OUT
Use dual RCA-to-RCA cable to connect PRE-OUT to the
corresponding analog audio input of compatible devices such
as amplifiers, receivers or other applicable devices. This makes it
possible to use the M10 as a pre-amplifier to such devices.
6
1
2
3
4
5
6
11
7
8
9
8
10
12
13
5 SUBW (SUBWOOFER) 1, 2
Connect SUBW 1 and/or 2 to the low level input of corresponding
powered subwoofer.
Low frequency information up to 80 Hz is sent to the connected
subwoofer.
6 OPTICAL IN/COAXIAL IN
Connect to corresponding optical and coaxial digital output of
sources such as CD or BD/DVD players, digital cable box, digital
tuners and other applicable components.
7 HDMI ARC
Connect to TV that supports HDMI Control (CEC) and Audio Return
Channel (ARC) functions. Both functions are possible if external
devices that also support both features are interconnected with
M10 via HDMI connection.
Use HDMI cable to connect HDMI ARC to corresponding HDMI ARC
port of TV.
With ARC connection established, M10 will output audio signal
from TV.
IMPORTANT
Ensure that the audio setting/format of ARC-connected devices to M10
is set to PCM only.
Only audio output signal from TV is supported by HDMI ARC port. There
is no video output at HDMI ARC port of M10.
8 SERVICE
These USB port and tact switch are for servicing purposes only. Not
for consumer use.
