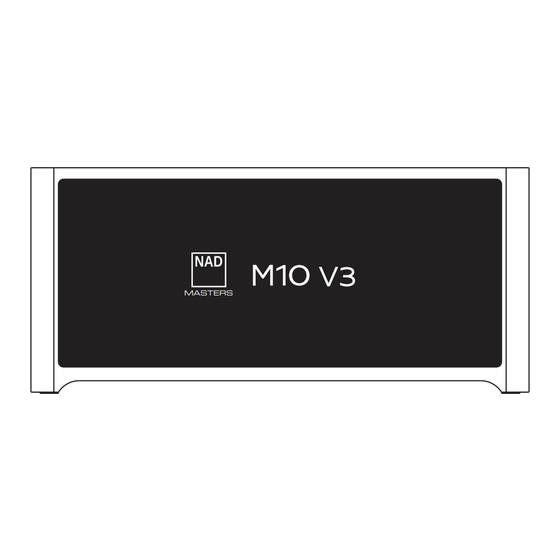

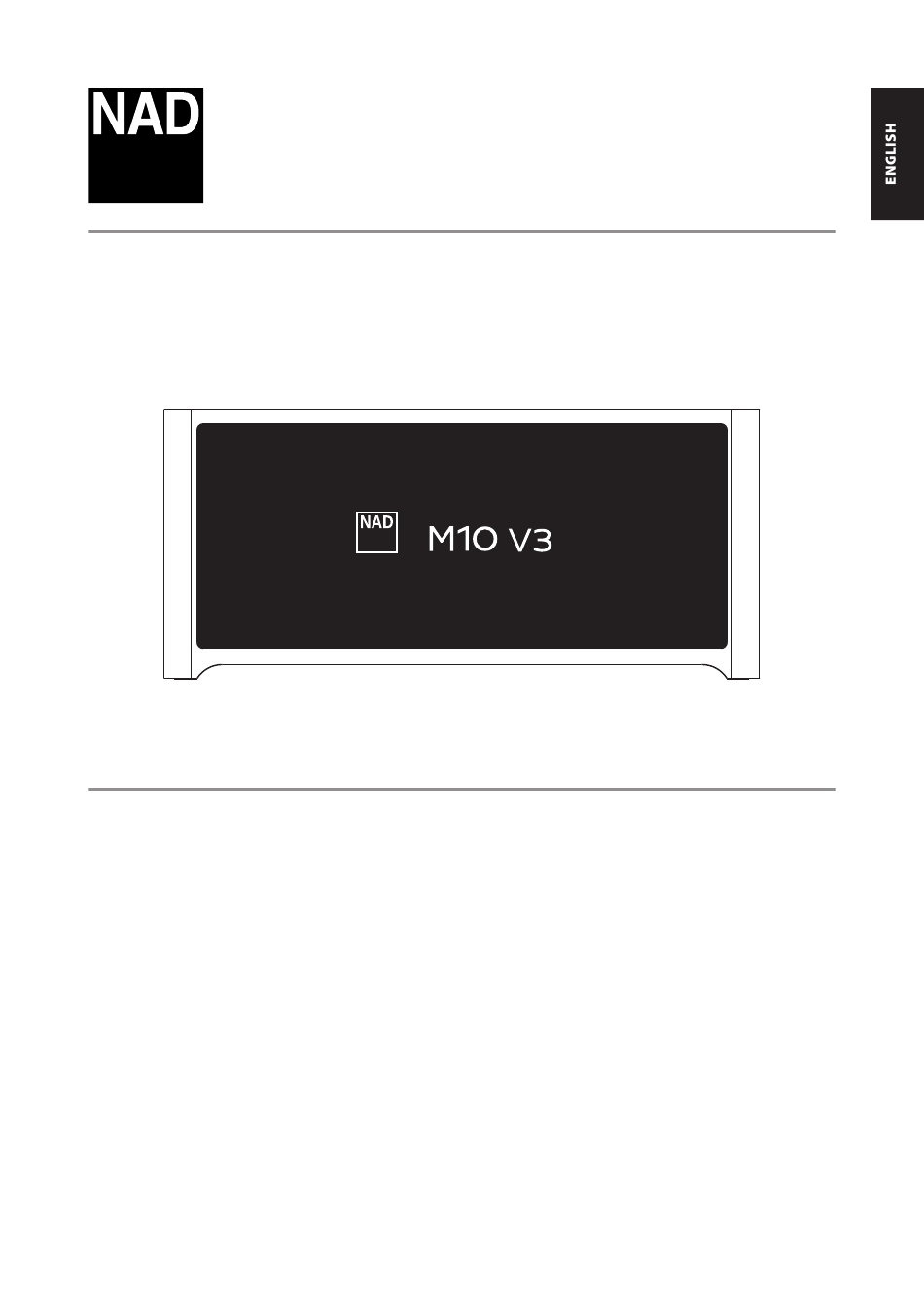

- Page 1 M10 V3 ® BluOS Streaming Amplifier MASTERS Owner’s Manual...
-
Page 2: Important Safety Instructions
M10 V3 is in compliance with the European Union energy legislation. M10 V3 complies fall into such power lines or circuits. When installing an outside antenna system,... - Page 3 To ensure compliance, operations at closer than this distance is not recommended. IF IN DOUBT CONSULT A COMPETENT ELECTRICIAN. NAD® is a trademark of NAD Electronics International. NAD Electronics International is a division of Lenbrook Industries Limited. ©NAD, All Rights Reserved...
-
Page 4: Table Of Contents
STATUS INDICATOR (NAD LOGO) ........10... -
Page 5: Getting Started
SETUP” prompt. Select your M10 V3 network ID or custom name and follow the prompt instructions to complete the setup. Available * The M10 V3’s unique network ID is listed as the product name (i.e., M10 software upgrade will be automatically checked and loaded during V3) immediately followed by the last four digits in the MAC (Machine configuration. - Page 6 Select your M10 V3 from Add Player window to proceed with the setup. k Input the Name you prefer to identify your M10 V3. You can either keep the Player Name entered in Step f or rename it again. Select Next to continue.
-
Page 7: Identification Of Controls
ATTENTION! Please ensure that the M10 V3 is powered off or unplugged from the mains power outlet before making any connections. It is also advisable to power down or unplug all associated components while making or breaking any signal or AC power connections. - Page 8 REAR VIEW IMPORTANT • Ensure that the audio setting/format of ARC/eARC-connected devices to To wake up M10 V3 from network standby mode, proceed with any of M10 V3 is set to PCM only. the following steps • Only audio output signal from TV is supported by HDMI eARC port.
-
Page 9: Bluos Remote Control
4 Select the IR Channel setting (Channel 0 to Channel 7). For your BC1 remote control and M10 V3 to work together, the IR Channel setting of M10 V3 must be the same as that of the BC1 remote control. -
Page 10: Top And Front View
TOP AND FRONT VIEW STATUS INDICATOR (NAD LOGO) • This indicator will be amber when M10 V3 is in vacation mode. • When M10 V3 is powered up from vacation mode, this indicator will change from amber to solid white. - Page 11 10 Bluetooth: Set Bluetooth connection to Manual, Automatic, Guest volume decline or Disabled Bluetooth availability 2 Room Name: Create a customized room name for the M10 V3 11 Volume limits (dB): Set volume range from lowest to highest level using the pop up keyboard...
-
Page 12: Source Setup
6 MQA Pass-through (applies only to Coaxial and Optical Sources): 2 Name: Customize the Source’s Name using the pop-up keyboard Enable MQA Pass-through for the M10 V3 to act as MQA decoder or renderer when MQA certified CD player or other MQA certified devices are connected to coaxial or optical input ports. -
Page 13: System Info
AMP Protect/DC Error: If an internal fault is detected, “Yes” is shown in the display along with a message prompt instructing the user to hard cycle the power of the M10 V3 - this is required to clear the error. “No” indicates the unit is operating as intended. -
Page 14: Operation
OPERATION BLUETOOTH HEADPHONE/SPEAKER PAIRING DISCONNECT/FORGET DEVICE Bluetooth headphones/speakers can be paired to your M10 V3 using the BluOS App. CONNECT... -
Page 15: Master Quality Authenticated
M10 V3. DIRAC LIVE The proprietary Dirac Live is integrated with your M10 V3. Dirac Live® is a patented room correction technology that not only corrects the frequency response, but also the impulse response of a room’s loudspeakers. Dirac... -
Page 16: Reference
REFERENCE SPECIFICATIONS GENERAL SPECIFICATIONS Rated output power into 8 ohms 100W (ref. 20 Hz – 20 kHz at rated THD both channels driven) Rated output power into 4 ohms 200W (ref. 20 Hz – 20 kHz at rated THD both channels driven) THD (20 Hz -20 kHz) <0.03% (250mW to 80W 8 ohms) <0.03% (250mW to 100W 4 ohms) -
Page 17: Dimension And Weight
Some supported services are not available in all geographic regions due to copyright laws and licensing agreements. Check supported services availability in your area or region. Gross dimension includes feet and extended rear panel terminals. Specifications are subject to change without notice. For updated documentation and features, please check out www.NADelectronics.com for the latest information about M10 V3. - Page 18 All rights reserved. NAD and the NAD logo are trademarks of NAD Electronics International, a division of Lenbrook Industries Limited. No part of this publication may be reproduced, stored or transmitted in any form without the written permission of NAD Electronics International.
