CONNECTION DIAGRAMS

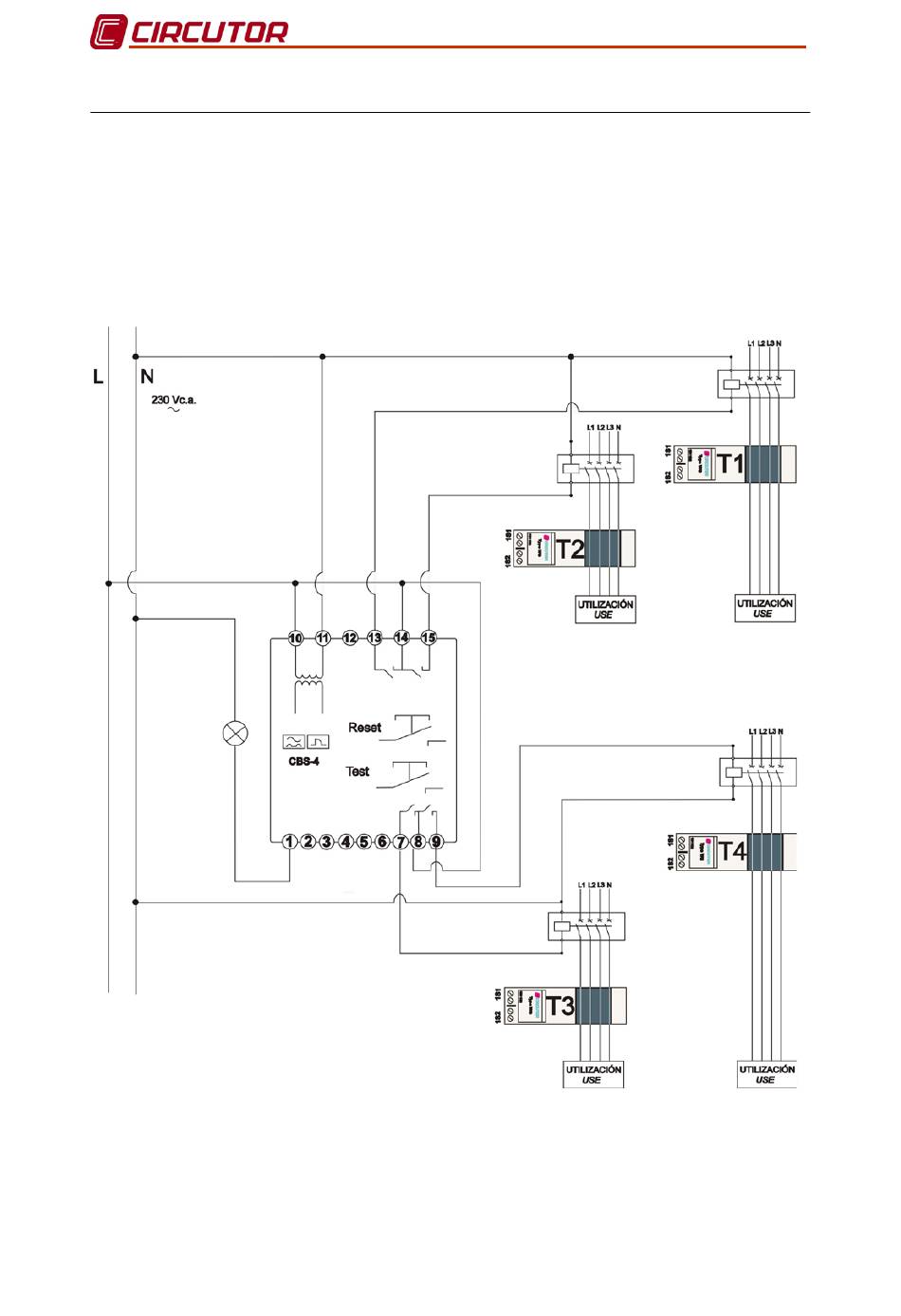

Connection of CBS-4/CBS-4C circuit breaker elements with current shunt coil. In the event of an earth
leakage relay trip due to a fault, test or error of the earth leakage current transformer.
1. See cause of the tripped channel on the red display.
2. Rearm the circuit breaker element.
3. Press the RESET button of the device for the tripped channel.
Earth leakage protection relay
Page 9 of 29
