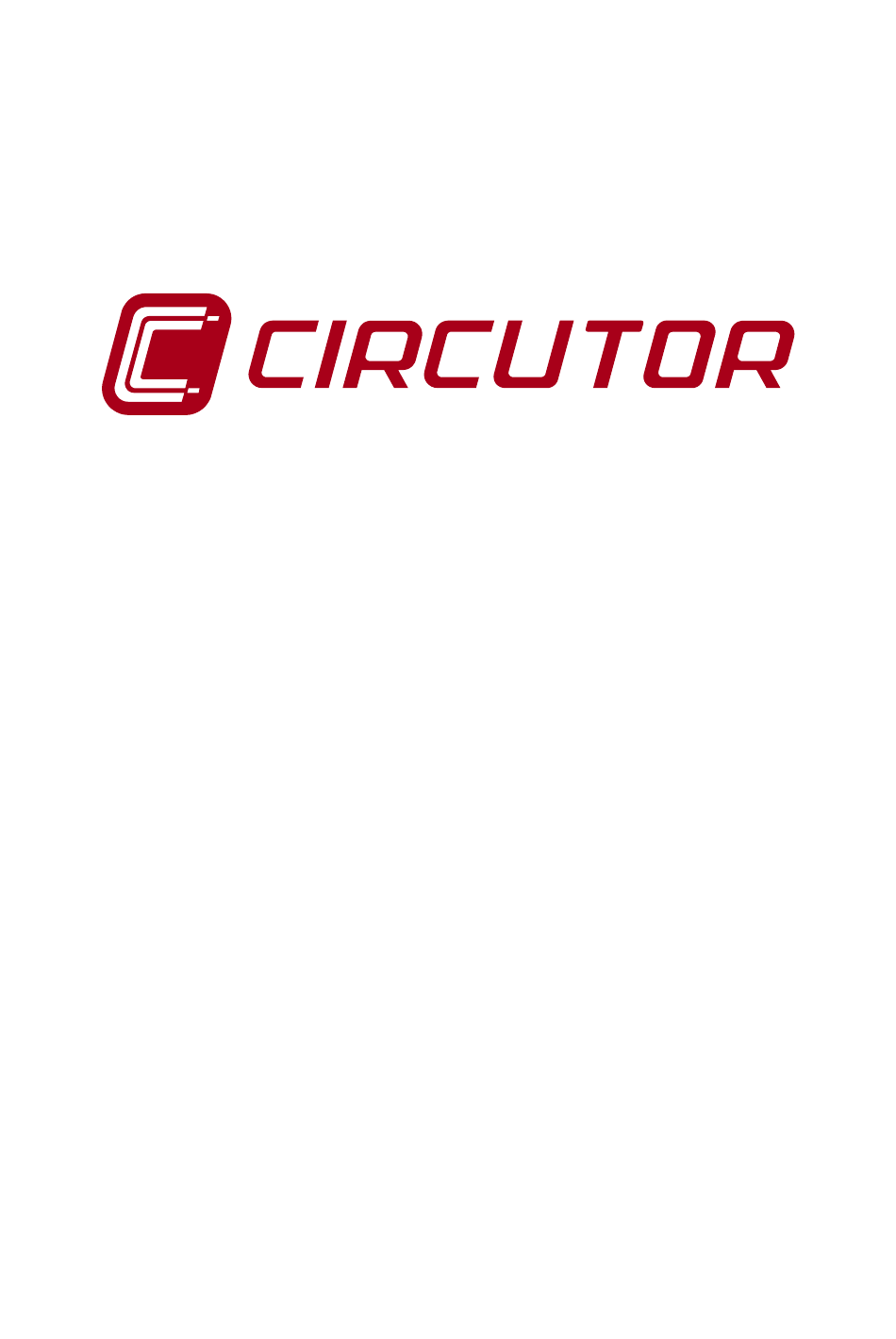

  • Page 1 CONTROL DEVICE FOR ELECTRONIC EARTH LEAKAGE PROTECTION RELAYS CBS-4 SERIES INSTRUCTION MANUAL M98228301-03-17B CIRCUTOR, SA...

  • Page 2: Table Of Contents

    Earth leakage protection relay Verifications upon receipt This manual provides installation tips and a guide for use of the control device for CBS-4 earth leakage relays with the purpose of achieving its optimum performance. Upon receiving the device, check the following points: •...
  • Page 3 Earth leakage protection relay Page 3 of 29...

  • Page 4: General Features

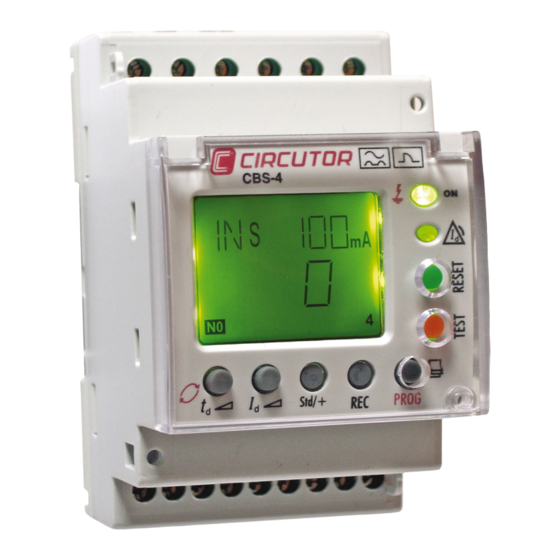

    Earth leakage protection relay GENERAL FEATURES The CBS-4 earth leakage device is a type A programmable electronic earth leakage protection device with 5 independent relays: 4 relays for controlling the circuit breaker elements of the four channels and performing the protection and pre-alarm function, which has prevention and maintenance functions in the installation.
  • Page 5 Earth leakage protection relay Main Features  True RMS measurement.  Type A earth leakage protection. IEC 61008.1  Immunity to transients. IEC 61008.1  Filtering of high frequencies IEC 61008.1  Trip adjustment between 80 and 100% I ∆ ...

  • Page 6: Installation And Start-Up

    Earth leakage protection relay INSTALLATION AND START-UP This manual contains information and warnings that the user must adhere to in order to guarantee the safe operation of the CBS-4/CBS-4C, keeping it in a generally safe condition. The device should not be switched on until it has been mounted in its final location in the electric panel.
  • Page 7 Earth leakage protection relay C. External input for Trip/Rearm: - Terminals 10 – 12 - Type of input. Optocoupled - Maximum voltage / Maximum power 110 – 230 Vac (± 20%) / 0.7 W D. Earth leakage current measurement circuit Scale range Scale background: Display resolution...
  • Page 8 Earth leakage protection relay Connection features Device connection using cable with cross-section from 0.5 a 2 mm Recommended torque 0.5-0.6 Nm Length of stripped cable 5-7 mm To connect the earth leakage transformer over long distances, the use of braided cable is recommended.. List of terminals Description of terminals Pre-alarm signalling contact...

  • Page 9: Connection Diagram

    Earth leakage protection relay CONNECTION DIAGRAMS Connection of CBS-4/CBS-4C circuit breaker elements with current shunt coil. In the event of an earth leakage relay trip due to a fault, test or error of the earth leakage current transformer. See cause of the tripped channel on the red display. Rearm the circuit breaker element.
  • Page 10 Earth leakage protection relay Connection of the CBS-4/CBS-4C circuit breaker elements with the current undervoltage coil. In the event of an earth leakage relay trip due to a fault, test or error of the earth leakage current transformer. For connections via the current undervoltage coil, you need to activate the positive safety. More information about this on page 12.
  • Page 11 Earth leakage protection relay Connection of the earth leakage transformers of the WG series to the CBS-4/CBS-4C devices, which are associated with each channel to control, as follows: Page 11 of 29...
  • Page 12 Earth leakage protection relay CBS-4/CBS-4C connection with the voltage undervoltage coil is the same as the current shunt coil, with the main difference being the activation of the positive safety. In this way, by using a CONTACTOR you can rearm the protection by pressing RESET; however, if using a CIRCUIT BREAKER, you must rearm the circuit breaker element first.

  • Page 13: Description

    Earth leakage protection relay DESCRIPTION The device's front panel, which is made up of the display, buttons and LEDs, is protected by a sealable plastic cover, conveniently perforated for access to the RESET, TEST and PROGRAMMING buttons. Generic functions of the LEDs and buttons on the front panel: The device has two light indicators.
  • Page 14 Earth leakage protection relay SENSITIVITY I button ∆  Allows to choose from values of 30, 100, 300, 500 mA , 1 and 3 A  Use extended scale in SETUP programming to add 5, 10 and 30 A to the above values list. DELAY, t button ...

  • Page 15: Operation

    Earth leakage protection relay OPERATION When the device is powered at its rated voltage, the LED on the front panel is ON, the backlit LCD is lit in green to indicate the version of the software and hardware. After a short period, the version disappears and the default display values are displayed.
  • Page 16 Earth leakage protection relay The CBS-4/CBS-4C allows for the display and programming of all the parameters required to complete the setting of the earth leakage protection with pre-alarm and communications. MAGNITUDE UNIT Pre-alarm sensitivity in % I ∆ Working frequency (*) No.
  • Page 17 Earth leakage protection relay REMOTE TRIP. When a trip is forced (input terminals 10-12, applying a 230 Vac voltage) the device trips all the channels and is disabled, reporting this incident through the “EXT” message on the display lit up in red and the ON LED.

  • Page 18: Device Adjustments

    Earth leakage protection relay DEVICE ADJUSTMENTS Direct adjustments Hold and press one of the direct adjustment buttons to enter PROG mode (icon in LCD) and change the relay setting. If while in PROG mode any other direct function is activated (I /+ and Auto), the setting of the parameter in the relay viewed is also enabled.

  • Page 19: Communication Setup Programming

    Earth leakage protection relay COMMUNICATION SETUP Programming *(ONLY FOR TYPES WITH COMMUNICATION) One or more CBS-4C devices can be connected to a computer or PLC to automate a production process or an energy control system. This system can be used to centralise data at one single point as well the day-to-day operations of each one;...
  • Page 20 Earth leakage protection relay Transmission speed The display shows the letters “bd” in the top left hand corner indicating bauds and the communication speed in devices of a thousand in the centre. To modify the communication speed, press the td button repeatedly to increase the value of the digits in the centre of the screen.

  • Page 21: Measurement Setup Programming

    Earth leakage protection relay MEASUREMENT SETUP PROGRAMMING The configuration parameters of the CBS-4/CBS-4C can be displayed and/or modified from the measurement SETUP menu; and the parameters can be adapted to the requirements of the network and/or application topologies. This SETUP menu is preceded by the communications SETUP menu if the device is a CBS-4C.
  • Page 22 Earth leakage protection relay ALARM SETUP PROGRAMMING The display shows ALAR. Press PROG to enter and modify. The value of the configured current percentage appears in the bottom right hand corner of the screen. To modify the pre-alarm current, press the td button repeatedly, modifying the percentage. When the desired value is shown on the screen, confirm and go to the next menu by pressing the PROG button, and exit the SETUP with the SAVE message.

  • Page 23: Setup Menus Diagram

    Earth leakage protection relay SETUP MENUS DIAGRAM THE CBS-4 (CBS-4C WITH COMMUNICATIONS) STARTS PROGRAMMING VIA SETUP IN THE COM SUB-MENU.THIS WILL NOT APPEAR IN THE CBS-4 TYPE. Page 23 of 29...

  • Page 24: Modbus Protocol

    Earth leakage protection relay MODBUS PROTOCOL © The CBS-4 multipoint earth leakage system communicates using the MODBUS RTU© protocol (Pulling Question / Response). In the MODBUS protocol, the RTU (Remote Terminal Unit) mode is used; each 8-bit byte in a message contains two 4-bit hexadecimal characters.
  • Page 25 Earth leakage protection relay Example of MODBUS© read QUESTION 0A 03 00 00 00 0A 71 76 Peripheral number, 10 in decimal Reading function 00 00 Log in which reading is to start 00 0A Number of logs to read: 10 in decimal 71 76 CRC character RESPONSE...
  • Page 26 Earth leakage protection relay CONNECTING THE RS485 BUS The RS - 485 cabling should be completed using twisted pair cables with mesh shielding (minimum 3 wires), with a maximum distance of 1.2 m between the CBS-4 and the master device. A maximum of 32 devices can be connected to the Bus in series.
  • Page 27 Earth leakage protection relay APPLICATIONS This system can be used not only for the day-to-day operation of each one, but also to centralise data in a single log point (Software Power Studio®, M90221). The different devices and CBS-4C in a network can be monitored and configured in an installation.
  • Page 28 Earth leakage protection relay You can see the operating status of the device from the PC. Page 28 of 29...
  • Page 29 Earth leakage protection relay You can program all the values of the device that can be configured with the device's keypad from the PC. CIRCUTOR, SA Vial Sant Jordi, s/n 08232 Viladecavalls BARCELONA (SPAIN) Tel. +34 93.745.29.00 Fax. +34 93.745.29.14 Web: http://www.circutor.com...
